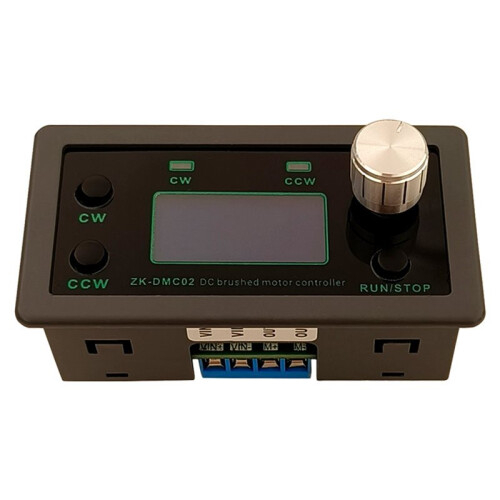

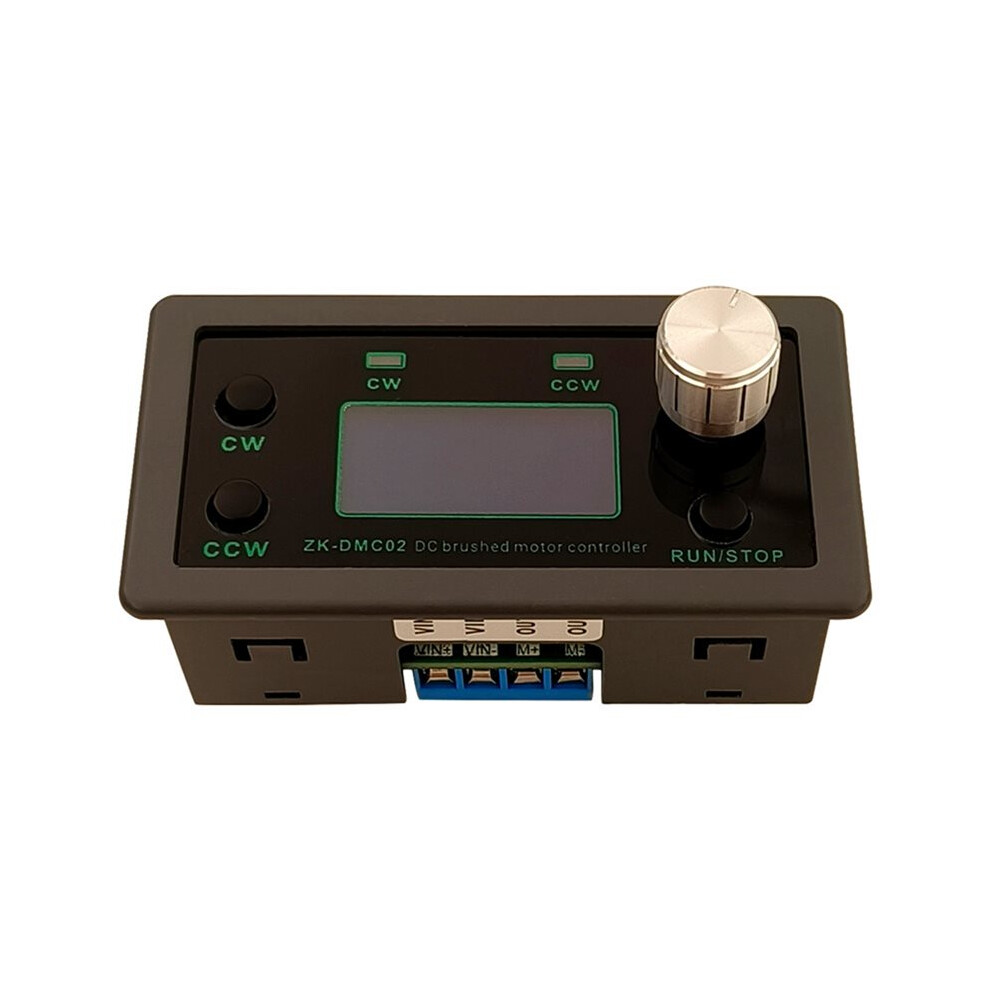

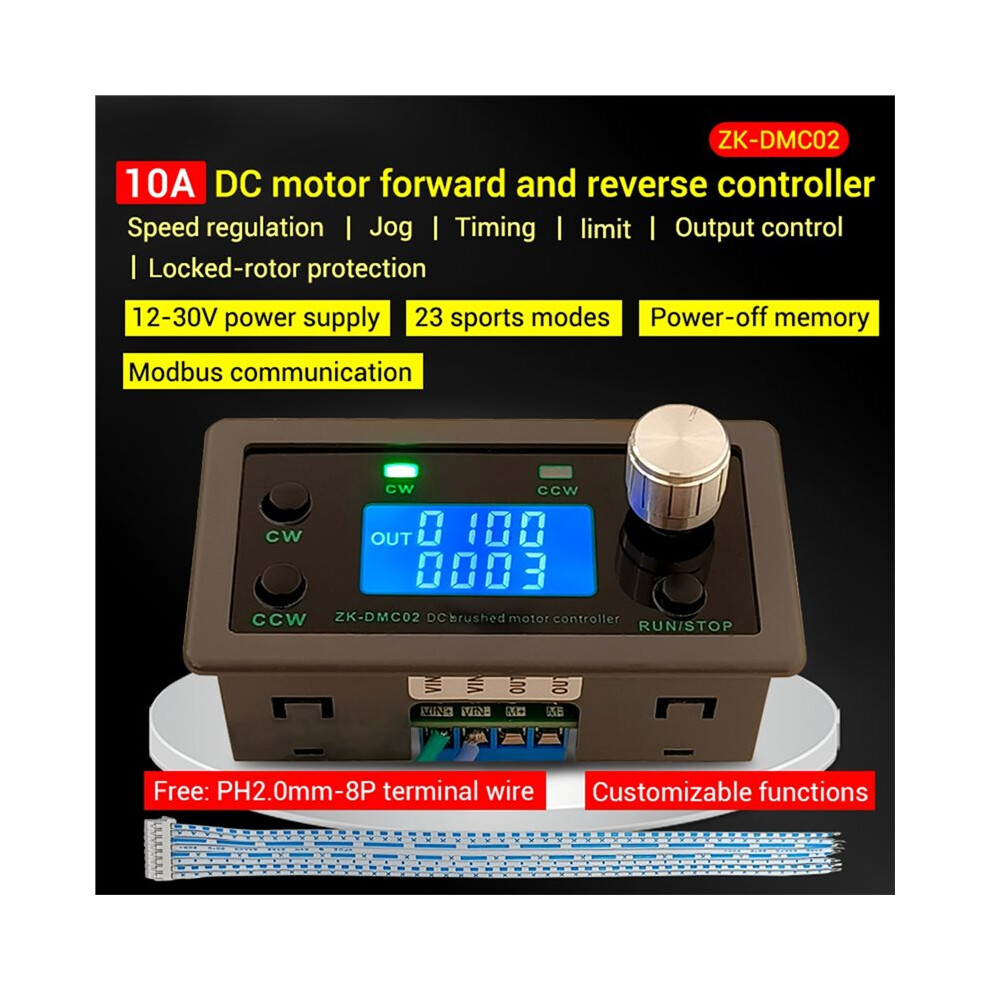

DMC02 Motor Control Forward/Reverse Controller 12-30V 10A 12V 24V Brushed Motor Controller

DMC02 Motor Control Forward/Reverse Controller 12-30V 10A 12V 24V Brushed Motor Controller Description

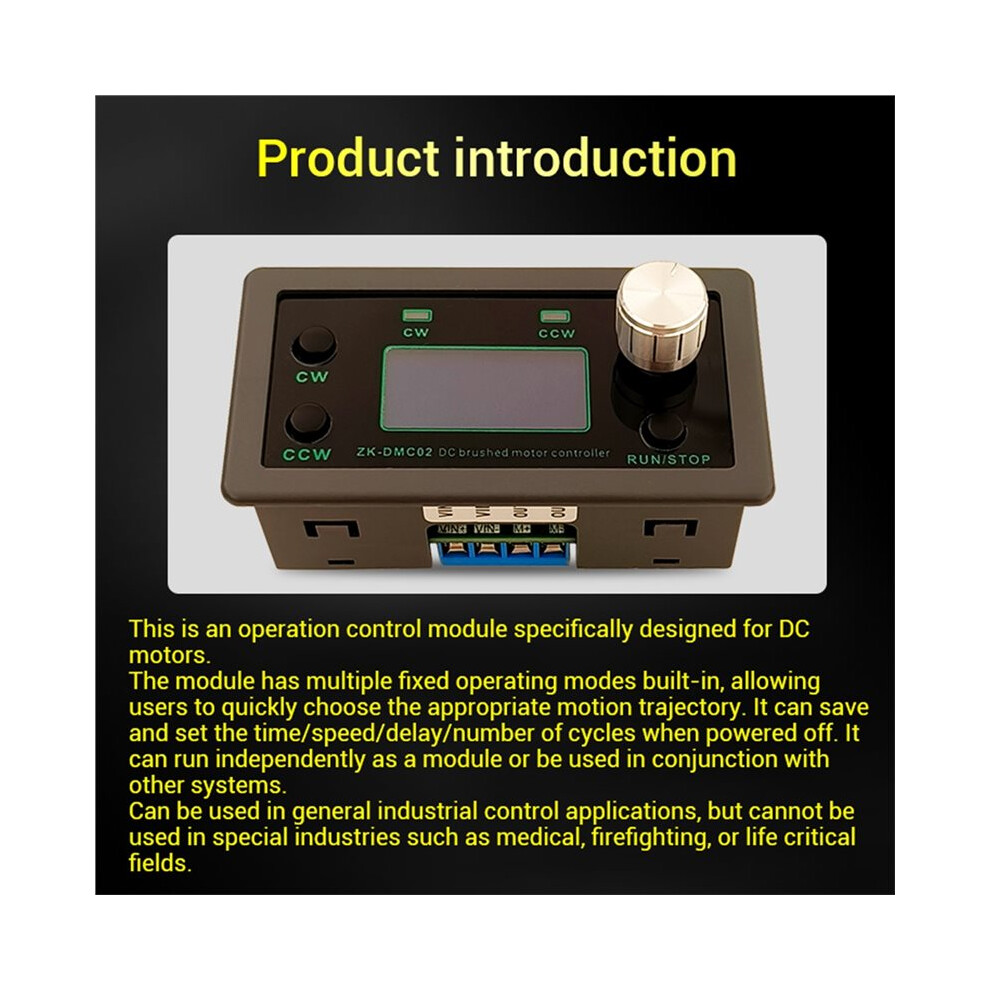

This is a dedicated motor control module.
The module has multiple built-in fixed operating modes, allowing users to quickly select the appropriate motion trajectory. It can save and set /speed/delay/cycle count even after power failure. It can operate independently or be used with other systems. Suitable for general industrial control applications.
Uses a TTL serial port interface, communication protocol is MODBUS-RTU, baud rate is 9600. This product only supports function codes 0x03, 0x06, and 0x10.

Product Model: ZK-DMC02 Motor Control Driver with Brushed Speed Control
Compatible Motor: Motor
Power Supply Range: 12-30V Universal
Drive Method: H-bridge
Drive Capacity: to 10A RMS
Drive Frequency: 1kHz

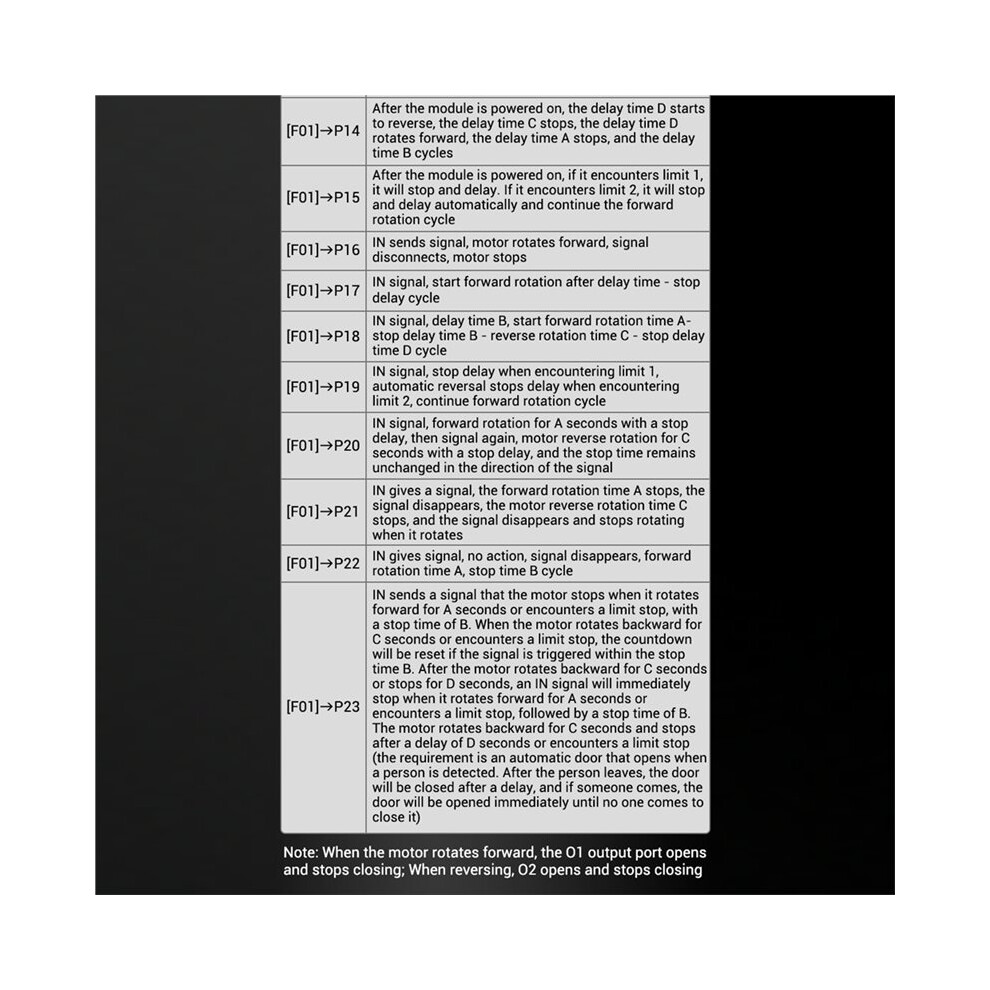

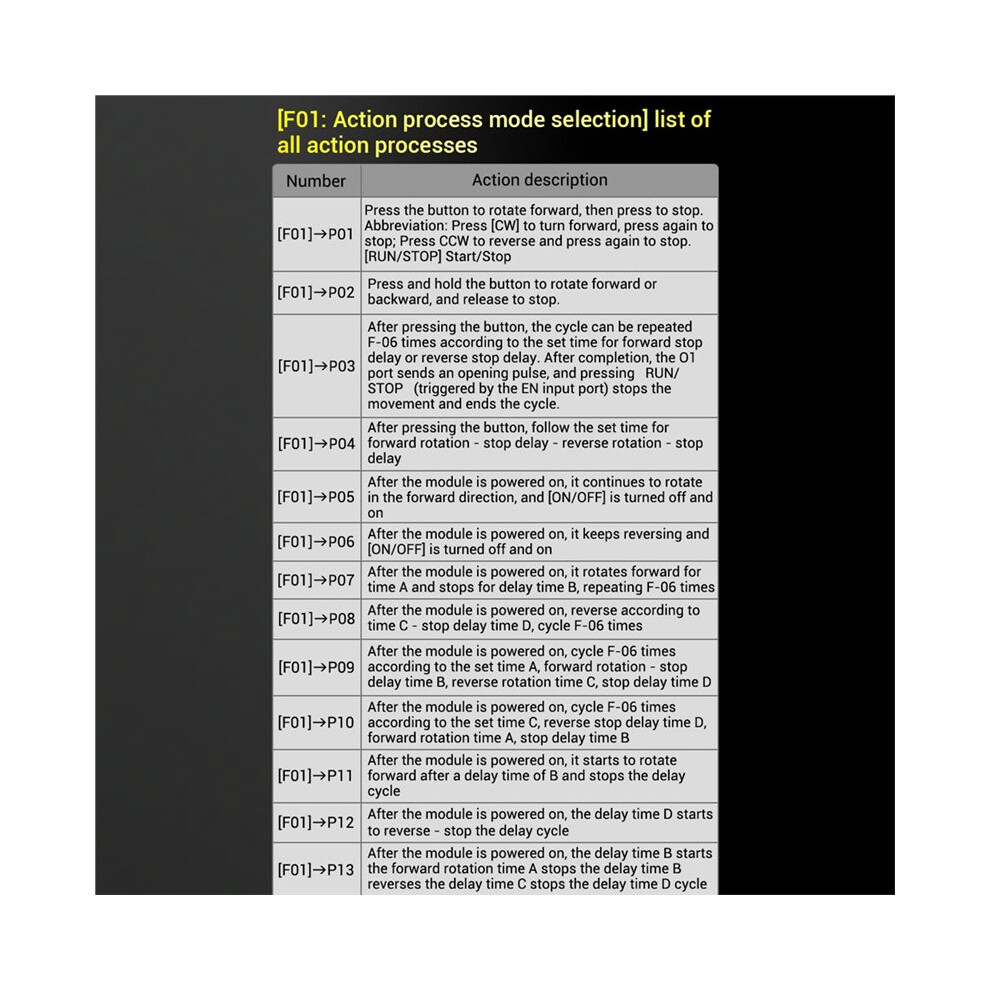

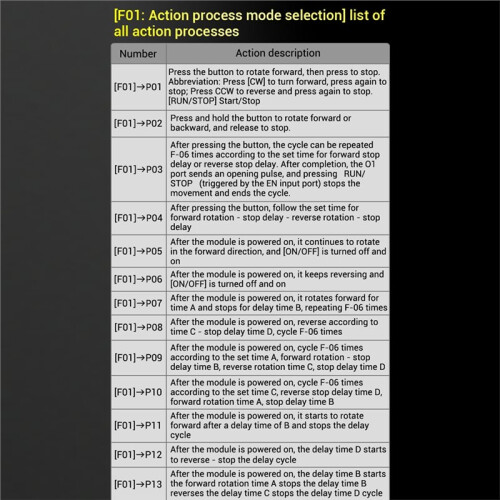

Control Modes: 23 types
Communication Method: MODBUS
Instruction Features: Simplified and optimized multiple commonly used instructions
Acceleration/Deceleration Control: Yes
Input Reverse Connection Protection: Yes
Remote Communication Control: TTL Serial Port
Main System Functions: Automatic, Manual, Setting, Serial Port Control
Cycle Count: 1-9999 times
Input Power Supply: Power Supply
Protection Function: Settable Protection Current
Expansion Interfaces: Power Supply/Button/Limit/Output
Operating Environment: -10~60 (Non-condensing)
Color: As Shown
Material: plastic

Package Contents:
1 * Motor Controller
