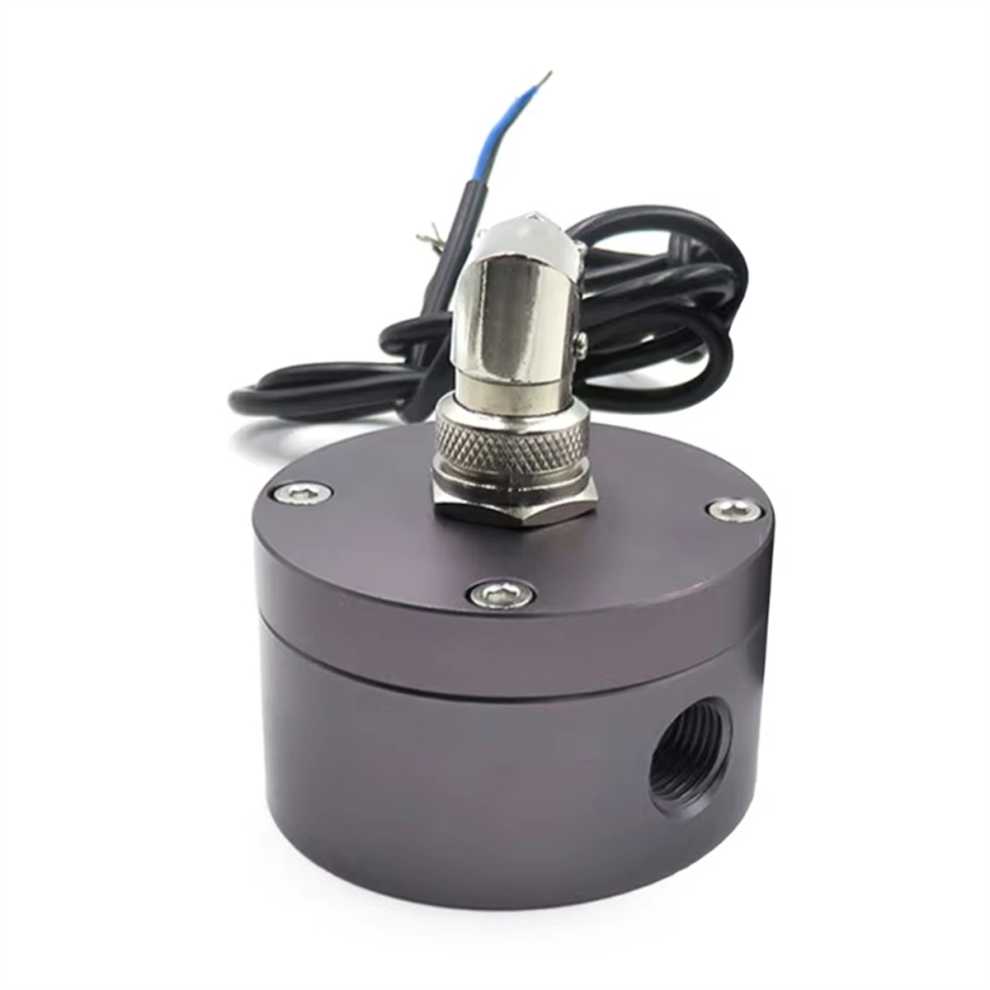

DN10 Flowmeter Gear Oil Flow Meter Flow Sensor Liquid Flowmeter

DN10 Flowmeter Gear Oil Flow Meter Flow Sensor Liquid Flowmeter Description

DN10 Flowmeter Gear Oil Flow Meter Flow Sensor Liquid Flowmeter Description
Features: 3 types to select, choose different type according to your needs.
Stable performances, large flow, high precisions and fast response.
Made from quality material, leakproof, wear , high sensitivity.
The product is mainly used for testing oil, the cover is made from aluminum alloy material.
Good pressure resistance, can bear pressure up to 30kg.
Specifications:
Interface: DN10
Voltage: DC3.5-24V
Inner Diameter: 16.3mm
Thread Length: 12.5mm
Flow Range: 40-800L/H1%(Liquid is Water)
Water Pressure Resistance: 1.0MPA
Pulse Frequency: Hz=[2.3xQ]1%
High Level Output Pulse: Large Than DC4.5V(Input DC5V)
Output Pulse Duty Ratio: 5010%
Working Current: 15mA(DC5V)
Colour: Random colors, no specified colors accepted
Material: Aluminum alloy +
Package Contents:
1 x Fluidmeter
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
