DN15 flow meter gear oil flow meter flow sensor liquid flow meter

DN15 flow meter gear oil flow meter flow sensor liquid flow meter Description

DN15 Flow Meter Gear Oil Flow Meter Flow Sensor Liquid Flow Meter Description
Features: 3 types to choose from, select a different type according to your needs.
Stable performance, high flow rate, high precision and fast response.
Made of high-quality material, leak-proof, wear-resistant, high sensitivity.
The product is mainly used for testing oil; the cover is made of aluminum alloy.
Good pressure resistance, can withstand a pressure of up to 30 kg.
Specifications:
Interface: DN15
Voltage: DC3.5-24V
Inner diameter: 19.1 mm
Thread: 10.27 mm
Flow range: 50-1200L/H1% (Liquid is water)
Water pressure resistance: 1.0 MPa
Pulse frequency: Hz=[2.4xQ]1%
High-level output pulse: Approximately DC 4.5 V (Input DC 5 V)
Output pulse duty cycle: 50-10%
Operating current: 15 mA (DC 5 V)

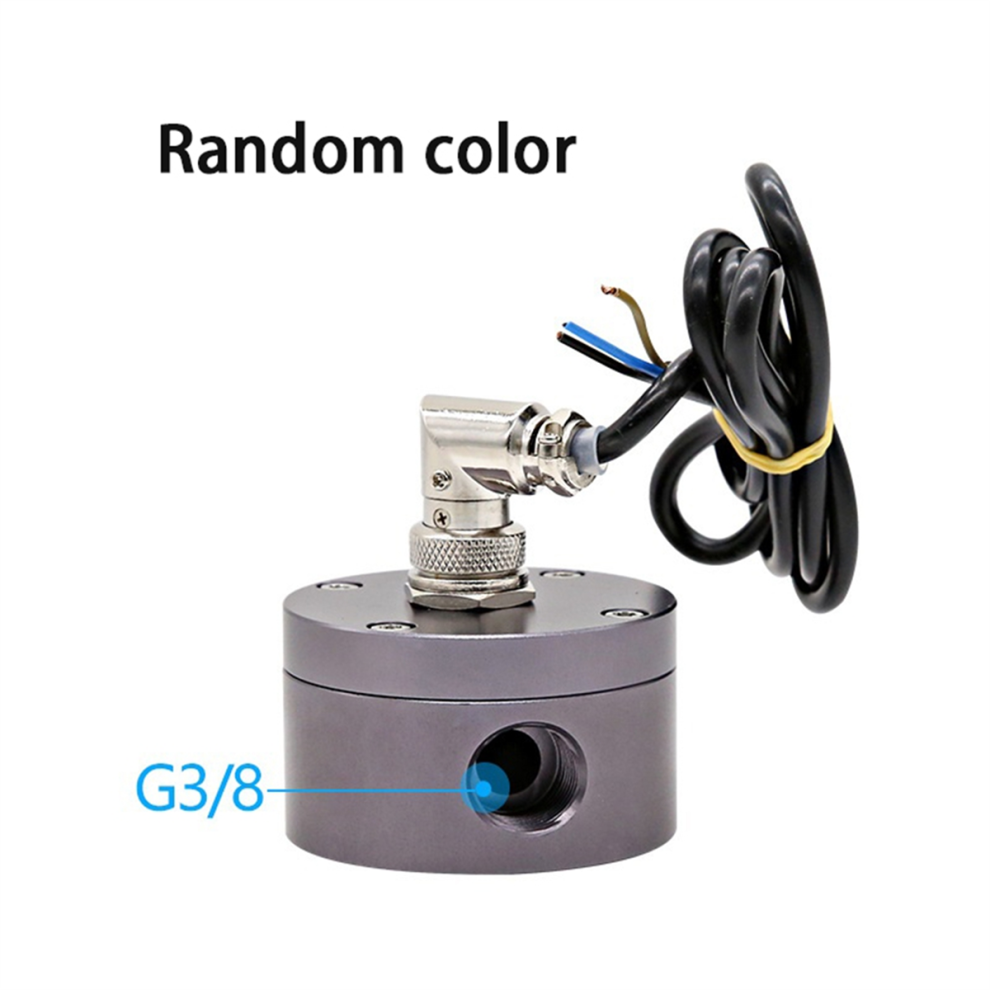

Color: Random colors, no specified colors possible
Material: Aluminum alloy +
Package contents:
1 x Fluid meter
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the original. The permissible measurement error is +/- 1-3 cm.
