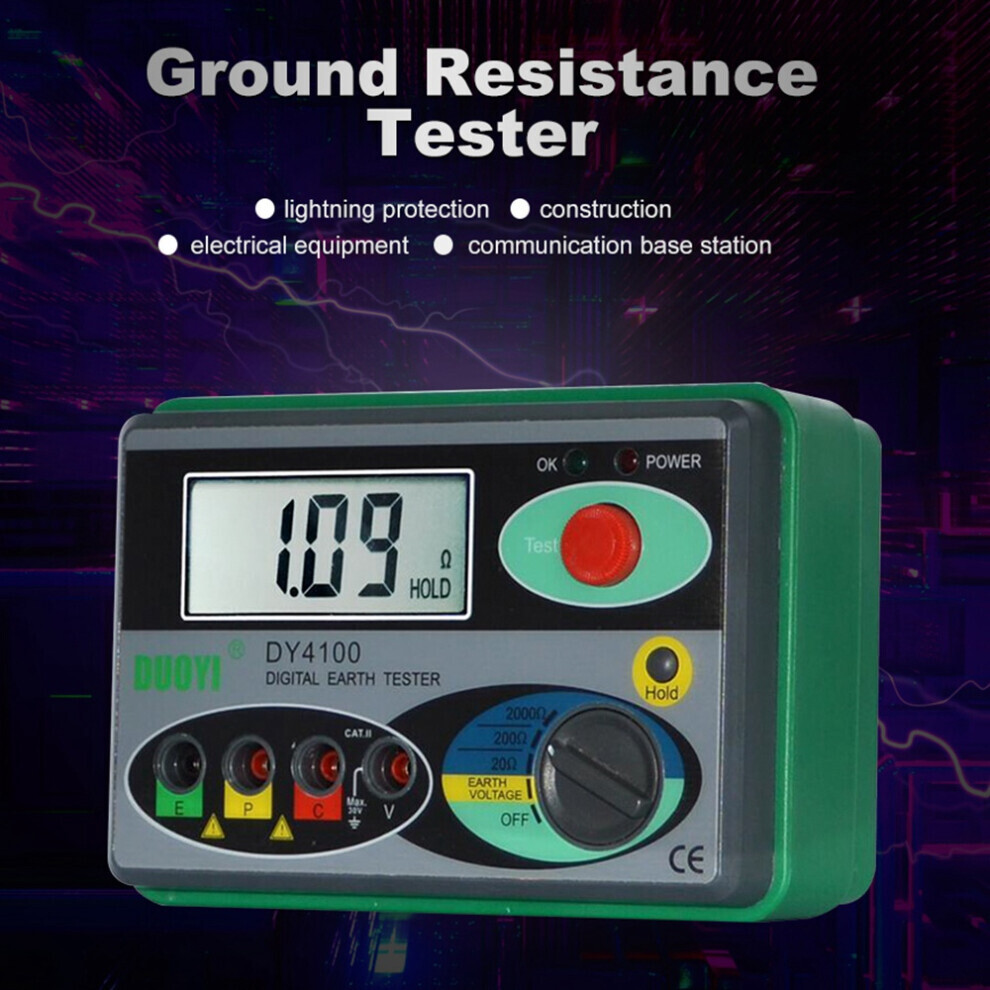

DY4100 Digital Resistance Tester Earth Ground Meter Multimeter

DY4100 Digital Resistance Tester Earth Ground Meter Multimeter Description

DY4100 Digital Resistance Tester Earth Resistance Meter Multimeter Description
1. The DY4100 digital earth resistance tester can test the earth resistance of earthing systems, including electrical equipment, as well as the resistance of low-resistance conductors and AC voltage tests.
2. This tester has more comprehensive functions, higher accuracy, is more convenient and reliable to operate, and thanks to its dustproof and water-resistant design, is better suited for outdoor use.
Features:
Color: as shown
Material: Plastic
1. Earth Resistance: 0/20/200/2000 Ω
2. Resolution: 0.01
3. Earth Voltage: 0-30 V +/-3% + 5
4. Data storage

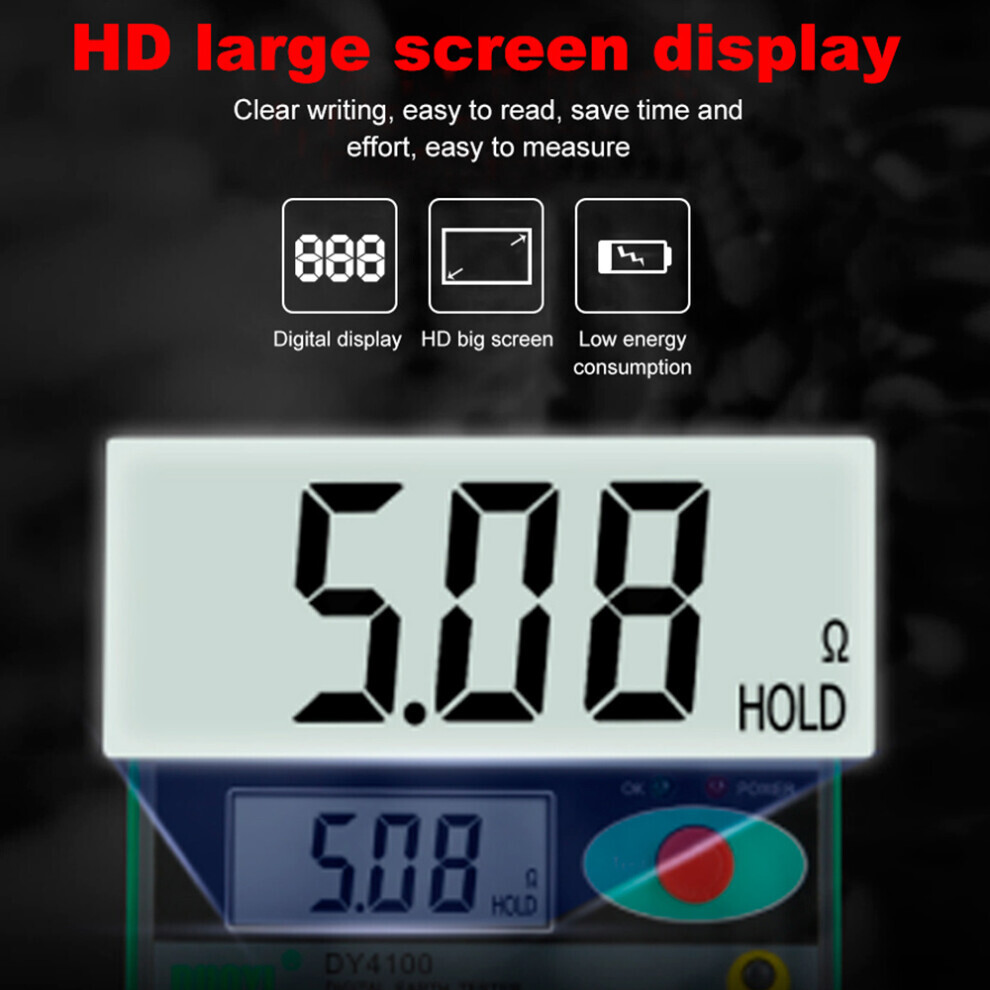

5. Function symbol display
6. Automatic range
7. Low battery warning
8. Power supply: AA 1.5V x 6 (UM3) 12V x 1 (not included)
9. Size: 150 x 100 x 70 mm
10. Weight: 0.680 g

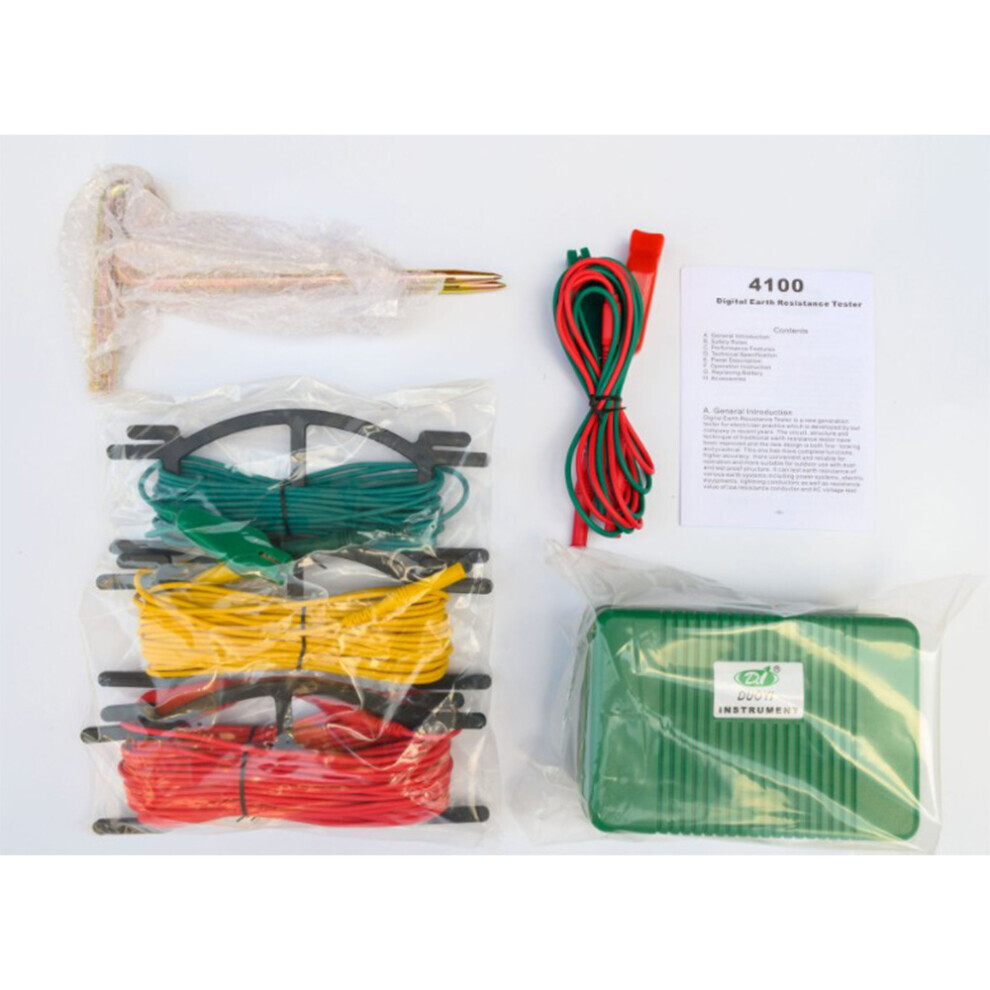

Scope of delivery:
1 set x DY4100 Digital Earth Resistance Tester
2 x additional earthing rails
3 x test leads (red 15-meter test lead/yellow 10-meter test lead/green 5-meter test lead)
2 x simple test leads (red 1.6-meter test lead/green 1.6-meter test lead)
Only the above-mentioned scope of delivery, other products are not included.
Note: Light and different displays may cause the color of the item in the picture to be slightly different from the original. The permissible measurement error is +/- 1-3 cm.
