Eight-decade resistor board, 0.1R-9.9999999MR (0-10MΩ), step accuracy

Eight-decade resistor board, 0.1R-9.9999999MR (0-10MΩ), step accuracy Description

Eight-decade resistor board, 0.1R-9.9999999MR (0-10MΩ), step accuracy Description

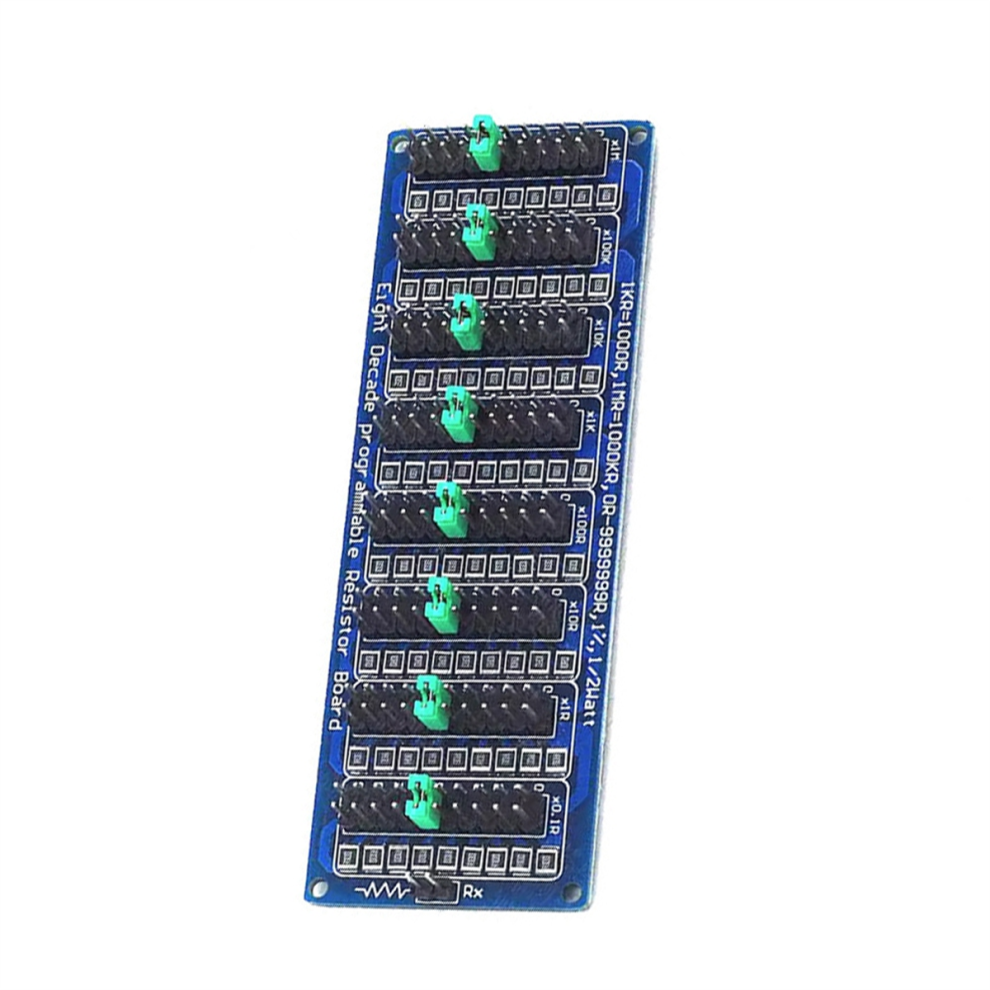

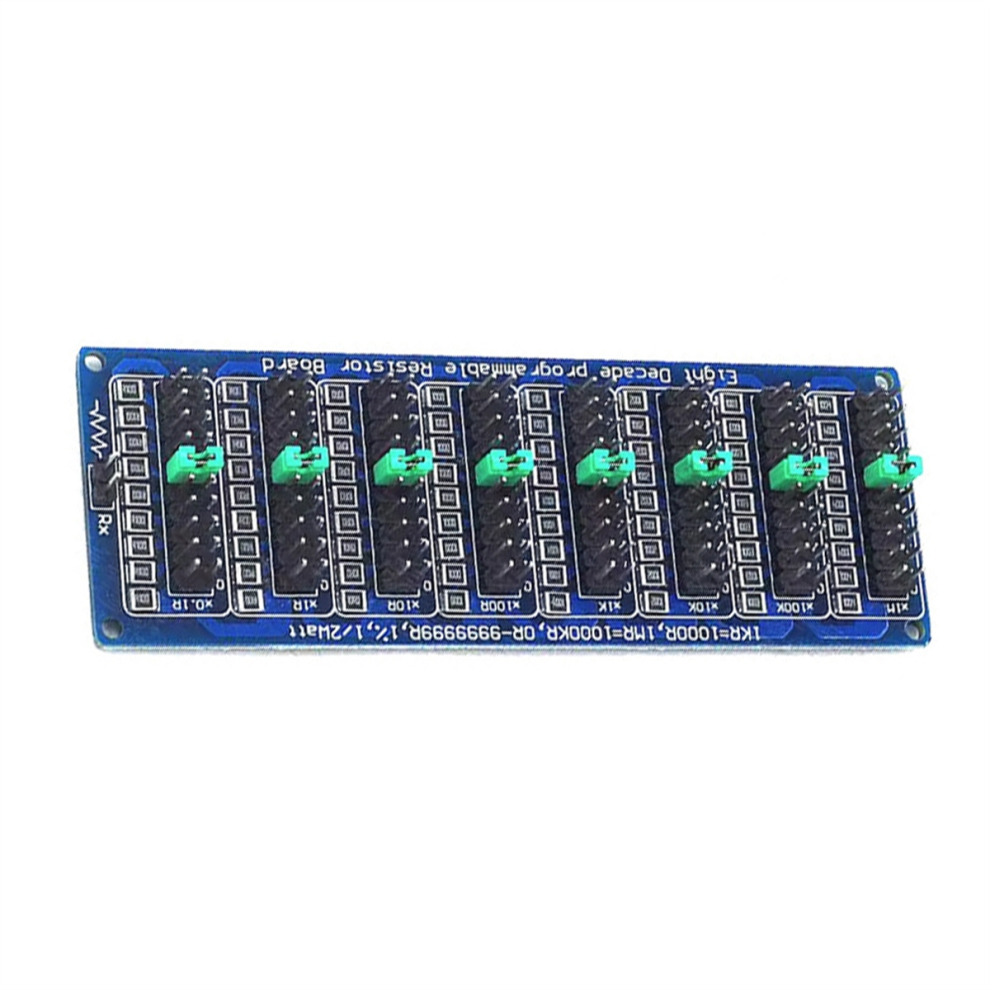

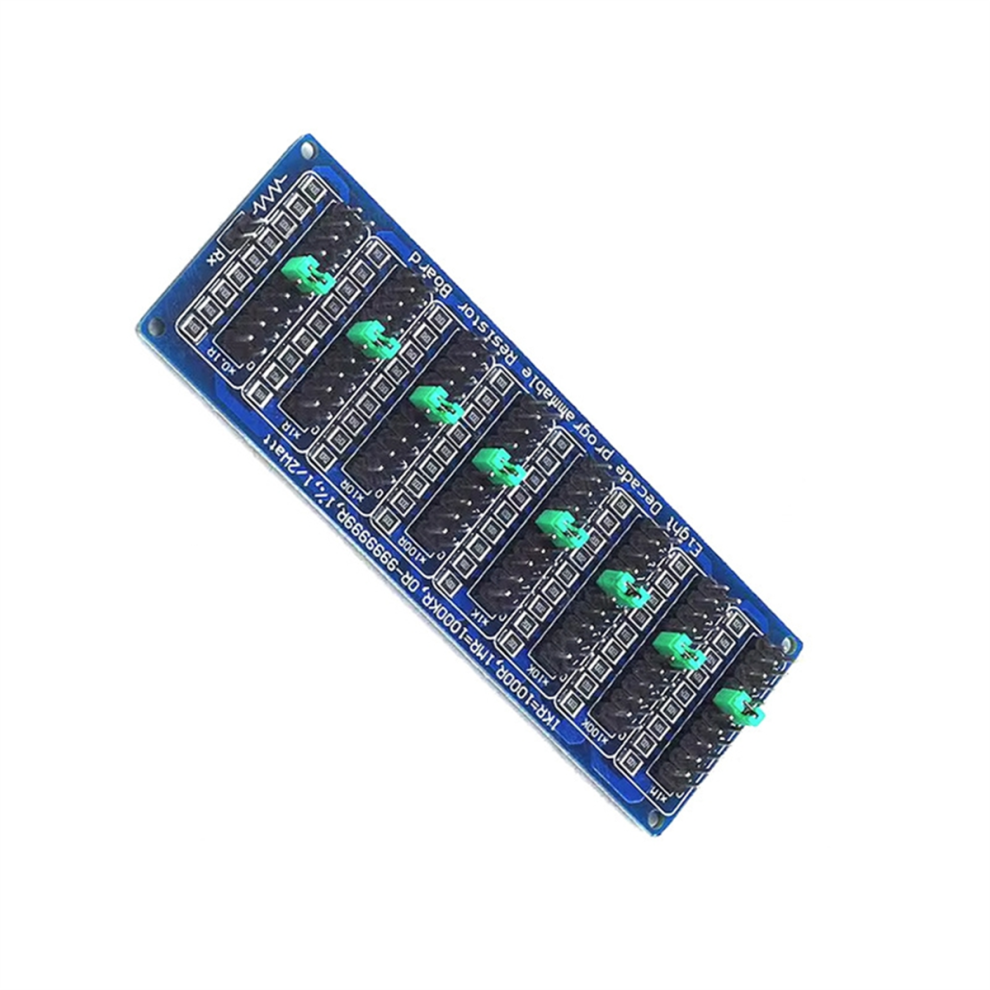

This is a "resistor replacement box", a good, cost-effective alternative solution with good accuracy, a wide range, and 0.1R step accuracy. It is excellent for educational experiments, the development of electronic designs, or test trimming. The resistance range can be flexibly and quickly adjusted from 0.1 to 9.9999999 MR (0-10 MS). Design based on the "resistance order" theorem. 1/2-watt tolerance +/-1% SMD resistors. High-quality FR4 fiber optic circuit board. Includes 8 spare jumper caps. Model number: Programmable Resistor Board. Programmable resistance: 0 to 9,999,999 ohms, 1 ohm per step. Resistance tolerance: 1%. Rated power: 1/2 W. Max. Operating voltage: 200 V

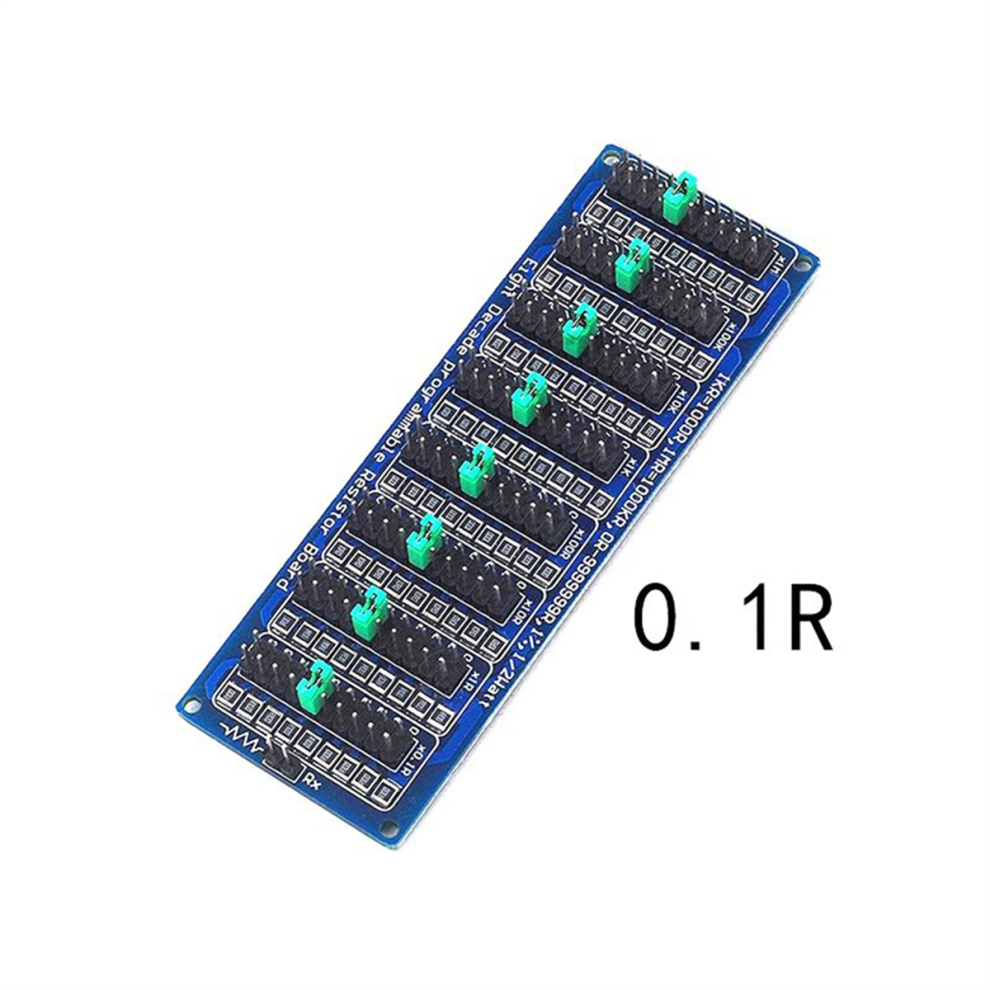

Type: 0.1 R
Color: as shown
Material: PCB
Package includes:
2 * Resistor module
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the original. The allowable measurement error is +/- 1-3 cm.
