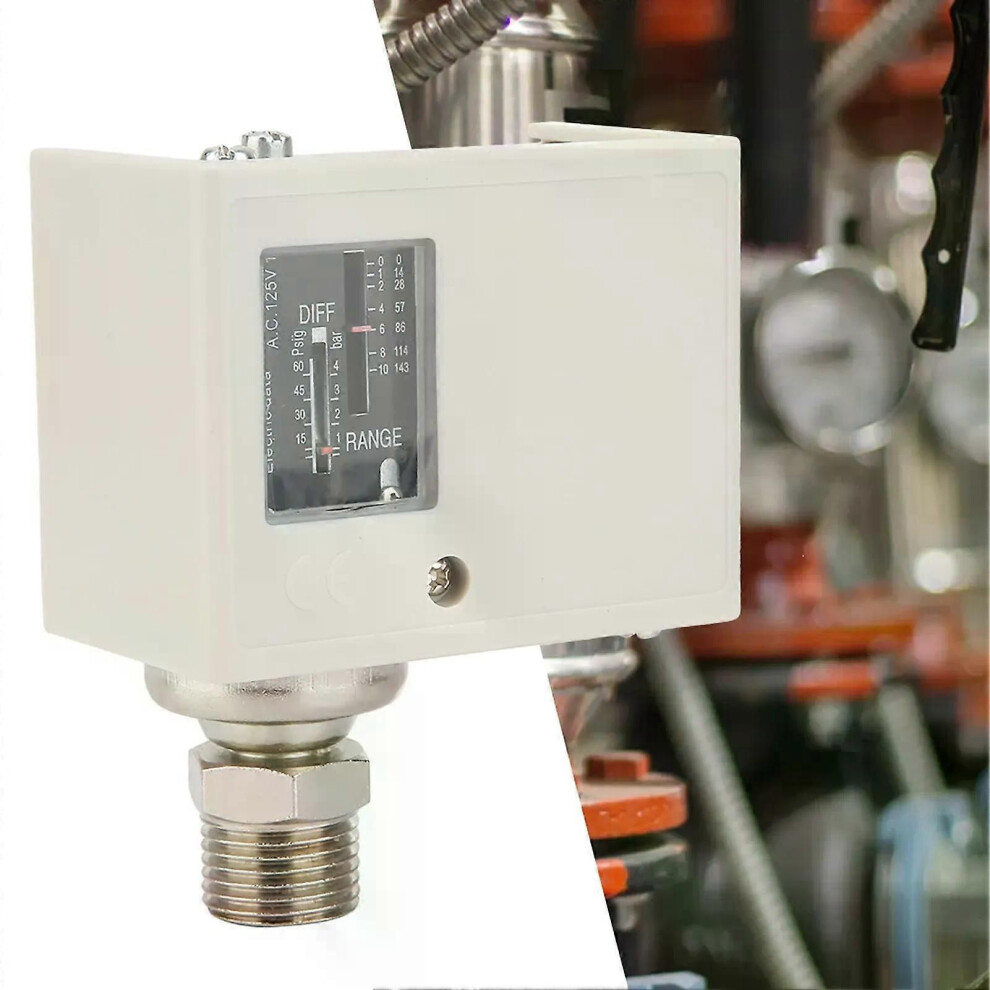

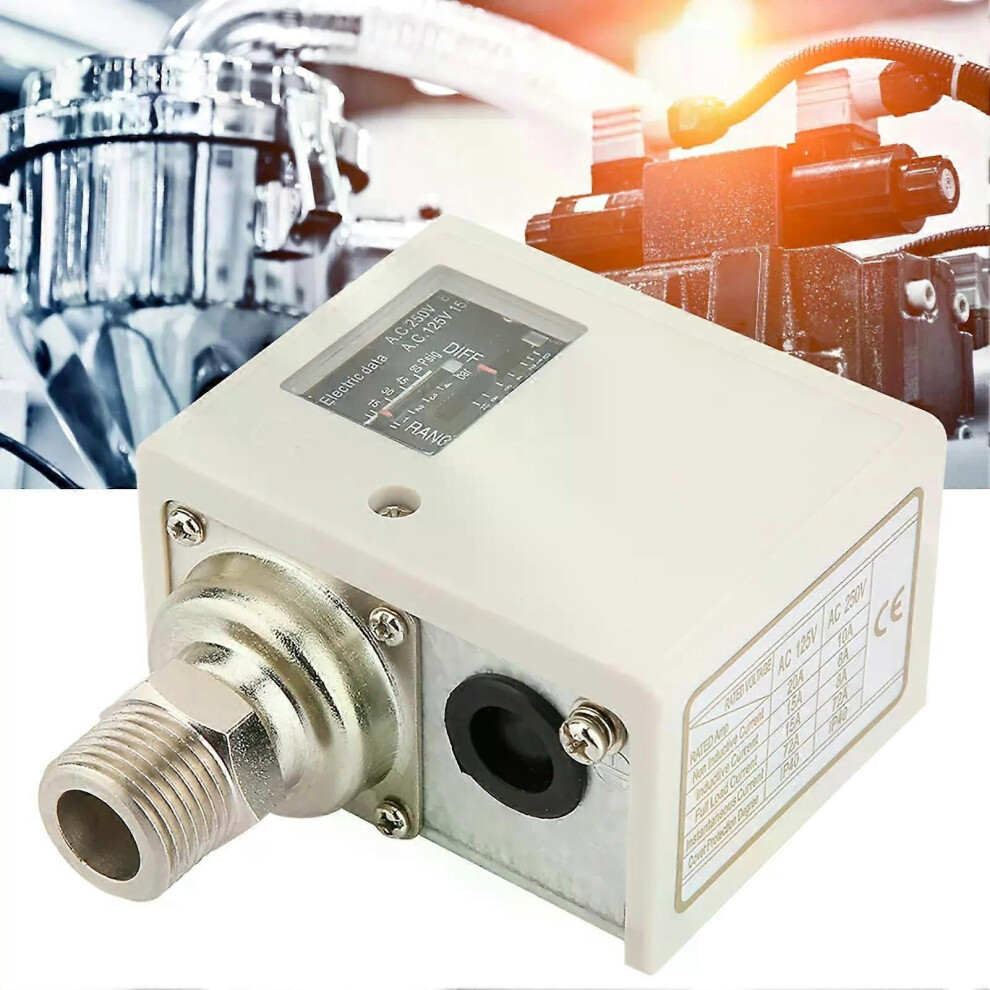

Electronic G1/2 Pressure Control Switch Anti-corrosion Water Pump Pressure Controller 24V-380V

Electronic G1/2 Pressure Control Switch Anti-corrosion Water Pump Pressure Controller 24V-380V Description

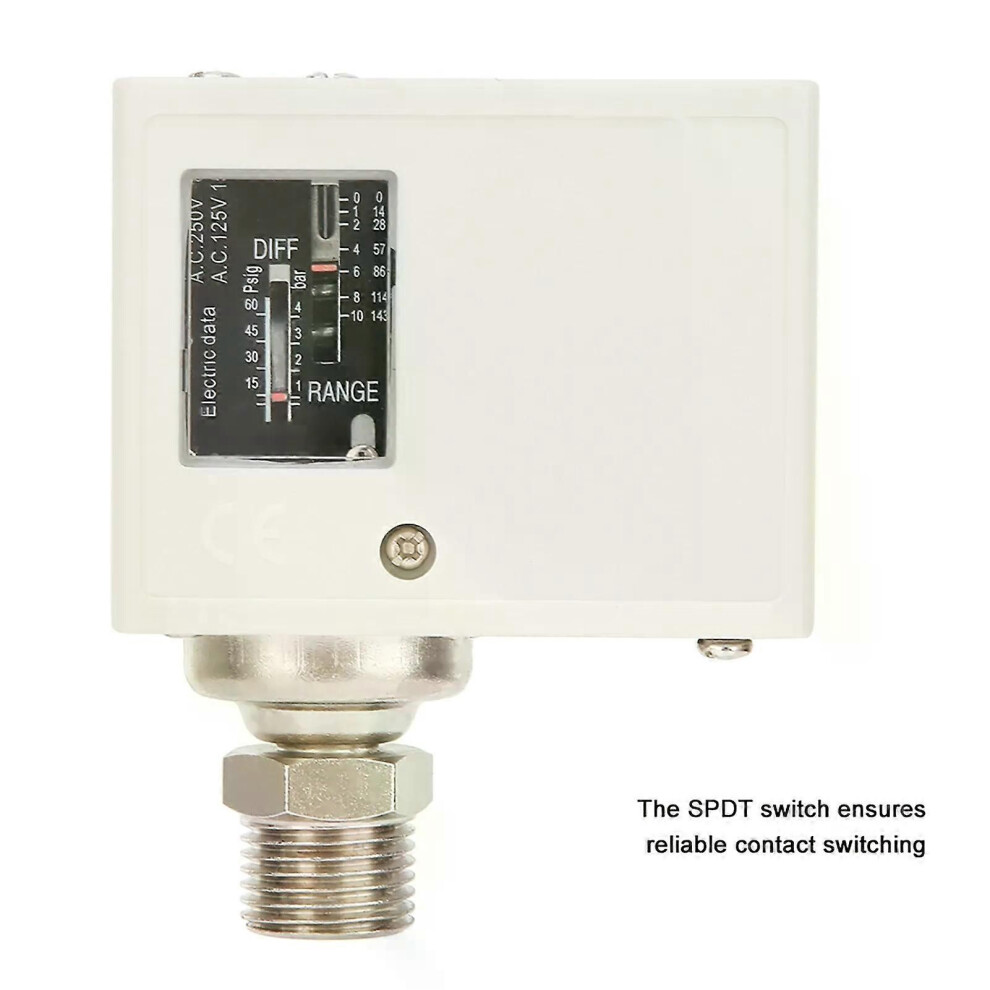

Made of high quality material, anti-corrosion, in use.Apply for , , liquid and other non-corrosive media.Equipped with mounting bracket and screws, easy to install.The SPDT switch ensures reliable contact switching.Mainly used for high and low voltage limit control of refrigeration equipment or automatic system conditioning equipment.SpecificationFeatures:
Made of high quality material, anti-corrosion, in use.Apply for , , liquid and other non-corrosive media.Equipped with mounting bracket and screws, easy to install.The SPDT switch ensures reliable contact switching.Mainly used for high and low voltage limit control of refrigeration equipment or automatic system conditioning equipment.
Specification:
Material: Stainless steel, iron plated , plastic
Weight: 420g/14.8oz
Pressure regulating range (bar): 1 (Min) ~ 10 ()
Differential pressure adjustment range (bar): 1(Min) ~ 3 ()
Factory setting (bar): 5 (OFF/ON) ~ 6 (ON/OFF)
Maximum tightness test (bar): 16.5
Power supply voltage: 24V~380V
Micro switch life: 100,000 times
Electrical parameters:

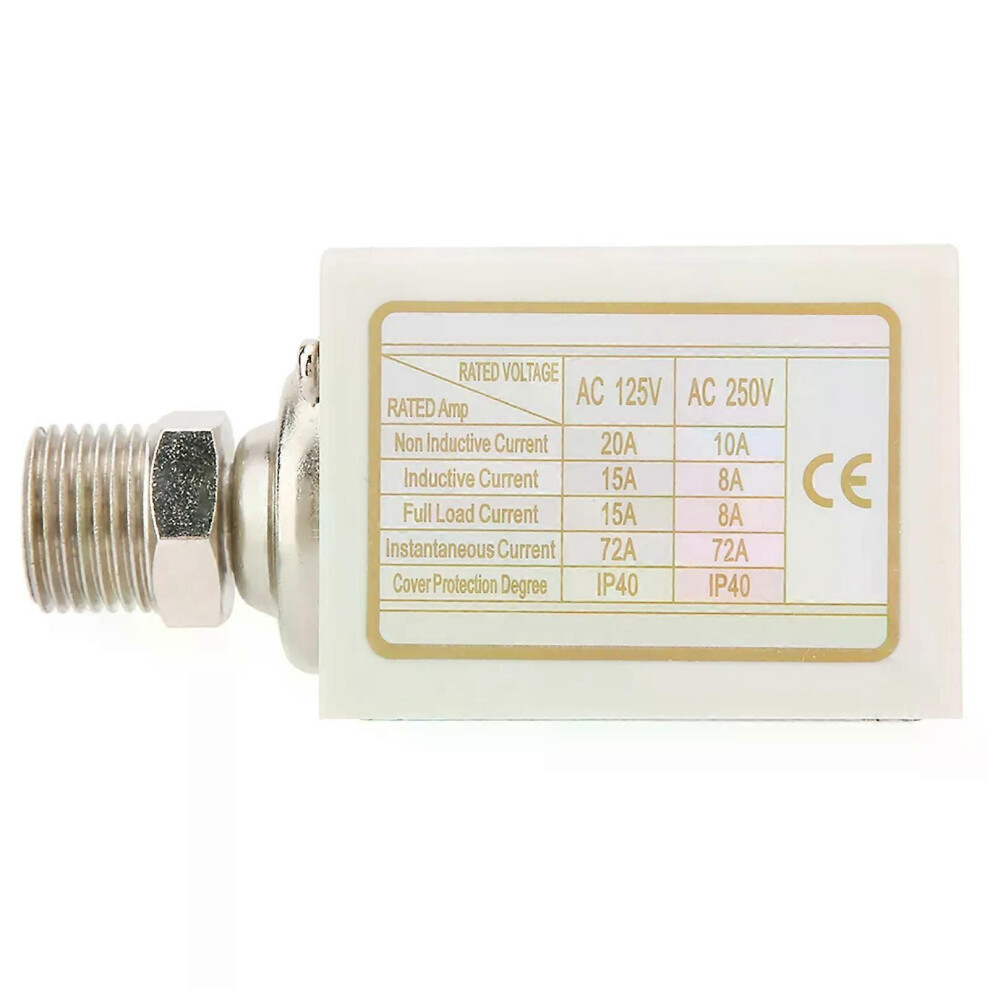

When the voltage is 125VAC, the non-inductive current is 20A, the full load current is 15A, and the instantaneous current is 72A.
When the voltage is 250VAC, the non-inductive current is 10A, the full load current is 8A, and the instantaneous current is 72A.
Package List:
1* Pressure Control Switch
1* Mounting bracket
4* Screw
1* Instructions
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
