ELRS Nano Micro-Type Long Range Module 1W High Power

ELRS Nano Micro-Type Long Range Module 1W High Power Description

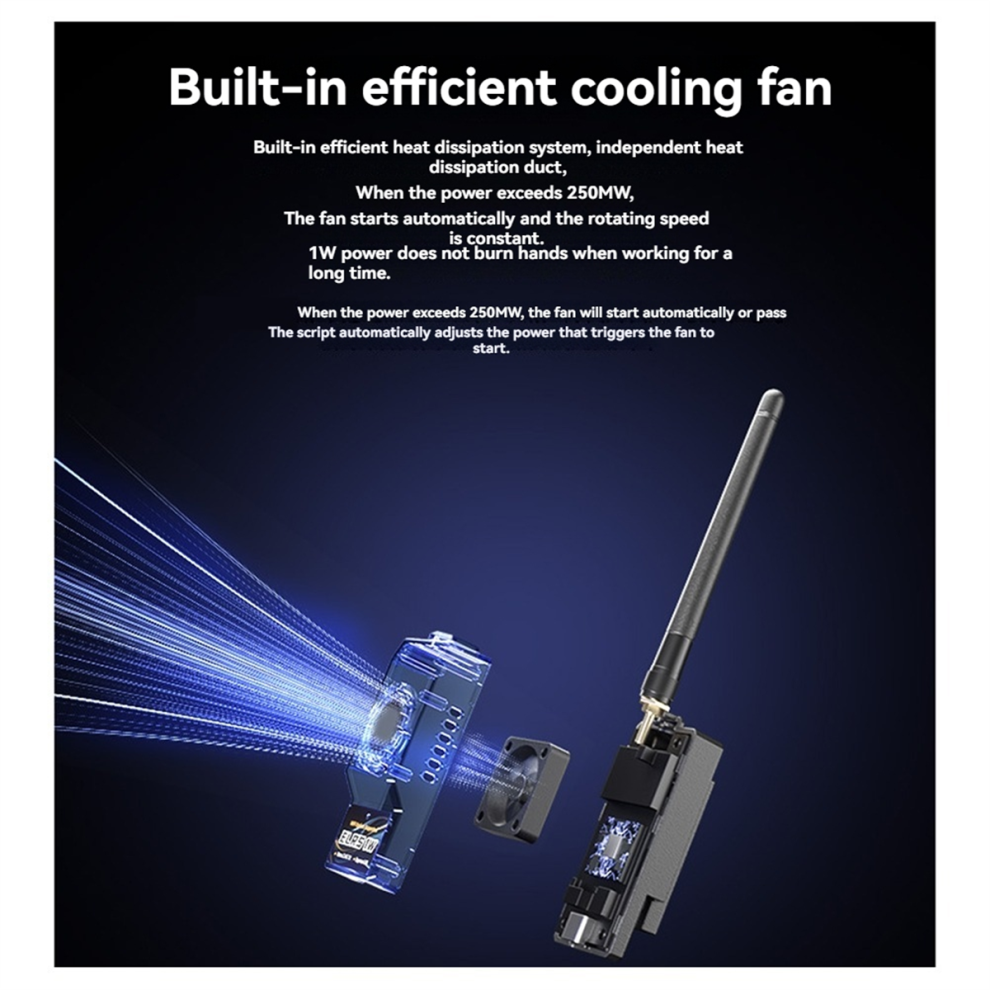

ELRS Nano Micro-Type Long Range Module 1W High Power Description: Supports ExpressLRS V3.3 firmware and is compatible with multiple remote control models. The ELRS 1W tuner supports all OpenTX remotes such as Radiomaster, Helloradio, Jumper, the closed-source remotes T16D, T12D, AT9SPro*, and FUTABA. (Note: AT9SPro, AT1011, and other remotes without a JR slot do not support direct plug-in of the ELRS 1W and must be installed separately.) Stable data transmission. Provides users with more reliable connections and more stable data transmission. Whether indoors or outdoors, it offers a reliable and stable control experience. Built-in high-efficiency fan. Built-in efficient heat dissipation system, independent heat dissipation channel. If the power exceeds 250 mW, the fan starts automatically and the speed remains constant. 1 W power, which runs for extended periods without overheating. (If the default power exceeds 250 mW, the fan starts automatically. You can also adjust the power that triggers the fan start via script.) Power supply range: 5-12.6 V DC (2-3 S). (Does not support battery power supply with 4S and above (greater than 12.6V), as this will permanently damage the tuner.)
USB Online Upgrade: ELRS 1 W can be connected to a computer via the Type-C interface for upgrades. USB flash drive mode allows for easy operation and simple updating and synchronization of the latest features.
High-Performance Chemicals: None
Model Number: ELRS
For Vehicle Type: Cars
Use: Vehicles and Remote Control Toys
Spread Spectrum: ExpressLRS
Frequency: 2.4 GHz
Signal: ELRS
Input Voltage: 5-12.6 V
Power: 25 mW/50 mW/100 mW/250 mW/500 mW/1 W
Connectivity: Supports Wi-Fi or Bluetooth connection
Fan: Built-in high-efficiency fan
Antenna: 2.4 GHz rod antenna
USB Connector: Type C
Firmware Version: ExpressLRS 3.3.0
Compatible Transmitters: All OpenTX and some closed-source remote controls such as T16D, T12D, AT9S Pro, T16IZ, T16SZ, T18SZ, ET16, etc.
Color: As shown
Material: ABS
Due to different batches, there may be differences in appearance and printed text, which do not affect use.
Package Contents:
1 * ELRS Module
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the original. The allowable measurement error is +/- 1-3 cm.
