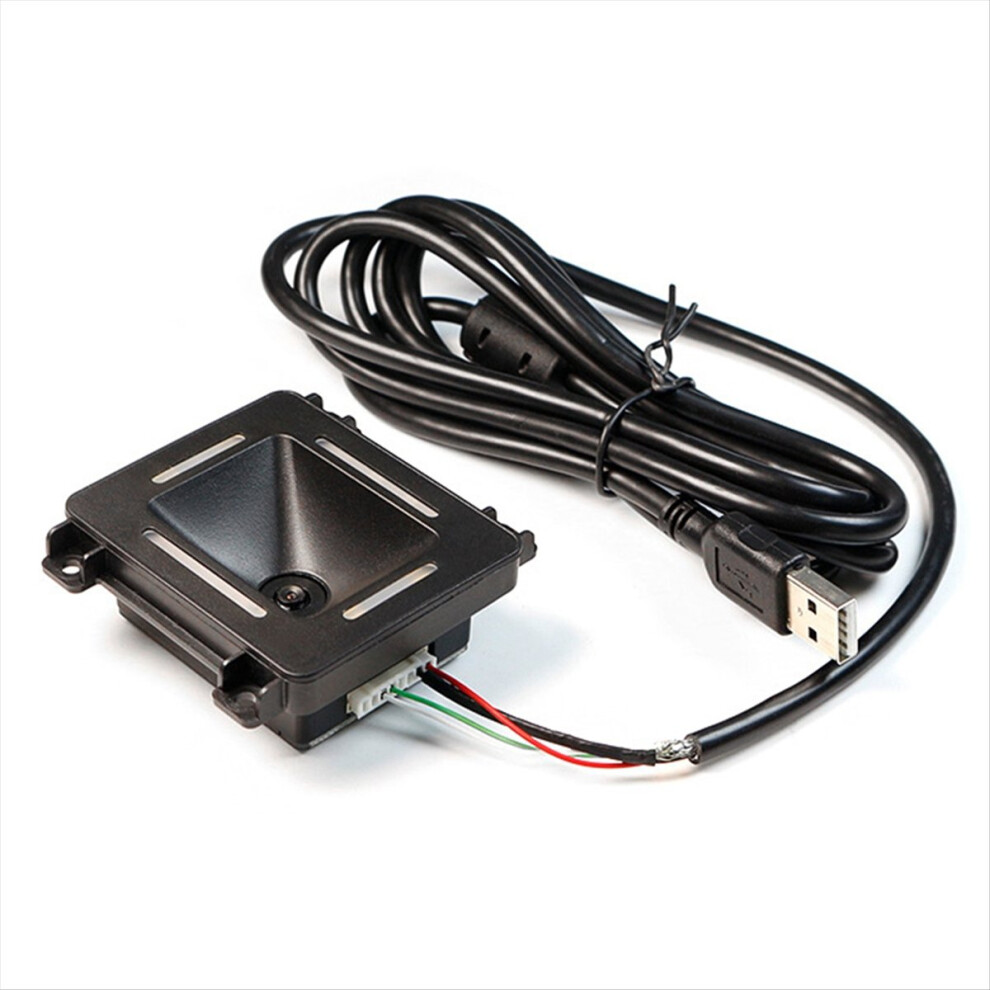

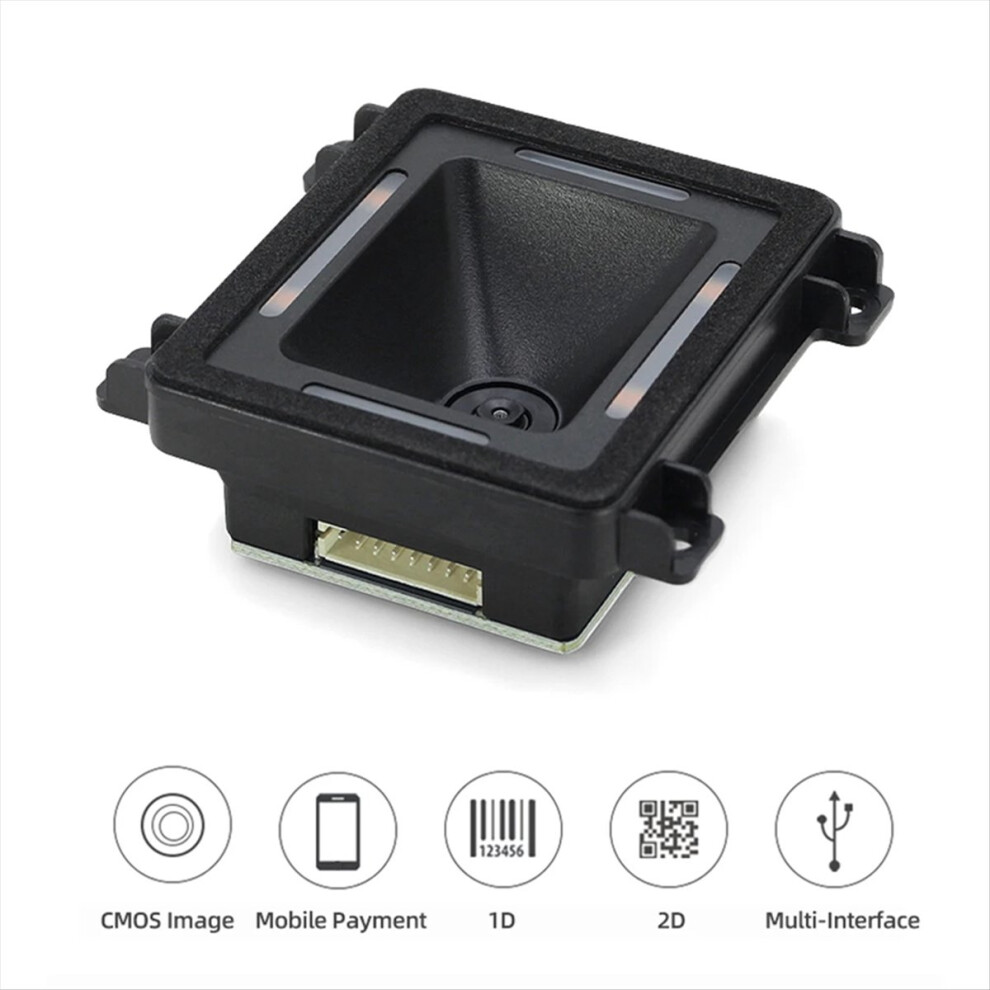

Embedded Barcode Scanner Self-Induction Bar Code Reader for -232

Embedded Barcode Scanner Self-Induction Bar Code Reader for -232 Description

Features: 1. Versatile Scanning Capabilities: Our Embedded Barcode Scanner is a compact and powerful 1D/2D codes reader, it can be seamlessly integrated into any device for efficient code scanning. With its intelligent image recognition algorithm, it effortlessly identifies other items by scanning the codes.
2. Flexible Interface Options: Designed to cater to diverse needs, our Barcode Scanner supports multiple interface options including USB, -232 and TTL. You no longer need to worry about compatibility issues as it adapts effortlessly to different interface types, ensuring a hassle-free user experience.

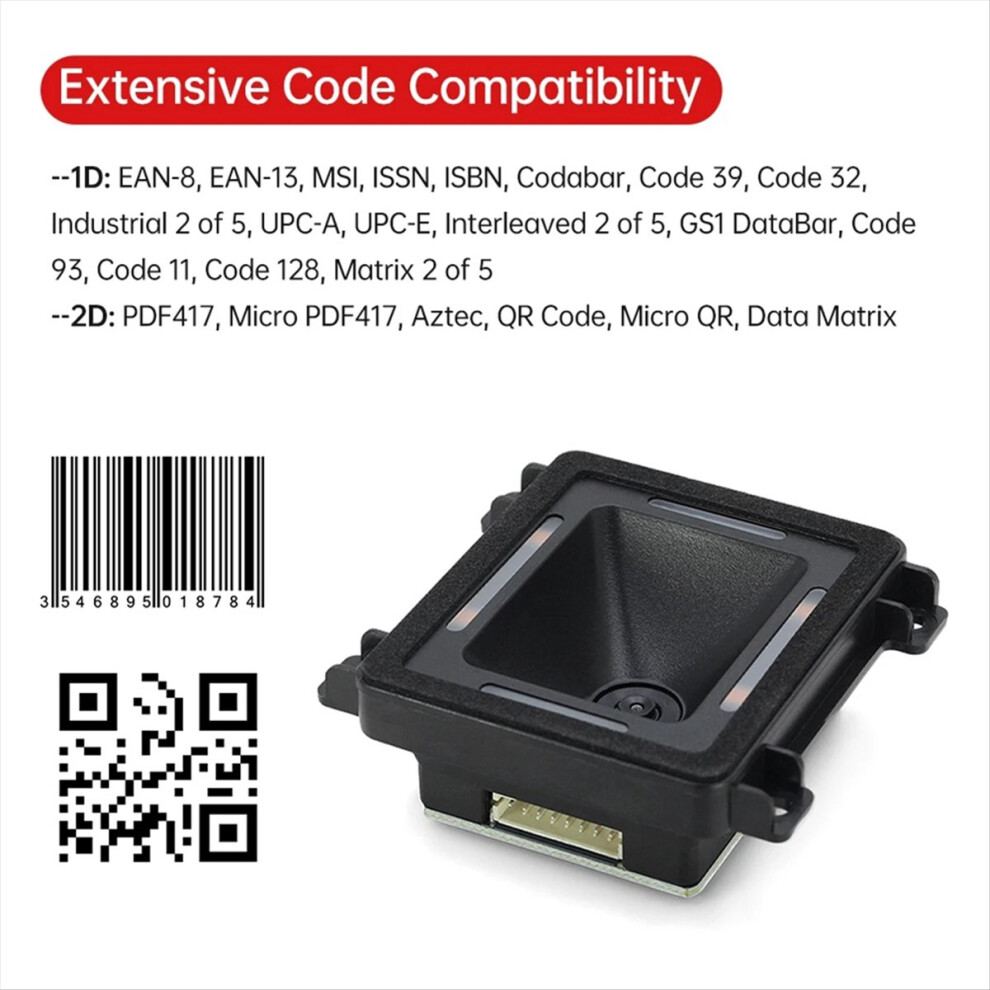

3. Extensive Code Compatibility: Equipped with advanced decoding technology, our bar code scanner accurately decodes a wide range of 1D and 2D barcodes on labels, paper, and even mobile phone or computer displays. Decode Type: 1D --8, -13, , ISSN, , Codabar, Code 39, Code 32, Industrial 2 of 5, UPC-A, UPC-E, Interleaved 2 of 5, GS1 DataBar, Code 93, Code 11, Code 128, Matrix 2 of 5; 2D - PDF417, Micro-type PDF417, , QR Code, Micro-type QR, Data Matrix.
4. Reliable Performance: Our Barcode Scanner offers stable performance and Fast Charging decoding speed, ensuring quick and efficient scanning in any environment. Its module matching light source allows seamless operation even in low-light conditions, making it ideal for use in dimly lit areas.

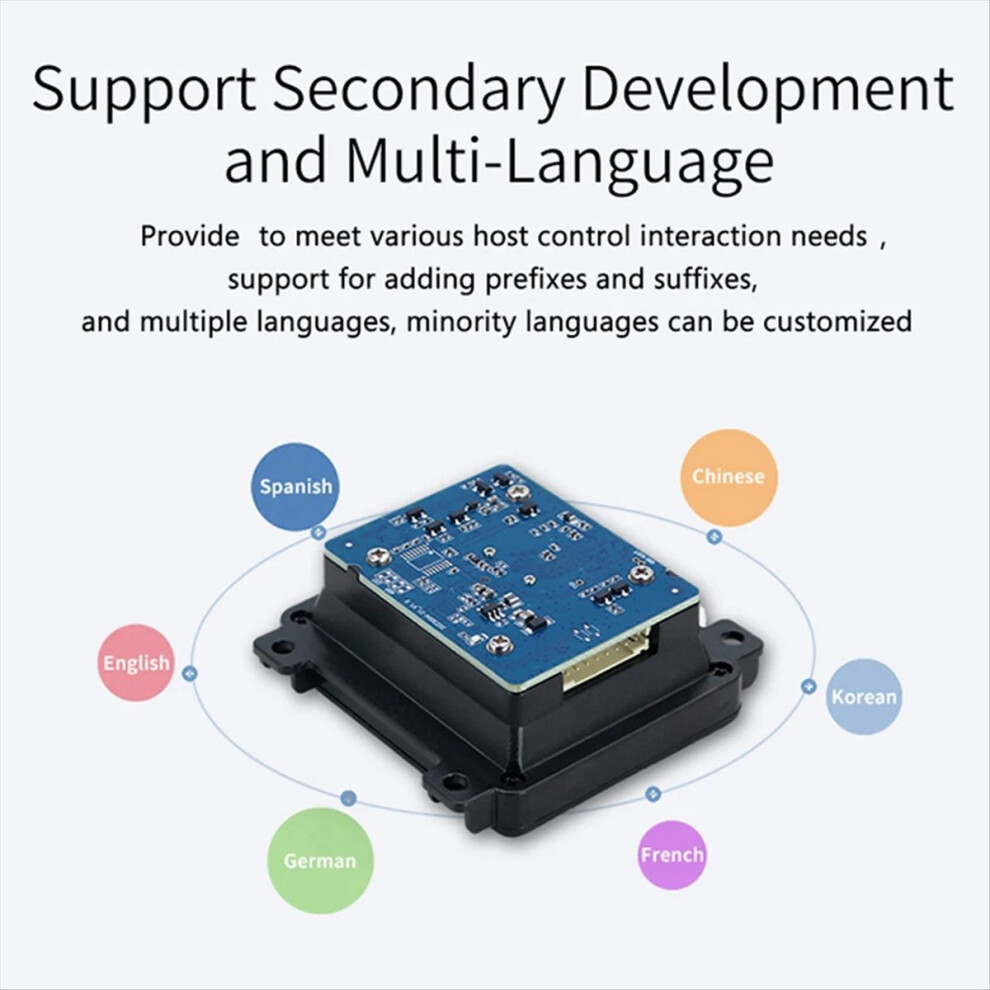

5. Easy Integration and Development: Compatible with Linux, Android, , and other systems, EP8280L barcode scanner enables easy integration and secondary development through SDK. Whether you are looking to incorporate it into access control systems, channel gates, lockers, or scan code payments, it provides a smart solution for various industry equipment projects.

Specifications: Model: EP8280L
Dimension: 61 (W)x64.8 (D)x26 (H) mm
Net Weight: 30g

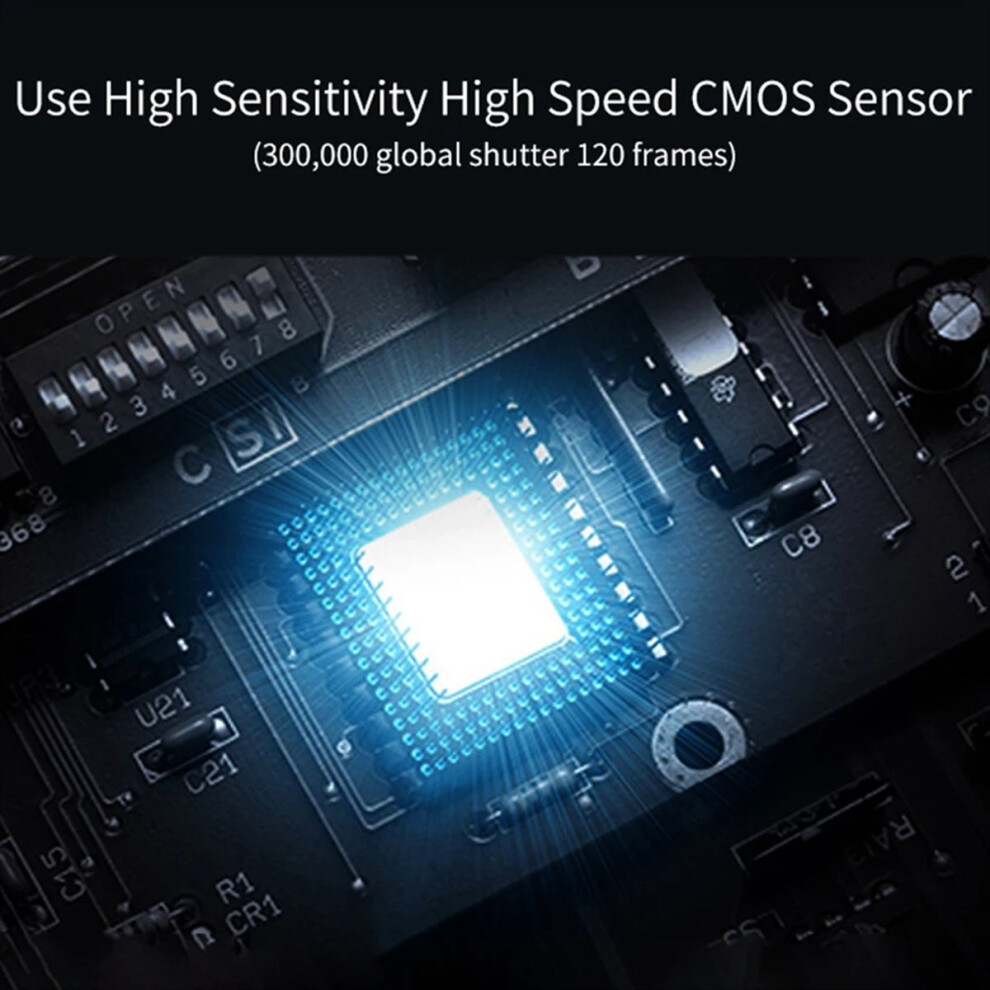

Image Sensor: 640x480
Scan Angle: Skew70, Pitch70, Roll 360, FOV Dio87.1, Horizontal 74, Vertical 65
Mini Resolution equal 5mil
Barcode Minimum Print Contrast: equal 20%
Data Matrix Interface: USB / RS232/TTL
Voltage: 5V DC5%
Current (Typical): 120mA (5 )
Current (Max): 150mA (5 )
Standby Current 65mA (5 )
Sleep Current: 10mA (5 )
Power Consumption (Typical): 600mW
Country Keyboard Layout: Multi-Countries Keyboard Layout Indicator: LED, Beeper Typical Decode Range (Typical)Code39 (5mil):10mm~40mm;
Barcode Size: 25mmx10mm -13 (13mil): 10mm~80mm;
Barcode Size: 31mmx16mm QR (15mil): 10mm~60mm;
Barcode size: 8mmx8mm
Color: Black
Material: ABS

Package Contents:
1 * Embedded barcode scanner

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
