Emulator Programmer Debugger for TI ARM9 A8 TMS320 TI CCS5-CCS10

Emulator Programmer Debugger for TI ARM9 A8 TMS320 TI CCS5-CCS10 Description

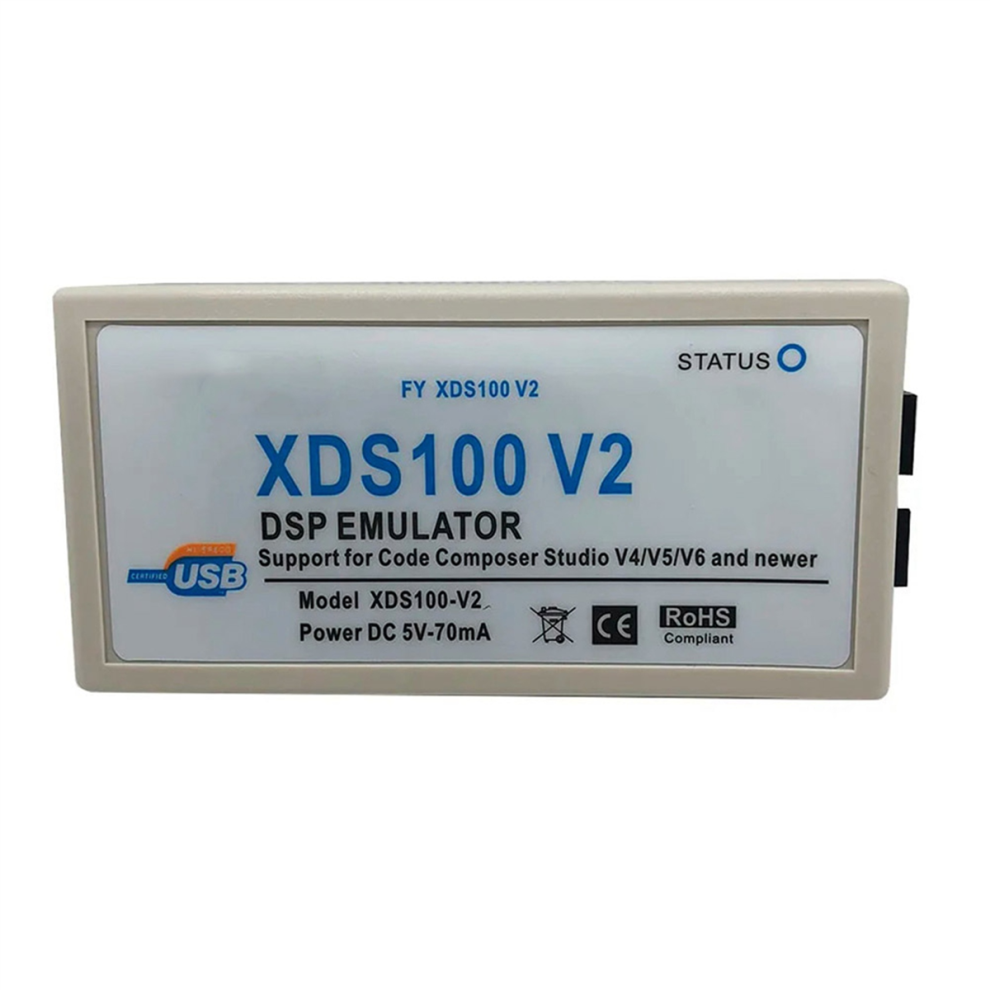

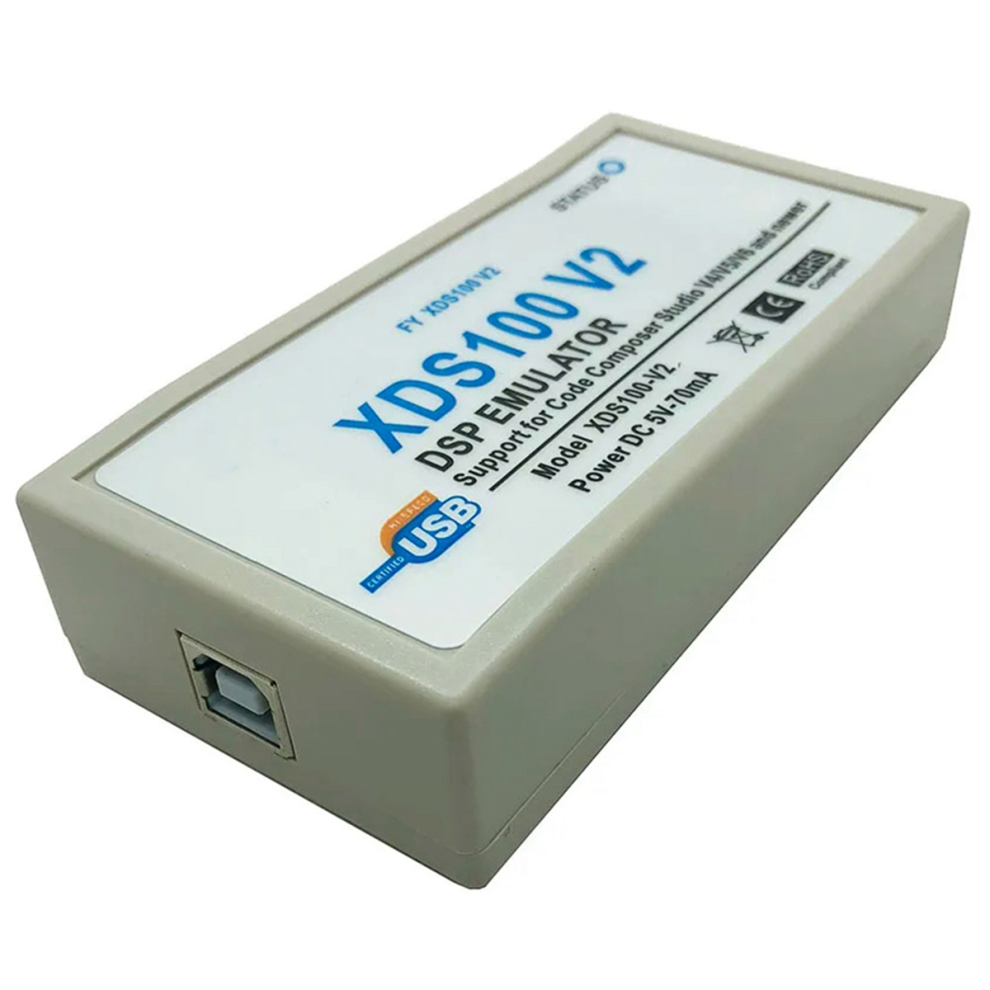

The XDS100v2 emulator is the second version of the XDS100 JTAG emulation technology and supports chip debugging for TI.
Support USB2.0 high-speed interface, theoretical to 480M/s, through the 14PIN interface for simulation debugging,
Code Composer Studio (CCS) V4, V5,V6,V7,V8,V9,V10 and later is supported.
It can be used in 2000, XP, Vista, WIN7/8, WIN10 and other operating systems.
The XDS100V2, which follows the official scheme, has the same performance in terms of speed and compatibility. The supported devices are the same.

Features
Support for the following processor cores: TMS320C28x, TMS320C54x, TMS320C55x, TMS320C64x+, TMS320C674x, ARM 9, ARM R4, and ARM A8.
Debugging function(connect / disconnect, read / write memory, read the register, load the program, run, stop steps to support the breakpoint debugging, real-time mode)
Supports On-Chip Flash Programmer(e.g. C2000)

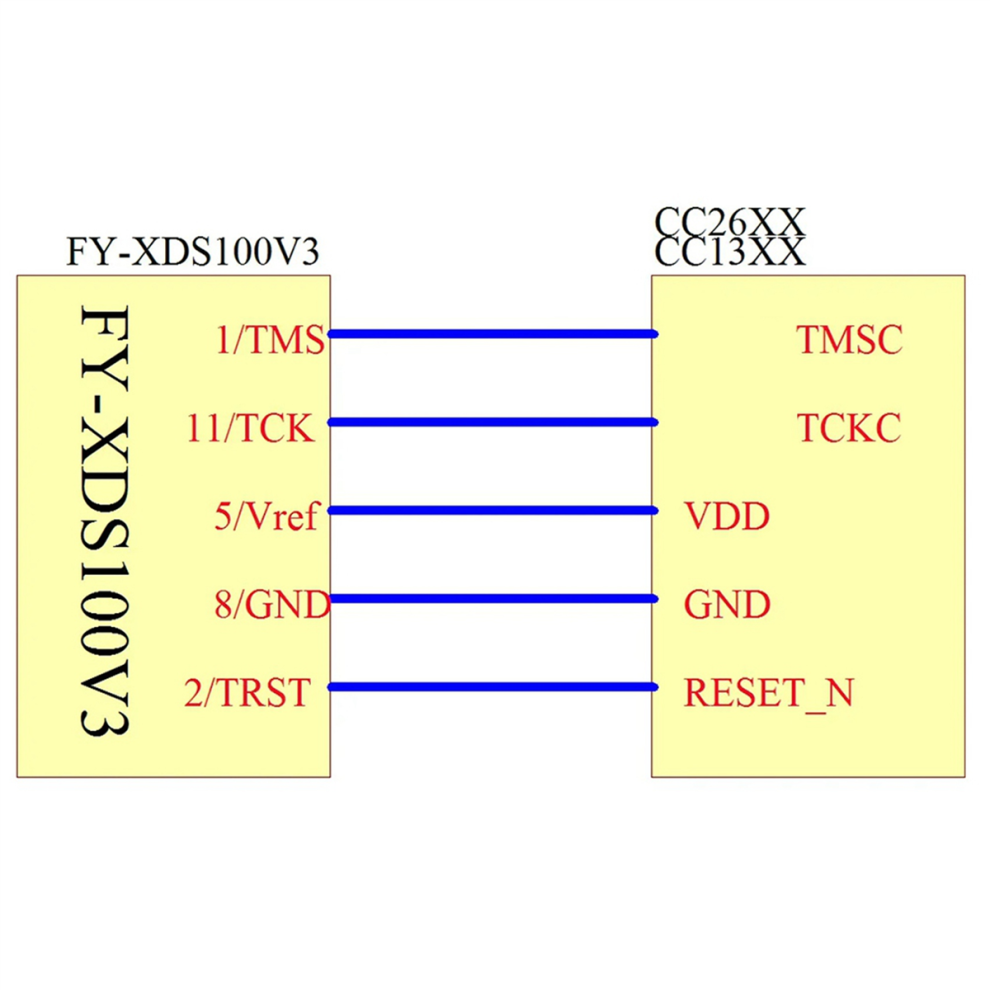

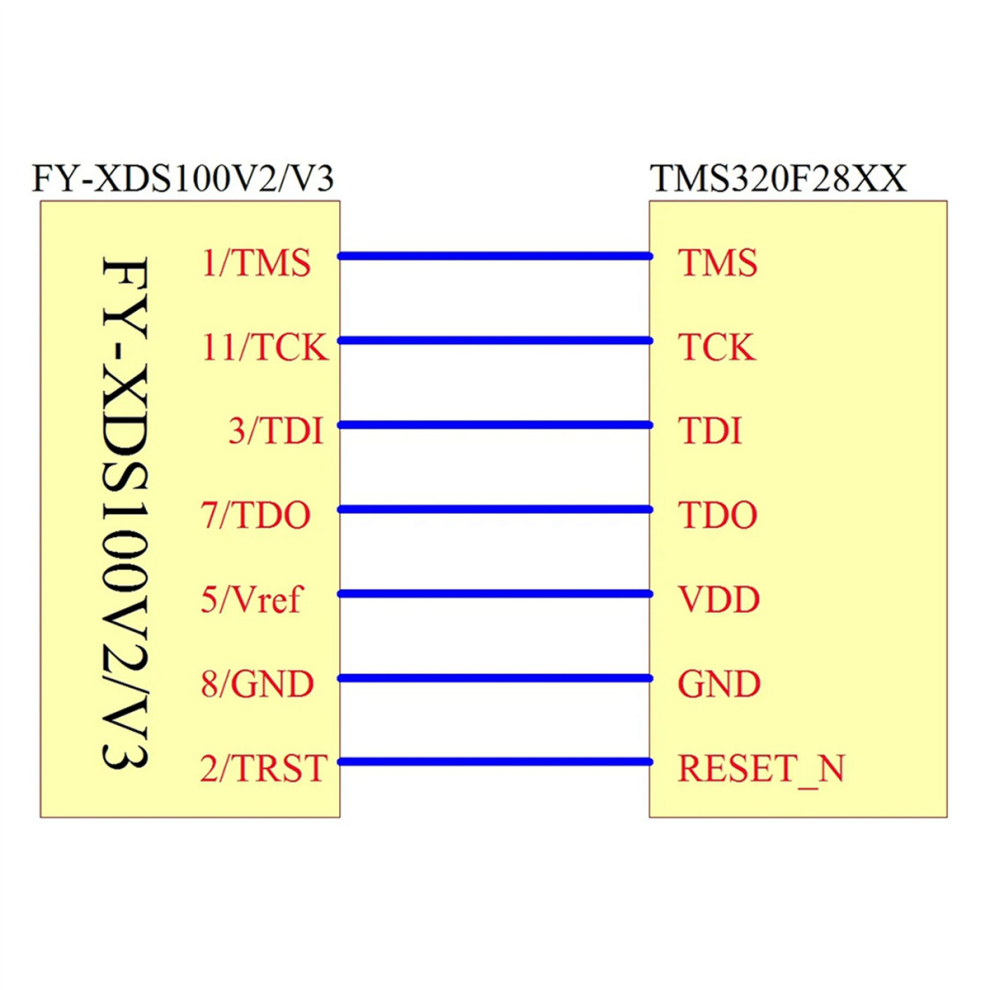

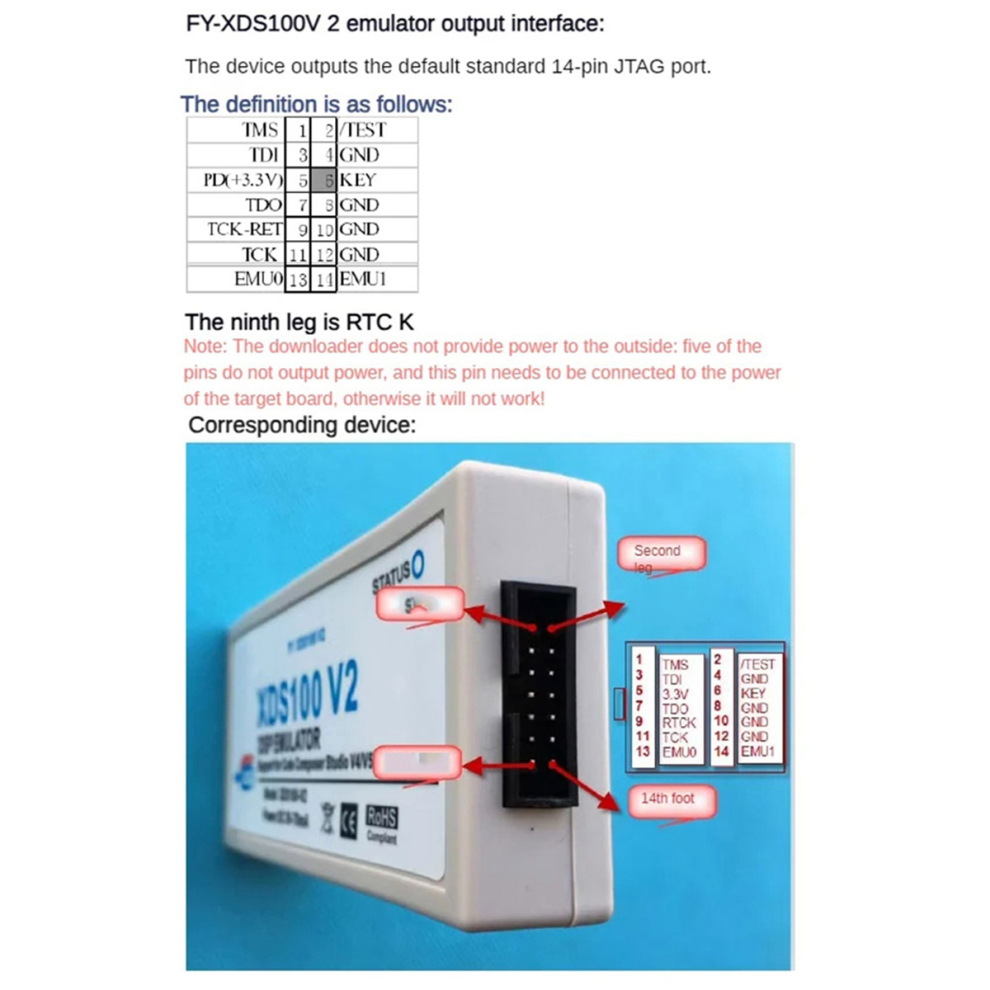

Support targets with 14-pin TI JTAG connector as used by embedded processors.
Support for USB2.0 High Speed (480 Mbit/s)
Support for Code Composer Studio v4 and newer (Does not support Code Composer Studio v3.3)
Support CCS5.2
Support for power-off test and Adaptive Clock
Support for XP/Vista/Win7
Material: abs
colour: As shown

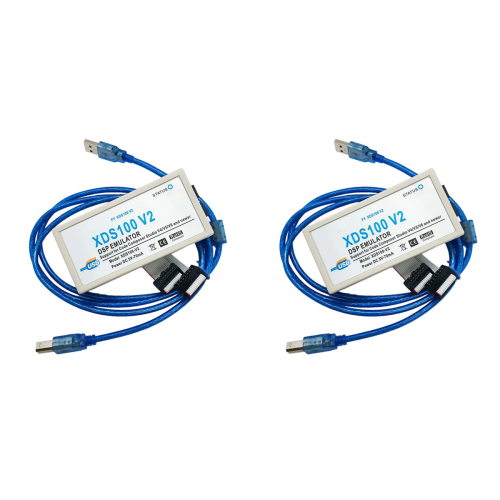

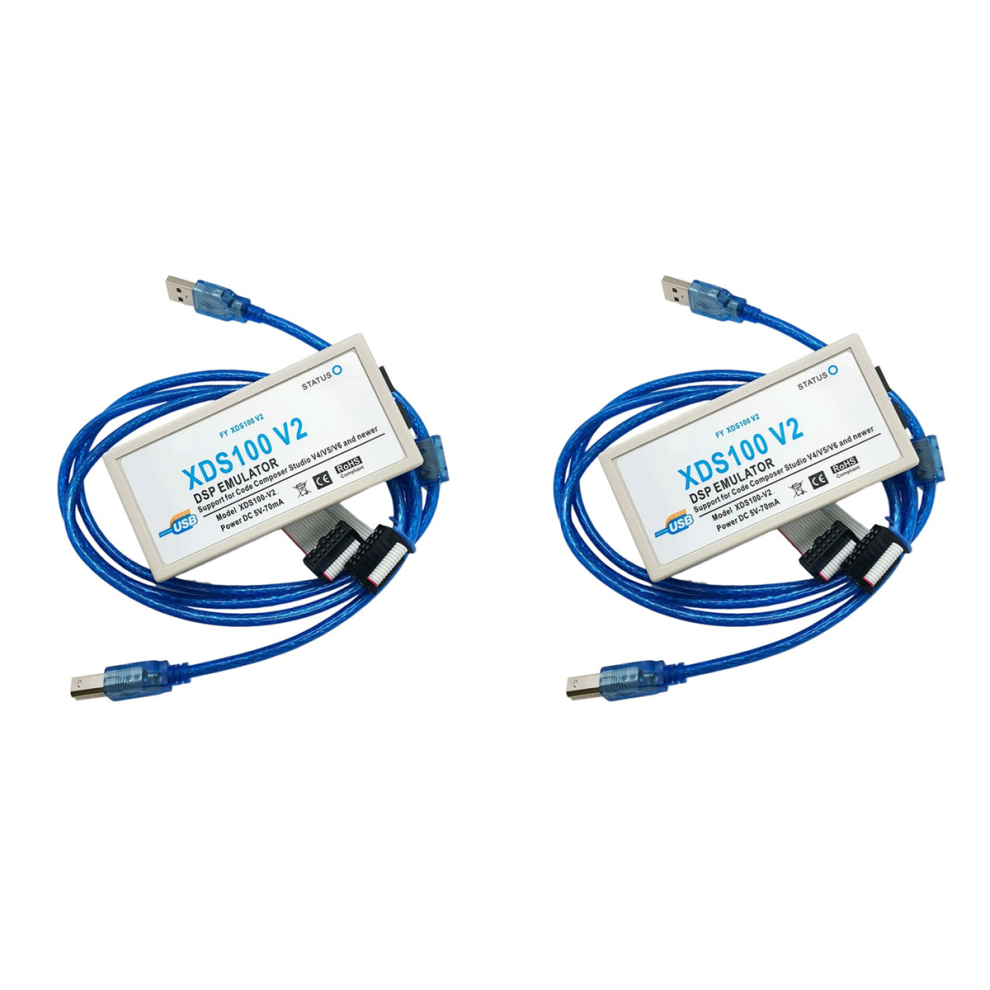

Package Contents:
2 set x emulator

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
