ESP32-C6--M Development Board WiFi 6 Microcontroller ESP32-C6-MINI-1 Module Supports compatible with ESP-IDF

ESP32-C6--M Development Board WiFi 6 Microcontroller ESP32-C6-MINI-1 Module Supports compatible with ESP-IDF Description

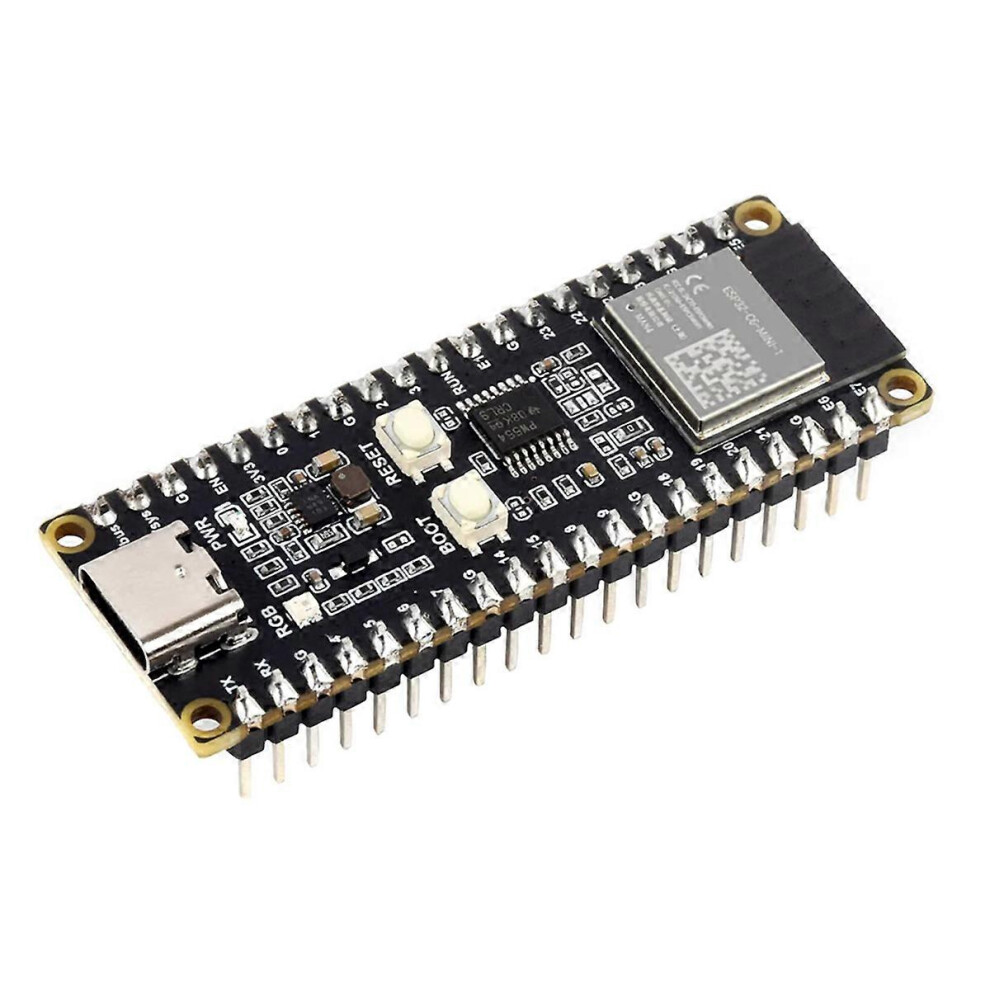

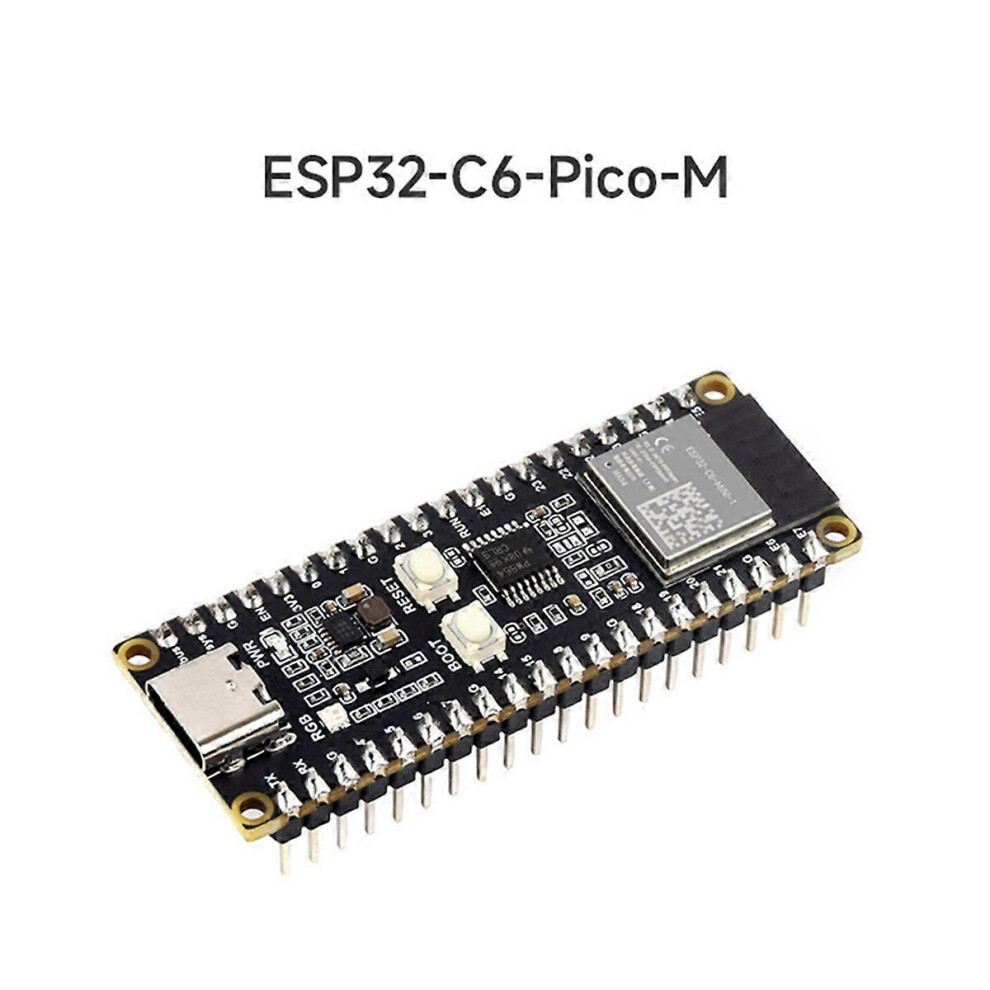

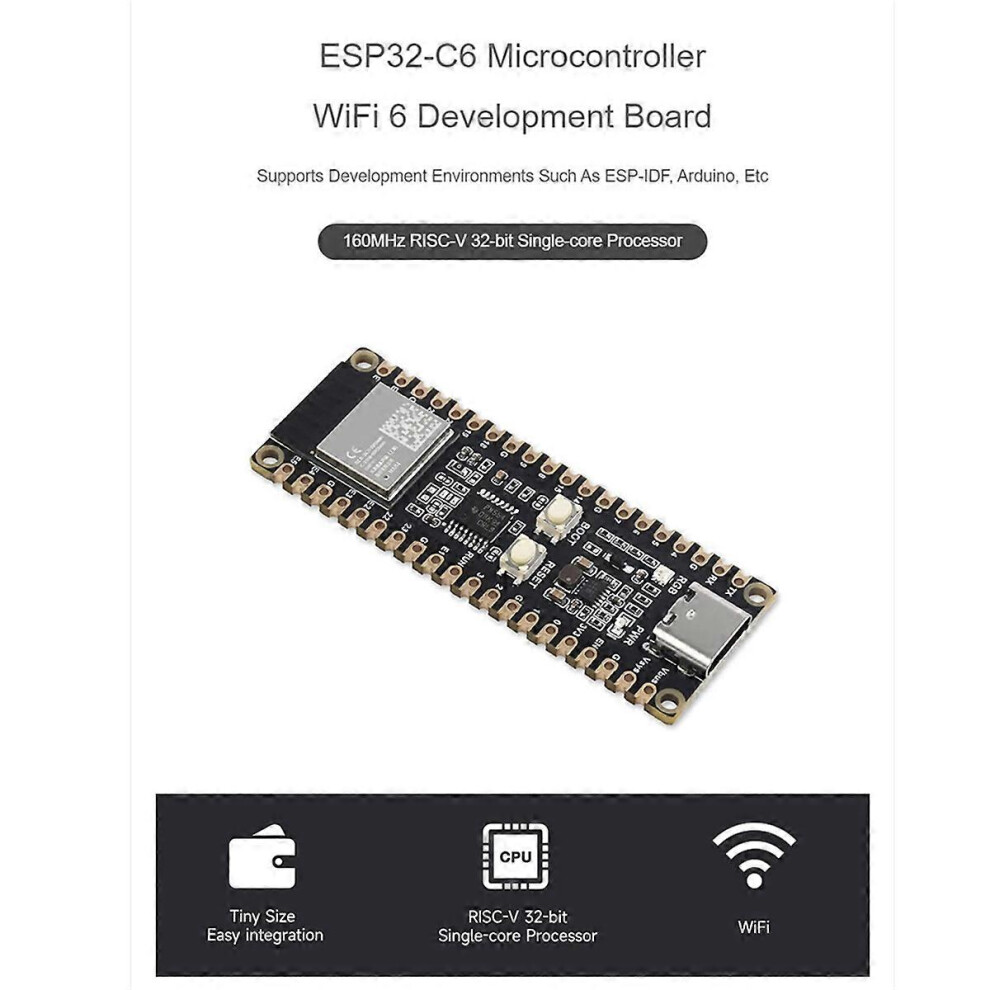

ESP32-C6- is a small microcontroller development board equipped with a variety of digital interfaces.
In terms of hardware, the ESP32-C6-MINI-1 module is used, which is equipped with a RISC-V 32-bit single-core processor, supports a clock frequency of up to 160 MHz, and has built-in 320KB ROM, 512KB , 16KB LP and 4 MB flash; the pin interface is compatible with the development board and can be expanded to a variety of peripheral devices, making it more convenient to use.
In terms of software, you can choose ESP-IDF development environment or For IED for development, so you can get started easily and quickly and apply it to products.
Using ESP32-C6-MINI-1 module, equipped with RISC-V 32-bit single-core processor, supporting clock frequency up to 160 MHz
Product Features
Integrated 320KB ROM, 512KB , 16KB LP and 4MB Flash memory
Integrated 2.4GHz Wi-Fi 6 and Bluetooth LE dual-mode wireless communications with superior RF performance
Using USB Type-C interface, no need to worry about plugging forward and reverse
It leads to rich peripheral interfaces, and the pin interface is compatible with the development board, with strong compatibility and scalability.
Stamp hole design can be directly welded and integrated into the base plate designed by the user.
Supports multiple low-power working states and can adjust the balance between communication distance, data rate and power consumption to meet the power consumption requirements of application scenarios
Please note that to the functional integrity of the device, be sure to call the provided WS_TCA9554PWR file to set GPIO22 (SDA) and GPIO23 (SCL) as I2C functions for GPIO expansion
Please note that GPIO22 (SDA) and GPIO23 (SCL) are already used in TCA9554PWR. Currently, onlyI2C slave devices can be connected to these pins. These two pins are no longer allowed to be used for other functions.
Due to differ
