ESP32-S3 ETH Camera Development Board for Size B

ESP32-S3 ETH Camera Development Board for Size B Description

ESP32-S3 ETH Camera Development Board for Size B Description

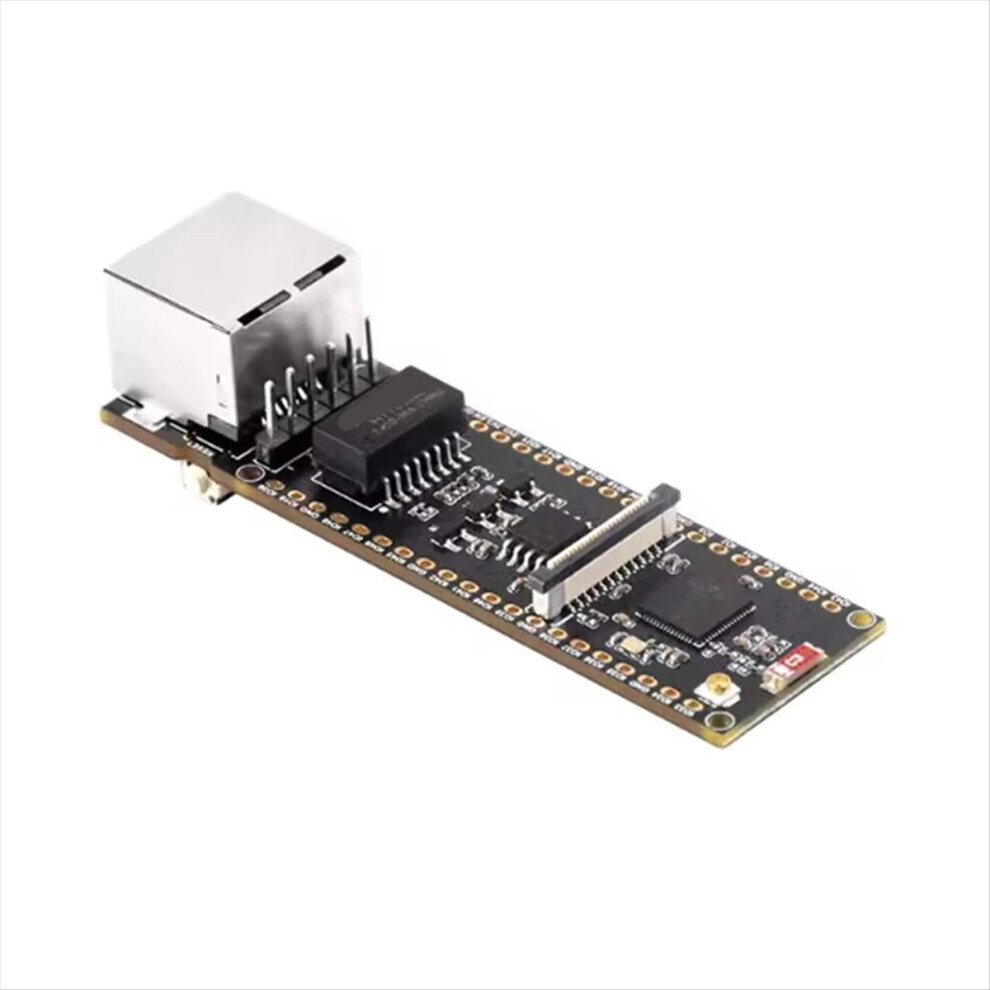

This is an Ethernet development board based on the ESP32-S3R8. It features excellent Wi-Fi and Bluetooth connectivity, a more reliable and efficient wired Ethernet connection, and supports PoE power (PoE version only). The development board also has a compatible interface to support some expansion boards. Thanks to its comprehensive ecology and open-source resources, users can quickly and flexibly perform secondary development. It can be used in a variety of projects for the Internet of Things, image capture, smart home, and artificial intelligence. Key Features: Based on the high-performance ESP32-S3R8 chip, equipped with a 32-bit dual-core Xtensa LX7 processor, with a main frequency of up to 240 MHz. Features include: Integrated 512 KB and 384 KB ROM, built-in 8 MB PSRAM and 16 MB Flash; Supports 2.4 GHz Wi-Fi and Bluetooth 5 (LE), built-in antenna, and supports an external antenna; Onboard W5500 Ethernet chip, extending 10/100 Mbps network connectivity via SPI interface; and support for an external PoE module. Ethernet power delivery function (compliant with IEEE 802.3af standard)
Onboard USB Type-C interface, supports power delivery, debugging, and firmware download, for more convenient development
Onboard Micro SD card slot, supports external SD card storage for images and files
Onboard compatible interface, providing a wide range of peripheral expansion and high compatibility
Specifications: B: Mainboard only
Color: As shown
Material: Plastic
Package includes:
1 * Development board
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the original. The permissible measurement error is +/- 1-3 cm.
