ET606 Handheld Network Cable Tester with POE, Line Tracing & Switch Flasher

ET606 Handheld Network Cable Tester with POE, Line Tracing & Switch Flasher Description

ET606 Handheld Network Cable Tester with POE, Line Tracing & Switch Flasher Description

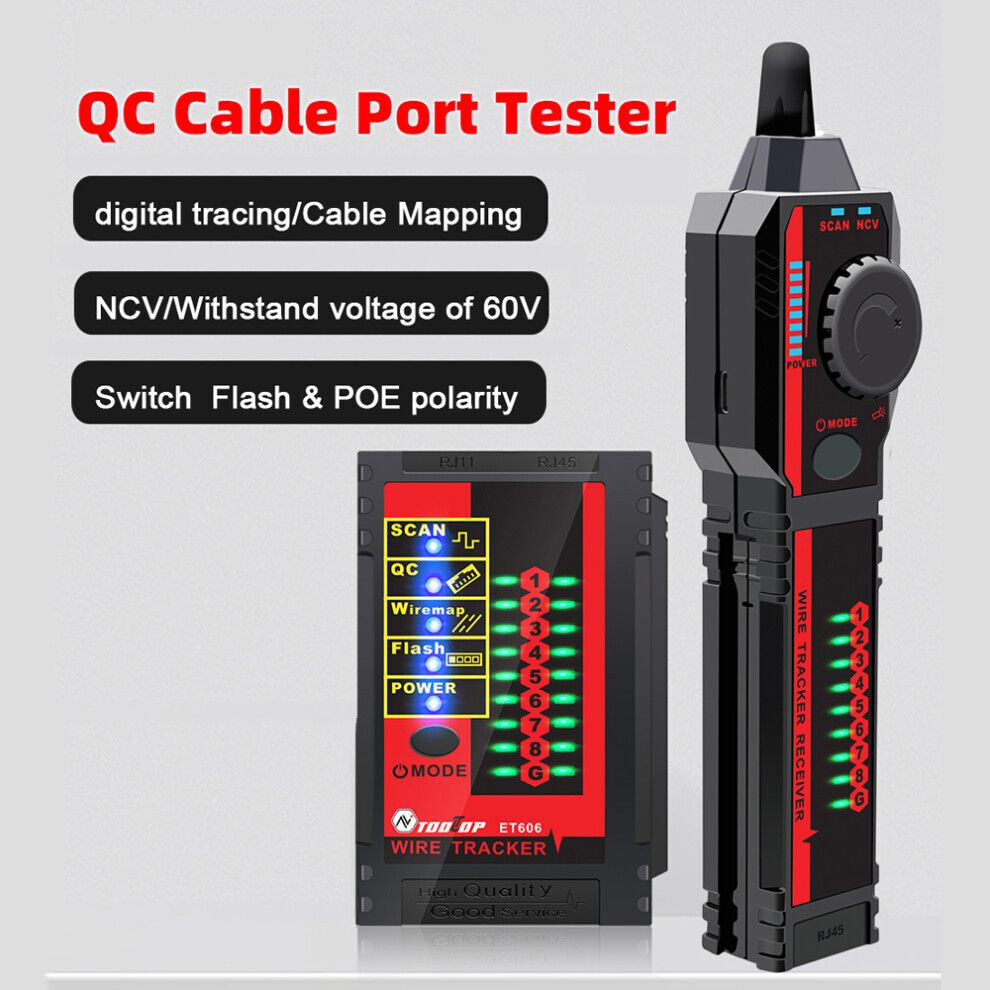

ET606 Cable Port Tester Handheld Network Cable Tester Cable Pairing Check Switch Flash POE Polarity Withstand Voltage of 60V with Low Battery Indicator Auto Power Off Functions
This product integrates network routing, crystalhead crimping testing, alignment, POE voltage measurement, and switch port flashing functions. It is a multi-purpose line positioning product designed using high speed data transmission technology based on longterm engineering practice experience. It has the characteristics of long transmission distance, clear sound, and complete functions, making it a practical tool for laboratory, factory wiring, and various communication line installation and engineering maintenance personnel. Digital Tracing Cables function can quickly and efficiently find the required cables from a large number of cables. Widely used in engineering applications such as telephone systems, computers networks, video networks, and other metal wire lines. Adopts the latest digital noiseless line finding technology to provide you with a better line finding experience.
Features:
【Multi-functional Integration and Line Positioning】: This product is a wire positioning tool that integrates cable tracking, network routing, crystalhead crimping, alignment, POE voltage measurement, switch port flashing, and other functions into a single unit. It utilizes smooth data transmission technology and noiseless wire locating technology to achieve fast and accurate positioning of the required cables. Widely used in the installation and maintenance of various communication lines such as telephone, computers, and video networks.
【Intelligent Cable Identification and Detection】: With a powerful cable tracking function, it can quickly identify the target cable by changing the sound level in a noisy environment, effectively solving the complex wiring problem. At the same time, the product has a cable pairing check function, which can visualize the physical connection status of cables through 8-line status indicators, including open circuit, short circuit, crossed connection, and so on.
【NCV Voltage Detection and POE Test】: The product has a built-in voltage sensing (NCV) function, which can safely detect the presence of voltage on the cable and adjust the sensitivity by adjusting the knob. At the same time, with the POE polarity test function, only need to connect the receiver can quickly detect the voltage output and voltage line sequence of POE equipment, greatly improving electrical safety and testing efficiency.
【Energy Saving and Humanized Design】: This product is eco-friendly in design and powered by a rechargeable lithium battery. It features a practical flashlight for low-light environments and an automatic shutdown for energy-saving, extending battery life. The switch port flashing function enhances line search, improving work efficiency.
【Wide Applications】: It features long-distance transmission and clear sound and is widely used for testing network cables, telephone cables, and shielded cables. It can quickly, accurately, and efficiently complete network cabling, maintenance, or troubleshooting tasks.
Specifications:
Name: Network Cable Tester
Material: plastics
Battery: 1 * 9V battery (main body) (included), 1 * 3.7V lithium battery (receiver) (not included)
Tracing cables (SCAN): √
Cable pairing check(wiremap): √

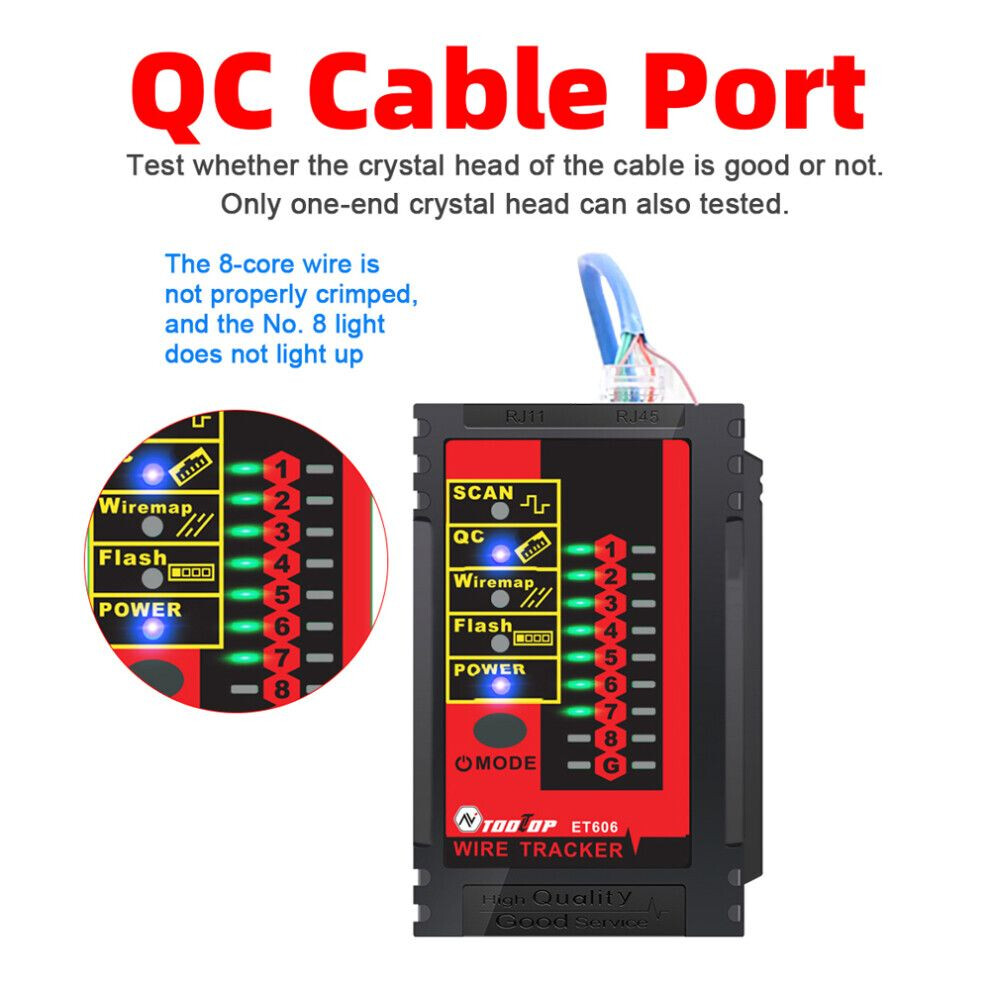

Crystalhead crimp test: √
Switch (Flash): √
POE test: √
Noisy-free digital tracing: √
Digital flashlight: √
SCAN/NCV signal strength indication: √
Package size: 216 * 121 * 34mm / 8.50 * 4.76 * 1.34in
Package weight: 295g / 10.41ounce
Packing List:
1 * Network Cable Tester
1 * Receiver
1 * Clip
1 * USB Charging Cable
1 * User Manual
