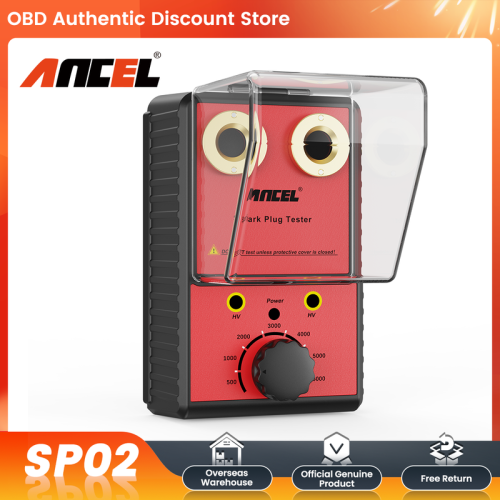

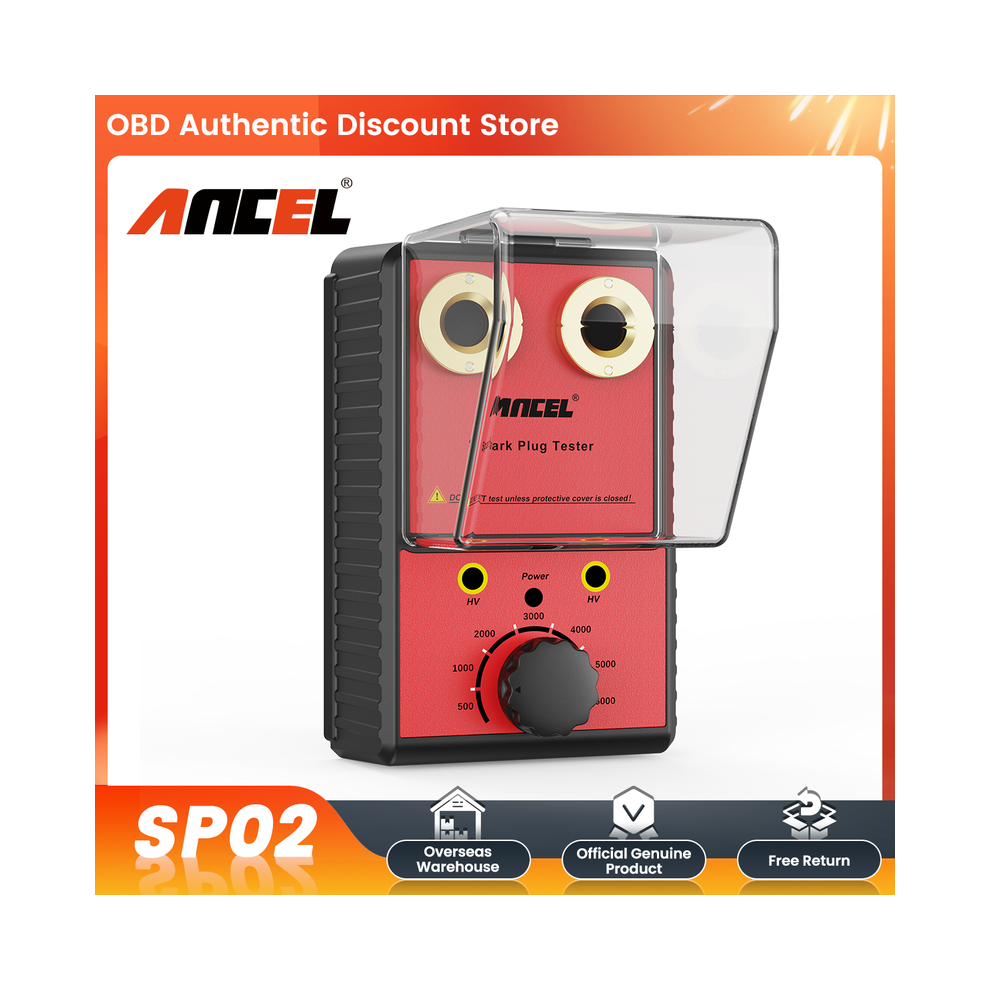

(EU Plug)ANCEL SP02 Car Spark Plug Tester with Auto Adjustable Double Hole Detector Ignition Plug Analyzer

(EU Plug)ANCEL SP02 Car Spark Plug Tester with Auto Adjustable Double Hole Detector Ignition Plug Analyzer Description

ANCEL SP02 Car Spark Plug Tester with Auto Adjustable Double Hole Detector Ignition Plug Analyzer 110V 220V for 12V Vehicles
How to use it:
Step 1.
Place the Spark Plug into tester hole 1 or 2; If you want to compare the new spark plug and old one, place new spark plug into hole 1 and the old on into hole 2.
Step 2.
Connect to power supply.
Step 3.
Turn the key switch 4 clockwise to turn on tester, indicator 3 will light up, tester is now working at 1000rpm/min.
Step 4.
Again turn the key switch 4 clockwise, you can adjust the working frequency between 1000rpm to 6000rpm/min.
The higher the frequency, the stronger the spark strength.
Tips:
This link is for 110V/220V power supply US Plug，If you need to buy 110V/220V EU PLUG, please note the information of shipping EU PLUG when you take the order or contact the seller to buy.Thank you.
Note:
1.Please Turn Off Power before you place spark plug.
2.The Spark Plug Tester is a high-voltage detector, so do not touch spark plug with hand at work to avoid danger.
3.Support 12V Gasoline vehicles car spark plugs only.
Features:

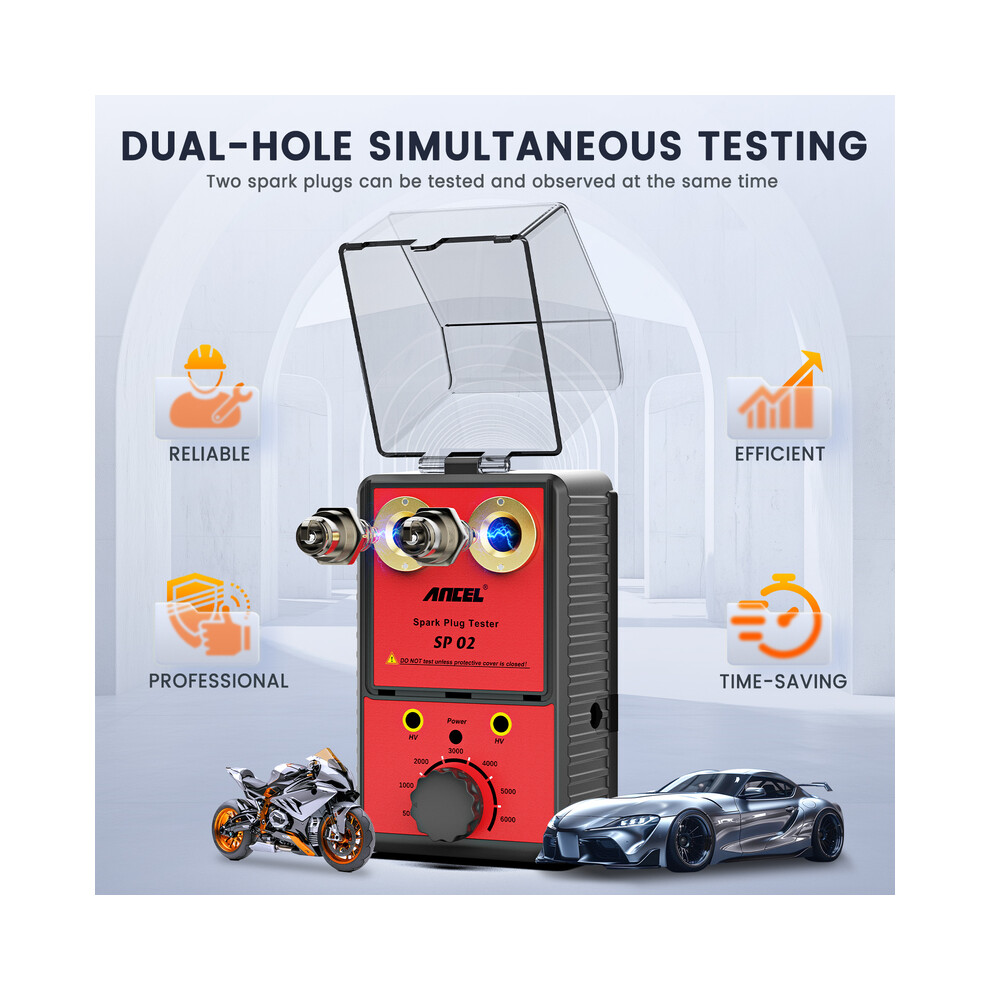

Dual Hole Car Spark Plug Tester Detector have two testing holes, you can test two spark plugs meanwhile and and if you suspect any spark plug works improperly you could compare and test to make accurate judgment.
To Test spark plug performance and ignition strength, apply to 12V Gasoline vehicles car spark plugs.
Adjustable double hole car spark plug tester detector Ignition Plug Analyzer Diagnostic Tool
0 to 6000rpm Operating Frequency: The ANCEL Car Spark Plug Tester is designed with adjustable working frequency, the range can reach 0 to 6000rpm. Can be adjusted as you required.
Widely Application: 12V Gasoline vehicles car spark plugs, 100V-240V input voltage .
Easy operation Plug And Play: Easy operation, plug and play. Come with indicator light, the status of the spark plug can be displayed more intuitively.
Specifications:

Power supply：
100- 240V
Main unit dimensions：
145x85x113mm
Package dimensions：
165x100x118mm
Weight：
354g
Analog speed：
0-6000rpm
Package List:
1* ANCEL Car Spark Plug Tester main unit
1* Packing box
1* User manual
1* Power supply connector US/EU Plug
