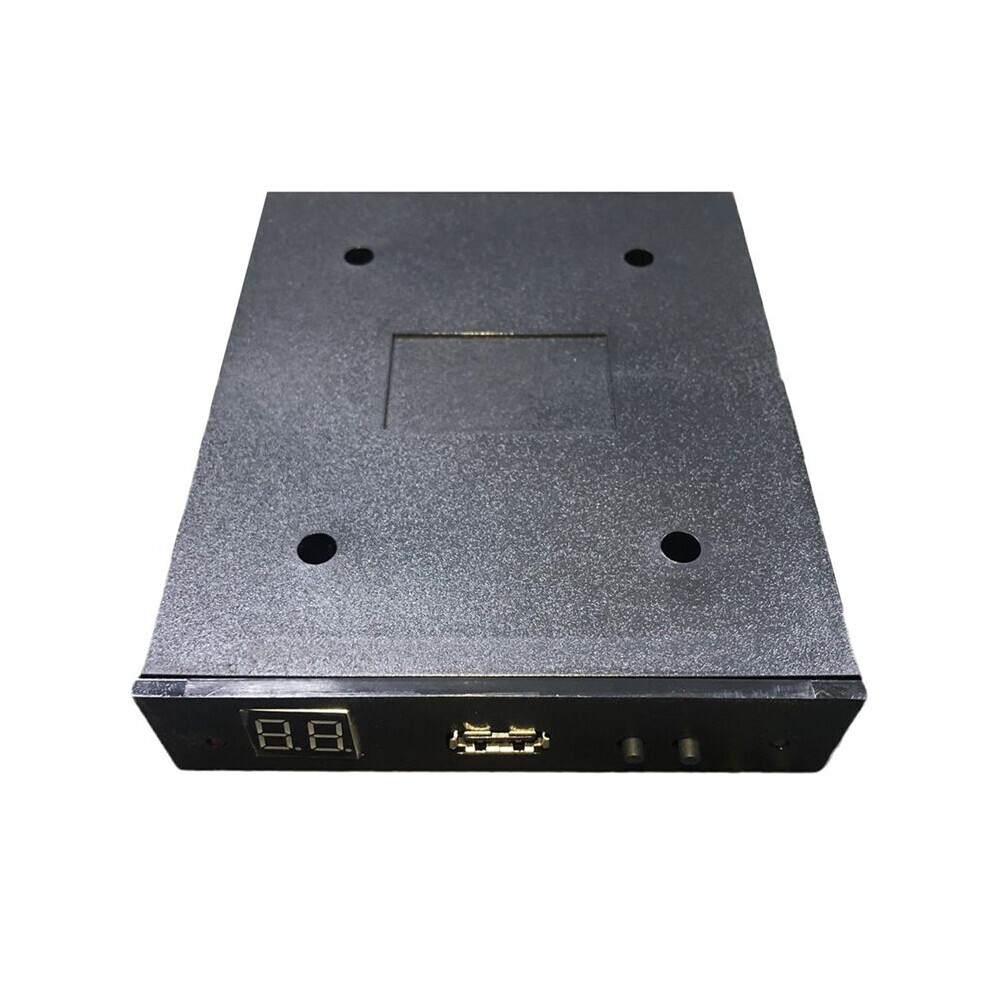

FDD-UDD EX144 Floppy Disk Drive Emulator, Improved Version, 3.5 inch, 1.44 MB, USB Floppy Disk Emulator, Converts Floppy Disk to USB Floppy Disk

FDD-UDD EX144 Floppy Disk Drive Emulator, Improved Version, 3.5 inch, 1.44 MB, USB Floppy Disk Emulator, Converts Floppy Disk to USB Floppy Disk Description

FDD-UDD EX144 Floppy Disk Drive Emulator, Improved Version, 3.5 Inch, 1.44 MB, USB Floppy Disk Emulator, Converts Floppy Disk to USB Floppy Disk Description
1. It conforms to the specifications of ordinary 3.5-inch 1.44 MB floppy disk drives, and connection and use are the same as ordinary floppy disk drives.
2. It uses a single 5V power supply and features an external 34-pin floppy disk drive interface that can be connected to the motherboard's FDC connector using a standard floppy disk drive cable.
3. It supports the operation of PCs, industrial computers, embedded systems, and single-chip microcomputers in floppy disk mode via the FDC control chip.
4. Theoretically, it supports various operating systems and BIOSes that the floppy disk drive can support, and the software usually requires no changes.
5. The current version of the U-Disk drive only supports the most commonly used sector size of 512 bytes.
It supports booting the operating system from a U-Disk (imitation of the boot function from a floppy disk, and booting from a floppy disk must be enabled in the CMOS).
The capacity of the U-Disk is unlimited but is affected by the specifications of the floppy disk drive. The extended version uses 1.44 MB x 100 floppy disks. Due to the floppy disk drive specification, the read and write speeds of the U-disk are similar to those of a floppy disk, with a speed difference of no more than 10%. The U-disk drive, just like ordinary floppy disk drives, does not support plugging and unplugging while powered on, but the U-disk itself can be plugged and unplugged while powered on. It supports write protection on the U-disk itself, which has the same function as the write-protection function of ordinary floppy disks. It supports A and B floppy disks. In addition, multiple U-disk drives and normal floppy disk drives can be used.
