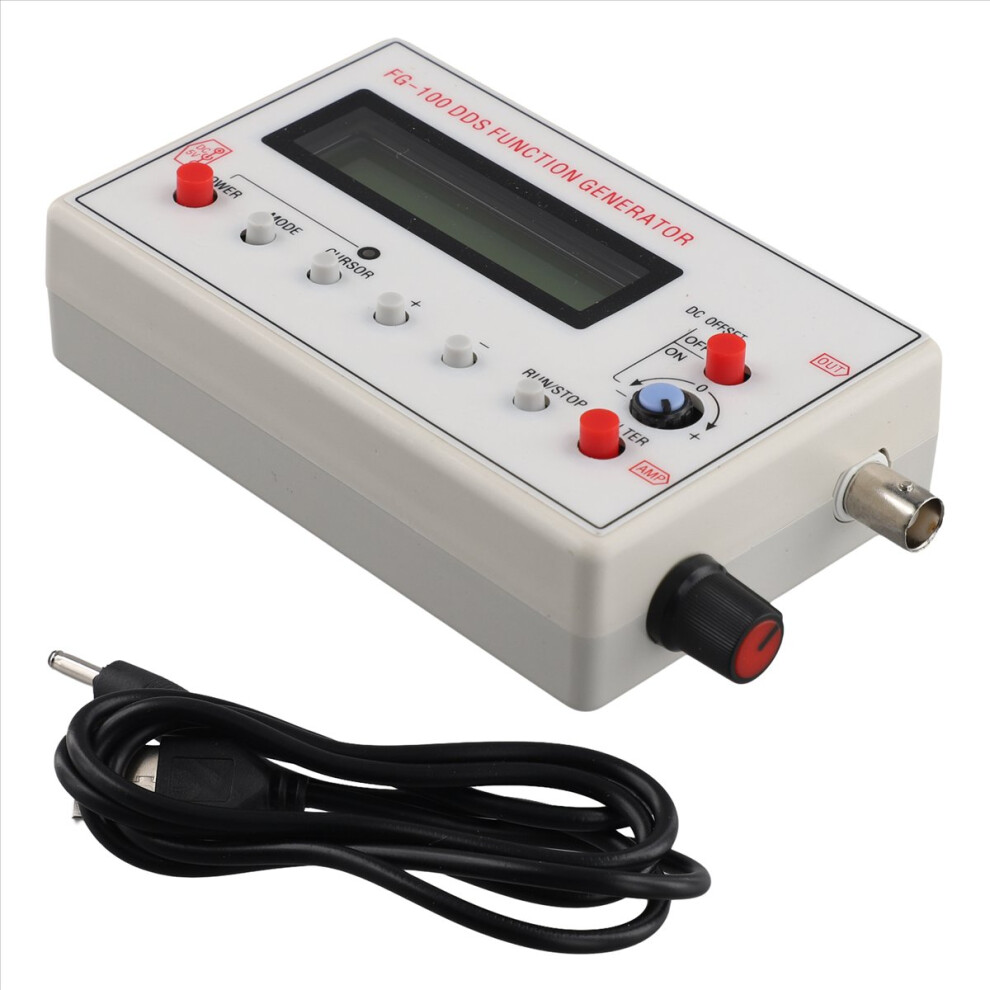

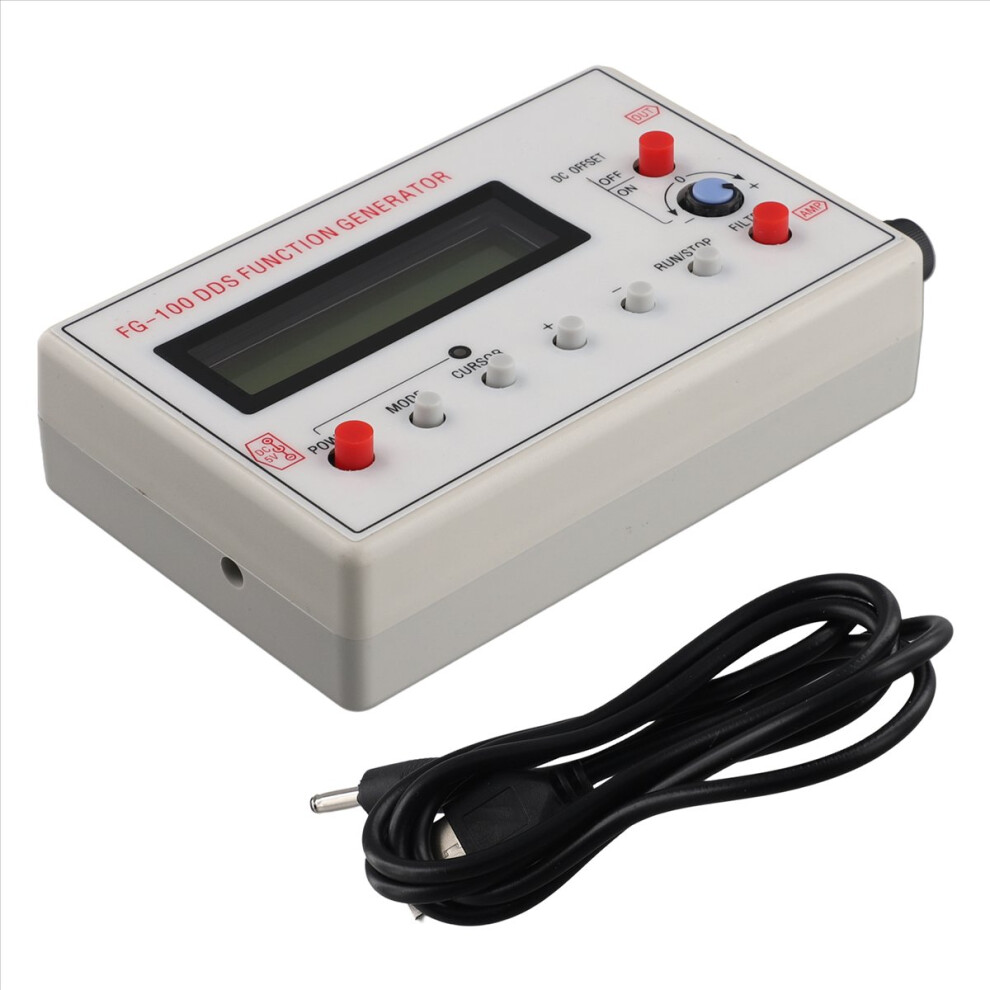

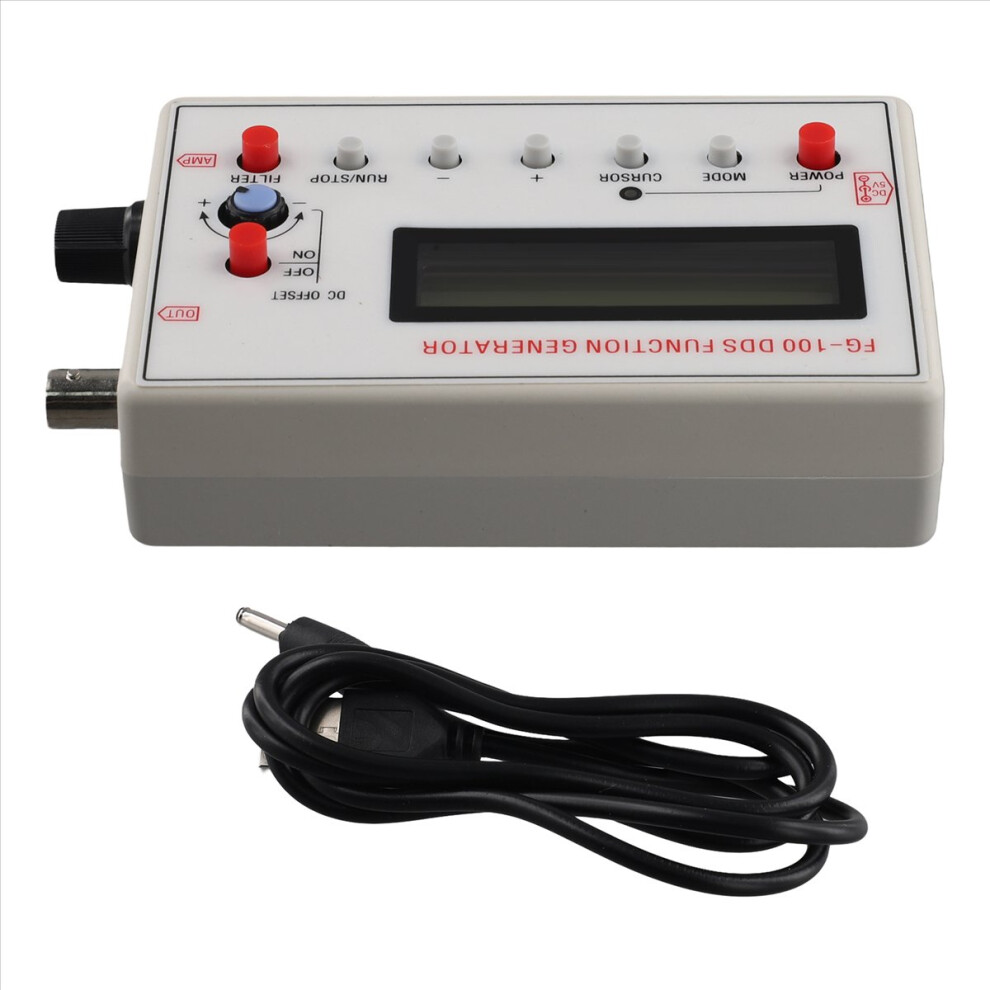

FG-100 DDS Function Signal Generator Frequency Counter

FG-100 DDS Function Signal Generator Frequency Counter Description

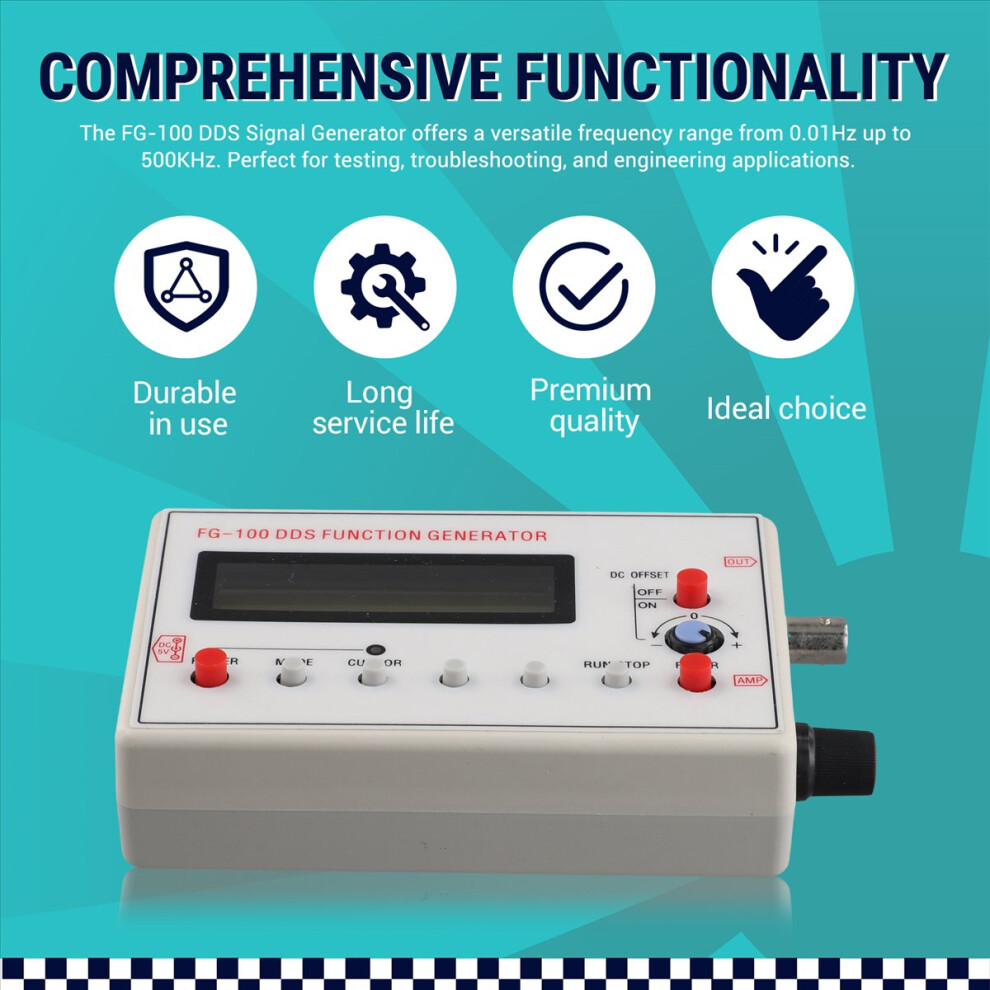

Comprehensive Functionality: The FG-100 DDS Signal Generator offers a versatile frequency range from 0.01Hz up to 500KHz. Perfect for testing, troubleshooting, and engineering applications.
Versatile Waveforms: Easily switch between sine, square, and sawtooth waveforms to meet testing requirements and achieve precise signal simulation.
High : Equipped with advanced DDS technology, this signal generator provides highly accurate frequency and waveform generation, capable of handling complex diagnostics.
Compact and : Designed with portability in mind, this module is both compact and robust, suitable for laboratory, academic, and field use.

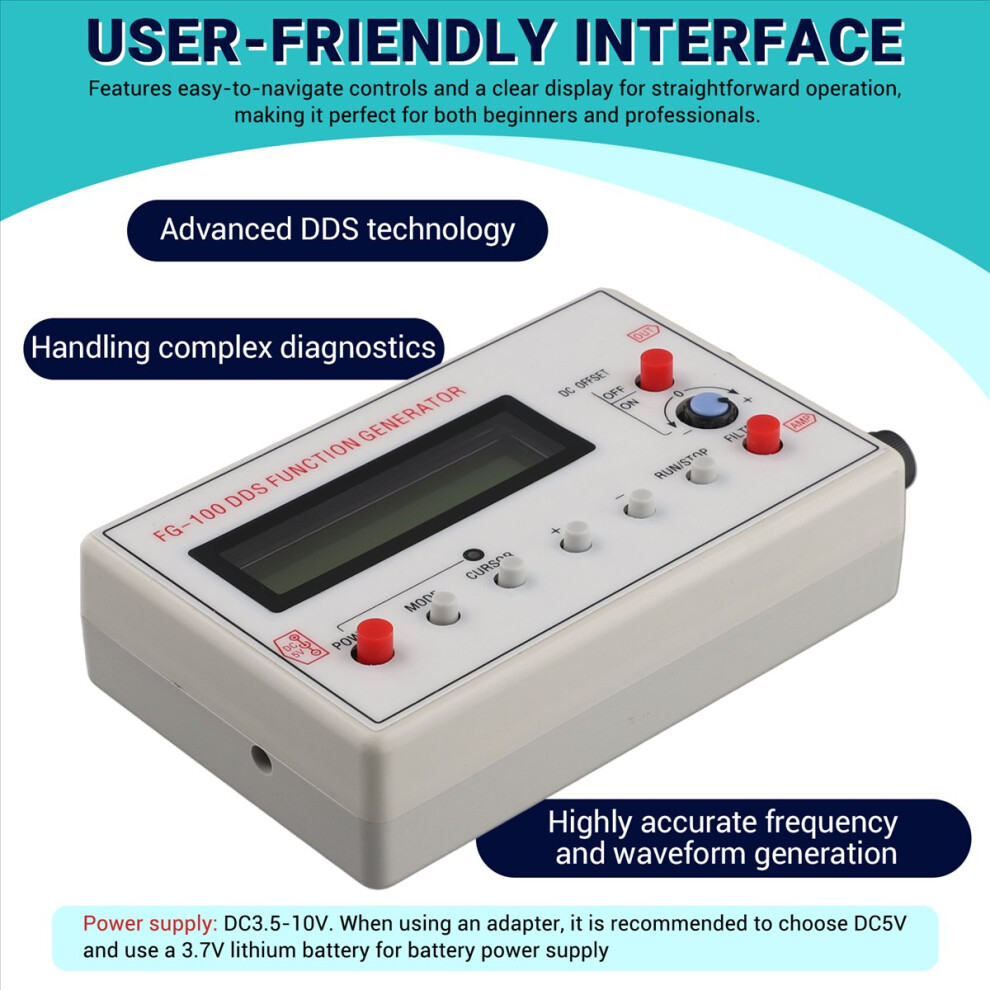

User-Friendly Interface: Features easy-to-navigate controls and a clear display for straightforward operation, making it perfect for both beginners and professionals.

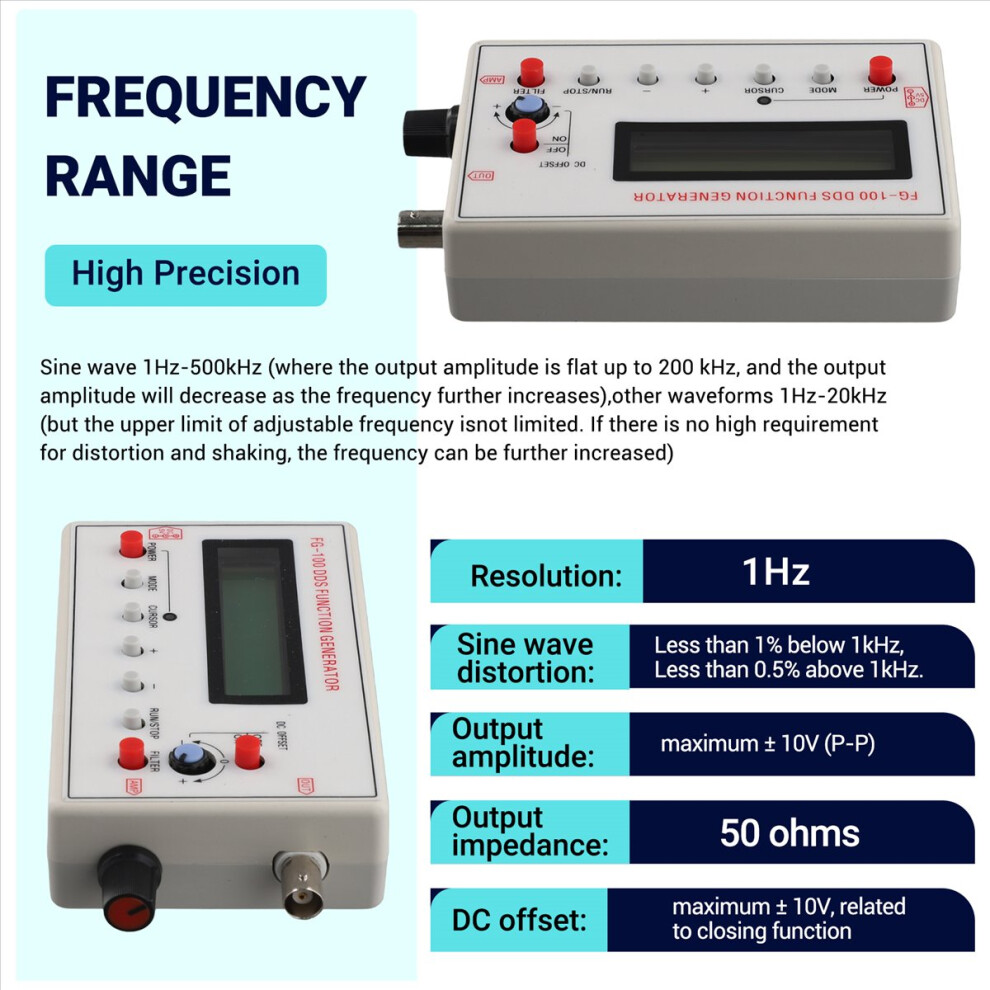

Frequency range: Sine wave 1Hz-500kHz (where the output amplitude is flat up to 200 kHz, and the output amplitude decrease as the frequency further increases), other waveforms 1Hz-20kHz (but the upper limit of adjustable frequency is not limited. If there is no high requirement for distortion and shaking, the frequency can be further increased).
Resolution: 1Hz.
Sine wave distortion:Less than 1% below 1kHz,Less than 0.5% above 1kHz.
Output amplitude: maximum 10V (P-P)
Output impedance: 50 ohms.
DC offset: maximum 10V, related to closing function.
There are filters that can be turned on and off, which can adapt well to sine and pulse waveform outputs.
Power supply: DC3.5-10V. When using an adapter, it is recommended to choose DC5V and use a 3.7V lithium battery for battery power supply
Due to different batches, there may be differences in product appearance and printed text, which not affect use
Colour:As Shown
Material:ABS

Package Contents:
1 x Signal Generator kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
