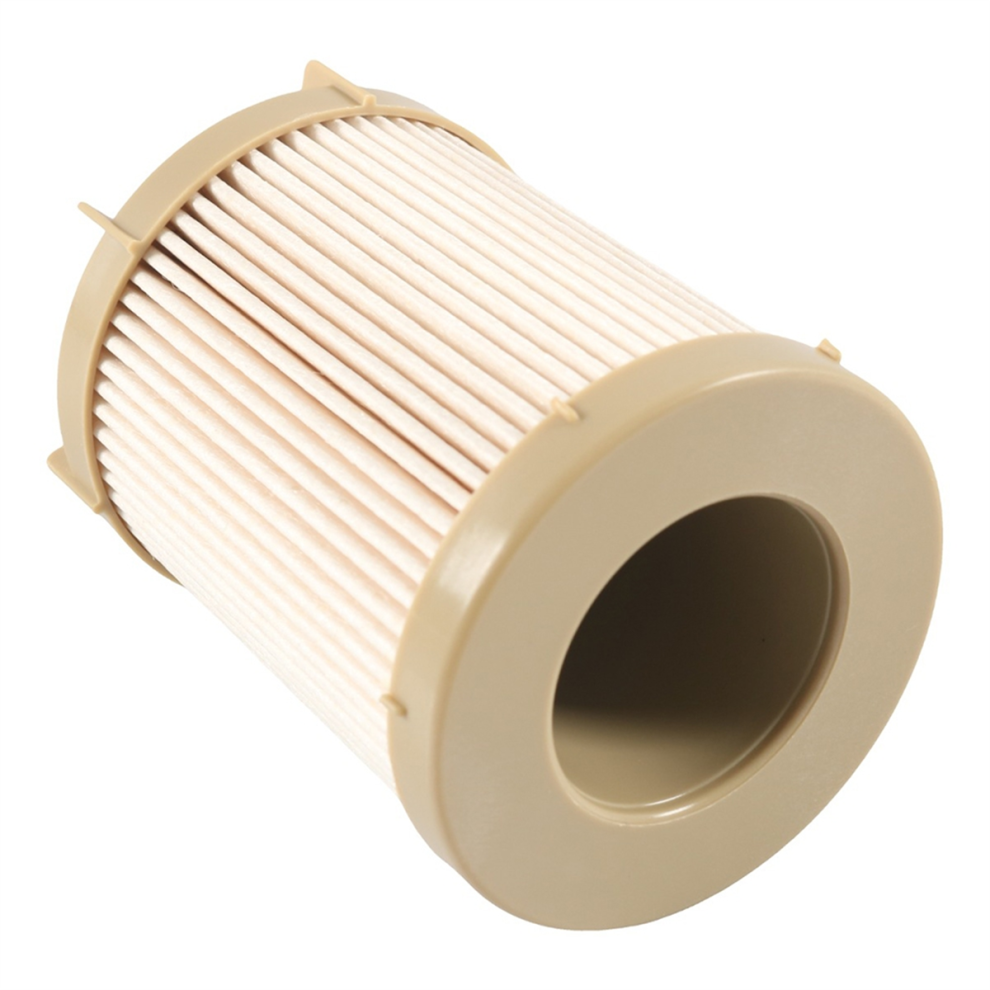

Filter FCC Water Separator Element RP080026 for PCM Engine

Filter FCC Water Separator Element RP080026 for PCM Engine Description

Filter FCC Water Separator Element RP080026 for PCM Engine Description
O-ring: For threaded FCC canister, use the larger o-ring only (old style). For clamp-on FCC canister, use the smaller o-rings (new style).
Replacement part numbers:RP080026,BE5017,ECH-010530-L1M0
FCC filter kit compatible with (but not limited to):
PCM EFI (Electronic Injection) engines starting in mid 1996 equipped with a control cell (FCC) system.
PCM//Pleasurecraft/Pleasure Craft MP 5.0 (5.0L MPI), MP 5.7 (5.7L MPI - EX 343), MP 6.0 (6.0L MPI - ZR6 390), MP 8.1, 496 8.1L V8 , 5.0L 5.7L V8 , 5.0L 5.8L , 7.4L 8.2L V8 inboard engines.
Nautique boats.
Compatible with PCM Engine MP Canister Marine
Installation Tips:
Disconnect the two-wire electrical connectors from the FCC and the low pressure pump(LPFP), as well as the supply line from the LPFP.
Release the canister retaining clamp with a 7/16 inch wrench, slide the canister downward, and dump the contents into an approved container.
Remove the filter element from the canister, and take out the old o-rings from the FCC head.
Put on the new o rings, and lubricate the new o-rings to facilitate the replacement process.
Slide the new filter element on the high pressure pump, put the canister back on, reinstall the retaining clamp and tighten securely.
Reconnect the supply line to the LPFP.
Reconnect the two-wire electrical connectors to the FCC and the LPFP.
Start the engine and inspect for leaks.
Name: filter
Color:As Shown
Material:Plastic+Filter Paper

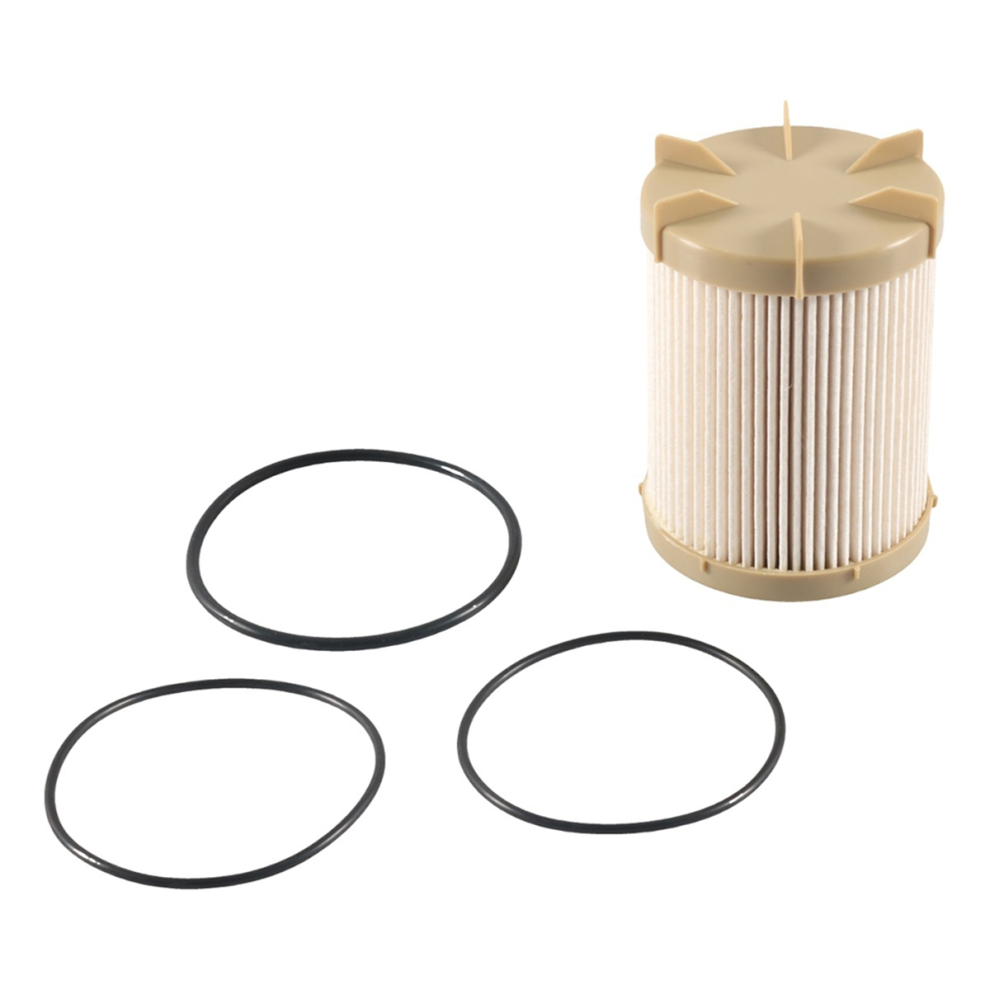

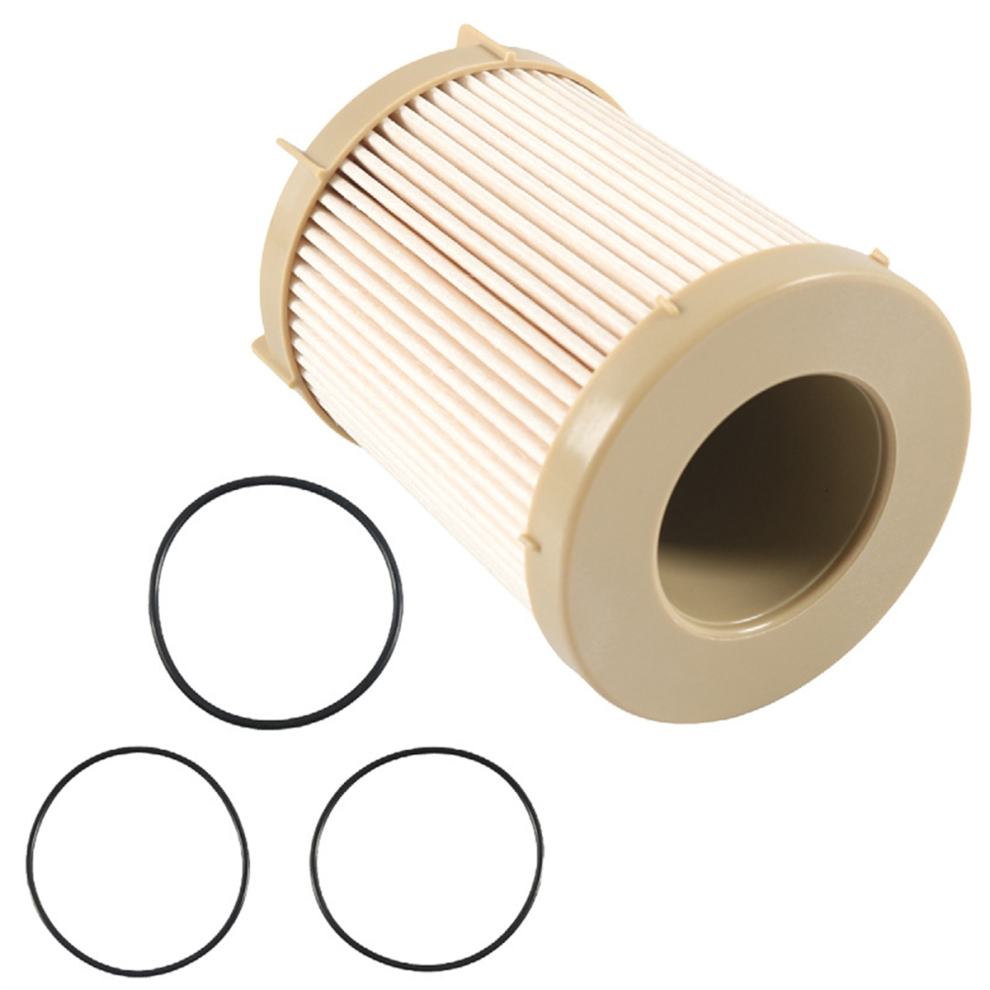

Package Contents:
1 * filter
3 * o-rings
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
