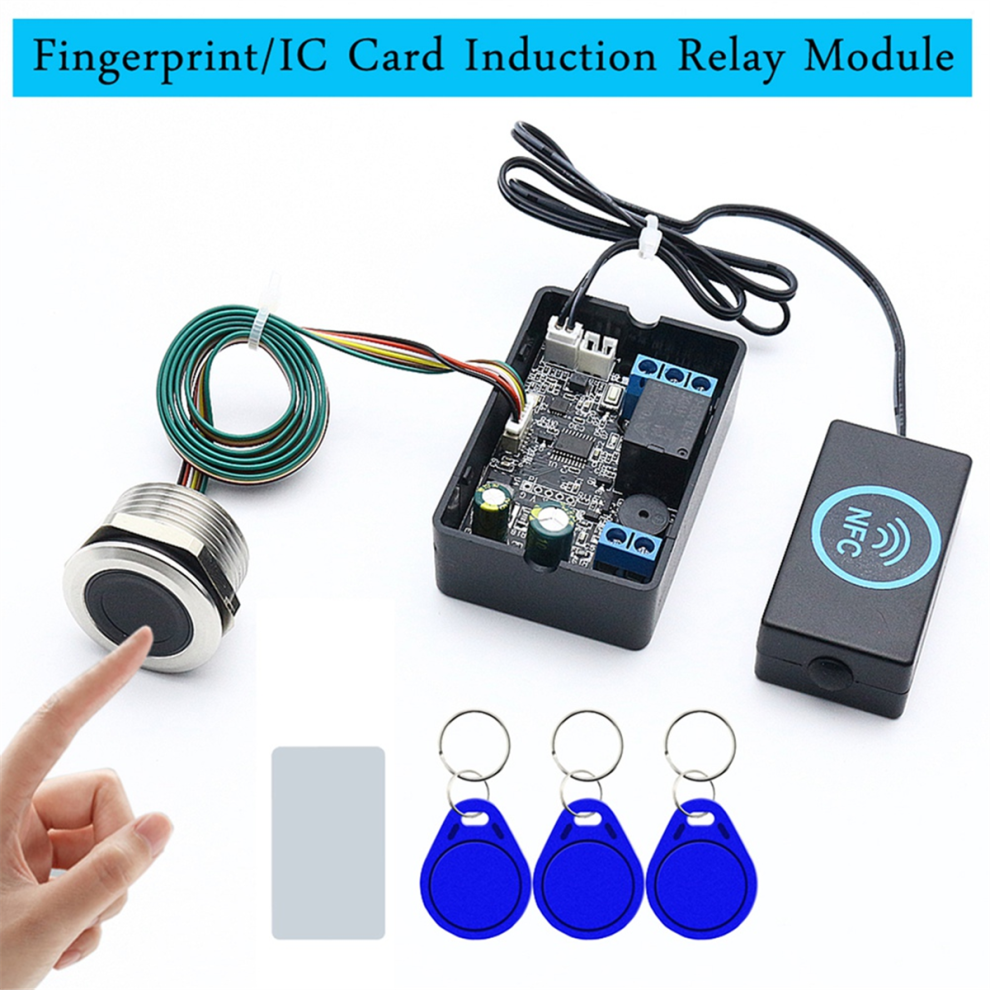

Fingerprint Access Controller NFC Electric Lock Control Relay Module IC Card Induction Switch S3 and

Fingerprint Access Controller NFC Electric Lock Control Relay Module IC Card Induction Switch S3 and Description

1. Compatible with DC10V-120V voltage range;
2. In the jog mode, the output time can be adjusted, and the output can be up to 15 minutes;

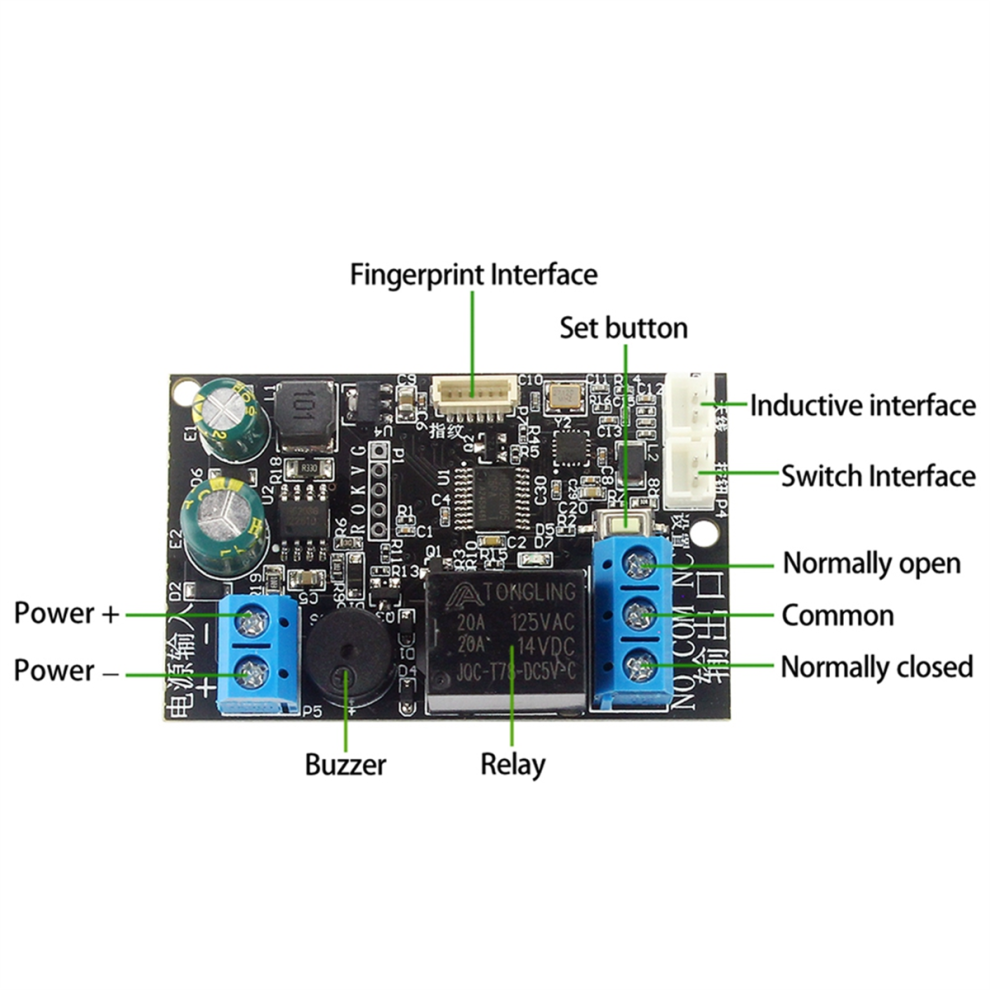

3. With relay normally open and normally closed output control.
4. IC card/NFC sensing distance: 25mm
5. can be connected to the exit button;meet your various needs; easy installation; suitable for DIY user modification, can be used for door lock control, vehicle modification, electrical control, and other occasions .

Three control modes:
Inching mode:turn on after fingerprint recognition; automatically turn off after releasing the finger and reaching the set delay time.
Self-locking mode:turn on after recognizing the fingerprint; after releasing the finger, it be disconnected immediately after re-identifying the fingerprint.
Ignition mode:keep the fingerprint recognition unreleased; it keep on all the time, and it disconnect immediately after releasing the finger
Colour:As Shown
Material:Composite Materials

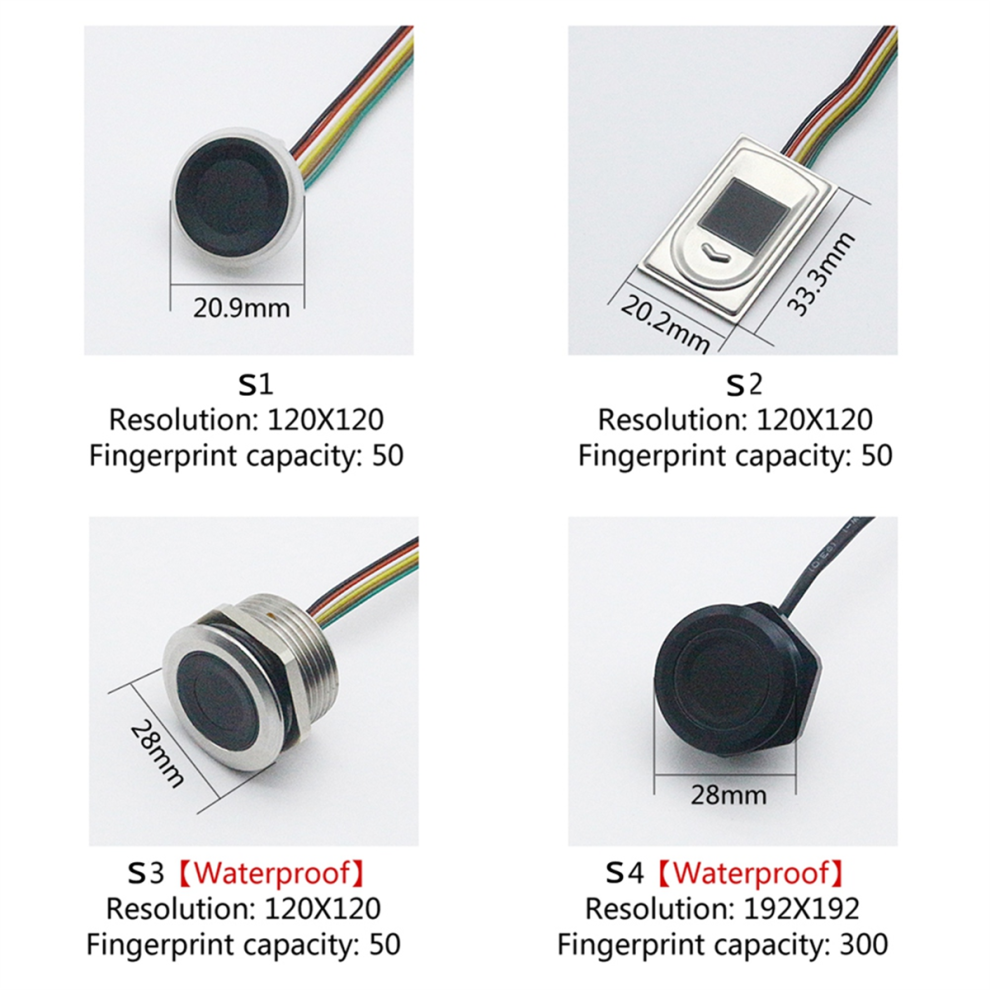

style:IC card and NFC and S3 fingerprint
(fingerprint reader purchased separately according to demand)

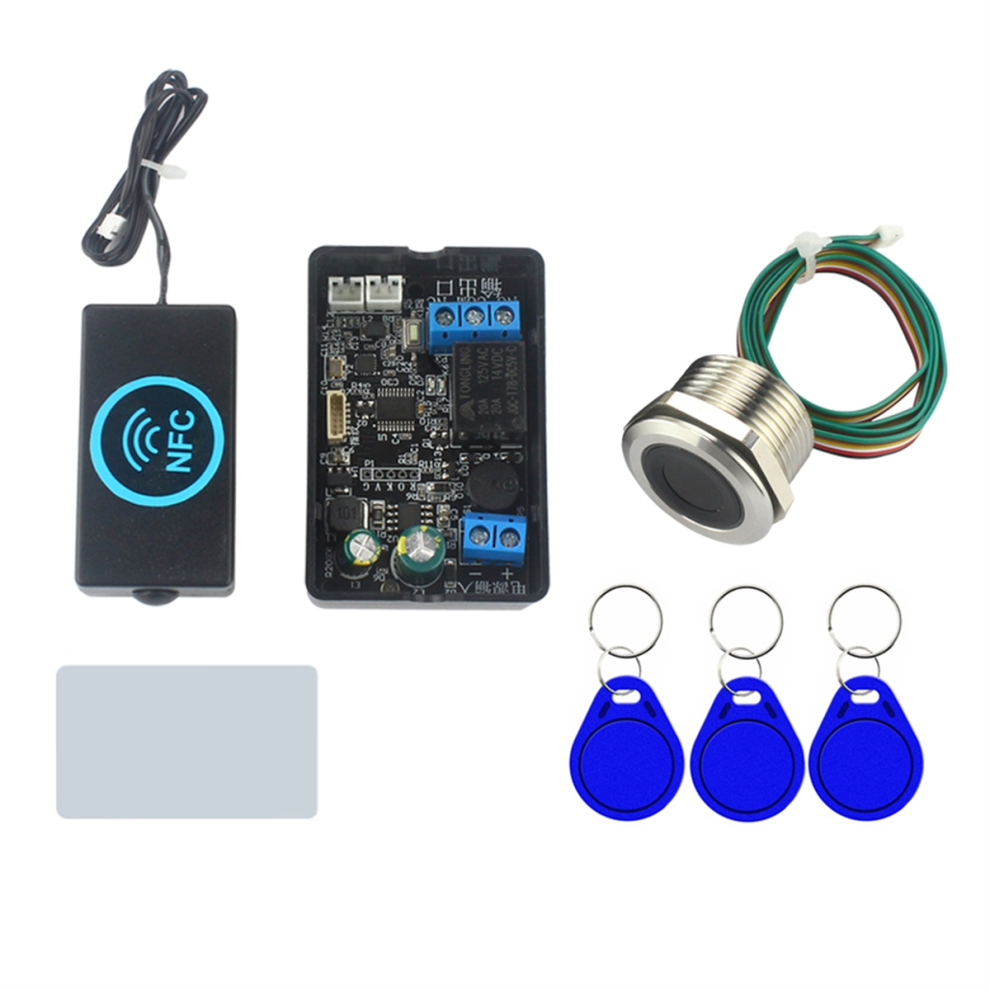

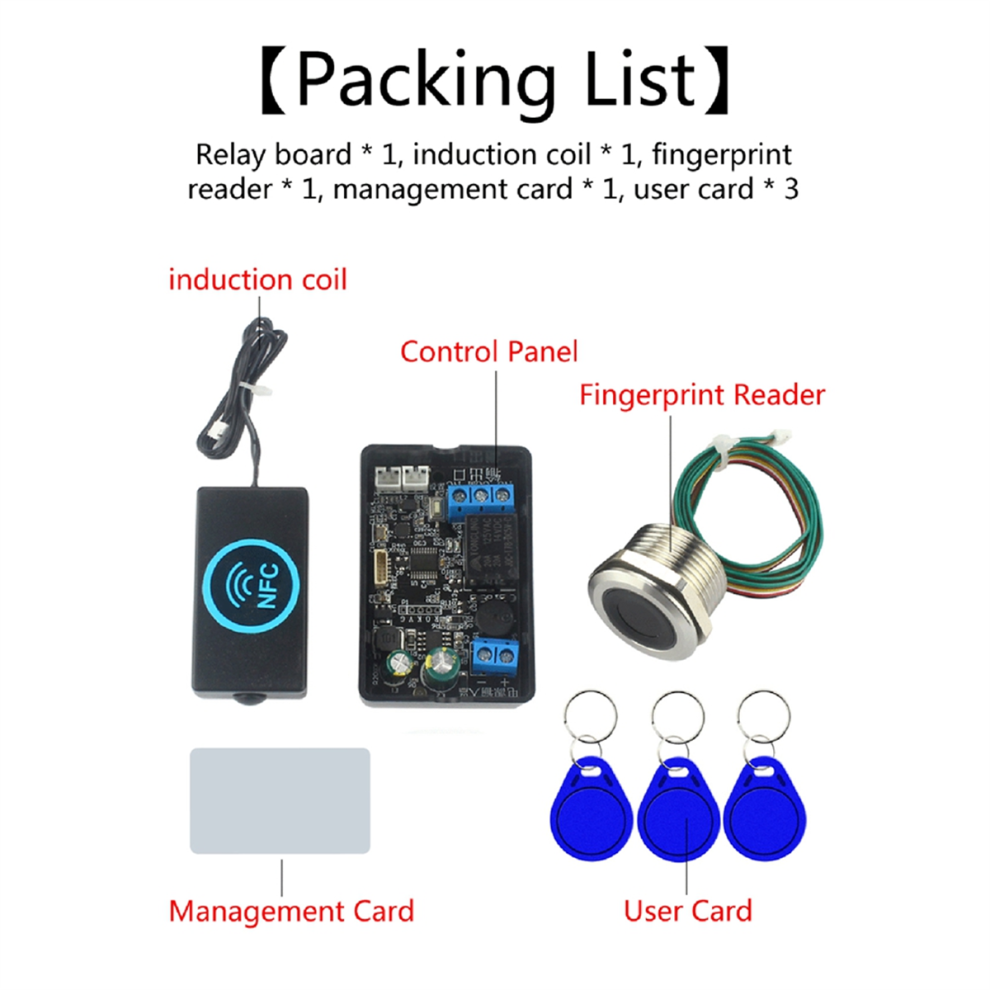

Package Contents:
1 x Control board with shell
1 x induction antenna
1 x management card
3 x user card

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
