For C1 remote control 8CH 500mW ELRS 2.4G TX module

For C1 remote control 8CH 500mW ELRS 2.4G TX module Description

For C1 Remote Control 8CH 500mW ELRS 2.4G TX Module Description
Remote Control Parameters: Integrated ELRS: ELRS 2.4 GHz
Integrated ELRS Refresh Rate: 250 Hz
Remote Control Sensor Type: Potentiometer Sensor
Antenna: Integrated ipex1 Generation Copper Tube Antenna
Operating Voltage: 6-8.4 V DC
Remote Control Range: More than 500 m
Output Interface: High Frequency Head NANO Bearing (CRSF Protocol)
Type C (Charging and Firmware Flashing Only) 3.5 mm Simulation Trainer Connector
Battery: 2 x 18650 Flat Head Batteries (not included, must be purchased and installed separately)
Charging: Type C Charging Current 1.2 A, Charging Time approx. 3-4 Hours
Remote Control Channel: 8 Channels
Bluetooth: Bluetooth 4.2
ELRS Firmware Upgrade Method: WIFI or TYPE-C Line Brush
ELRS Firmware Version: ELRS 3.0
ELRS Firmware Name: DIY Device 2.4 GHz
DIY ESP32 + E28 2.4 GHz TX
Due to different batches, there may be differences in appearance, color, and printed text, but this does not affect use.
Color: Transparent White
Material: Plastic

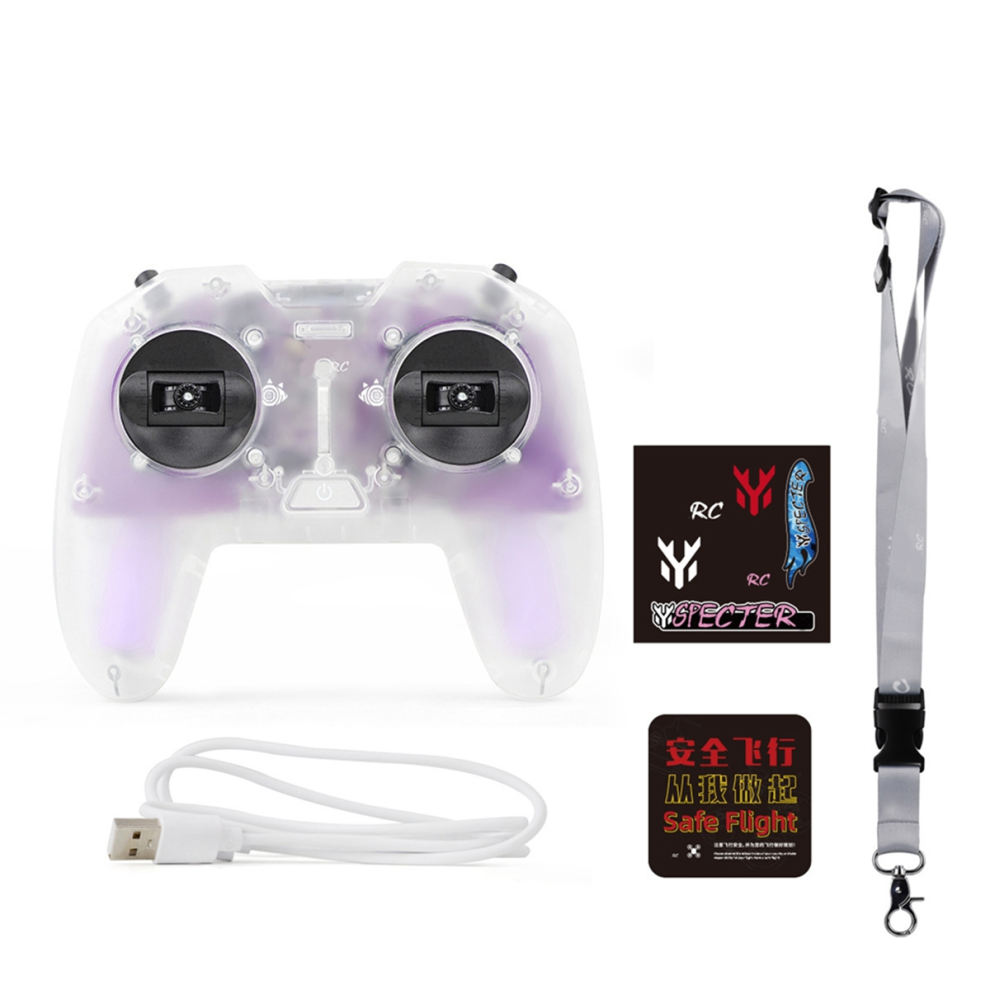

Package Contents:
1 x For C1 Remote Control Kit
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause This may result in the color of the item in the picture being slightly different from the original. The permissible measurement error is +/- 1-3 cm. [OnBuy.com]
