For Compute Module 5 IO Board with PoE function

For Compute Module 5 IO Board with PoE function Description

Compute Module 5 IO Board with PoE Function Description
Suitable for evaluating the CM5 or for integration into end products, PoE baseboard for all Compute Module 5 variants.
Connection to Compute Module 5: Standard CM5 socket and 40-pin GPIO header, suitable for all variants of the Compute Module 5.
Power over Ethernet: Provides network connectivity and power supply for your device in a single cable.
Supports M.2 NVMe Solid State Drive: Faster read/write speeds compared to the TF card slot, significantly improving system or file read/write efficiency, supports booting from NVMe Solid State Drive.

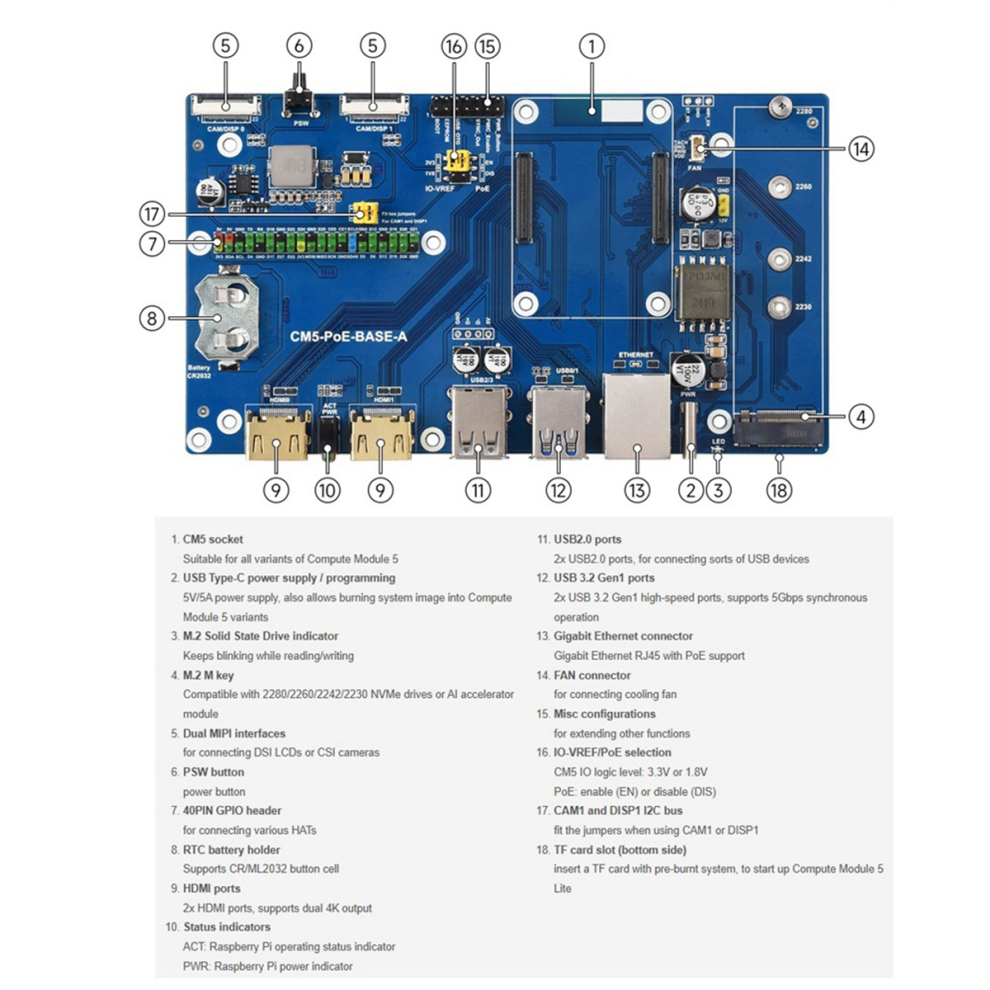

Compatible with sizes 2230/2242/2260/2280, Support for NVMe drive slots. (Note: Only supports solid-state drives with NVMe protocol.) Extensive peripheral connectivity: Onboard ports, including MIPI / M.2 / compatible / USB / ETH / TF card slot. Specifications: CM5 socket: Compatible with all variants of the Compute Module 5. Networking: Gigabit Ethernet RJ45 port, integrated 802.3af/at compatible PoE circuitry (5V/5A). Port: 40-pin GPIO header. USB: 2 x USB 3.2 Gen1, 2 x USB 2.0. MIPI: 2 x 4 MIPI interfaces (22-pin 0.5 mm FPC connector). Video: 2 x video ports. Supports 4K output
: / ML2032 battery holder
Storage: TF card slot for Compute Module 5 Lite variants (without eMMC)
Fan connector: 5V, JST-PWM 4-pin connector
NVMe: PCIe Gen2/3 x 1
Power input: 5V 5A
Color: blue
Material: PCB + components
Due to different batches, there may be differences in appearance, color, and printed text, which do not affect usability.

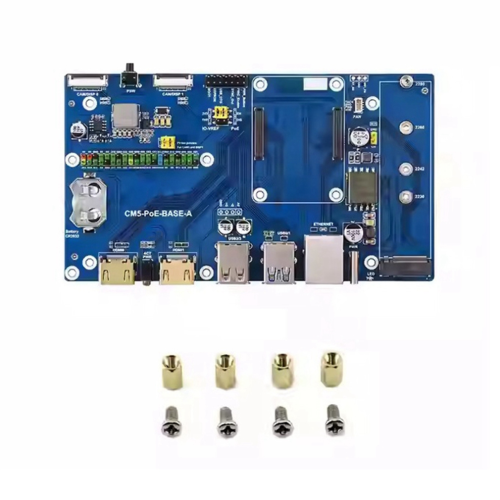

Package contents:
1 * Compute Module 5 PoE baseboard
1 * Screw bag (screw color random, does not accept the specified color)
Only the above package contents, other products are not included.
