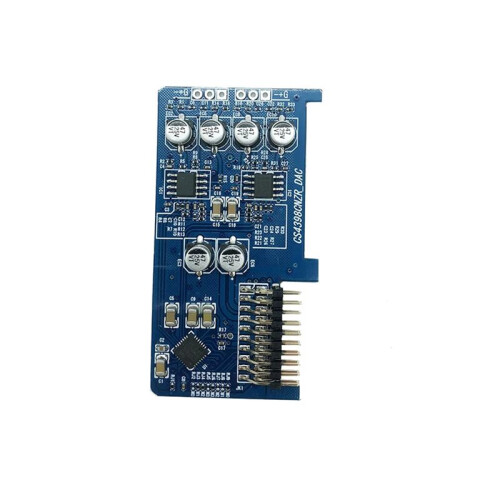

For CS4398 DAC Decoding Board CS4398+OPA1612 CS4398 for DAC Decoder 2 Channels Balanced Output Standard I2S Interface

For CS4398 DAC Decoding Board CS4398+OPA1612 CS4398 for DAC Decoder 2 Channels Balanced Output Standard I2S Interface Description

Channel output 2
Resolution (bits) 24
Dynamic range (dB) 120
Total harmonic distortion (THD) + N (dB) -107
Sampling frequency (kHz) 30-216

Product parameters:

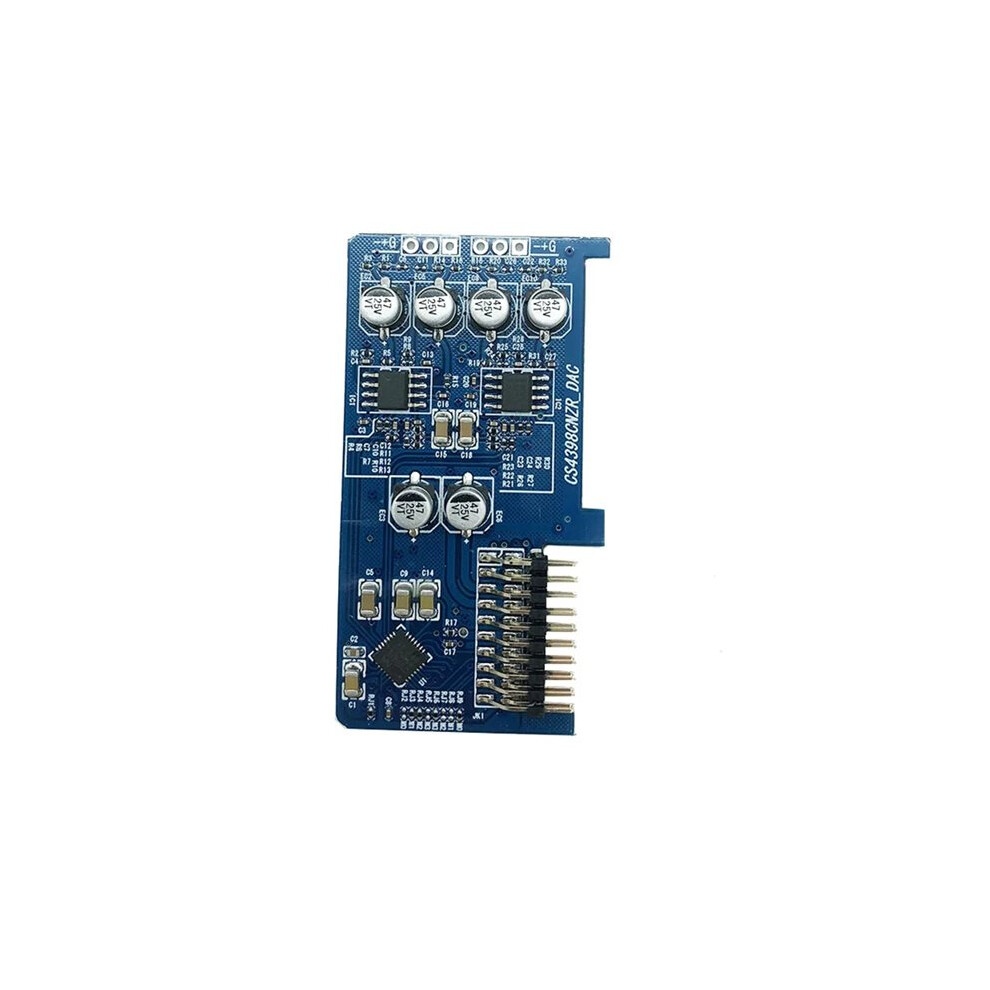

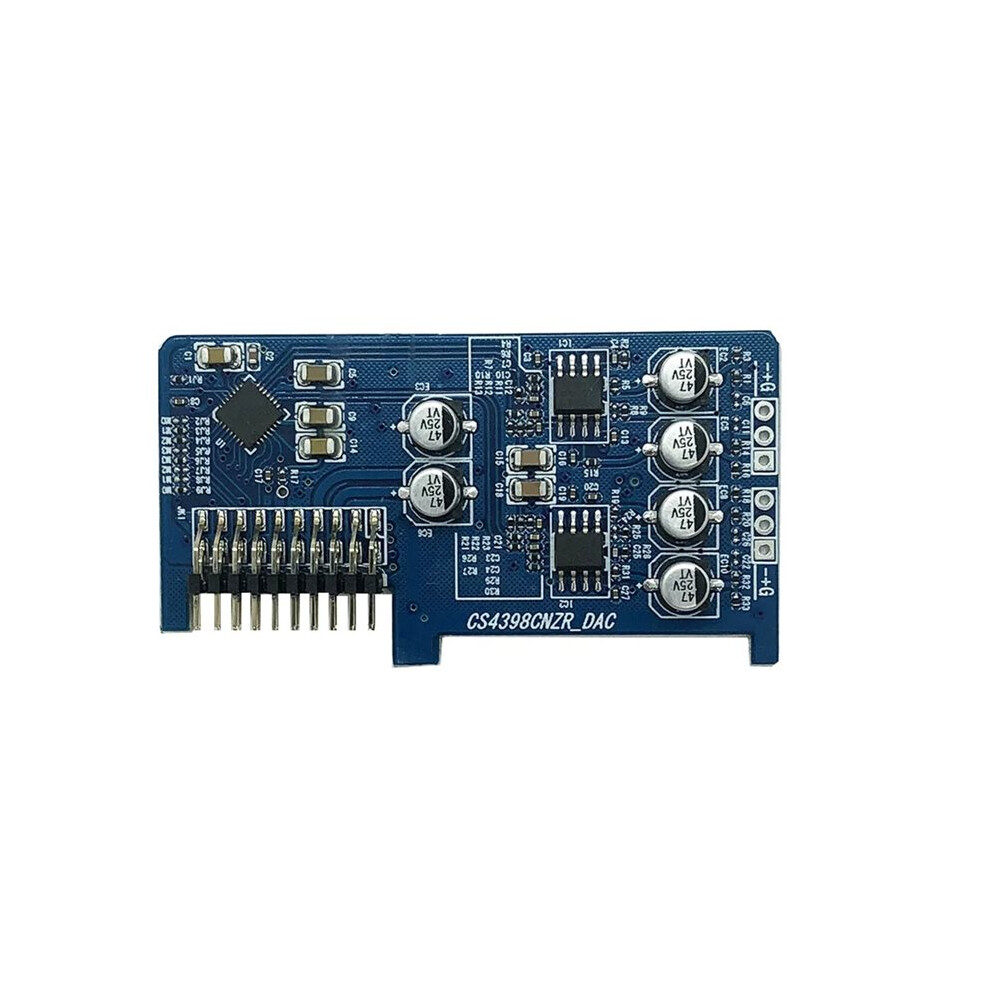

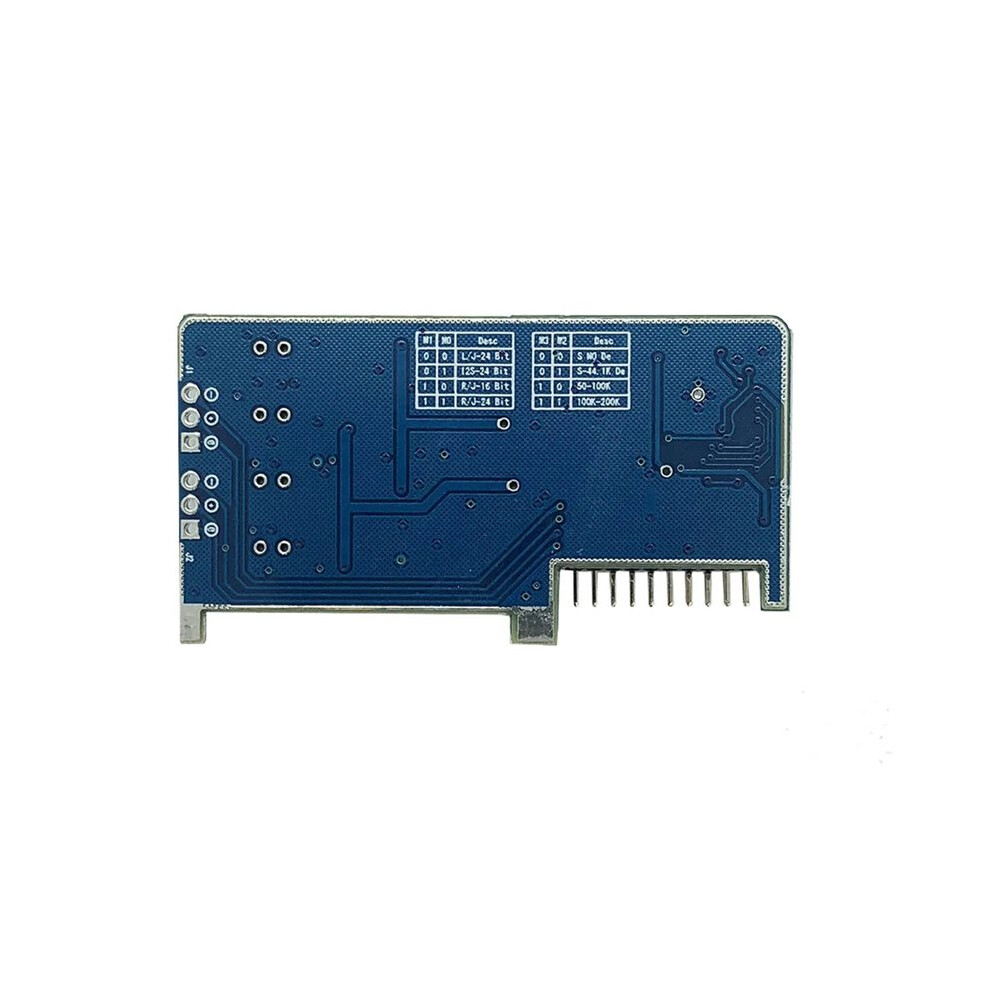

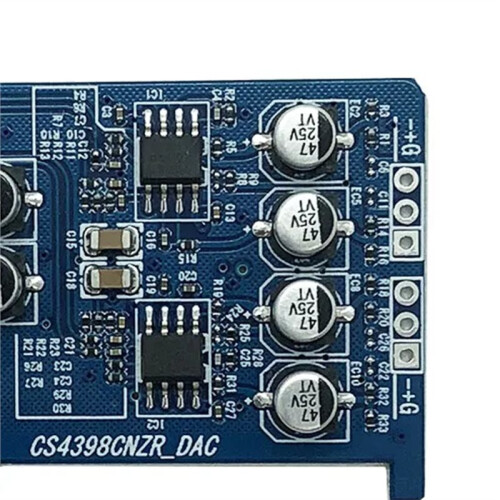

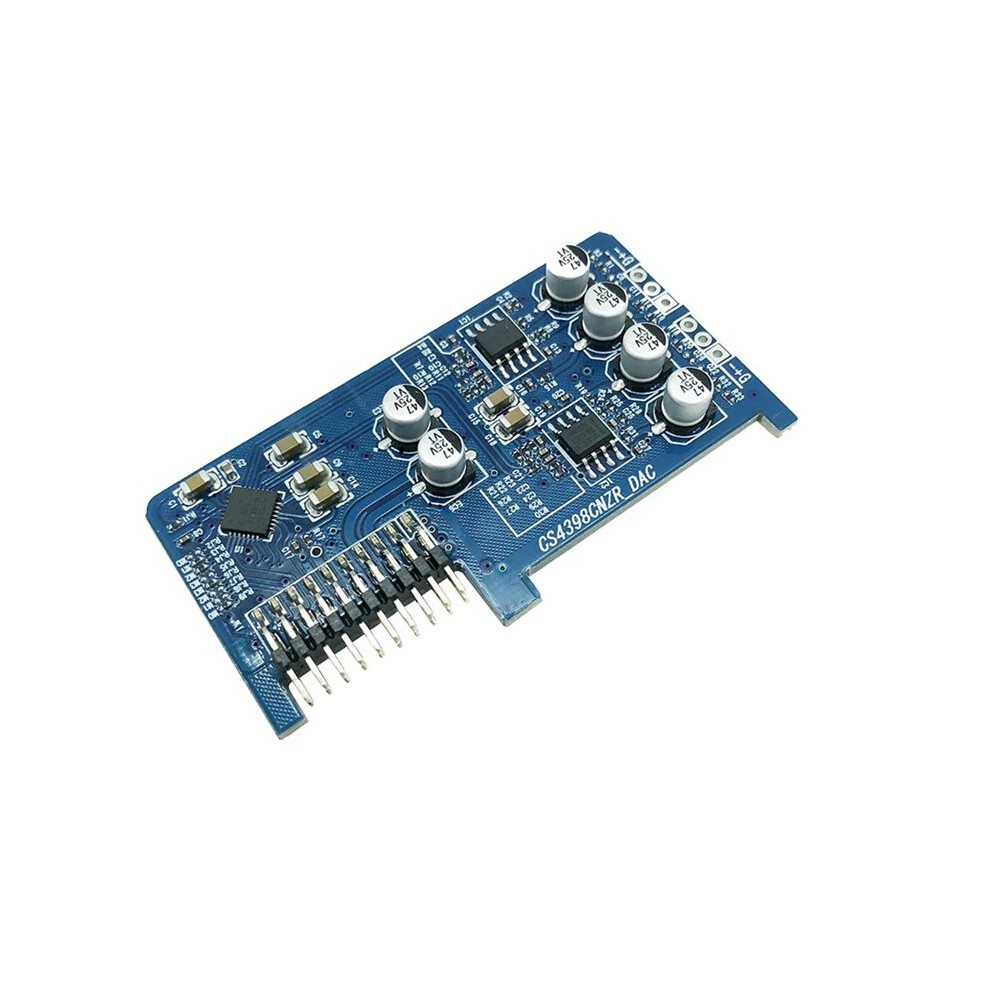

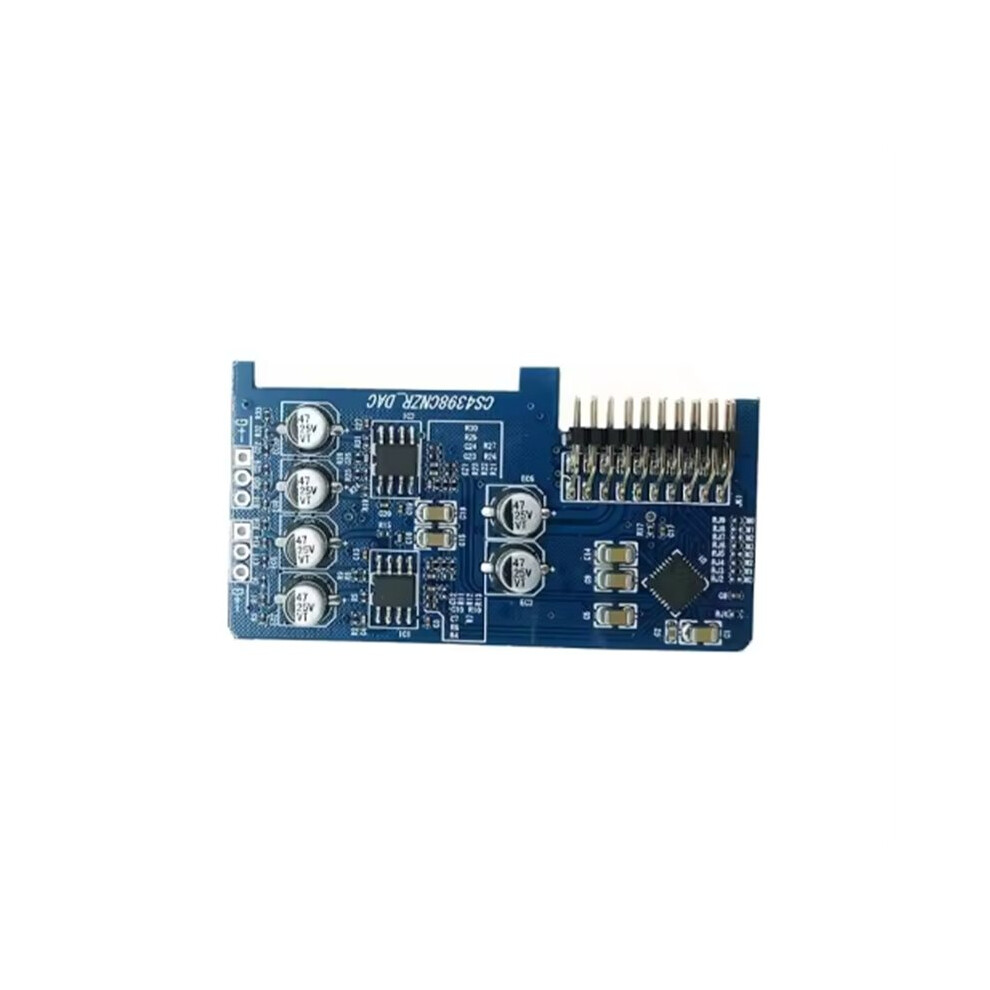

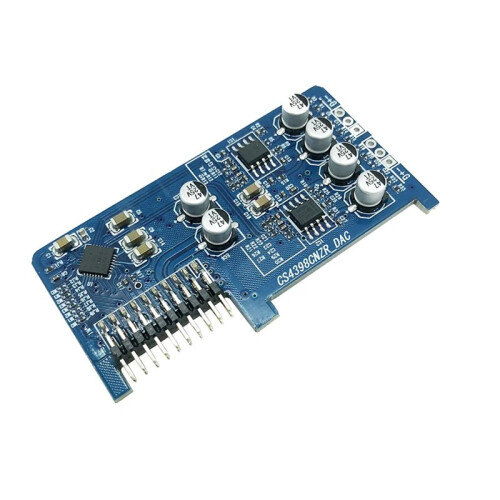

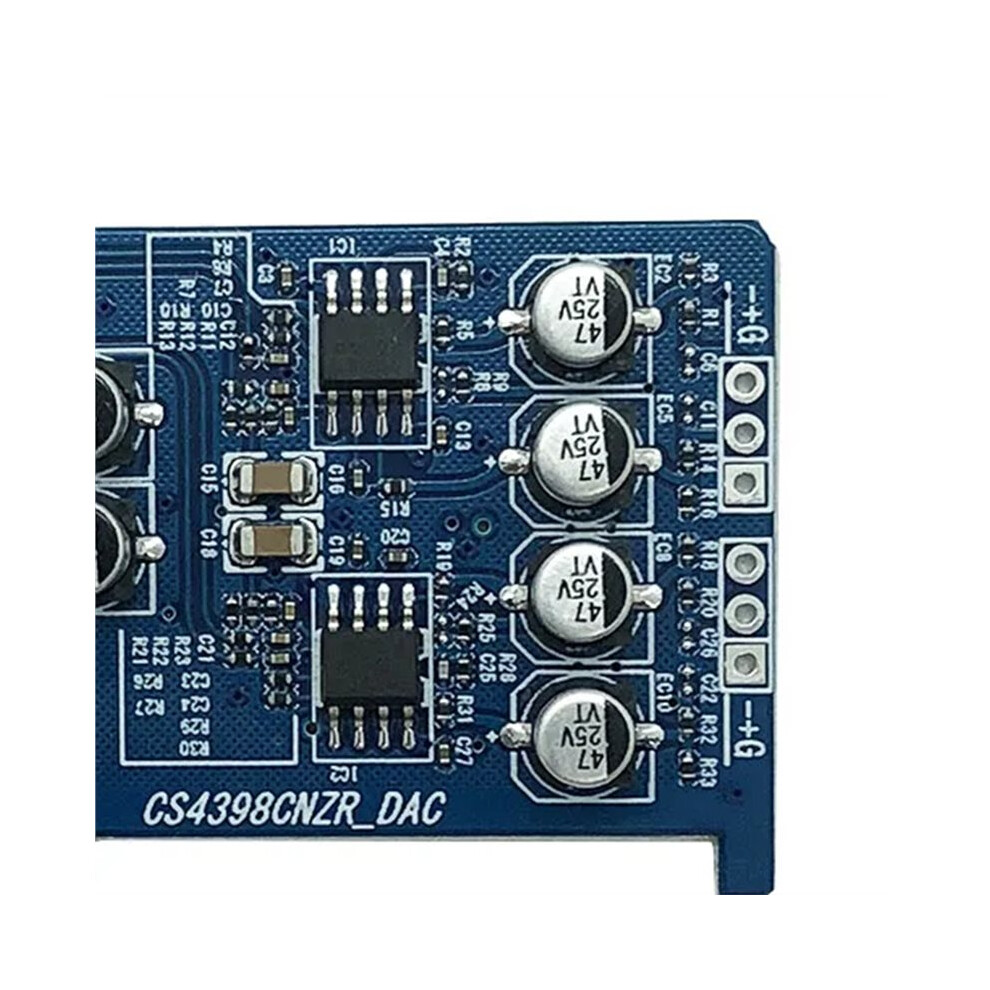

For DAC decoder made by CS4398 can be directly matched with the ADSP21489/ADAU1463/67 DSP board in the store. It adopts a plug-in structure and 2-channel balanced output. The circuit is a high-performance circuit verified by the official performance. The high-precision resistance and capacitance fully guarantee the product's quality. Consistency, the interface is a standard I2S interface, the height is specially designed for 1U models, personal diy can replace the factory op amp MC33078 and the output coupling capacitor (the capacitor of the plug-in can be replaced, there are reserved holes,) reserved the board Different working modes can be set with the resistance, support 44.1KHz-192KHz, I2S/left-justified, right-justified 16 and 24Bit.

Channel output 2
Resolution (bits) 24
Dynamic range (dB) 120
Total harmonic distortion (THD) + N (dB) -107
Sampling frequency (kHz) 30-216
Analog power (V) 5
Digital power (V) 3.3-5
Logic Power (V) 1.8-5.0
Color: As Shown
Material: PC

Package Contents:
1*decoding board
