For Luckfox Max Linux RV1106 Rockchip AI Board ARM Cortex-A7/RISC-V for Raspberry Pi (C)

For Luckfox Max Linux RV1106 Rockchip AI Board ARM Cortex-A7/RISC-V for Raspberry Pi (C) Description

For Luckfox Max Linux RV1106 Rockchip AI Board ARM Cortex-A7/RISC-V for Raspberry Pi (C) Description
[Highly Integrated and Powerful Performance]
Integrates CPU, NPU, ISP, and other processors. Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU. The integrated, Rockchip-designed 4th generation NPU features high computational precision and supports hybrid quantization int4, int8, and int16. The processing power of the int8 is 0.5 TOPS and up to 1.0 TOPS with the int4. Built-in, in-house developed third-generation ISP3.2, supports 5 megapixels, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc. Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving depending on the scene, and saves more than 50% of the bitrate of conventional CBR mode, so that images from the camera are high-resolution and twice as large. Storage: Built-in 16-bit DDR2 DRAM, capable of handling demanding memory bandwidths. Integrated with built-in POR, audio codec and PHY
[Note]
Camera not included
[Overview]

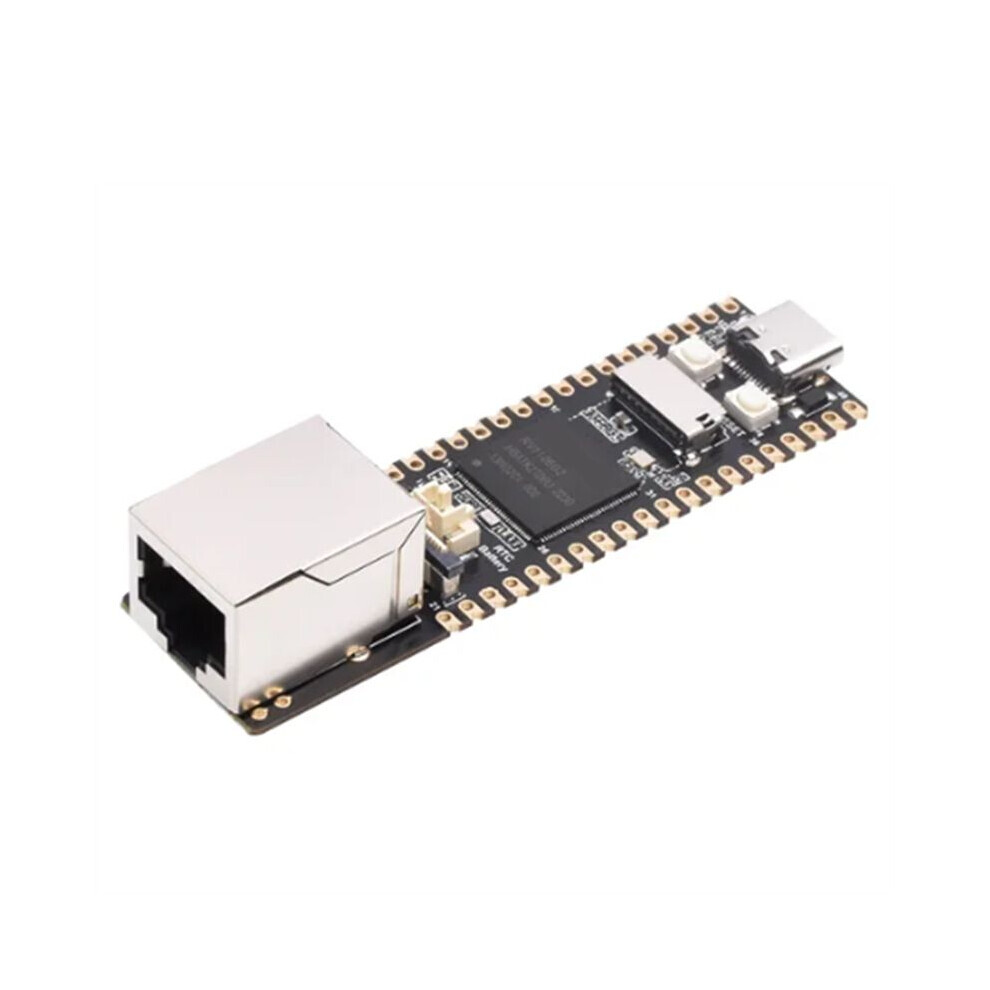

LuckFox Max is a low-cost Linux micro development board based on the Rockchip RV1106 chip, providing developers with a simple and efficient development platform. Supports a variety of interfaces, including MIPI CSI, GPIO, UART, SPI, 12C, USB, etc., making it suitable for rapid development and debugging.
[Specifications]
Processor: Cortex A7 @ 1.2 GHz
NPU: 0.5 TOPS, supports int4, int8, and int16
ISP: Input 5M @ 30fps (Max)
Memory: Max.: 256 MB DDR2
Color: Black
Material: PC + Metal
USB: USB 2.0 Host/Device
Camera: MIPI CSI 2-lane

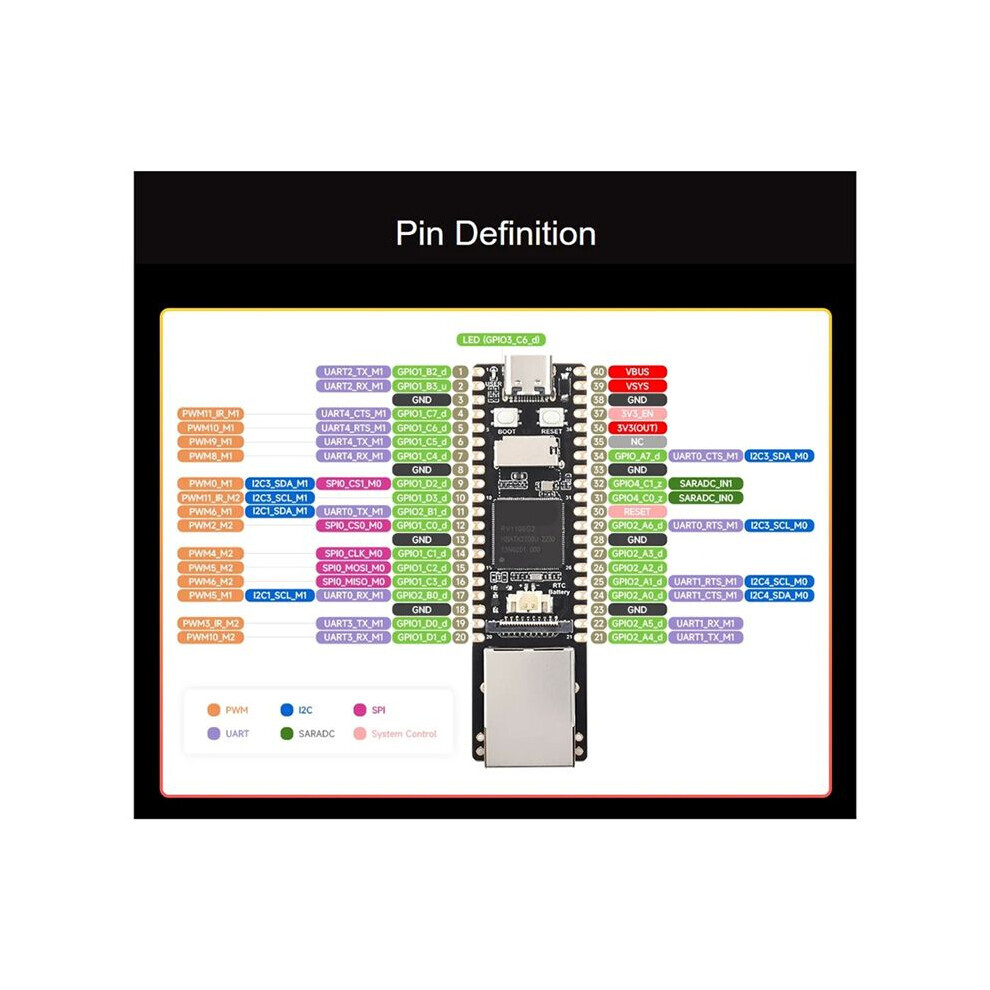

GPIO: 26 x GPIO pins
Ethernet Port: 10/100M Ethernet controller and embedded PHY
1. USB-
