For M5Stack M5stamp PLC controller IoT Programmable Logic Controller with M5stampS3

For M5Stack M5stamp PLC controller IoT Programmable Logic Controller with M5stampS3 Description

For M5Stack M5stamp PLC Controller IoT Programmable Logic Controller with M5stampS3 Description

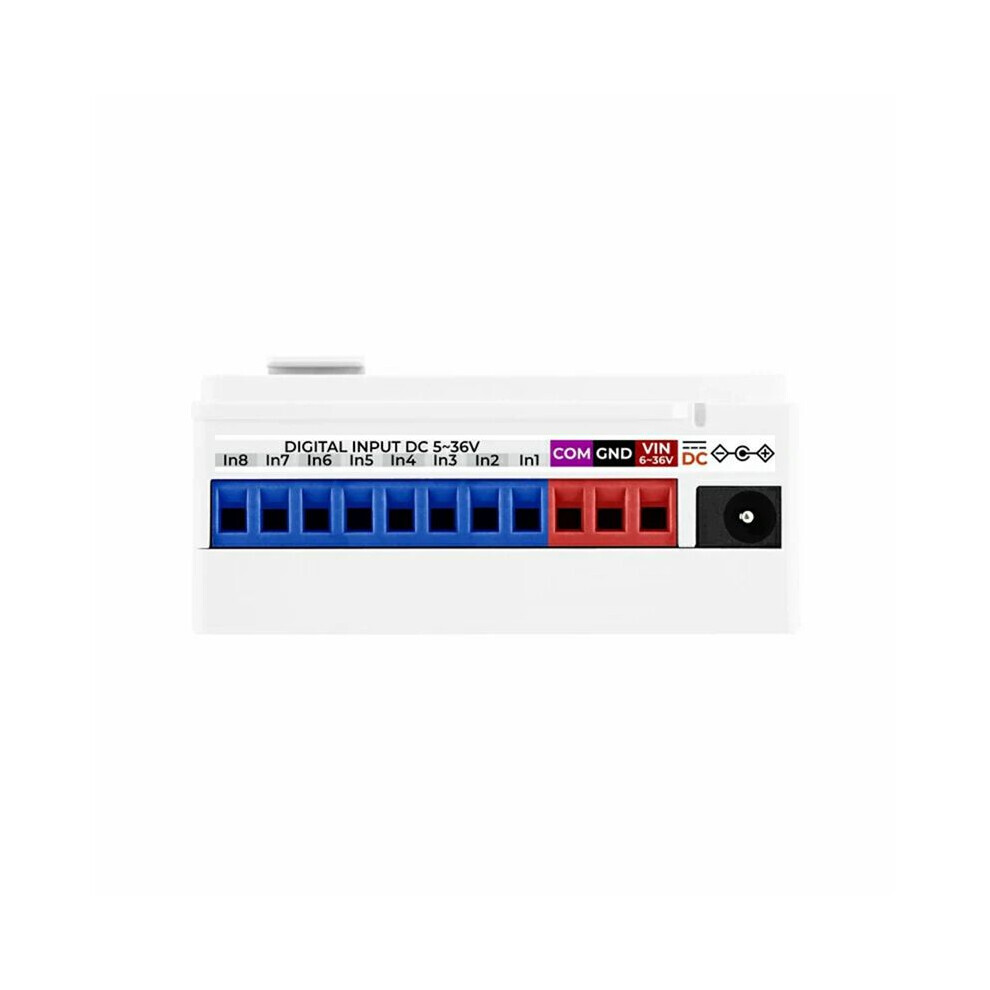

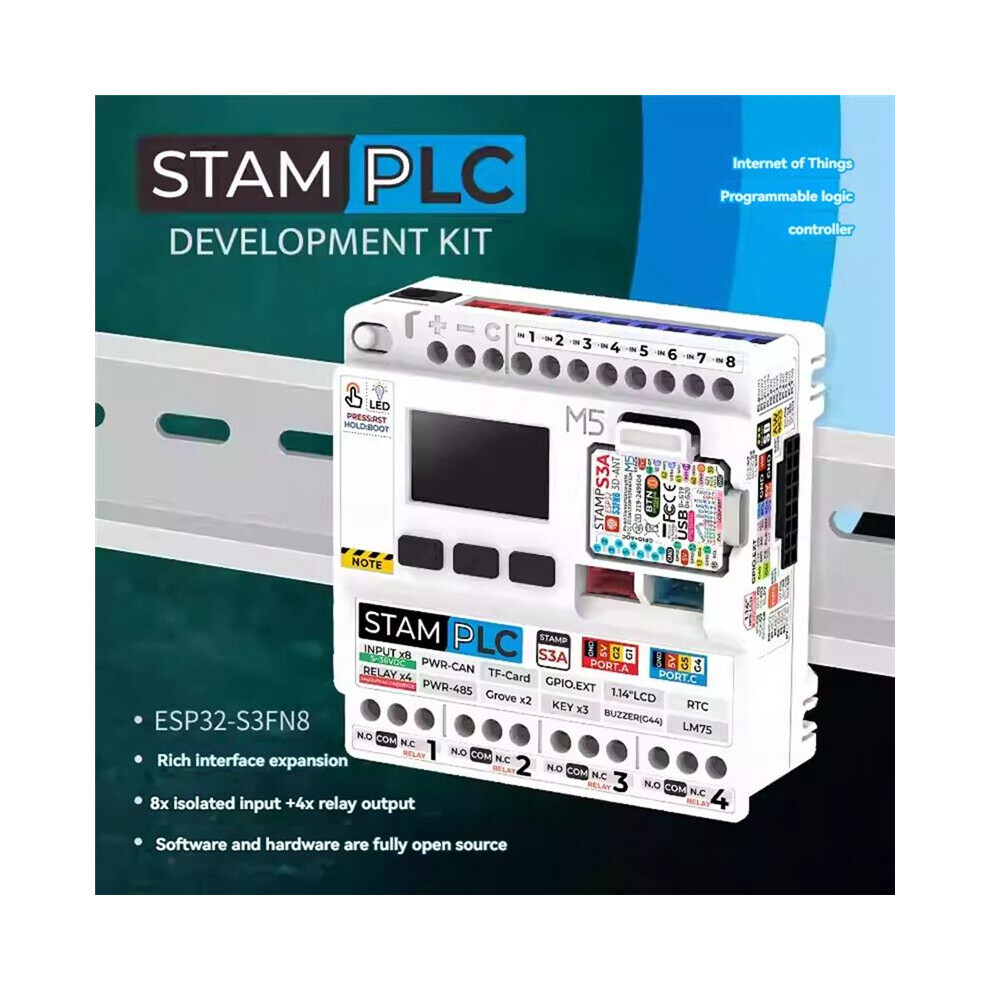

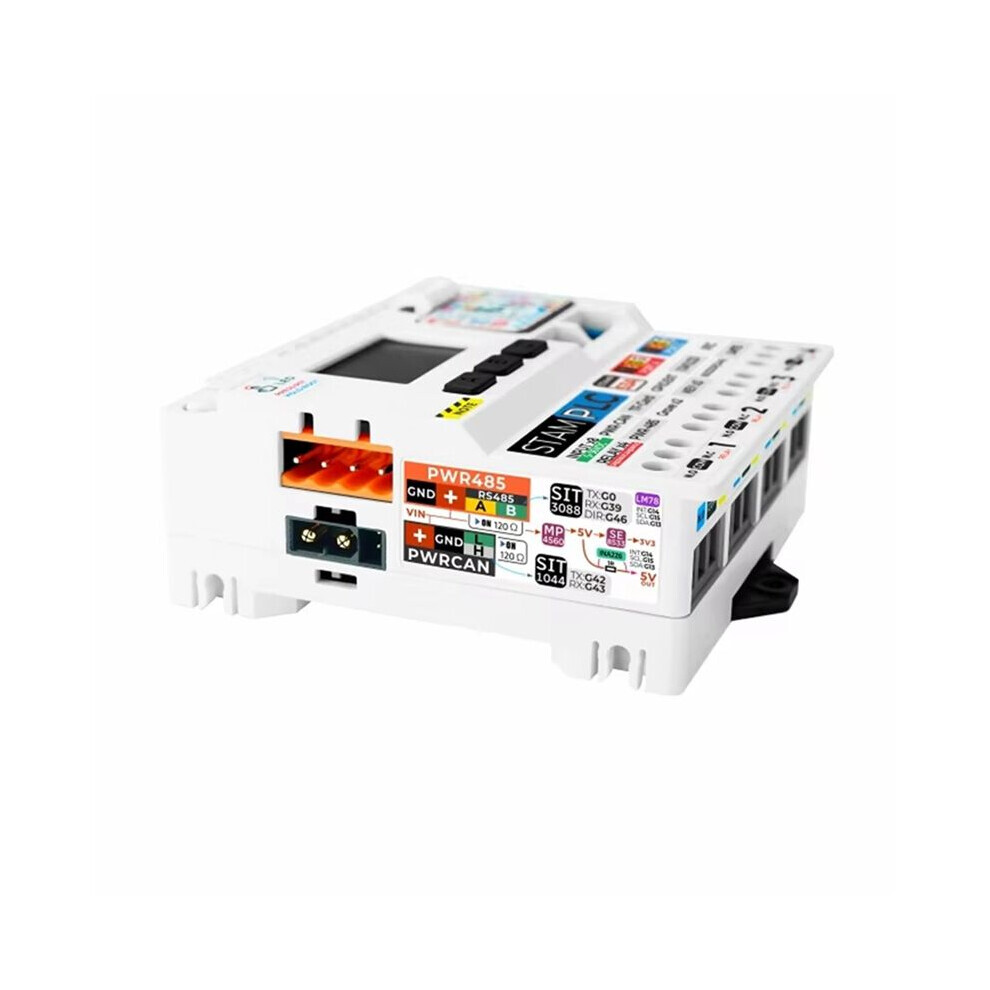

StamPLC is a programmable logic controller (PLC) for the IoT, designed for industrial automation and remote monitoring. The product is based on the StampS3A control module, which offers not only powerful processing capabilities but also efficient wireless connectivity. The StampPLC provides eight opto-isolated digital inputs and four relay outputs (supporting both AC and DC loads), as well as a GPIO.EXT port and two Grove interfaces, making the integration of various sensors and actuators simple and reliable. The integrated PWR-CAN and PWR-485 interfaces allow seamless integration into industrial fieldbus networks, enabling remote data transmission and centralized control. For human-machine interaction, the product features a 1.14-inch color display and a RESET/BOOT button. Three user buttons and a buzzer enable real-time parameter configuration and status monitoring, and can warn users in case of anomalies. The StamPLC supports a wide voltage input (6-36 V) and is designed for DIN rail mounting to ensure secure installation. The integrated microSD card slot provides secure installation. The environmental monitoring system integrates an LM75 temperature sensor and an INA226 voltage/current sensor for real-time feedback on device operation. The RTC module (RX8130CE) ensures precise time synchronization and logging. This product is suitable for industrial automation, remote monitoring, smart manufacturing, and other applications. Power supply precautions: The StamPLC PWR-CAN and PWR-485 power supply connections are directly connected to the main power supply. Therefore, ensure that the power supply is properly connected during operation.
