For Tang Nano 9K Development Board+SPI Screen+2.54Mm Pin Header

For Tang Nano 9K Development Board+SPI Screen+2.54Mm Pin Header Description

1. For Tang Nano 9K is a compact development board based on GW1NR-9 FPGA chip.
2. It's -compatible connector, RGB interface screen connector, SPI screen connector, SPI FLASH and 6 LEDs allow users to easily and quickly perform FPGA verification, RISC-V soft core verification and functional prototype verification.
3. The 8640 LUT4 logic unit owned by GW1NR-9 can not only be used to design complex logic circuits, but also can run a complete PicoRV soft core, which meets the needs of users to learn FPGA, verify soft core and in-depth design.
4. For Tang Nano 9K is developed using Yunyuan software IDE. It supports general hardware description language, and can quickly realize related work such as calling IP core, code synthesis, placement and routing, and bitstream file generation in the FPGA development process.
5. The onboard BL702 chip for Tang Nano9K development board provides USB-JTAG download and USB-UART debugging functions for GW1NR-9. Users only need to use the USB-C cable to connect the development board to the computer to complete the download operation, without the need to purchase an additional downloader and cumbersome wiring.

Core configuration:
Logical Units (LUT4): 8640
Register (FF): 6480
Distributed static random access memory SSRAM (bits): 17280
Block static random access memory B- (bits): 468K
The number of block static random access memory BSRAM (pcs): 26
User flash memory (bits): 608K
PSRAM (bits): 64M
High-performance module: support 9X9, 18X18, 36X36bit multiplication and 54bit accumulator
Multiplier (18x18 Multiplier): 20
SPI FLASH: 32m-bit
Flexible PLL resources: 2 Phase Locked Loops (PLLs)
Display screen interface: -compatible interface, SPI screen interface and RGB screen interface
Debugger: Onboard BL702chip, providing USB-JTAG download and USB-UART serial port printing functions for GW1NR-9
IO: Support 4mA, 8mA, 16mA, 24mA and other drive capabilities; provide Bus Keeper, pull-up/pull-down resistors and Open Drain output options for each I/O
Connector: TF card holder, 2*24P 2.54mm pin header pad
Keys: 2 user programmable keys
LEDs: 6 programmable LEDs onboard
Product size: 70 x 26mm
color:Black
Material:PCB+Metal

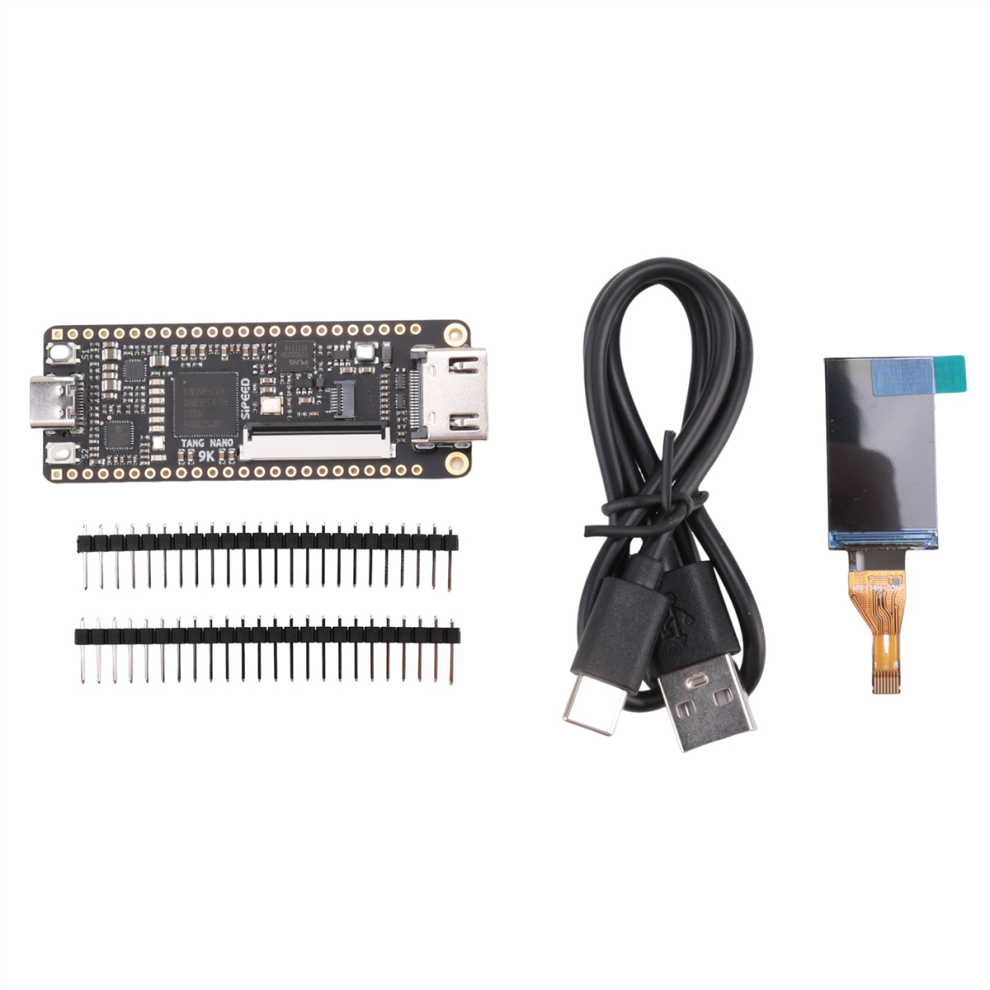

Package Contents:
1 x development board

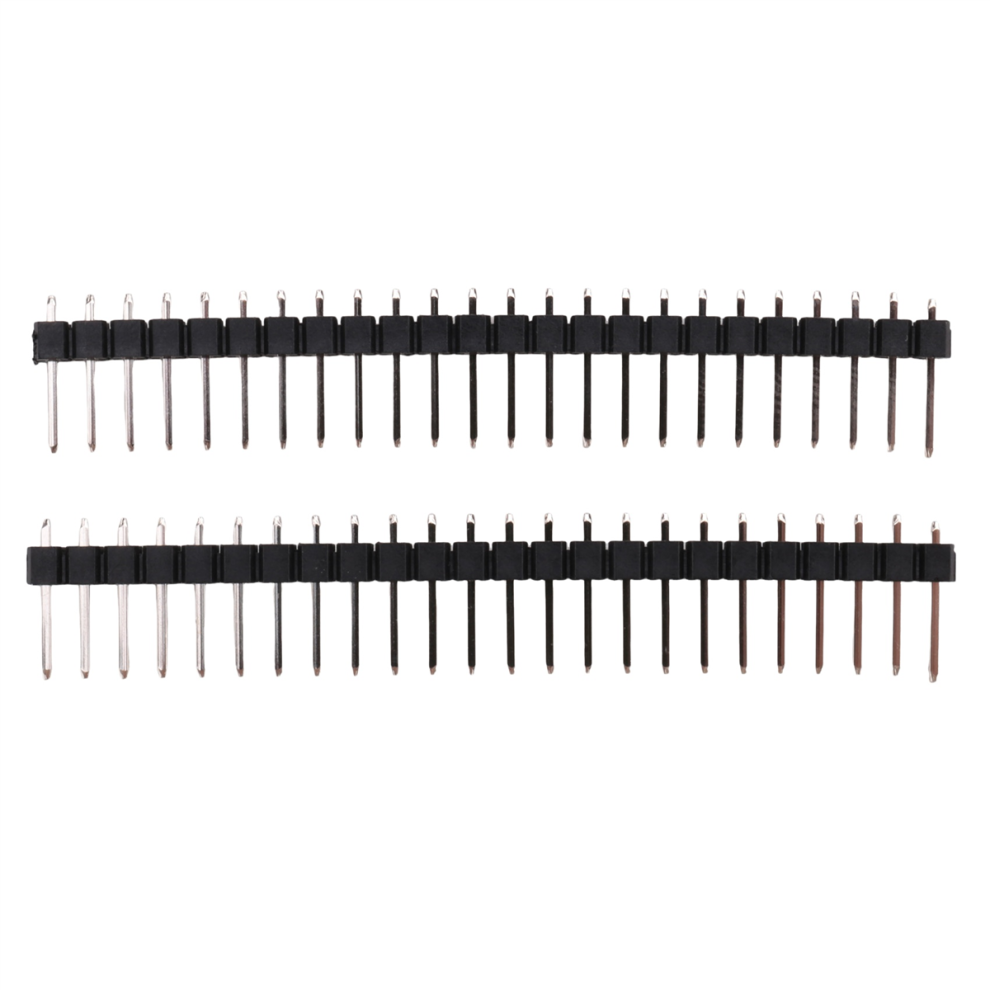

2 x 2.54 pin header

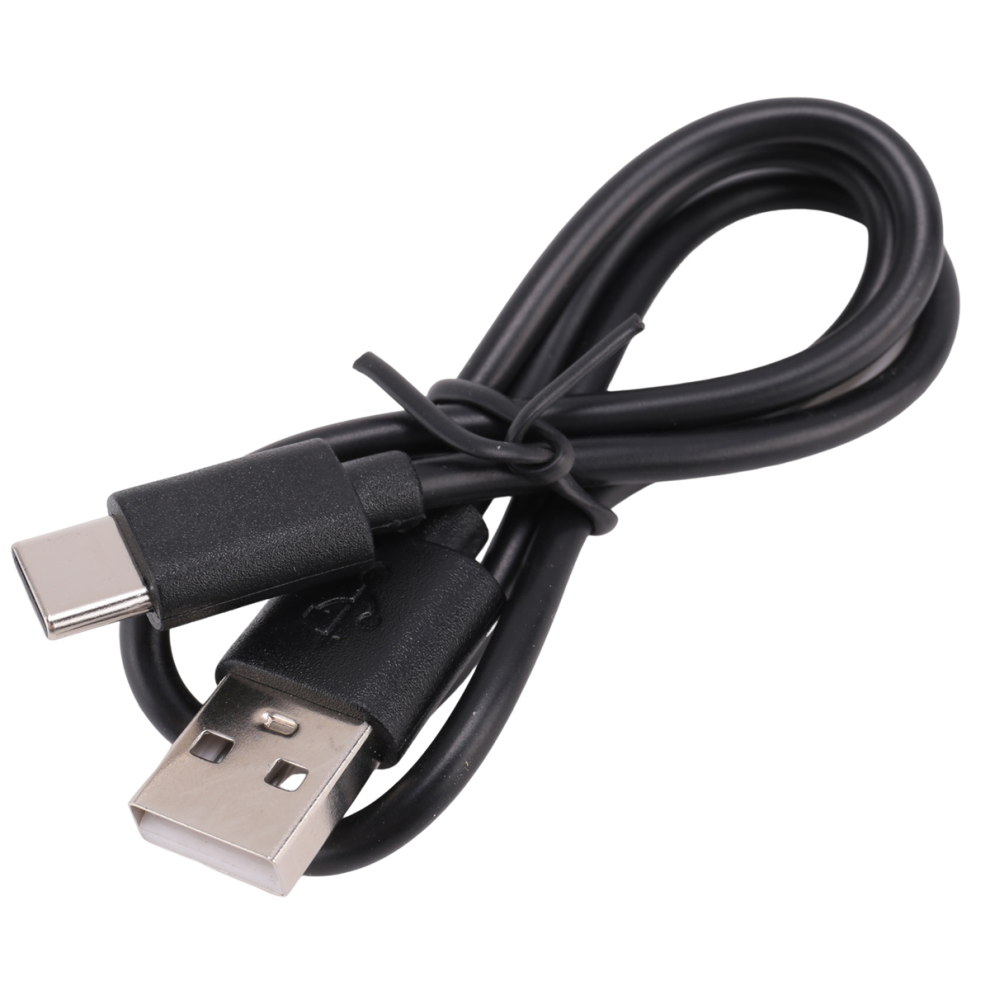

1 x Data cable

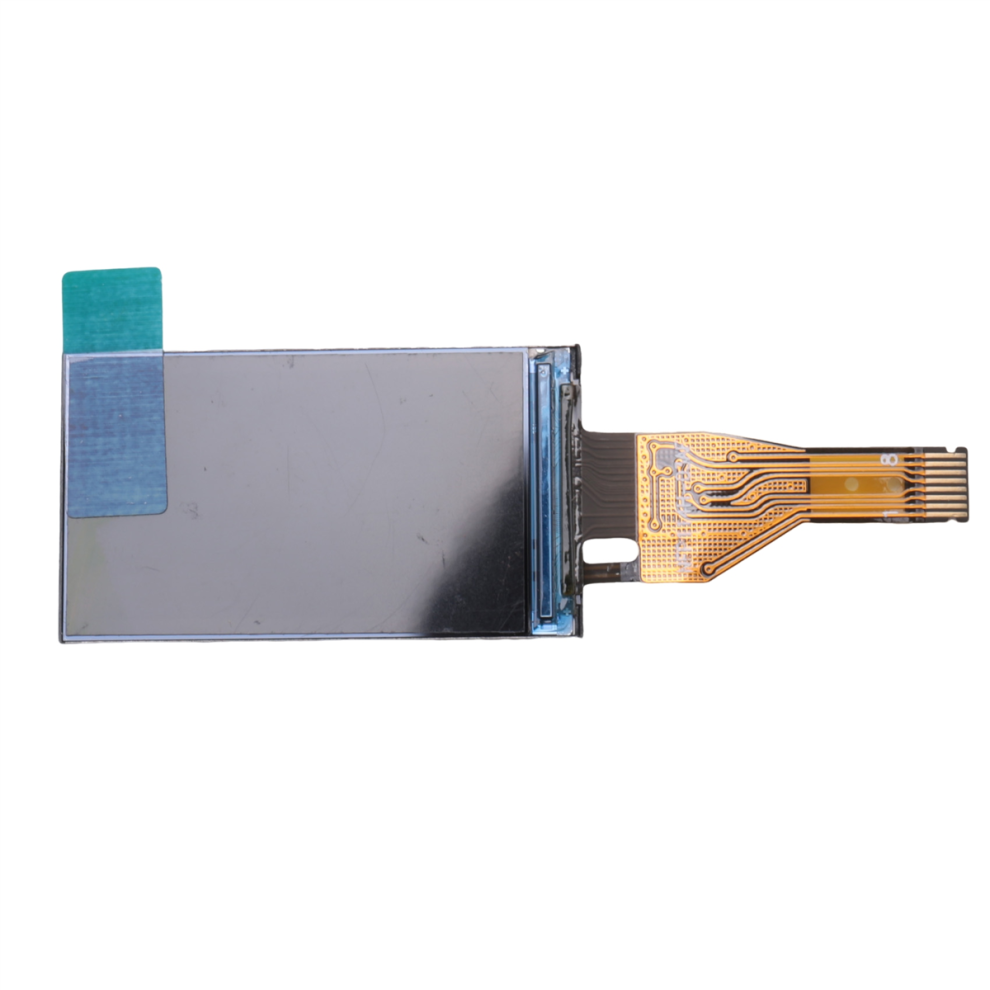

1 x 1.14 SPI screen

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
