Fosc21C1 2-Channel USB PC Oscilloscope 1Mhz Sampling Rate Portable Oscilloscope MCU Development

Fosc21C1 2-Channel USB PC Oscilloscope 1Mhz Sampling Rate Portable Oscilloscope MCU Development Description

Function introduction: 2 channel input, synchronous display. Automatic measurement of amplitude, 4 measurement modes optional
Input capture (trigger) function. Any channel can be set as a capture (trigger) source. Can set rising or falling edge capture (trigger) signal
Capture (trigger) signal level adjustable. Data can be saved to the computer, automatically ferred to the saved data when the software is started. Data can be backed up, and later at any time to view the backup data waveform. Can display two channels of differential signal
Lock signal to expand and compress waveforms up to 90 hours
Suitable for monitoring the operation of electrical equipment for a long time and archiving. Suitable for collecting and archiving data such as temperature, humidity and light for a long time
Technical Parameters
Interface type: Micro-USB 2.0
Signal input interface type: BNC interface, connected with the oscilloscope probe line
Maximum sampling rate:
1MHz ( 2 x 1MHz )
Operating voltage: 5 V Micro-USB interface power supply
Consumption current: Less than 2 A
Measurable frequency range: 0Hz-----250 kHz
Amplitude adjustment range(/):
2 mV; 5mV; 10mV; 20mV; 25mV; 40mV; 50mV; 80mV;
0.1V; 0.2V; 0.5V; 1V; 2V; 5V; 10V
Input impedance: 1 MΩ/20pF
Maximum measurement voltage: 80 V,
Time domain range: 10 uS/-----10800 S/
Data recording and storage depth: 8388608 x 5
Maximum record and save data time: 90 hours
Host size: 115mm x 70mm x 29mm
Connection method
Connect the oscilloscope to the computer using the USB cable.
material: plastic
Color: as shown

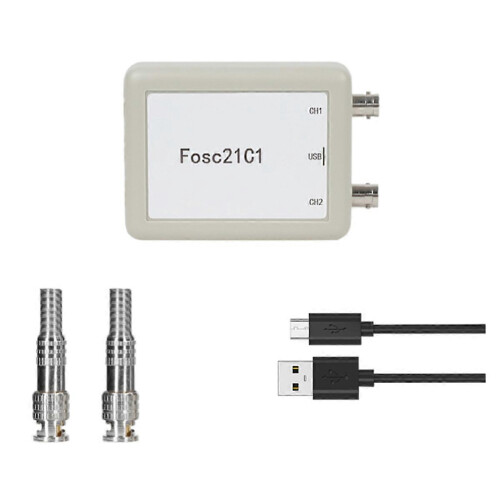

Package Contents:
1 x Fosc21C1 oscilloscope
2 x BNC connector
1 x USB data cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of th
