Four Digits Time Control Minute Timer Board Arcade Game Coin Acceptor Selector Pump Water Washing Machine

Four Digits Time Control Minute Timer Board Arcade Game Coin Acceptor Selector Pump Water Washing Machine Description

Four Digits Time Control Minute Timer Board Arcade Game Coin Acceptor Selector Pump Water Washing Machine
Free to set time, number of coins, gift time, alarm time, and coin and memory mode. AC 1250W DC 500Watt electric relay capacity. Control electrical equipment (TV, massage chair, etc.) power or signal.
time setting If the gift time is not needed, please press button S4 to skip step 4 to step 6.
1. Press the SET button lightly, then press the "+" or "-" button to adjust the value of coins. 2. Press the SET button again, press "+" or "-" to set the 2 digits before the time (00:-) 3. Press the SET button again, press "+" or "-" to set the 2 digits after the time (--00)
4. Press the SET button again, press "+" or "-" to set the value of the gift time. 5. Press the SET button again, press "+" or "-" to set the gift time for the first 2 digits (00:-)
6. Press the SET button again, press "+" or "-" to set the gift time of the next 2 digits (:00) 7. Press the SET button again, press "+" or "-" to set the alarm sound time, the default value is 30 seconds. 8. Press the CLR key to clear 0 to exit the setting or working state.
material: plastic
Color as shown
Menu Settings
1. Press and hold the buttons "+" and "-" at the same time for 2 seconds, then release after a "drop" to enter the menu settings.
2. Use button "+" and button "-" to set the code
3. After setting, press the button "SET". Confirm, exit
Code
Operating mode
01 01: Coin counting starts directly
01 02: Press the button to start the countdown after coin insertion
Time type
02 03: displayed as minutes: seconds
02 04: Displayed as hours: minutes
Memory mode
03 05: Continue counting time after power off and restart
03 06: Reset time and value after power off and restart
Auto reset time
04 00: Adjustable from 1-30 minutes.
Description: If the user does not perform any operation within the set time afterthe coin is inserted, the system will automatically clear it to 0.
Wait for the user to put in coins (the menu is set to 01 02 to be valid).
default
Working mode: 01:01 Time type: 02:03 Memory mode: 03:06
Auto reset time: 0
Package Contents:

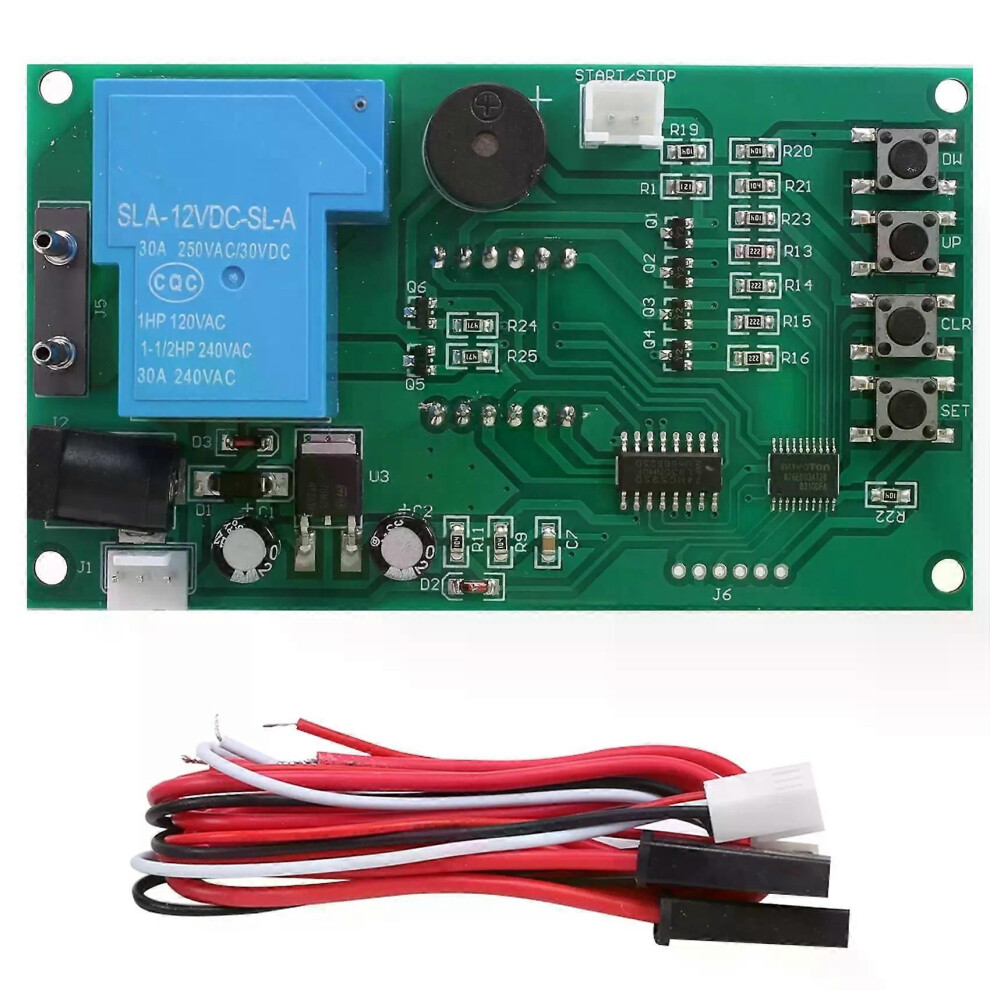

1 x Time Control Board
1 x Cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
.
