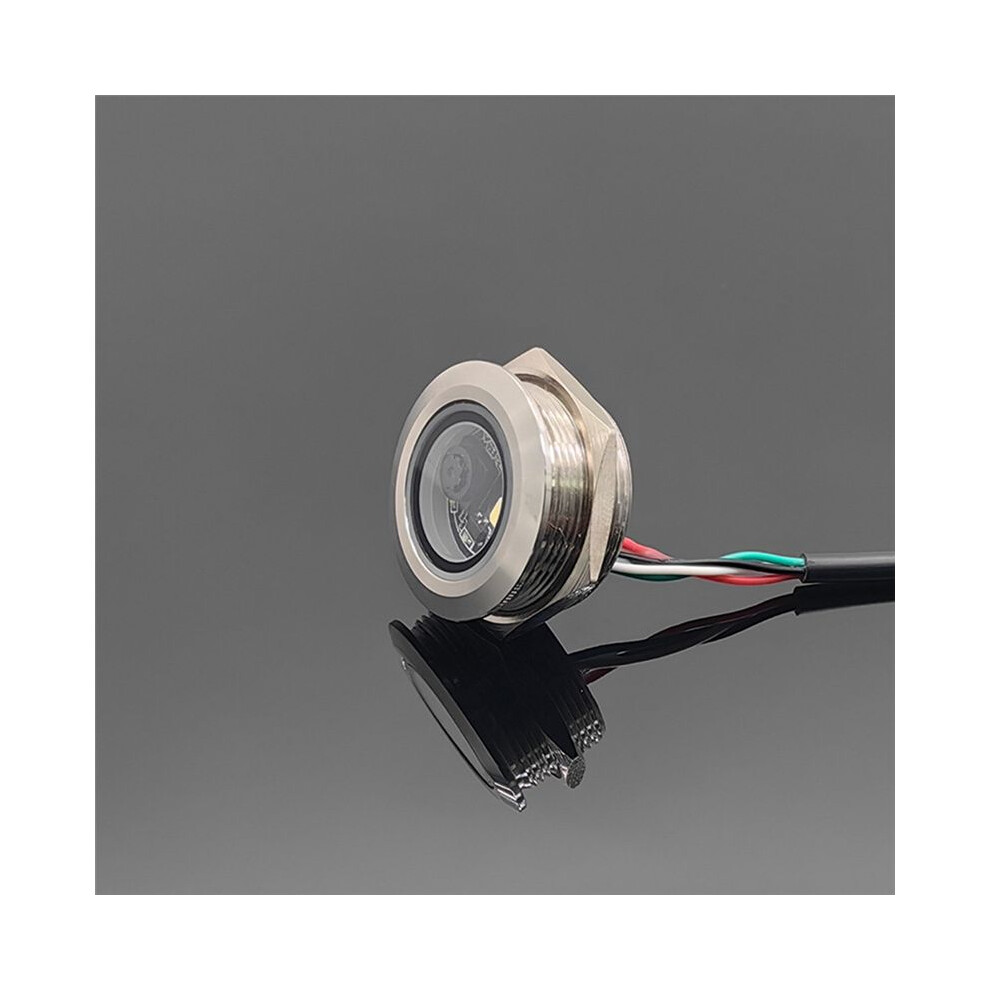

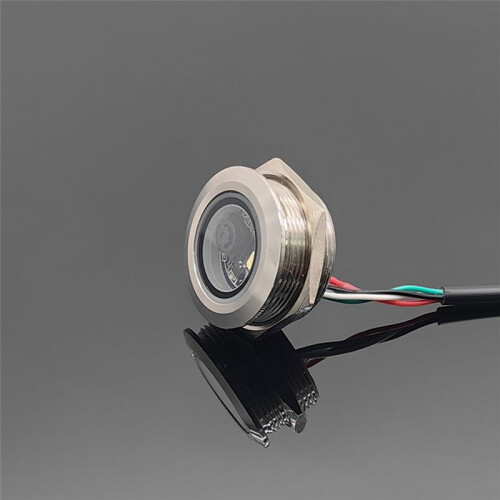

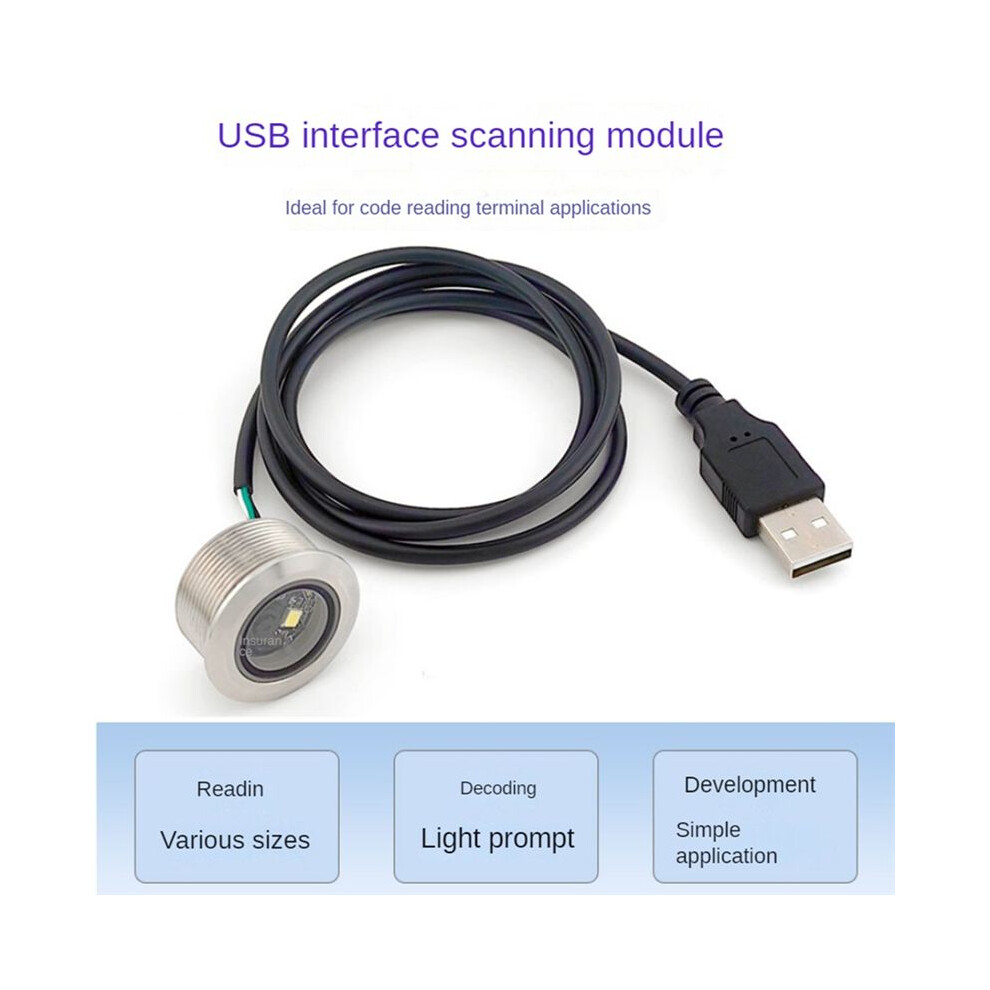

GM861 USB Interface 1D/2D Bar Code QR Code Barcode Scanner Module Stainless Steel Thread with Fill Light

GM861 USB Interface 1D/2D Bar Code QR Code Barcode Scanner Module Stainless Steel Thread with Fill Light Description

It can read various code systems, decode light prompts, and is easy to develop and apply.

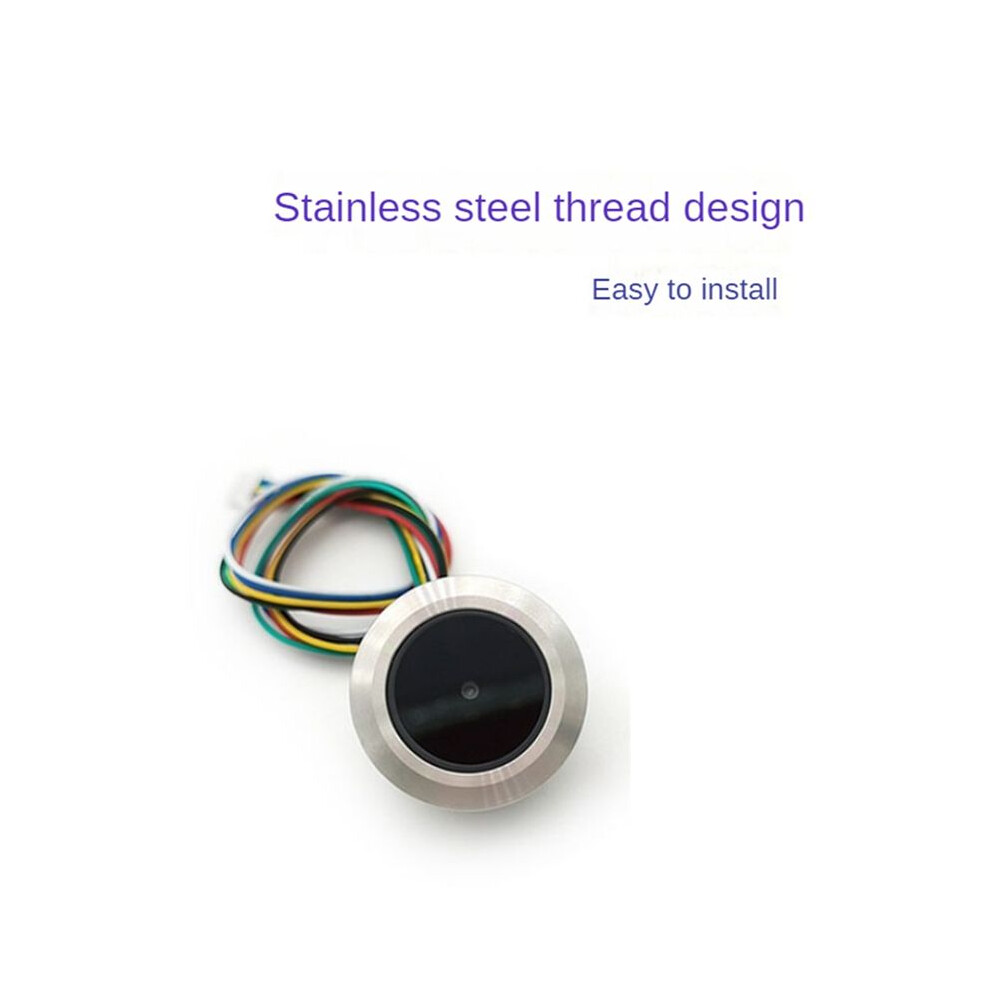

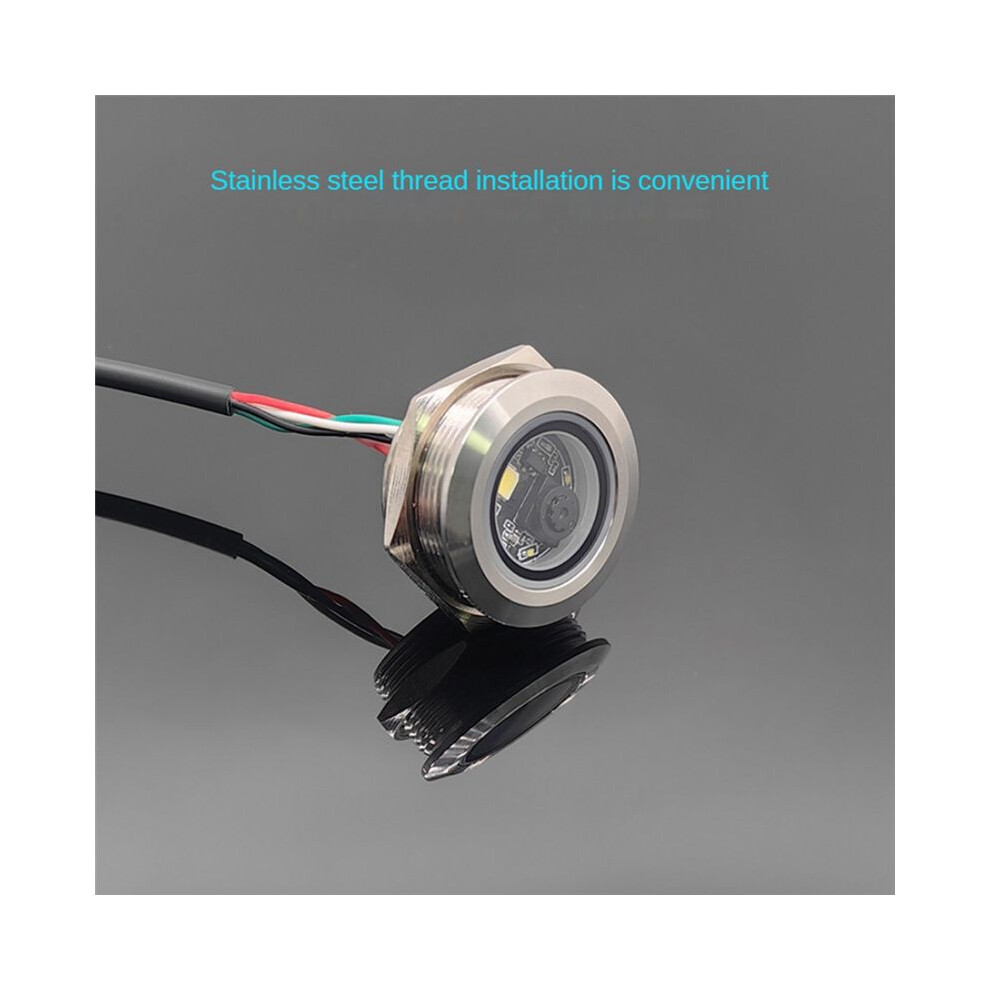

Stainless steel thread design, easy to install.

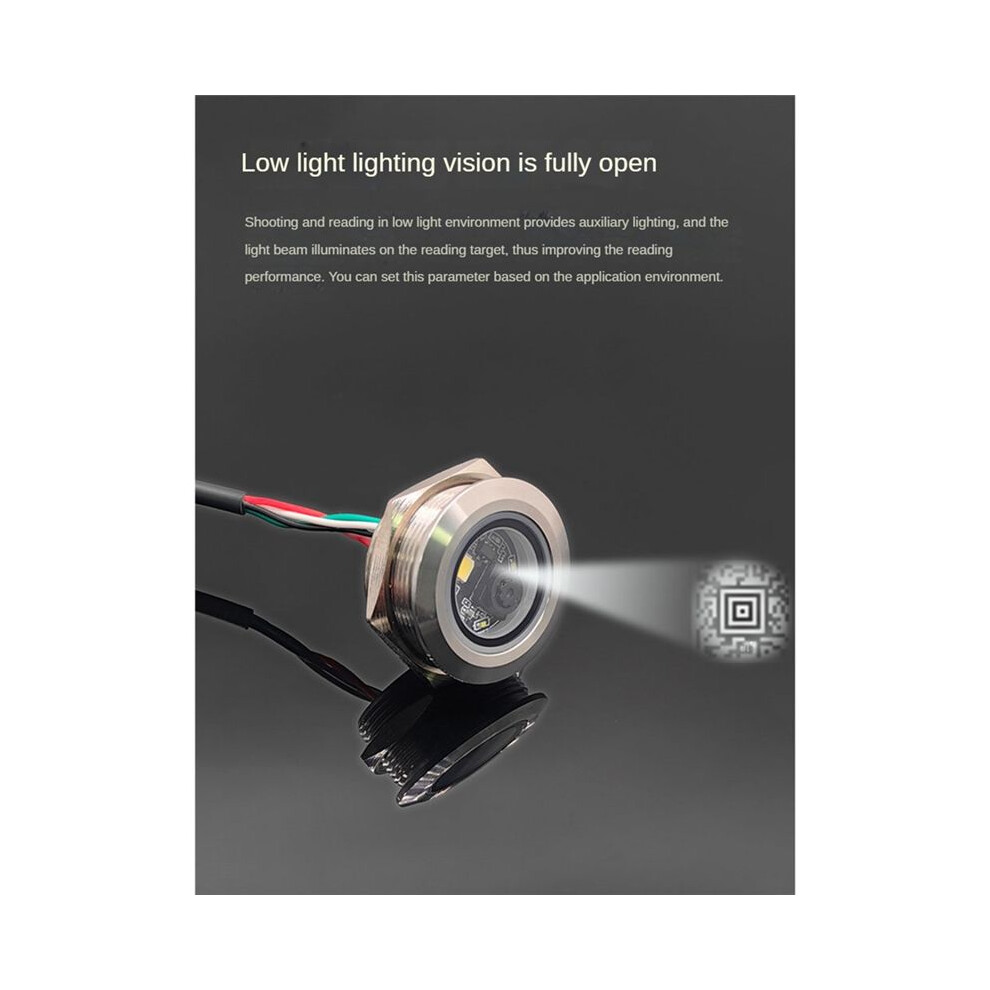

The supplementary lighting design provides auxiliary lighting for reading in low-light environments, and the shines the reading target to improve reading performance. Users can set it according to the application environment.
Multi-system compatibility: supports Windowsxp, Windows7, Windows8, Windows10, Linux, Android, forMacOS and other mainstream operating systems the market.

Parameter:
Image sensor: CMOS
Pixel: 640*480
Prompt light: Green light indicates successful reading
Reading code system:
1D:EAN-13.EAN-8, UPC-A UPC-E ISSN, ISBN, CodaBarCode
128,Code93,ITF-14,ITF-6, Interleaved 2 of 5, Industrial 2 of 5,
Matrix 2 of5, Code 39,Code 11, MSl-Plessey, GS1-Databar (RsS)
2D: QR Code, Data Matrix, PDF417, Micro-PDF417.
Micro-QR, Aztec
Symbol contrast: Greater than 25%
Reading angle: 360 rotation, 65 deflection, 65 tilt
Scanning angle: 67 (horizontal), 53 (vertical)
Reading accuracy: 210mil

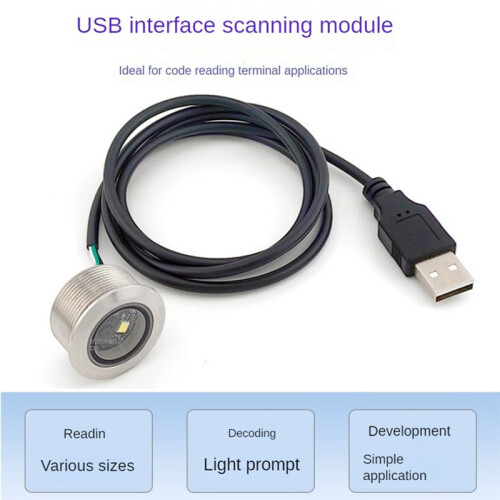

Communication interface: USB
Prompt mode: LED indication
Working voltage: 5V
Working current: Less than 70mA
Sleep current: 6mA (typical value)
Startup : 250ms (typical value)
Colour:black+silver
Material:Plastic + stainless steel

Package Contents:

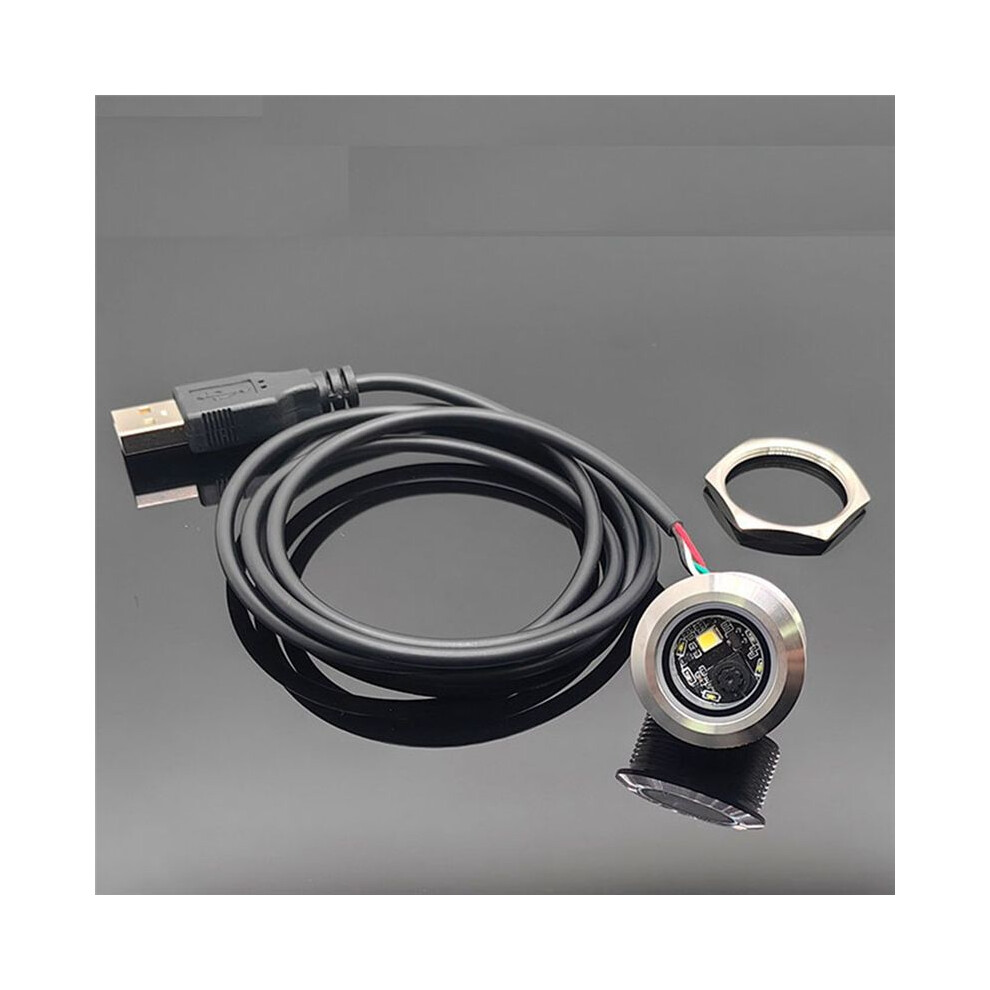

1 x Scan module
