GM861S/B1 Embedded Barcode Scanner Automatically Reads Barcodes UART/USB Interface 1D/2D QR Code Barcode Reader Module

GM861S/B1 Embedded Barcode Scanner Automatically Reads Barcodes UART/USB Interface 1D/2D QR Code Barcode Reader Module Description

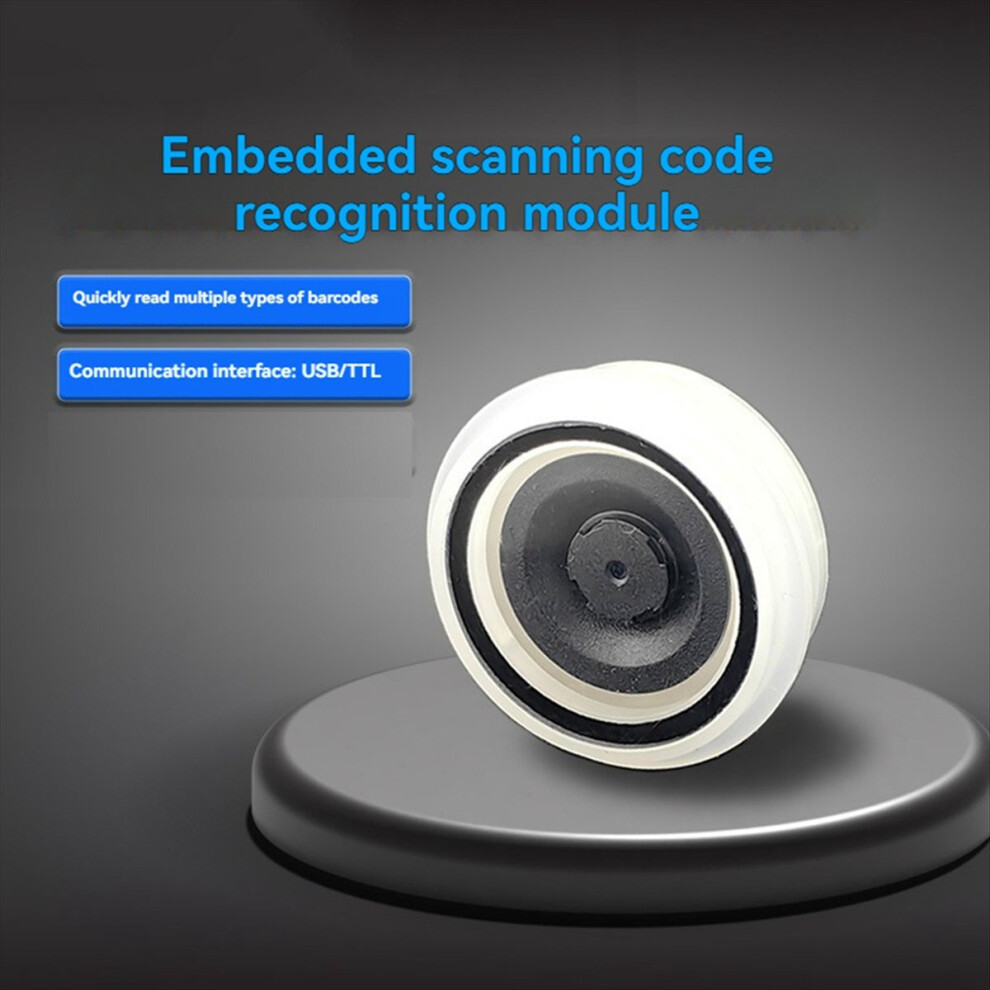

Built-in barcode scanner module for fast recognition of barcode types

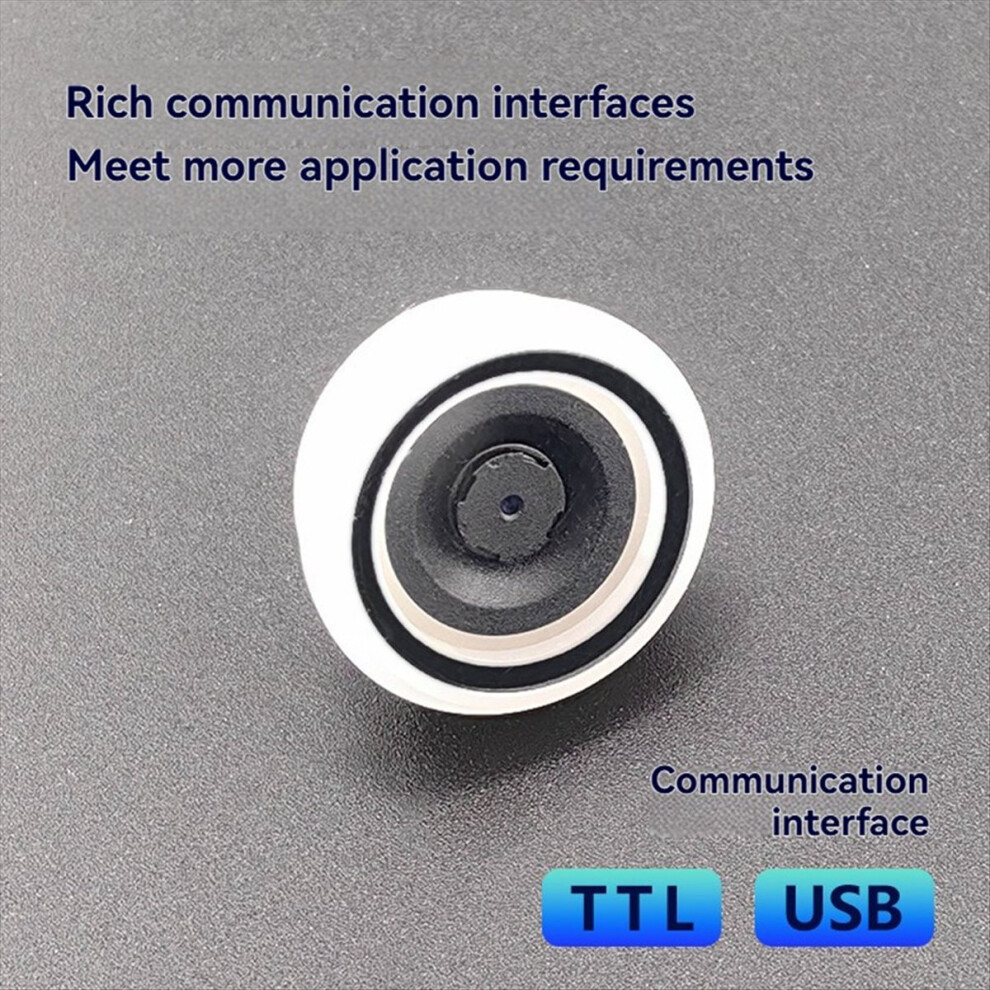

USB/TTL-232 communication interfaces meet diverse application needs
Driver-free design, plug and play
Multiple barcode reading modes, including continuous scanning, induction scanning, trigger, and manual trigger, meet different application needs
Multi-system compatibility: Supports for , Linux, Android, for , and other mainstream operating systems.

Performance Parameter:
Sensor:CMOS
Scan Mode:640*480

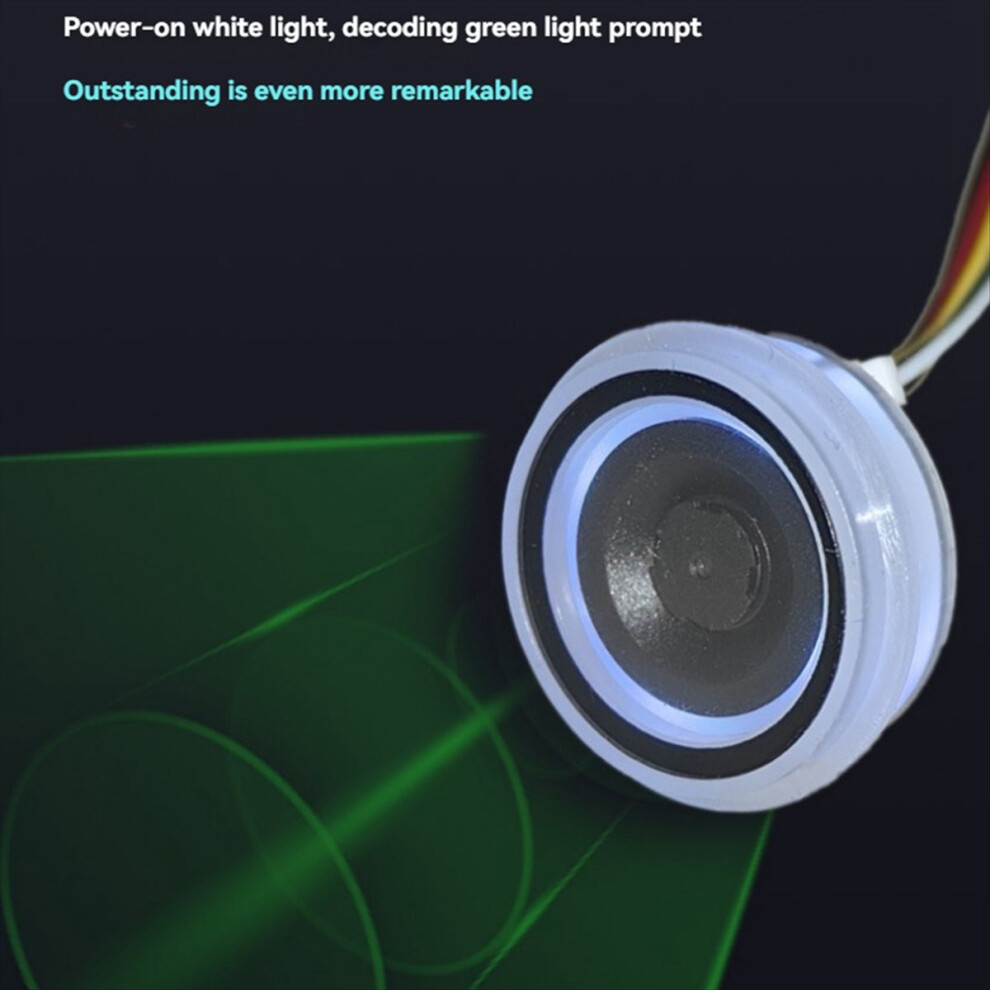

Indicator Light: Green light as read successfully
GM861-LED Fill Light:White light
Read Code Type:
1D: -13, -8, UPC-A, UPC-E ISSN, , CodaBar, Code 128,Code93,ITF-14,1TF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39,Code 11, -Plessey,GS1-Databar(RsS)
2D: QR Code, Data Matrix, PDF417, Micro-type PDF417, Micro-type QR,
Contrast: 25%
Scan Angle:Roll:360Pitch:65Yaw:65
Viewing Angle:67(Horizontal)53(Vertical)
Accuracy of reading: equal 10mil
Interface:TTL-232/USB
Prompting Mode:LED Indicator
Operating Voltage:3.3V
Operation Current:70mA(Max)
Color:White & Black
Material:plastic

Package Contents:
1 * Barcode Reader Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
