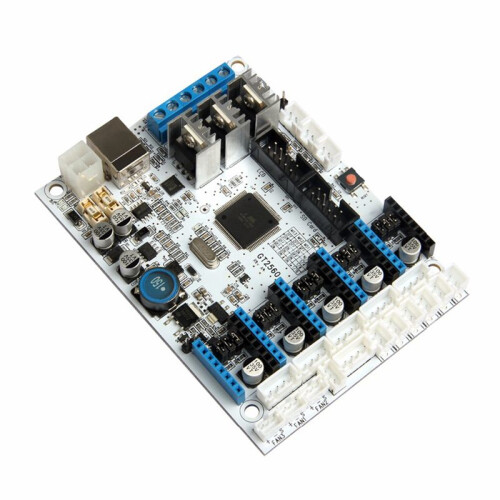

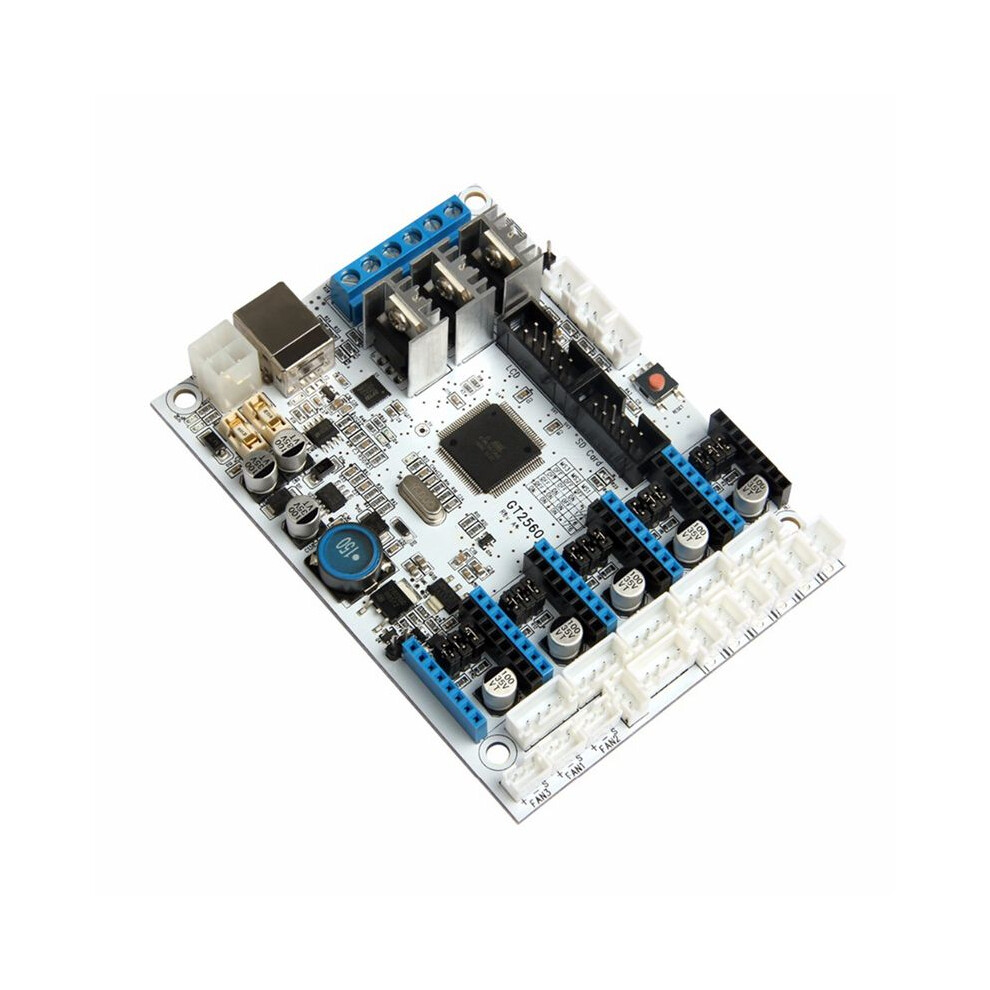

GT2560 Controller Board 3D Printer Controller Board Power Than Mega2560 +Ultimaker and Mega2560+Ramps 1.4

GT2560 Controller Board 3D Printer Controller Board Power Than Mega2560 +Ultimaker and Mega2560+Ramps 1.4 Description

1.Integrated with the mighty function of the for Mega2560+Ultimaker and for Mega2560+ramps 1.4 kit, The GT2560 can not only take full place the them respect of both software and hardware, but also features compact size, more convenient connection, and more stable.
2. Adopt ATmega2560 as the main control chip, coupled with the high-performance USB serial converter FT232RQ.
3. The power pack: operating voltage is 12V-24V; double power supply design feeds for heatbed and logical part separately. The current is 15A for heatbed and 10A for other parts.
4. The main circuit adopts SMD fuse tube, the diode added to the power port can provide reverse protection to the whole circuit, in addition, the 5V USB is USB port protected with 500mA Recoverable fuse.
5. 3 12v fan output and one PWM output for LED or other lighting equipment.

6. 3 55Amp MOSFET (with LED indicator, the actual output is restricted by the PCB board and the connector), all 3 MOSFET are equipped with heat sink to ensure sufficient heat dissipation and stable operation.
7. Support 5 A4988 stepper drivers (3 for X/Y/Z axis, and 2 for extruders); the subdivision of stepper motor can be setup by dial , eliminating jumper caps, easier to operate.
8. 3 temperature sensor input (100k thermistor is recommended)
9. Extended LCD and card interface support both LCD2004 and LCD 12864, with which you can print without your PC.
10. The firmware is the prevalent Marlin, which is known for stability, usability, and high-performance.
Colour:White
Material:PCB+Plastic+Metal
Size:109 x 78mm

Package Contents:
1 x 3D Printer controller board
