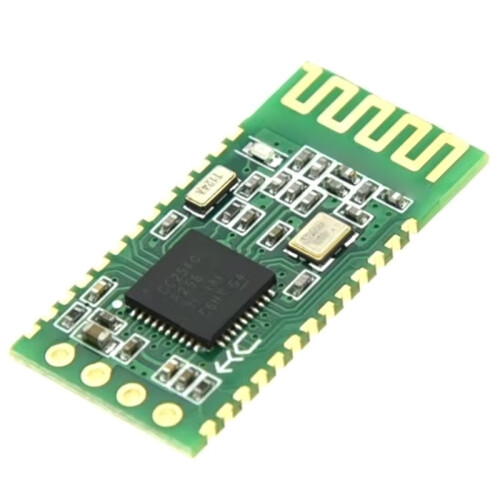

HC-08 HC08 Serial Port Module Wireless 4.0 RF Transceiver Support 9600bps Low Power Microcontroller with Board
Brand Zandonà
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
€13.48
€30.84
56% off!
+€4.04 Delivery
1%
What is instant Cashback?
Learn More
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Priority (€4.04) | Wed 15th - Mon 20th Jul
Sold by: LLhappy
Returns: 30 days
180-day payment protection
Most Popular in Network Interface Cards
Hot
Hot
Description & Details
Summary
- Module is sensitive to static electricity, please reduce the touch to the module chip parts, so as to avoid loss of procedures
- Module antenna part of the following can not be deposited copper, can not be traced, otherwise it will affect the signal,
- Suggest that the antenna part of the floor hollowed out, the antenna as close as possible to the edge of the board, or insert the way
- Module power loss memory, parameters and matching information will not be lost, so if you want to connect a new device, please clear the module pairing memory.
- Low Power Microcontroller
HC-08 HC08 Serial Port Module Wireless 4.0 RF Transceiver Support 9600bps Low Power Microcontroller with Board Description
Module is sensitive to static electricity, please reduce the touch to the module chip parts, so as to avoid loss of procedures
Module antenna part of the following can not be deposited copper, can not be traced, otherwise it will affect the signal,
Suggest that the antenna part of the floor hollowed out, the antenna as close as possible to the of the board, or insert the way
Module power loss memory, parameters and matching information will not be lost, so if you want to connect a new device, please clear the module pairing memory.
Product Parameters:
Model: HC-08
Working frequency band: 2.4G
Communication interface: UART3.3VTTL level
Working voltage: 2.0 ~ 3.6v
RSSI support: not supported
Communication level: 3.3v
Transmit power: 4dBm (max)
Transmission distance: 80 meters
Emission current: 31.6mA
Module size: 26.9 * 13mm
Air speed: 1Mbps
Antenna interface: built-in PCB antenna
Sleep current: 0.4uA
Receiver sensitivity: -93dBm @ 1Mbps
Working humidity: 10% to 90%
Storage temperature: -40 ~ 85
Working temperature: -25 ~ 75
Received current: 15.8mA
Color: Green
Material: plastic

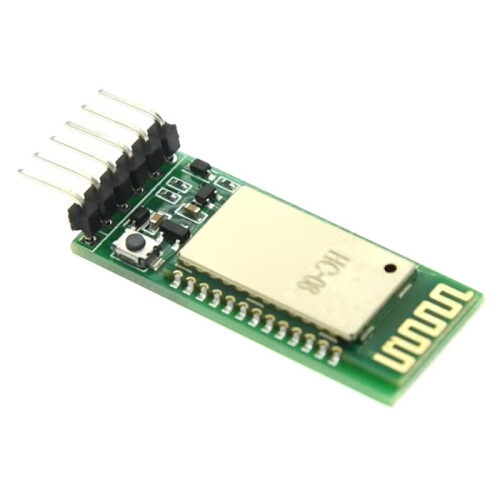

Specification: With base plate
Package Contents:
1*HC08 Serial Port Module
Details
| OPC | PVZFVQZ |
|---|---|
| Brand | Zandonà |
| Codes | 6034040596746 (EAN) |
| Product and Safety Information |
Product Data
| Height | 3cm |
|---|---|
| Width | 5cm |
| Length | 5cm |
| Weight | 0.02kg |
| Colour | Green |
| Size | With base plate |
| Material | Plastic |
