HDC-085C DC 4.5-50V 0-12A PD3.1 Multifunction Digital Display

HDC-085C DC 4.5-50V 0-12A PD3.1 Multifunction Digital Display Description

HDC-085C DC 4.5-50V 0-12A PD3.1 Multifunction Digital Display Description
HDC-085C - Multiple Function Applications
Click the button on top to switch between different interfaces, long press to clear all data, simple operation, clear at a glance
50V high-voltage fast charging protocol for PD31
Supports PD2.0, PD3.0, PD3.1, QC2.0, for power-on testing of almost all protocols such as QC3.0, FCP, SCPAFC, PE, DASH VOOC, superVO0c, etc., one purchase can last for many years.
50V high voltage/12A high current, 1600W high power; New PD3.1 protocol, high voltage/high current/high power, etc., integrated in one;
This increases the measurement compatibility of this meter and reduces the likelihood of it becoming obsolete.

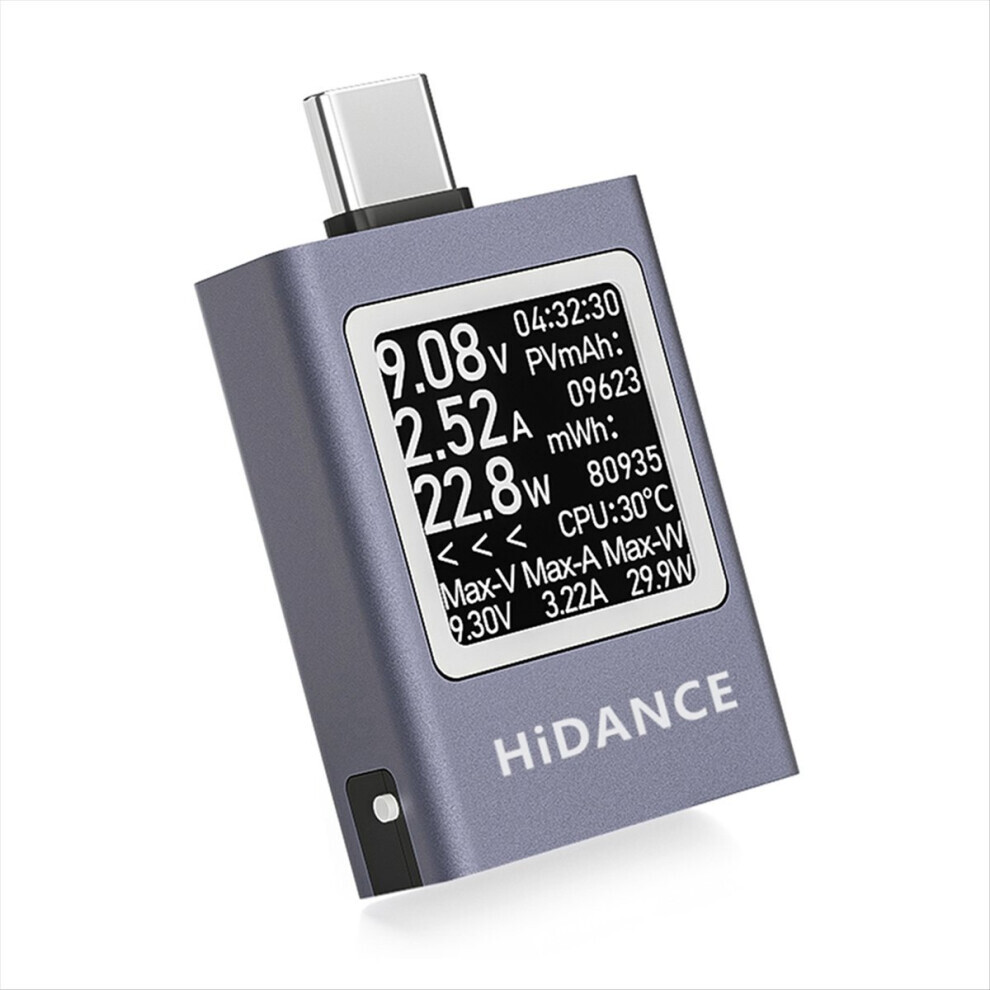

Four-way rotatable HD display
This time, the four-way rotatable screen function has been added, allowing the interface of the HDC-085C meter to be rotated 360 degrees to adapt to the user's forward view during testing in four directions, thus providing a better user experience.
The PD protocol charger automatically turns off the screen when no power is supplied, zero-power design
The HDC-085C has added a feature this time that does not illuminate the screen when the output is not connected to the device and during the PD protocol charger tests when no power is present. This can extend the screen's lifespan and consumes no power. It doesn't disturb you at night and saves energy. Environmentally friendly
Product Name: Type-C Detector
Operating Voltage: DC 4.5~50V
Operating Current: 0-6A (12A short-term)
Power Consumption: Less than 0.15W
Power Display: 0-600W
Sampling Resistance: 0.001R
Product Model: HDC-085C
Power Display: 0-9999Wh
Capacity Display: 0-99999mAh
Operating Temperature: 0-45C/32-113F
Note: Due to different production batches, there may be slight product differences.
Color: Photo Color
Material: Metal
Package Contents:
1 x Type-C Detector
Only the above package contents. Other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to differ slightly from the actual color. The allowable measurement error is +/- 1-3 cm.
