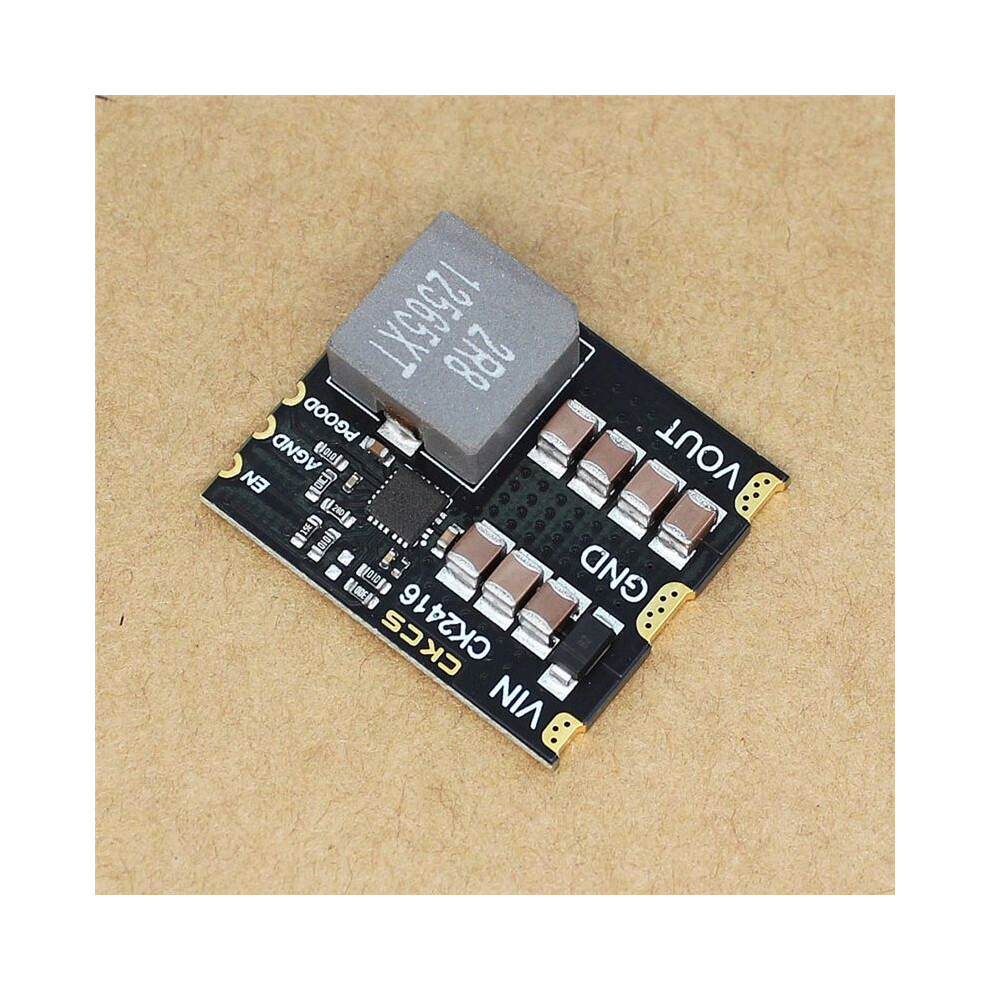

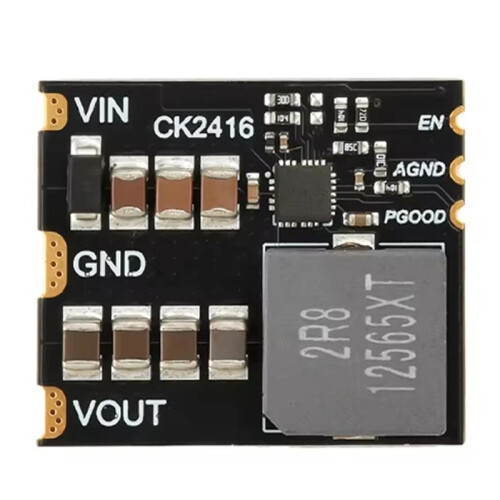

High Efficiency Output - 6-24V to 12V 12A Buck Converter Step-Down Board Module Voltage Regulator PCB Board

High Efficiency Output - 6-24V to 12V 12A Buck Converter Step-Down Board Module Voltage Regulator PCB Board Description

1. Wide voltage input DC6-24V, suitable for various power supply environments
2. Efficient conversion, with an efficiency of to 97%, reducing loss
3. design, compact size, easy to integrate into various devices
4. Stable output, 12V 12A, stable performance
5. High reliability, built-in multiple protection circuits to ensure long-term stable operation

Specification:12V 12A
Input voltage: DC15-24V
Output voltage: DC12.1V 1%
Rated output current: 12A

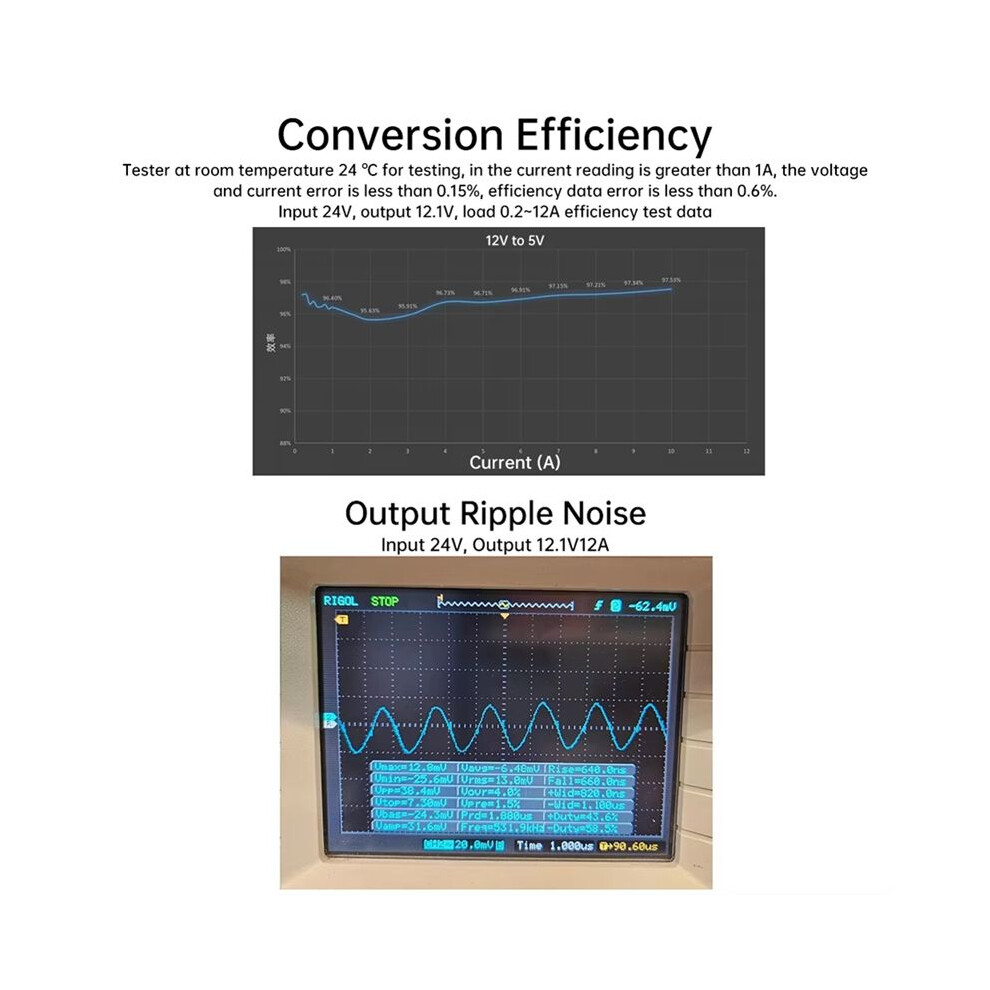

Output ripple noise:Less than 50mV (under 1-12A load)
Conversion efficiency:Greater than 96% (input 24V, load current 1-12A)
Static current (EN floating):Less than 3mA
Static current (EN grounded):Less than 3uA
Work environment:- 25-+70
Output short circuit protection
Whole machine over temperature protection
Tips:

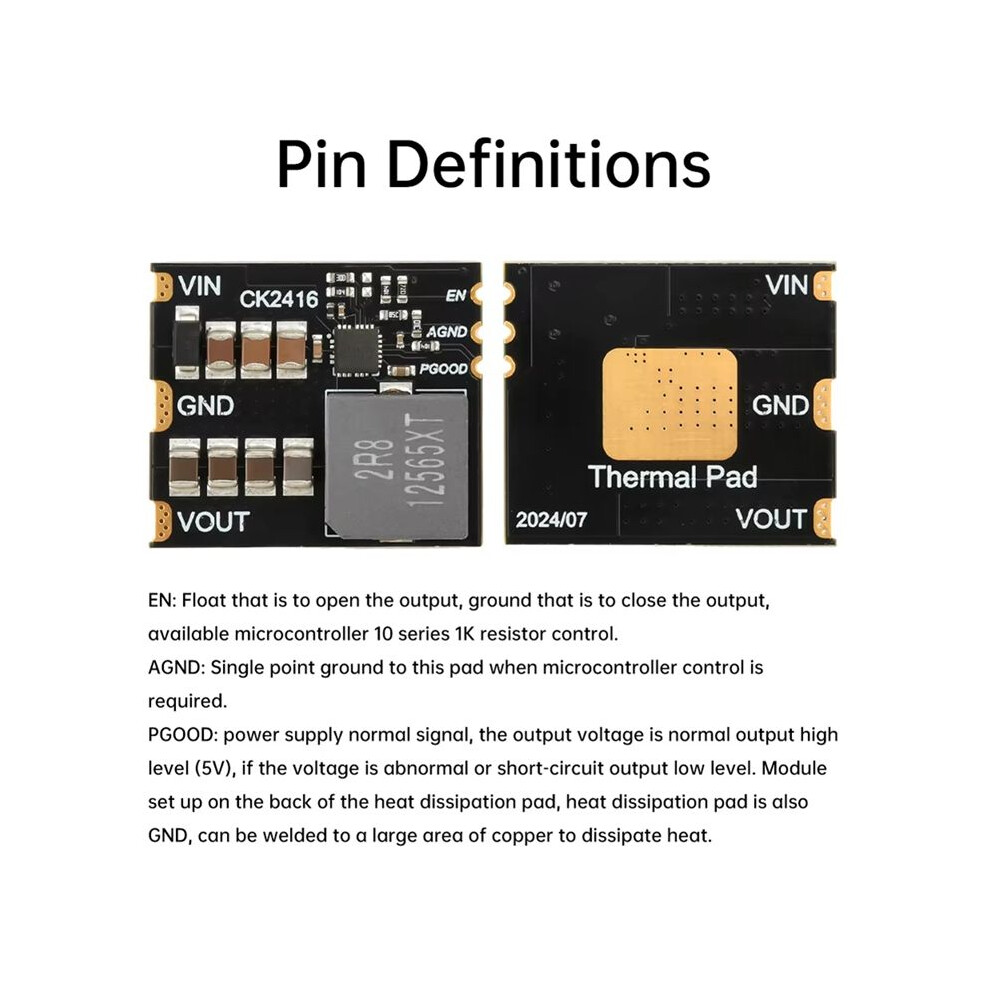

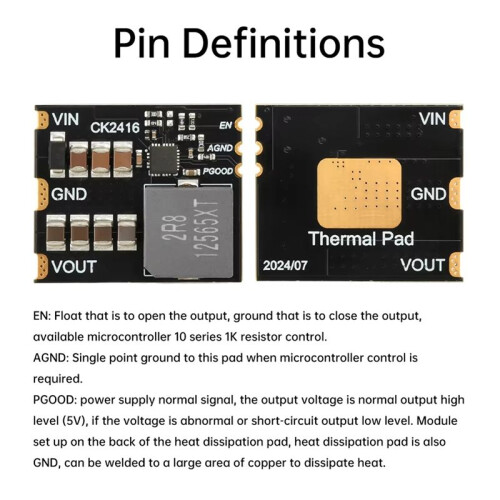

1. The back of the module is equipped with a heat dissipation pad, which is also GND and can be soldered to a large copper plated area for heat dissipation
2. A TVS tube is placed at the input end of the module, with a breakdown voltage of about 26V. This voltage is not the limit voltage of the chip and is mainly used to absorb abnormal voltage spikes at the input end. It can be input using a 6S lithium battery (25.2V)
3. The chip has short-circuit protection and current protection of about 25A
Colour:As Shown
Material:Metal+Plastic

Package Contents:
1 x Buck Converter Module
