HT-60 Pump Switch AC220V 05A G1/2in-G1/2in Thread Automatic Water for Circulation Pump

HT-60 Pump Switch AC220V 05A G1/2in-G1/2in Thread Automatic Water for Circulation Pump Description

Features:
It is mainly used in the household tap water pressurization in low water pressure area, especially the low water pressure ignition starting of the shower, and the automatic circulation of solar water heater.
Stable performance: to separate the sensing room, magnetic control room and electronic components. Avoid the iron material in the pipe to be adsorbed by magnetic materials so as to avoid the failure of the switch.
High temperature resistance, maximum medium temperature can 70
Low water pressure start: when the water pressure es 0.03KG, it can be started
Electronic components are used as the control devices, so that the products in the work without spark, completely closed, safe to use.
Specifications:
Product model: HT-60
Medium: Tap water, and similar liquid with similar physical and chemical properties
Medium pressure: < 0.6Mpa
Medium temperature: < 70
Voltage: AC220V
Maximum Current: 1A
Working Current: 0.5A
Thread: G1/2in-G1/2in

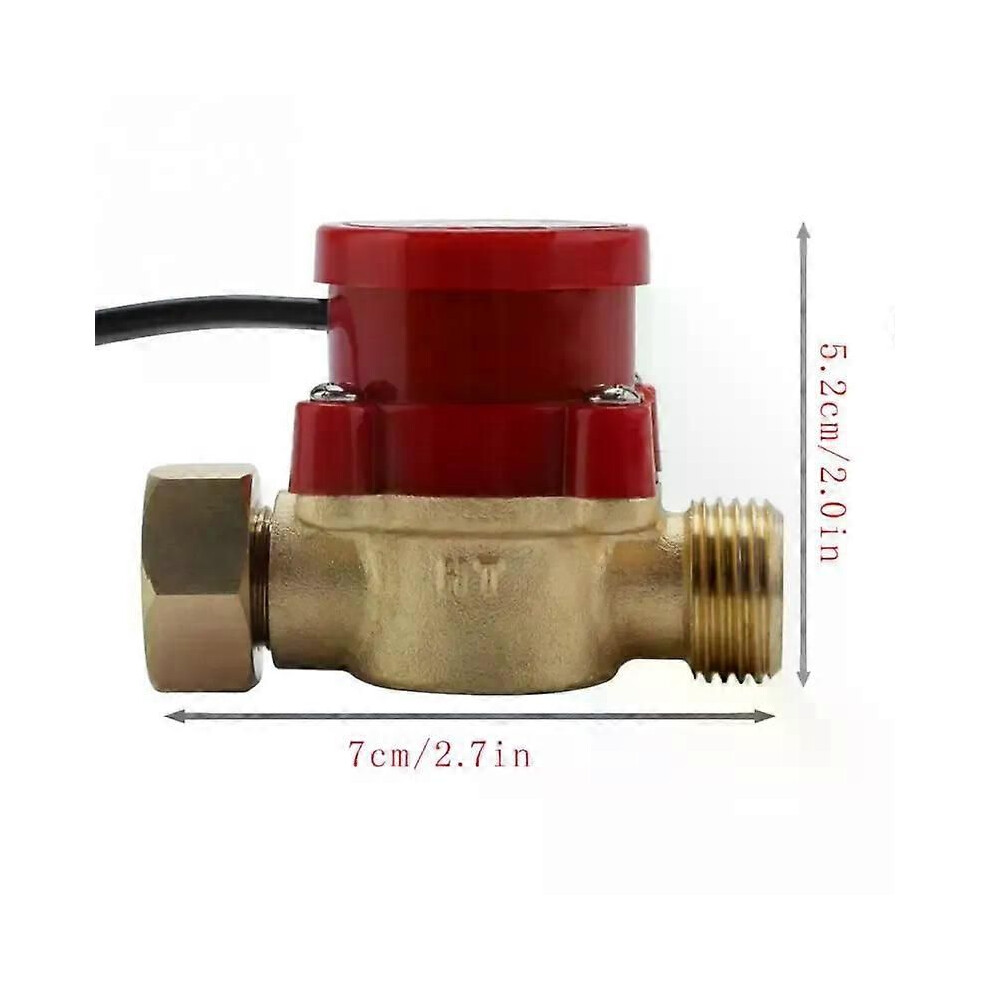

Size: 7 x 5.2cm / 2.76 x 2.05in
Weight: 150g
Package included:
1 x Pump Switch
2 x Circle
