ICL8038 Signal Generator Medium/Low Signal Frequency 10Hz-450KHz Triangular/Rectangular/Sine Wave Generator Module

ICL8038 Signal Generator Medium/Low Signal Frequency 10Hz-450KHz Triangular/Rectangular/Sine Wave Generator Module Description

The LC ICL8038 module is designed for common frequency ranges. It is adjustable from 5 gears and generates low-distortion triangular waves, square and sine waves from 10Hz to 450KHz. Sine wave can be used for test signals, drive signals, carrier frequency signals, etc; square wave can be used for switching signals, trigger signals, etc; triangular wave is mainly used for scanning signals.
Working voltage: 12V ~ 15V
Output: Triangular wave, Square wave and sine wave.
Frequency range: 10HZ ~ 450kHz
Low distortion sine wave: 1%

Duty cycle range: 2% to 98%
Low temperature drift: 50ppm /
Triangular wave output linearity: 0.1%
Working temperature: 0 ~ 70

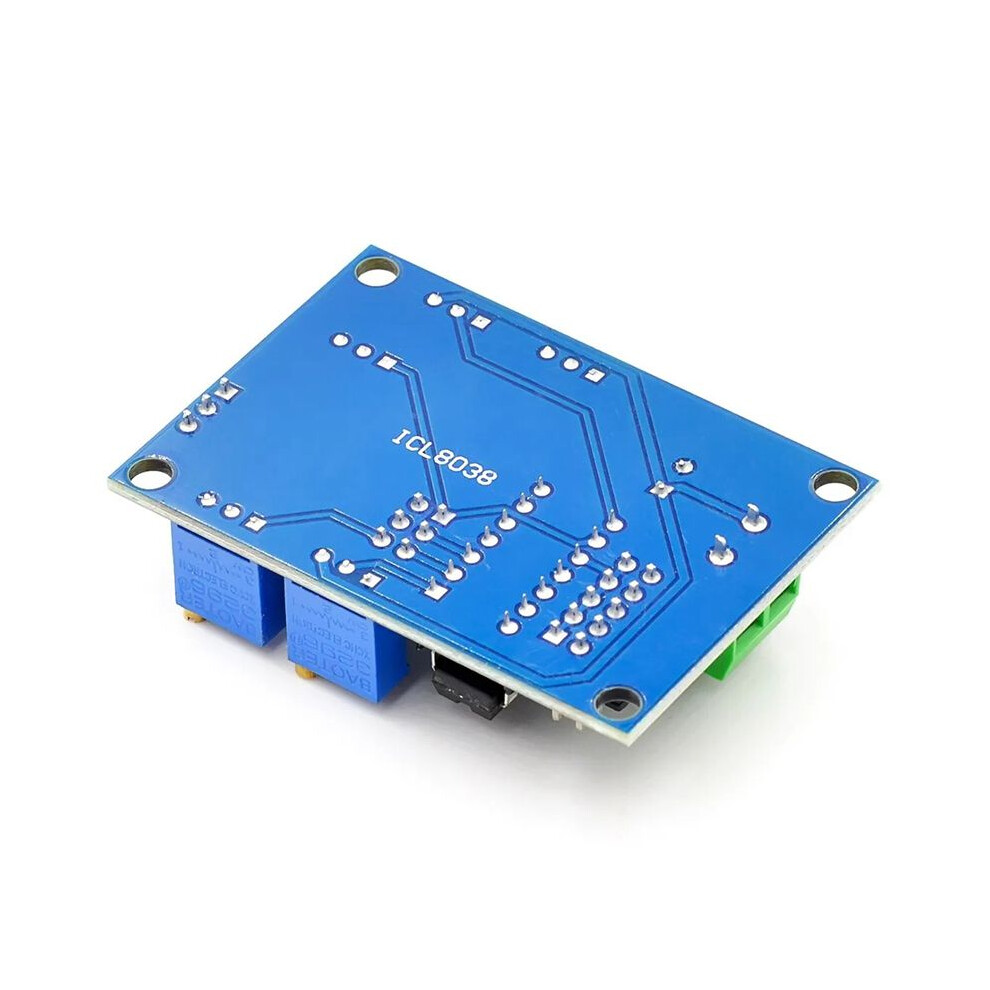

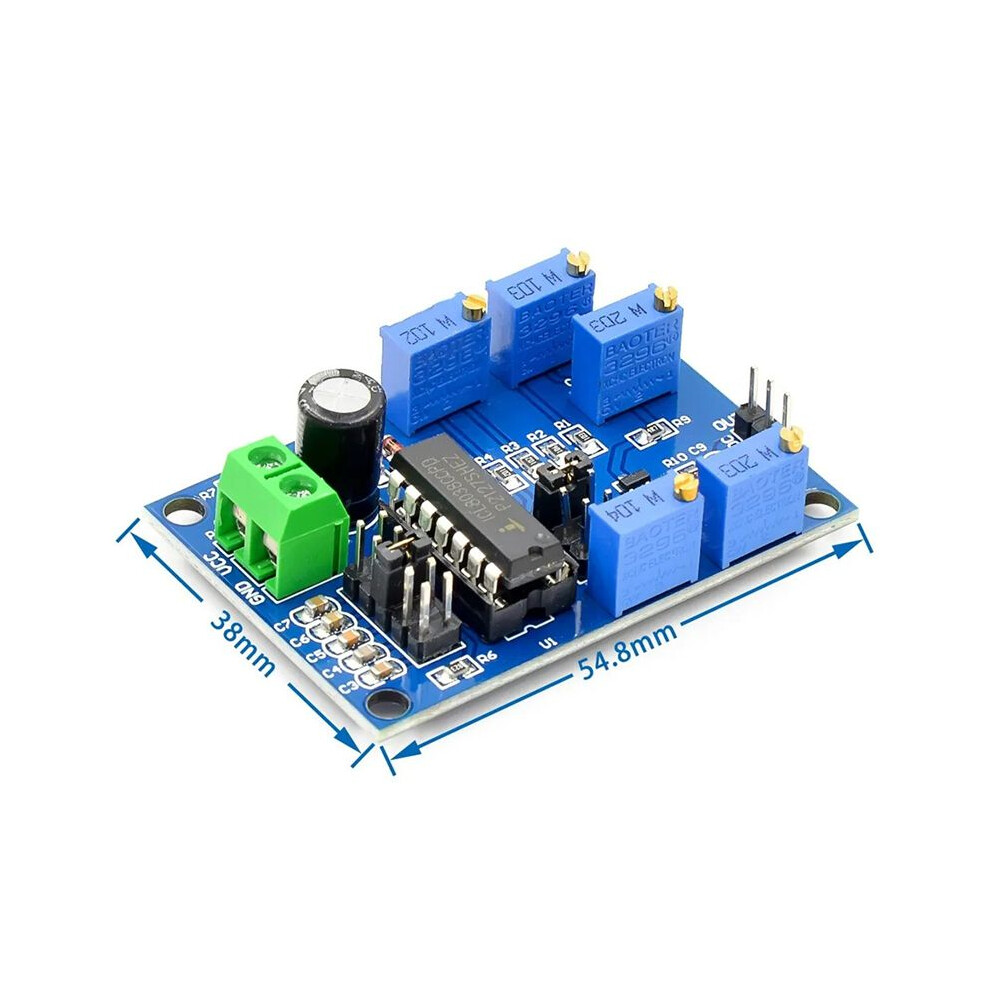

Board size: 54.5 x 37.8mm

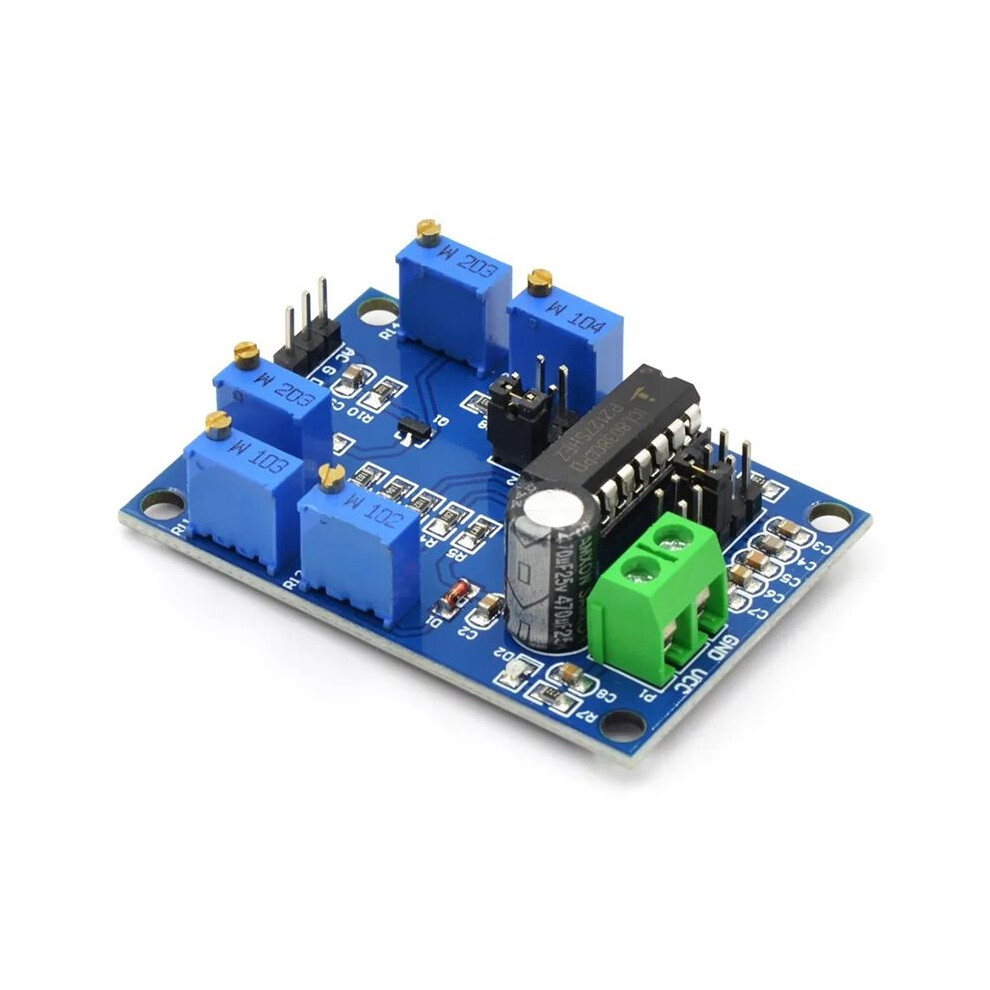

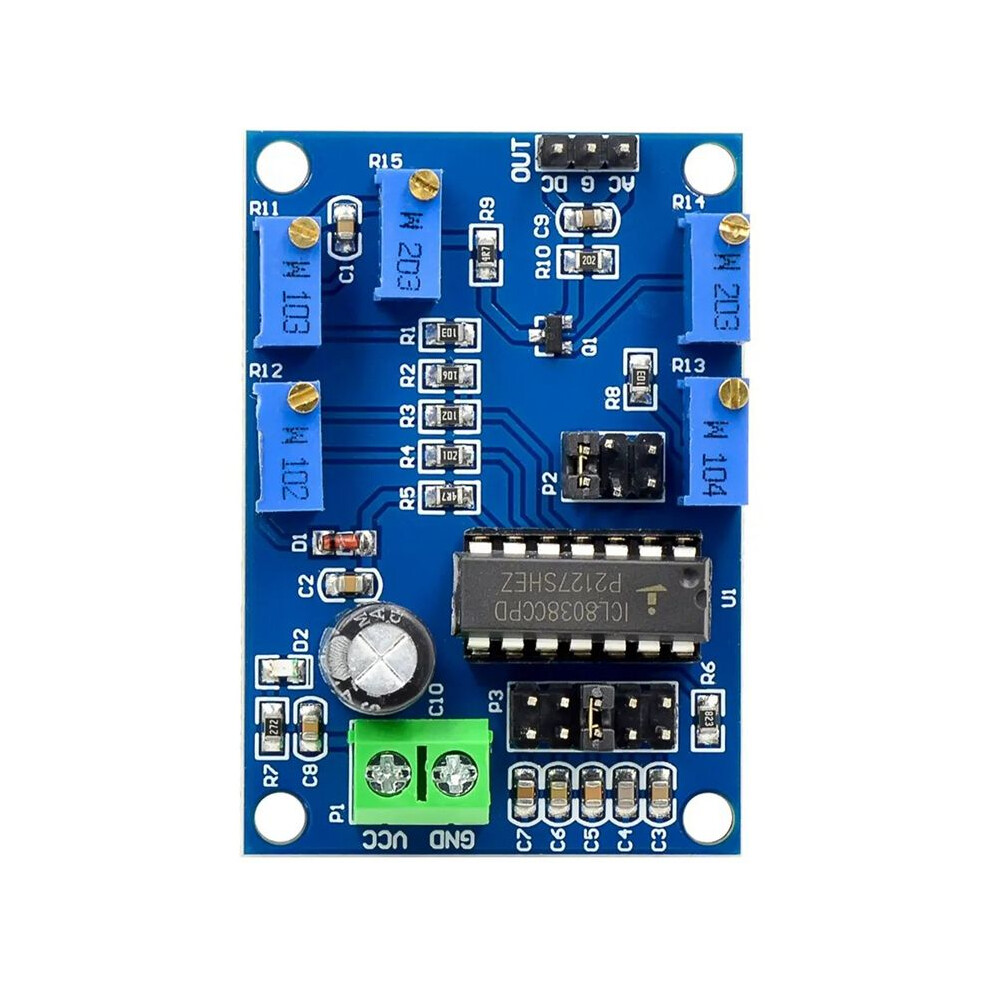

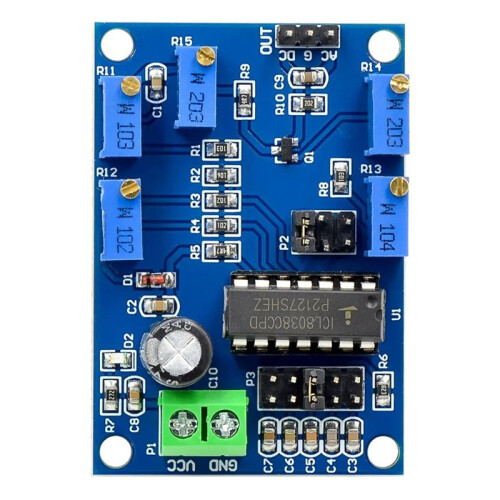

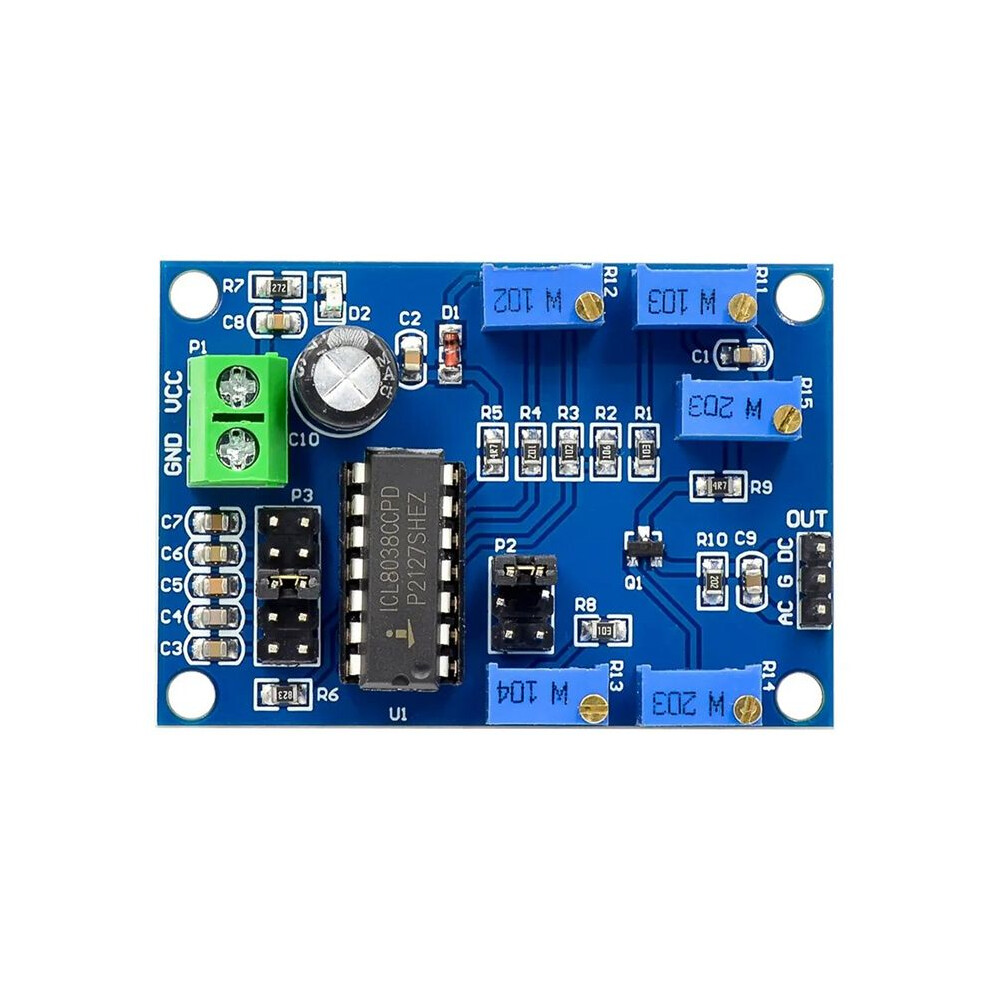

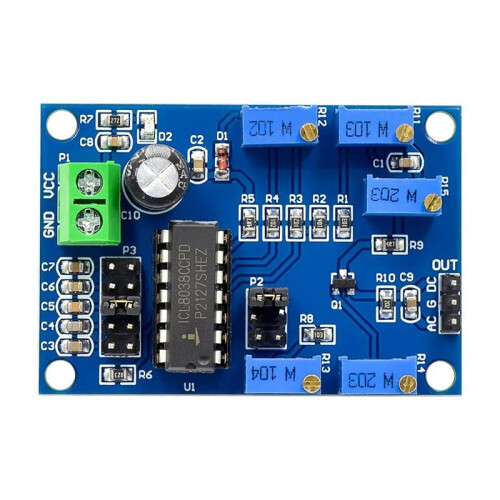

Functions:
VCC,GND: working voltage
AC: with bias output
G: ground
: pure signal output
R11: Frequency adjustment
R12: Square wave duty cycle adjustment
R13: Sine wave linear adjustment
R14: Amplitude adjustment
R15: Square wave linear adjustment
Jumper P2: select different waveforms(triangular, square or sine waves)
Jumper P3: select different frequency ranges
10Hz-450Hz
90Hz-1.5KHz
940Hz-15KHz
6KHz-120KHz
20KHz-450KHz
(Slight differences in parts will not affect use)
Color: As Shown
Material: ABS

Package Contents:
1 * ICL8038 Signal Generator Module
