Industrial UART USB to 8CH RS485 Isolated Converter for 35mm Standard Rail Stackable Black

Industrial UART USB to 8CH RS485 Isolated Converter for 35mm Standard Rail Stackable Black Description

USB TO 8CH RS485. Industrial Grade Isolated Converter
Stable Transmission | Multiple Devices Applicable | Multi-OS Compatible
Supports USB to 8CH RS485, convenient for expanding multiple RS485 industrial serial devices. Supports direct power supply via Type-C port, with reserved 5V~36V DC wide voltage screw terminal for auxiliary power input. Onboard unibody power supply isolation, provides stable isolated voltage
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption. Onboard (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic

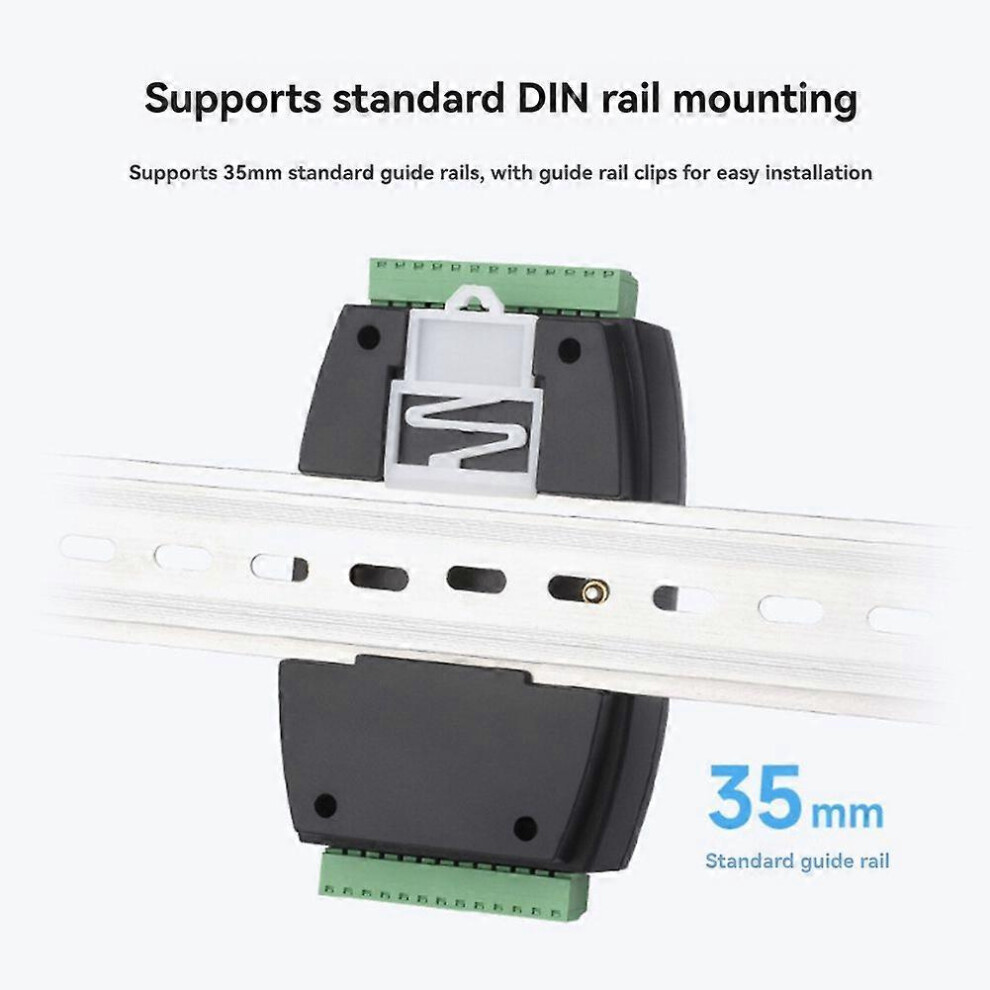

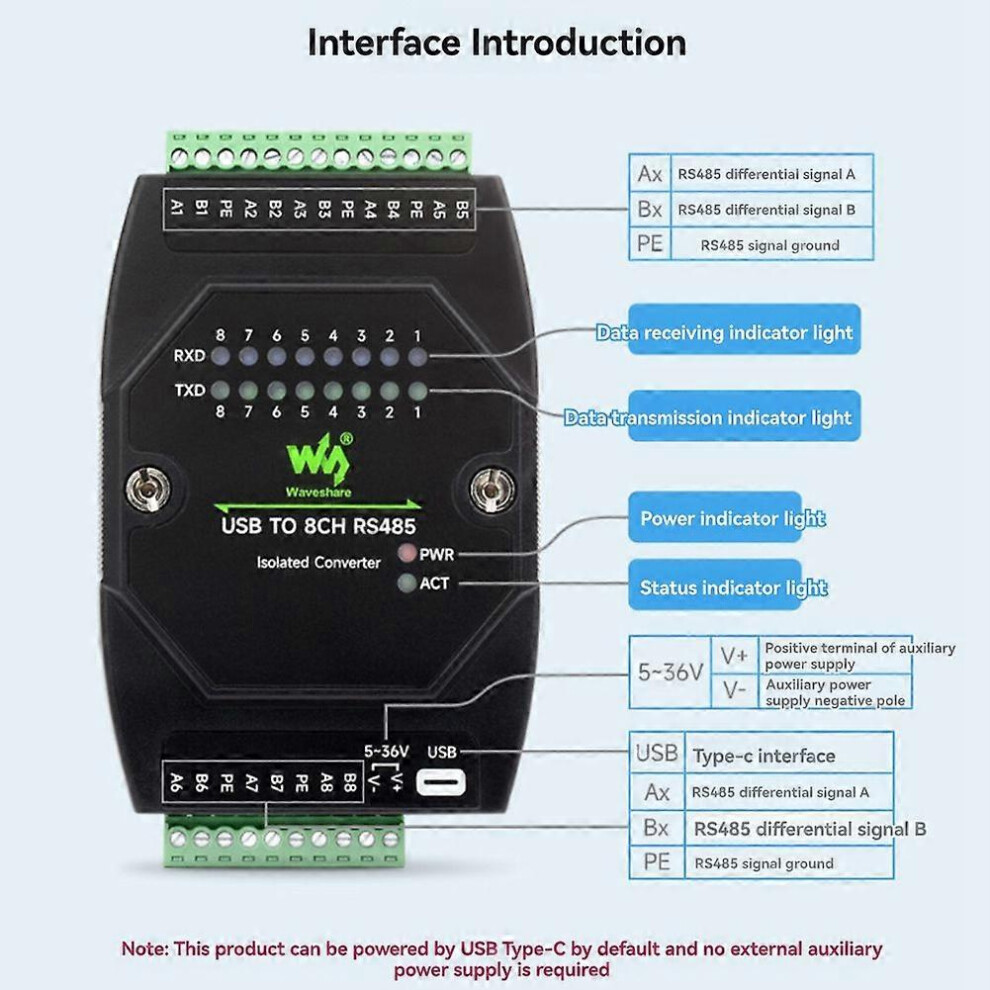

Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance. Built-in 120R terminal resistor on the RS485 ports, configurable via jumper for flexible switching. LEDs for indicating the power, device configuration status and transceiver status. Rail-mount case design, support stackable combination, easy to install and to use

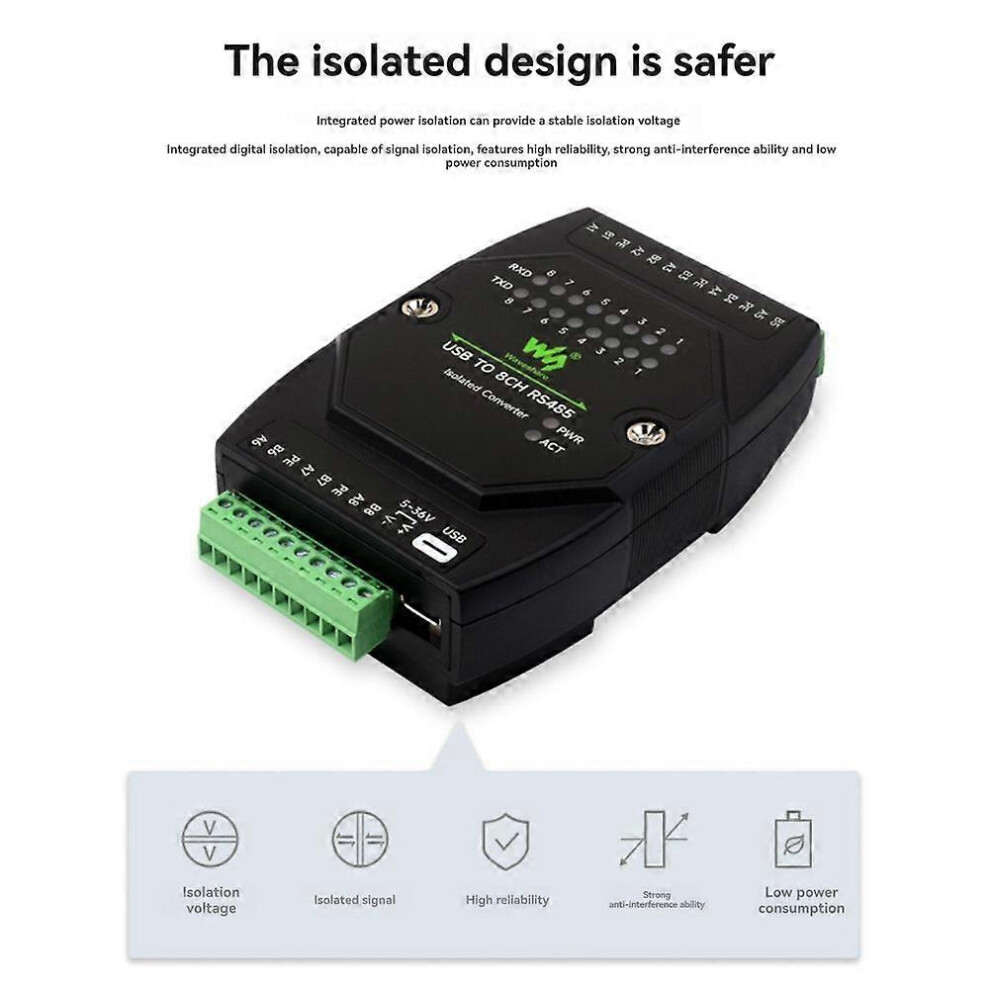

[ Isolated Design]
Onboard unibody power supply isolation, provides stable isolated voltage
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

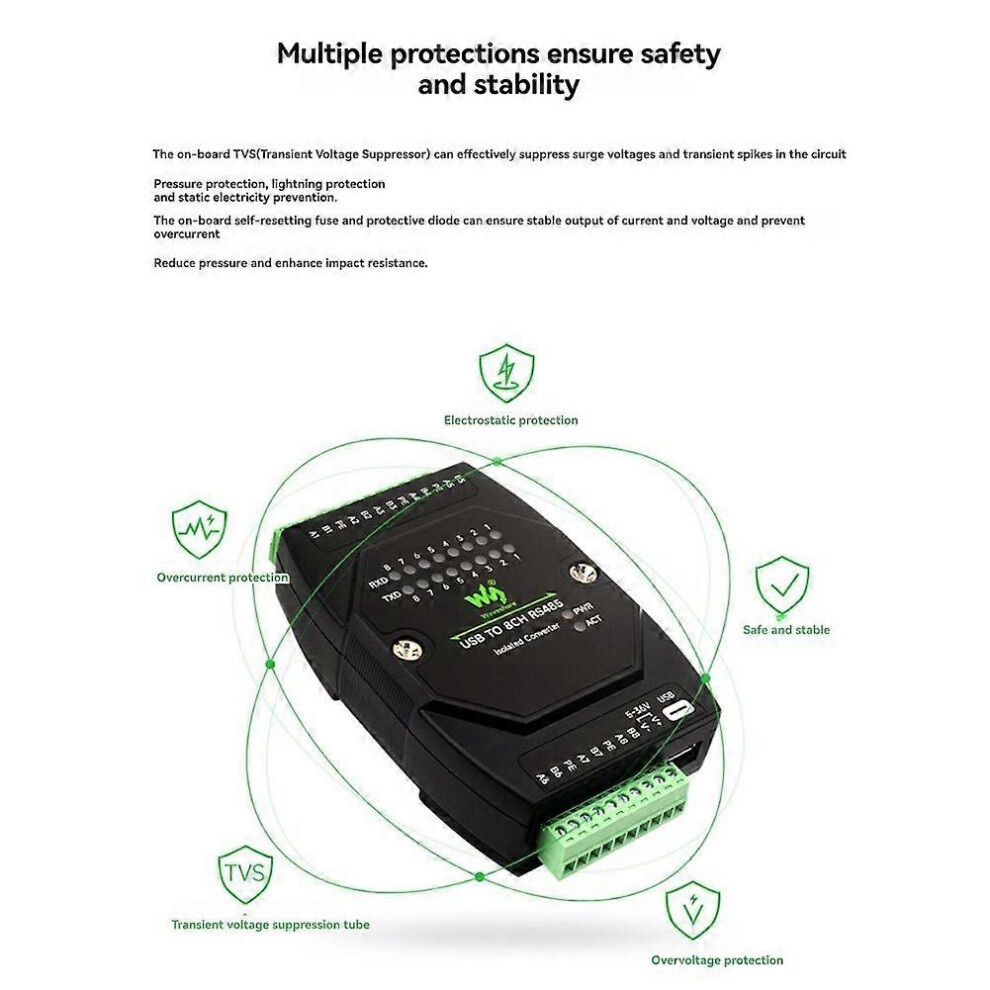

[Multiple Protection, Safe And Stable]
Onboard (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.
Multi System Support]
Supports Win11/10/8.1/8/7, MacOS, Linux, Android, Etc.
[Transmission Distance Up To 1.2km】
The USB Signal Can Be Converted Into 8 Balanced Differential RS485 Signals And The Transmission Rate Is Stable. The Transmission
