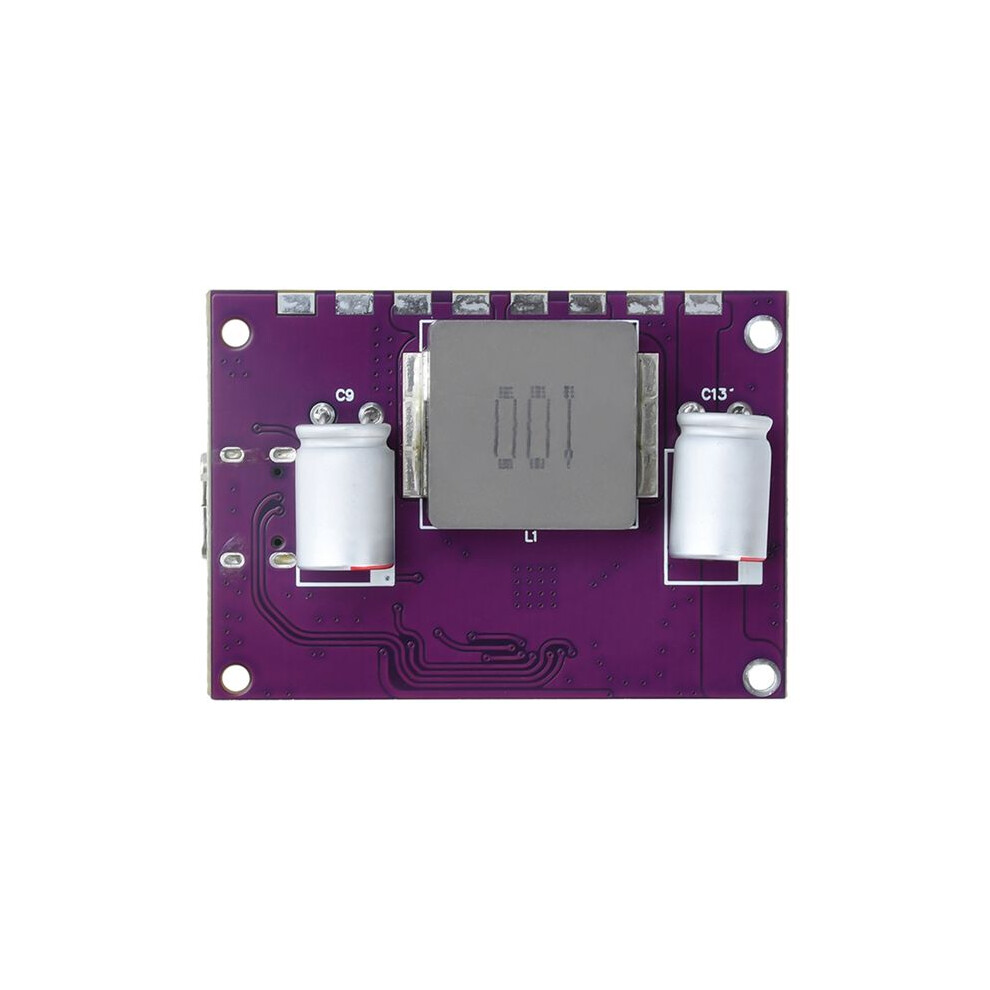

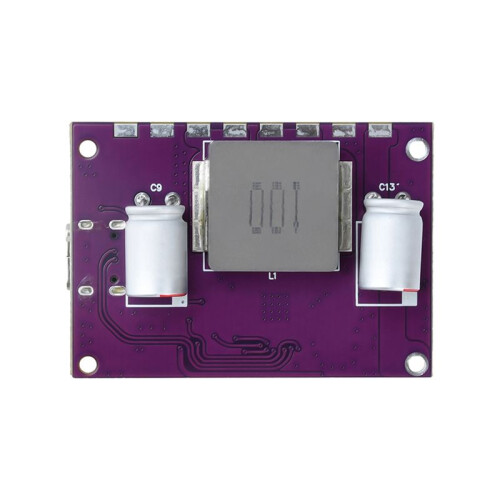

IP2368 Bidirectional 100W Fast Charging Module Buck-Boost Type-C Interface 4S Lithium Battery High-Power Charging Board
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Standard (€4.04) | Fri 24th - Wed 29th Jul
Sold by: Papishop
Returns: 30 days
180-day payment protection
Most Popular in Video Game Controller Parts & Accessories
Summary
- The product is made of high-quality materials with guaranteed quality. The module has the function of bidirectional voltage rise and fall, and can output fixed 5V or 20V regardless of changes in battery voltage.
- The product design is lightweight and adopts TYPE-C USB interface, making it convenient to use. Almost all fast charging protocols on the market are supported. IP2368 full protocol 100W fast charging output, supporting not only laptops but also almost all mobile phone fast charging protocols.
- Product precautions: The bidirectional C port of the product can only be connected to unidirectional electrical appliances or chargers, such as charging heads, mobile phones, and other electrical appliances. Prohibiting bidirectional C-port links to modules with bidirectional C-ports may result in frequent switching between modules that cannot be recognized, and in severe cases, may be damaged.
- The module has the function of bidirectional voltage rise and fall, and can output fixed 5V or 20V regardless of battery voltage changes. It should be noted that a charging and discharging voltage of 20V is required for 100W, and if the output voltage is 12V, the maximum current can only reach 3a, which is 36W.
- Power supply voltage: 4 series of lithium batteries (resistance can be modified to support 2-6 series of lithium batteries or iron phosphate front batteries), the discharge capacity of the battery pack must be greater than 5a, and the battery pack must be equipped with a protective plate for use.
IP2368 Bidirectional 100W Fast Charging Module Buck-Boost Type-C Interface 4S Lithium Battery High-Power Charging Board Description
The product is made of high-quality materials with guaranteed quality. The module has the function of bidirectional voltage rise and fall, and can output fixed 5V or 20V regardless of changes in battery voltage.
The product design is and adopts TYPE-C USB interface, making it convenient to use. Almost all fast charging protocols the market are supported. IP2368 full protocol 100W fast charging output, supporting not only laptops but also almost all mobile phone fast charging protocols.
Product precautions: The bidirectional C port of the product can only be connected to unidirectional electrical appliances or chargers, such as charging heads, mobile phones, and other electrical appliances. Prohibiting bidirectional C-port to modules with bidirectional C- may result in frequent switching between modules that cannot be recognized, and in severe cases, may be damaged.
The module has the function of bidirectional voltage rise and fall, and can output fixed 5V or 20V regardless of battery voltage changes. It should be noted that a charging and discharging voltage of 20V is required for 100W, and if the output voltage is 12V, the maximum current can only reach 3a, which is 36W.
Power supply voltage: 4 series of lithium batteries (resistance can be modified to support 2-6 series of lithium batteries or iron phosphate front batteries), the discharge capacity of the battery pack must be greater than 5a, and the battery pack must be equipped with a protective plate for use.
Continuous working current: 18A
Overcharge voltage: 4.235V 0.025V
Instantaneous current: 30A
Overcharge release voltage: 4.190.05V
Charging voltage: 16.8-17V
Overdischarge voltage: 2.8+0.08V
Charging current: 1-10A
Overdischarge release voltage: 3.0+0.1V
Balanced starting voltage: 4.190.05V
Product name: I
Details
| OPC | PV8759Z |
|---|---|
| Brand | Typecat |
| Codes | 4711785333189 (EAN) |
| Product and Safety Information |
Product Data
| Height | 1cm |
|---|---|
| Width | 4cm |
| Length | 5cm |
| Weight | 0.0225kg |
| Colour | As Shown |
| Material | PC |
