K216 Fingerprint Control Board + R503 Fingerprint Module Access Control

K216 Fingerprint Control Board + R503 Fingerprint Module Access Control Description

K216 Fingerprint Control Board + R503 Fingerprint Module Access Control Description
Control Board Instructions: 1. SET Button: 1.1 Briefly press the SET button. The system is registered and the indicator light will flash rapidly, twice for each fingerprint. Fingerprint registration is successful when music is heard.
Fingerprints can be registered continuously while the system is registered. If no further fingerprints need to be added, wait 8 seconds. (The fingerprint capacity is 100. When the SET button is pressed, the registered fingerprints are stored in database 01.)
1.2 If you reset to factory settings, hold down the SET button until a long beep "Di" and music are heard; this indicates that the initialization process was successful.
2. Remote control: 2.1 Red indicator light illuminates, meaning programming has started; music indicates successful operation; default password: 123456; password length: 6 digits. 2.2 Change password: * Password * 1 * New password * New password 2.3 Register fingerprint: * Password * 2 * DD#, DD from 00 to 02 (00, 01, and 02 refer to three different fingerprint databases); each database can store 100 fingerprints; fingerprint is left in registered state when the * key is pressed or after waiting 10 seconds. 2.4 Clear fingerprint: * Password * 3 * Password# 2.5 Control operating mode:
* Password * 4 * 00# Fingerprint module standby function contact on
* Password * 4 * 01# Fingerprint module standby function contact off (normally on)
2.6. Delay time to close relay: * Password * 5 * #; from 00 to 20 means the closing time for the relay (from 0.5 s to 20 s), e.g.: 00 means 0.5 s, 20 means 20 s; The default time is 5 s.
2.7. Delete fingerprint: * Password * 6 * DD#, DD from 00 to 02 (00, 01 and 02 refer to three different fingerprint databases).
2.8. Password usage: * Password and relay closed, # and relay open.
3 Function set:
When 2 is selected,
the relay closing time is 5 s after fingerprint transmission (5 s is the default time and can be set via remote control); When setting 1, the relay closes when a fingerprint is submitted and opens when the finger is removed.
User Manual for the K216 Control Board
Technical Parameters:
Model Number: K216+R503
Power Supply: DC10V-30V
Output: Relay (Max. Current: 10A)
Standby Current: 6 mA (DC12V)
Fingerprint Capacity: 200
LED Control: Yes
Fingerprint Capacity: 300 pcs
Color: Silver
Material: Metal
Package Contents:

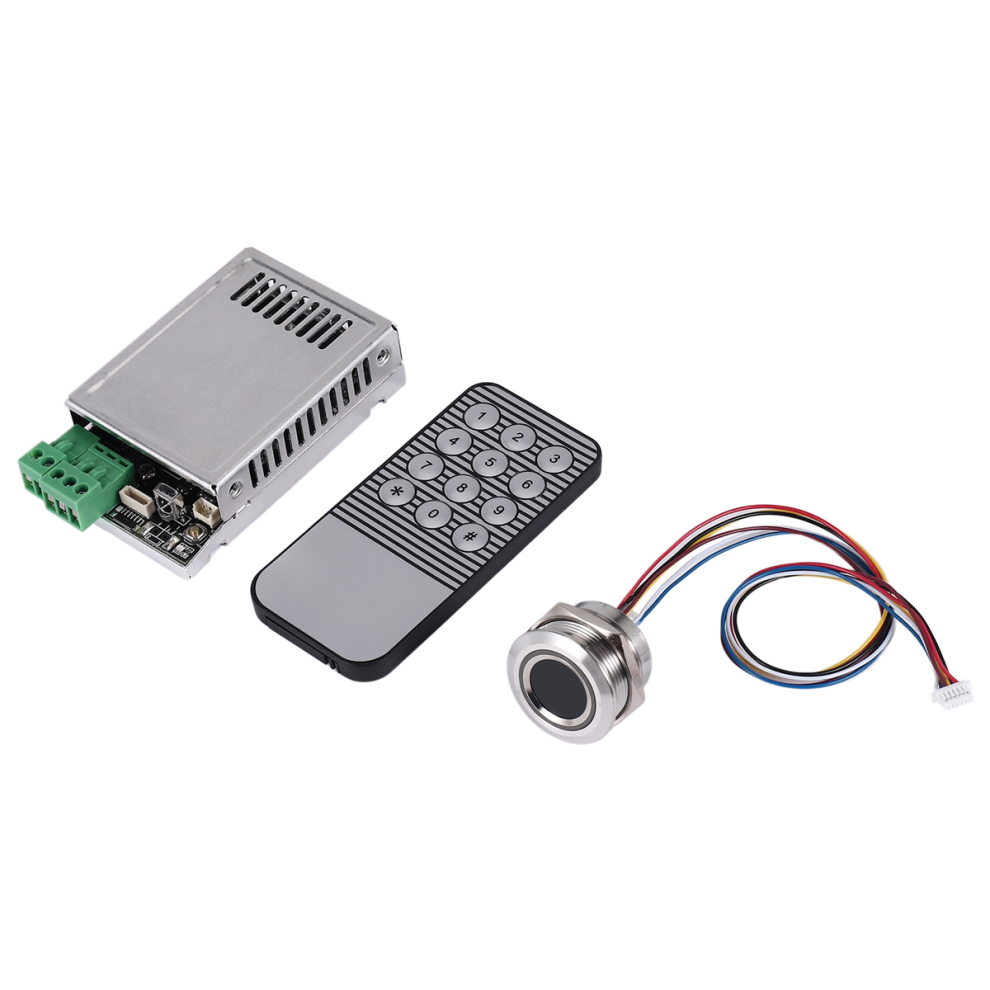

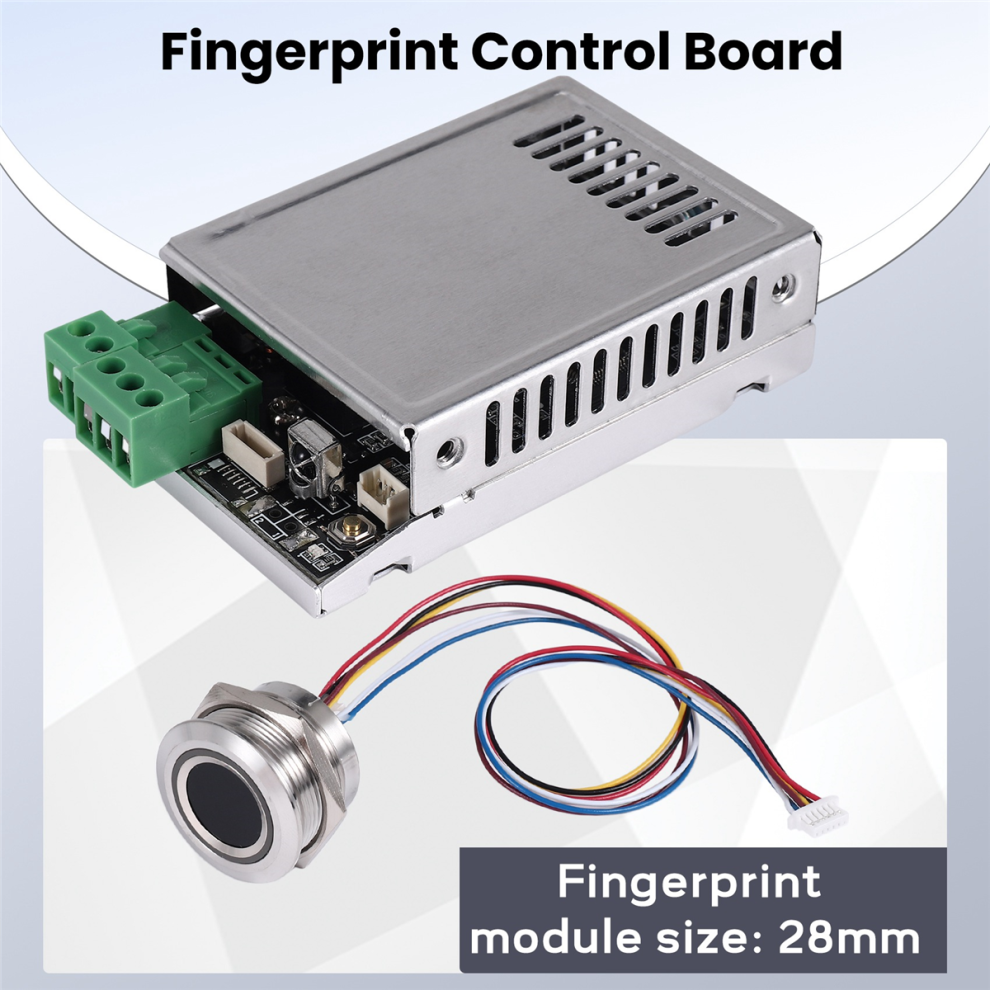

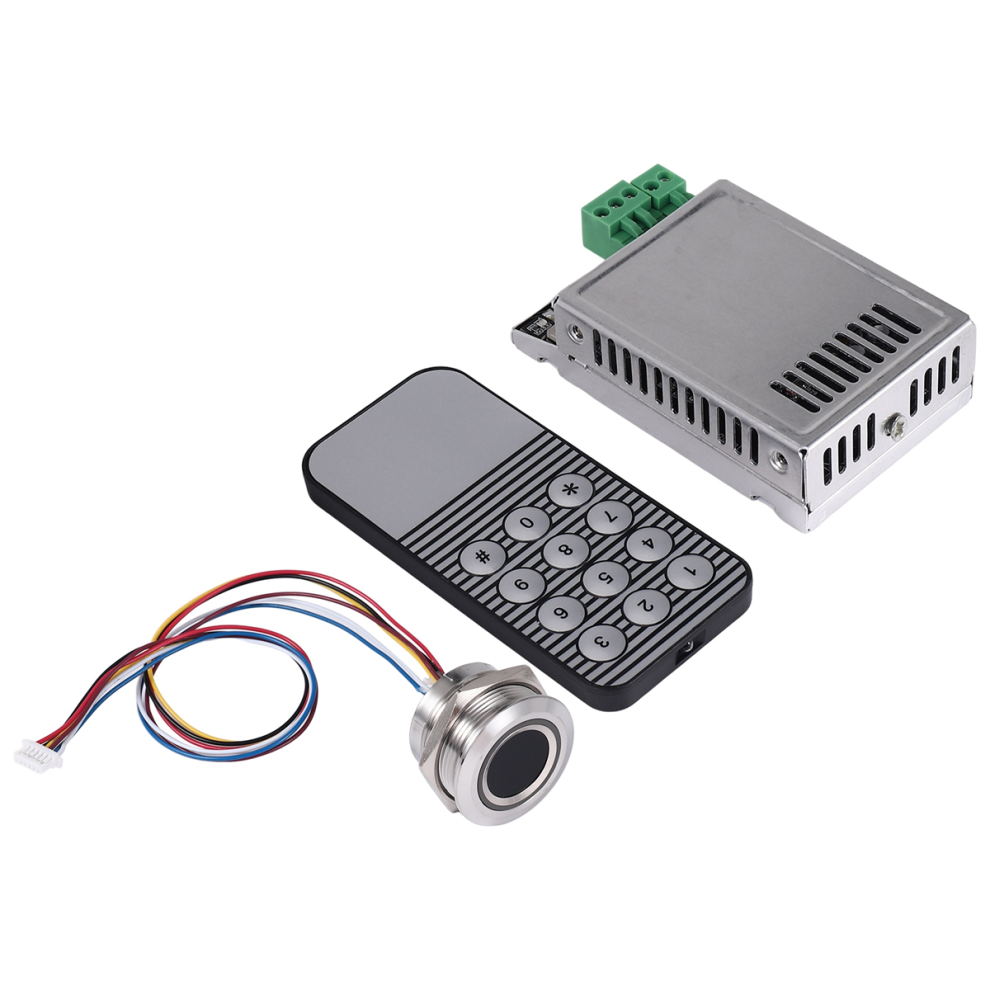

1 * K216 Fingerprint Control Board
1 * R503 Fingerprint Module
Only the above package contents, other products are Not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual product. The permissible measurement error is +/- 1-3 cm.
