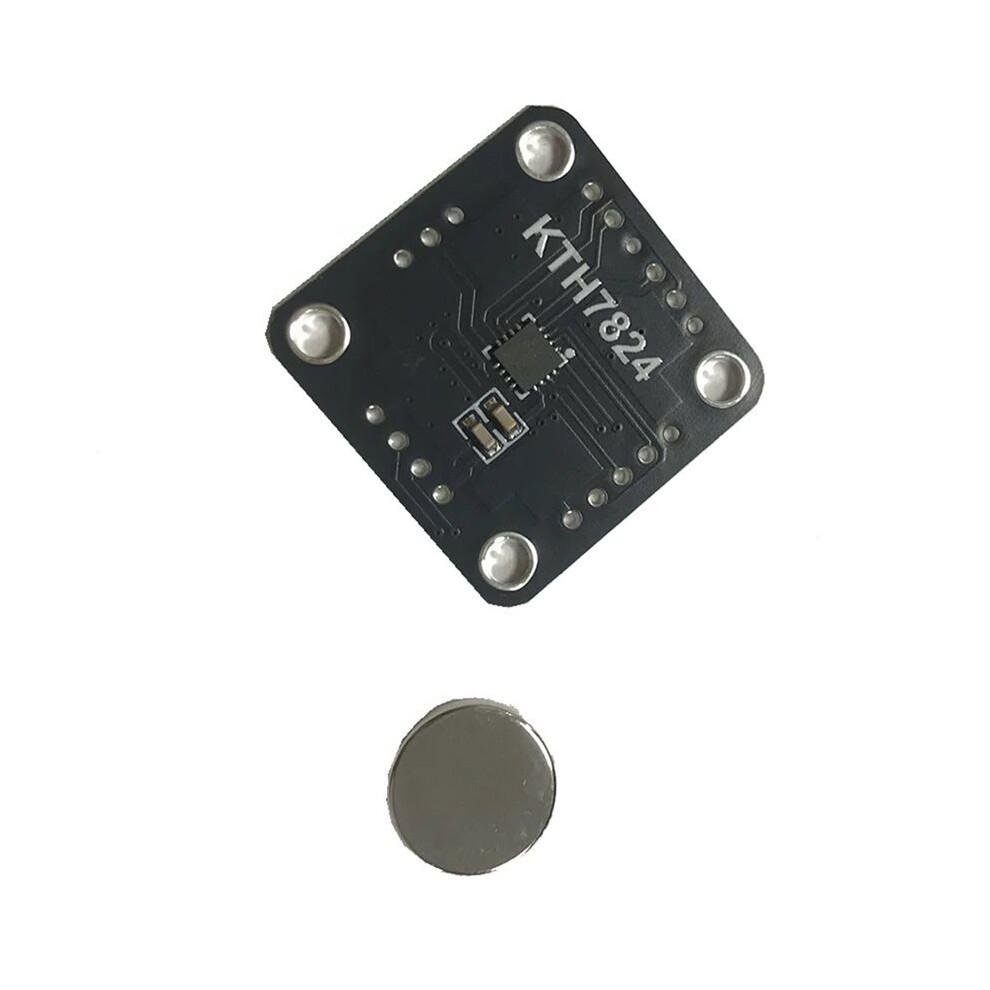

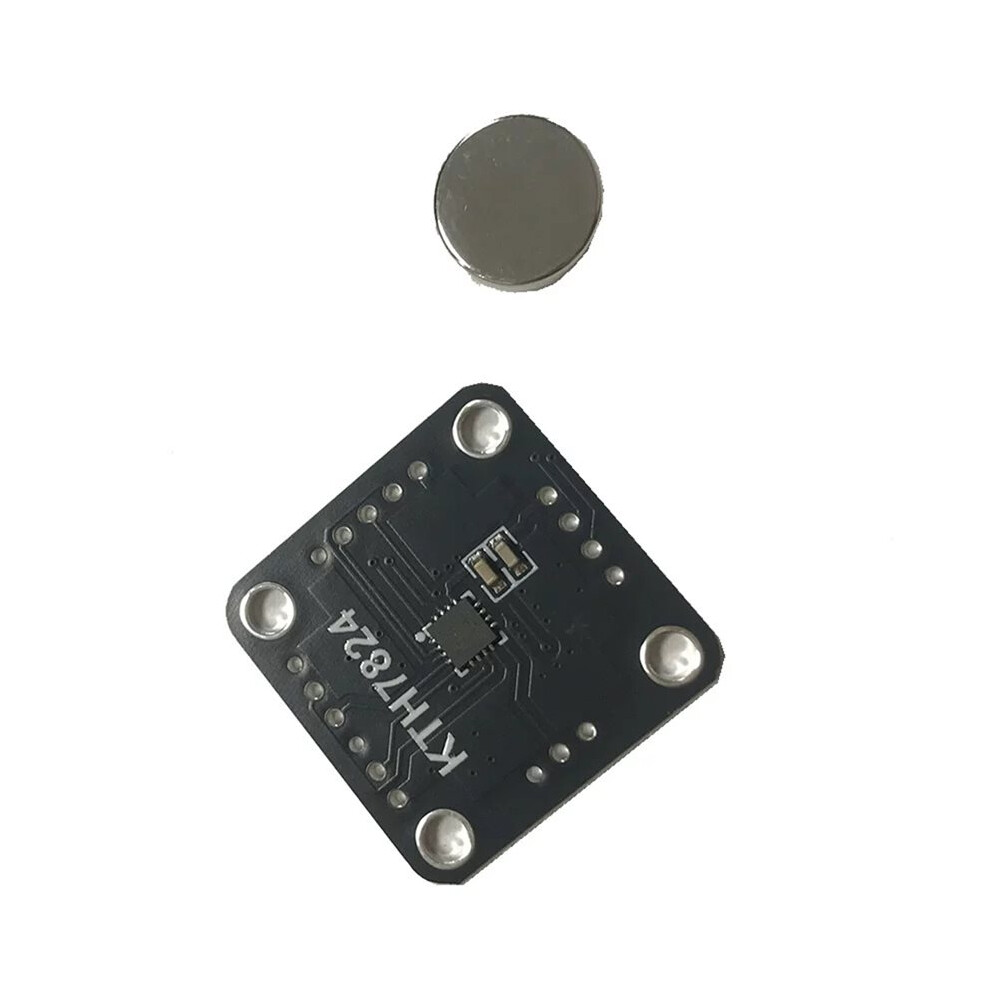

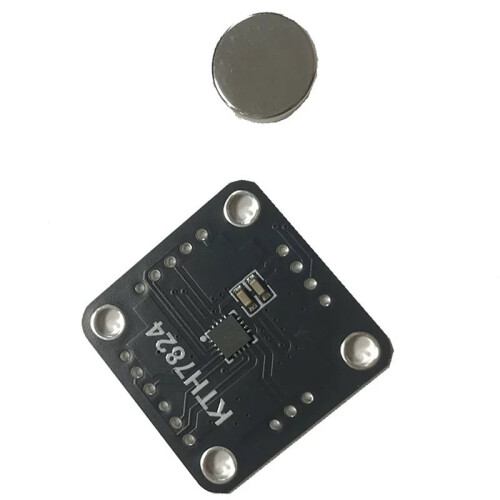

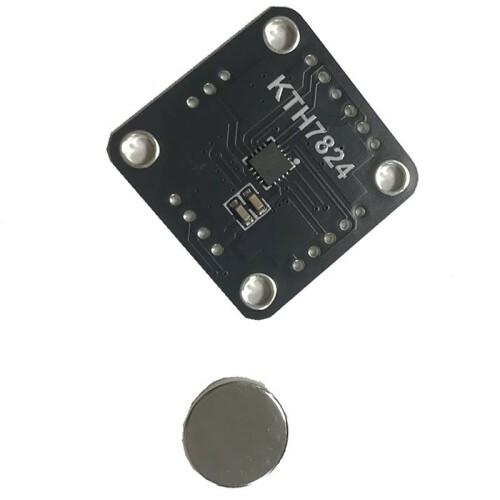

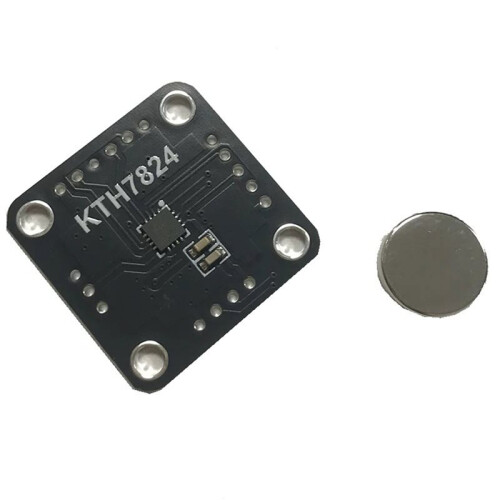

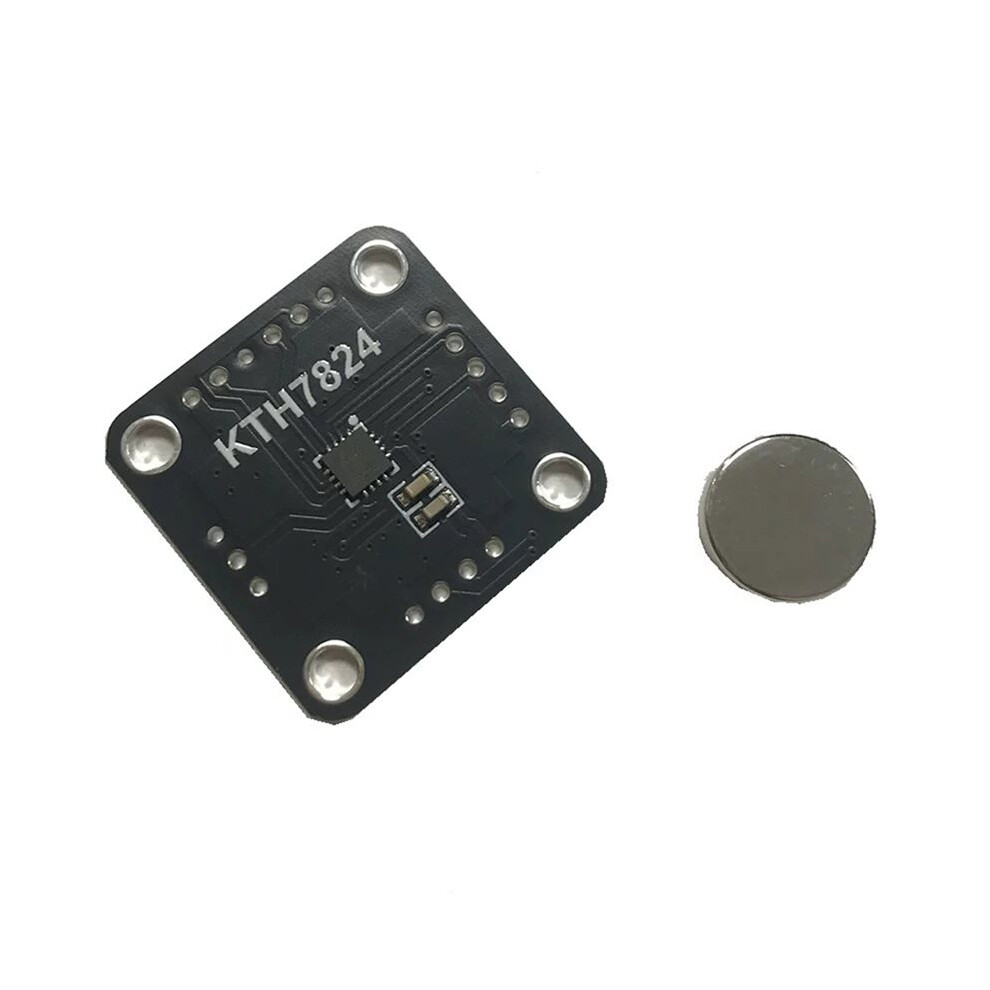

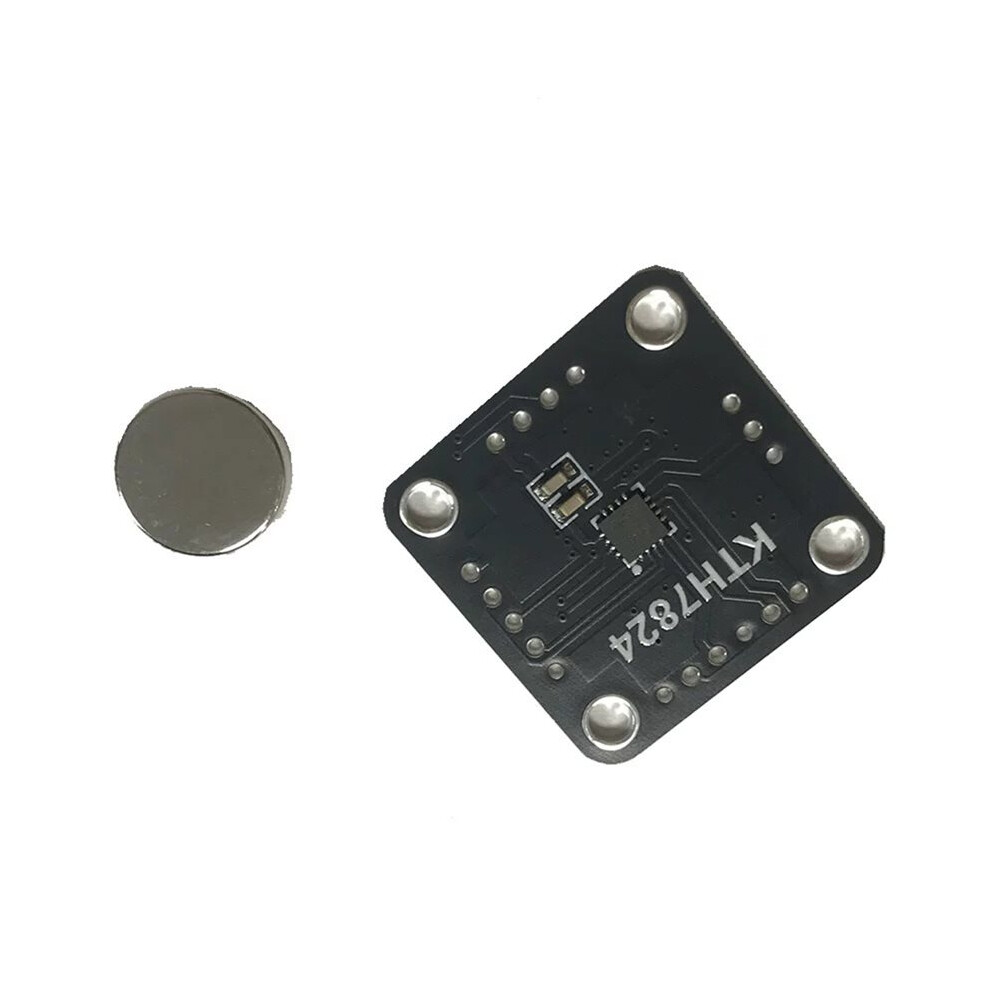

KTH7824 Incremental Encoder Module for Handheld Inkjet Printers Encoder Supports Off-Axis Magnetic Ring

KTH7824 Incremental Encoder Module for Handheld Inkjet Printers Encoder Supports Off-Axis Magnetic Ring Description

Product Features:


16-bit resolution absolute angle output

High precision, INL error less than 0.35

Suitable for various -axis and off-axis non-contact applications

Ultra-low latency, data updated every 1µs

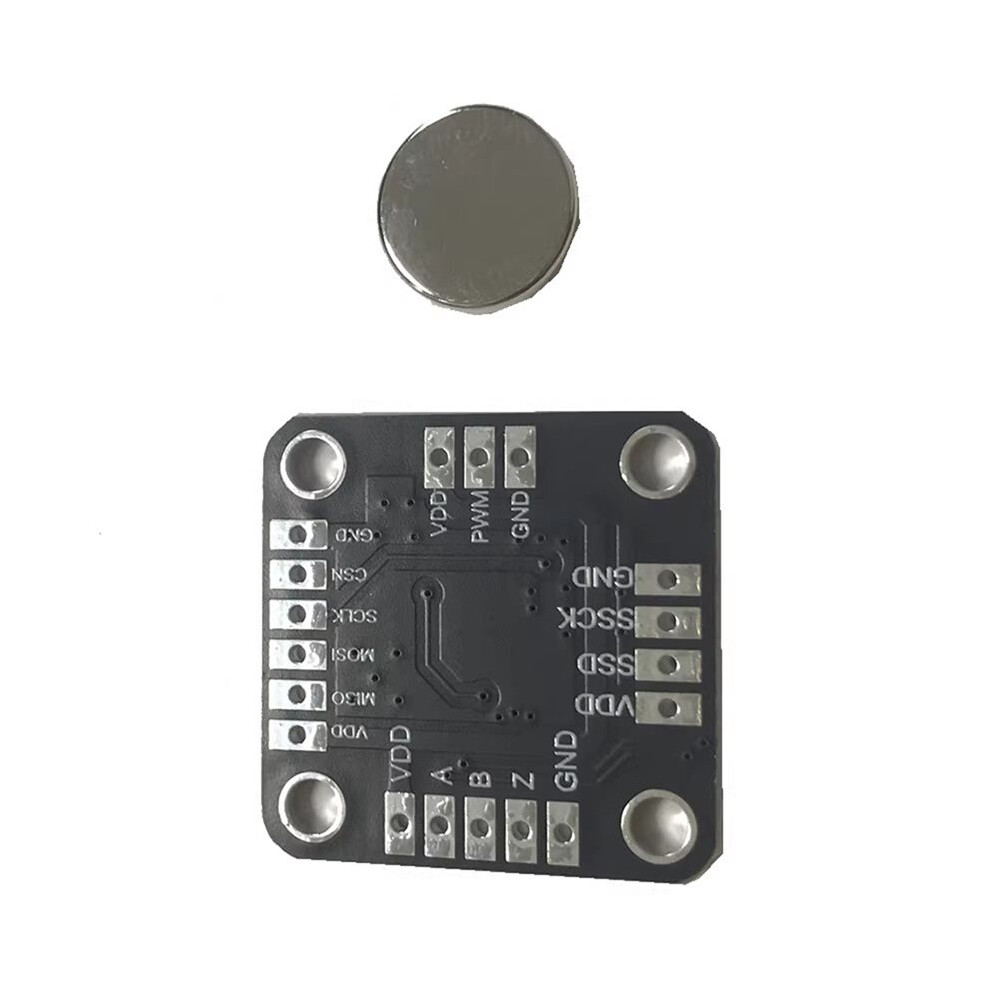

SPI communication: angle reading, register read/write

SSI communication: angle output

Programmable 4-4096 steps/revolution ABZ output

PWM 14-bit angle output

Built-in programmable memory MTP

Magnetic field strength diagnostics

Operating voltage compatible with 3.3V and 5V

The KTH7824 is a high-precision absolute angle Hall sensor chip with a maximum 16-bit resolution absolute angle output, enabling non-contact magnetic field angle measurement in both axial and off-axis applications. Regardless of the speed range (0-120000rpm), the KTH7824 can quickly and accurately output angle information, making it suitable for various fields requiring precise angle measurement and speed control.
Color: Black
Material: PCB

Package Contents:
1*Encoder Module
