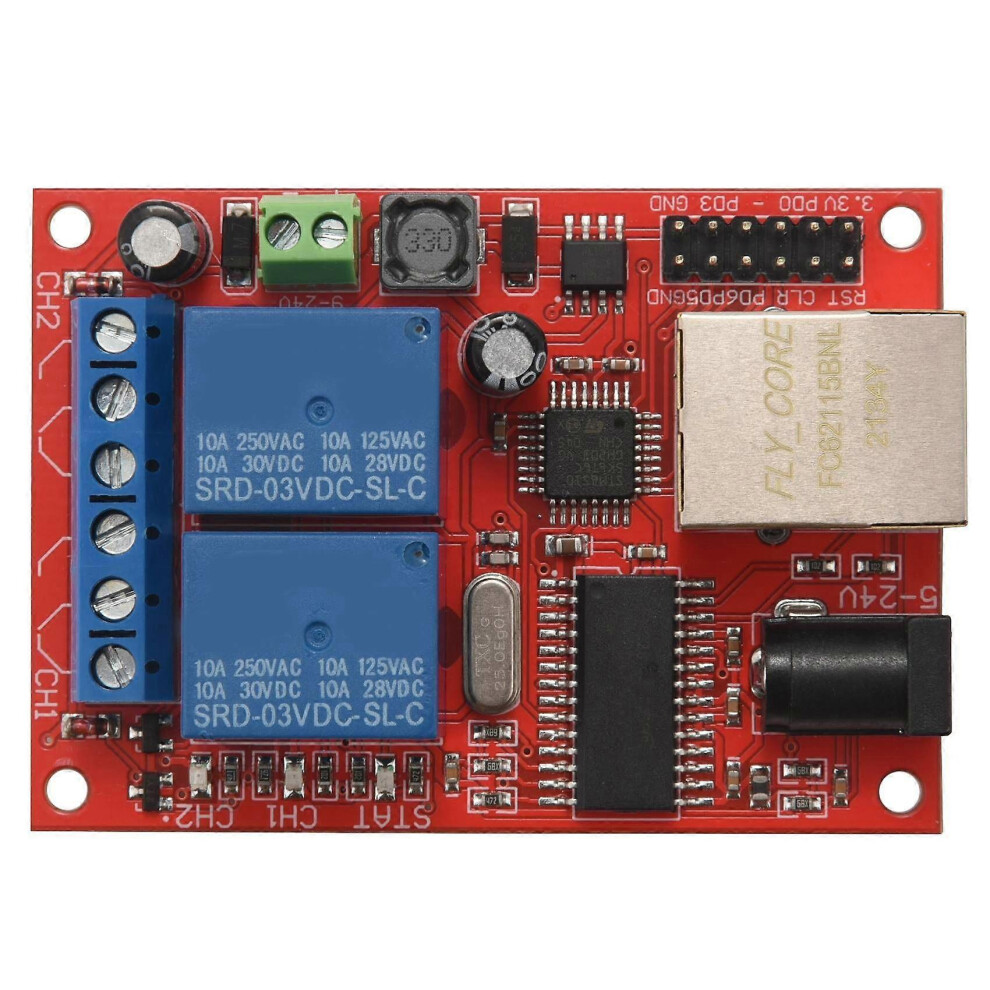

LAN Ethernet 2-way Relay Board Delay Switch TCP/UDP Controller Module WEB server

LAN Ethernet 2-way Relay Board Delay Switch TCP/UDP Controller Module WEB server Description

Positive 5V: + 5V positive power supply, input or output

GND: power ground, input or output

P30 - P35: CH3 - CH8 control lines, high level effective.

CLR: CLR short and to the module power settings to restore the factory settings

Blue Terminals: Connect user load, you can use 220V AC, or less than 30V DC equipment, which can not exceed the current standard load relay. Each relay has a normally open contact, a normally closed contact and a common contact, relay timely, public contact and normally open contact conduction; relay released, public contact and normally closed contact guide pass.AH893

Material: plastic, metal

color: red

Size: 70X 50mm

Package Included:

1x LAN Ethernet 2-way Delay Time Switch Relay Board TCP/UDP Controller Module

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
