LE3U FX3U 48MT RS485 RTC (Real-time Clock) 24 Inputs 24 Transistor Outputs 6 Analog Inputs 2 Analog Outputs PLC Control

LE3U FX3U 48MT RS485 RTC (Real-time Clock) 24 Inputs 24 Transistor Outputs 6 Analog Inputs 2 Analog Outputs PLC Control Description

LE3U FX3U 48MT RS485 RTC (Real-Time Clock) 24 Inputs 24 Transistor Outputs 6 Analog Inputs 2 Analog Outputs PLC Control Description
1. 3-Channel AB Input,
2. Supports 1N, 2N, 3U Instructions
3. Programs up to 8,000 steps,
4. Download Speed 38400
5. Supports GX developers, GX-WORK2
LE3U 48MT--24-point input, 24 transistor outputs, 6 analog inputs (3 channels 0-10, 3 channels 0-20 mA), 2 analog outputs (0-10 V), X0-X5 high-speed input 12 k
HMI support
Connection, the application is completely identical to the FX3U.
The PLC with industrial-grade 32-bit MCU runs much faster than the FX3U.
The PLC baud rate is set to 38400

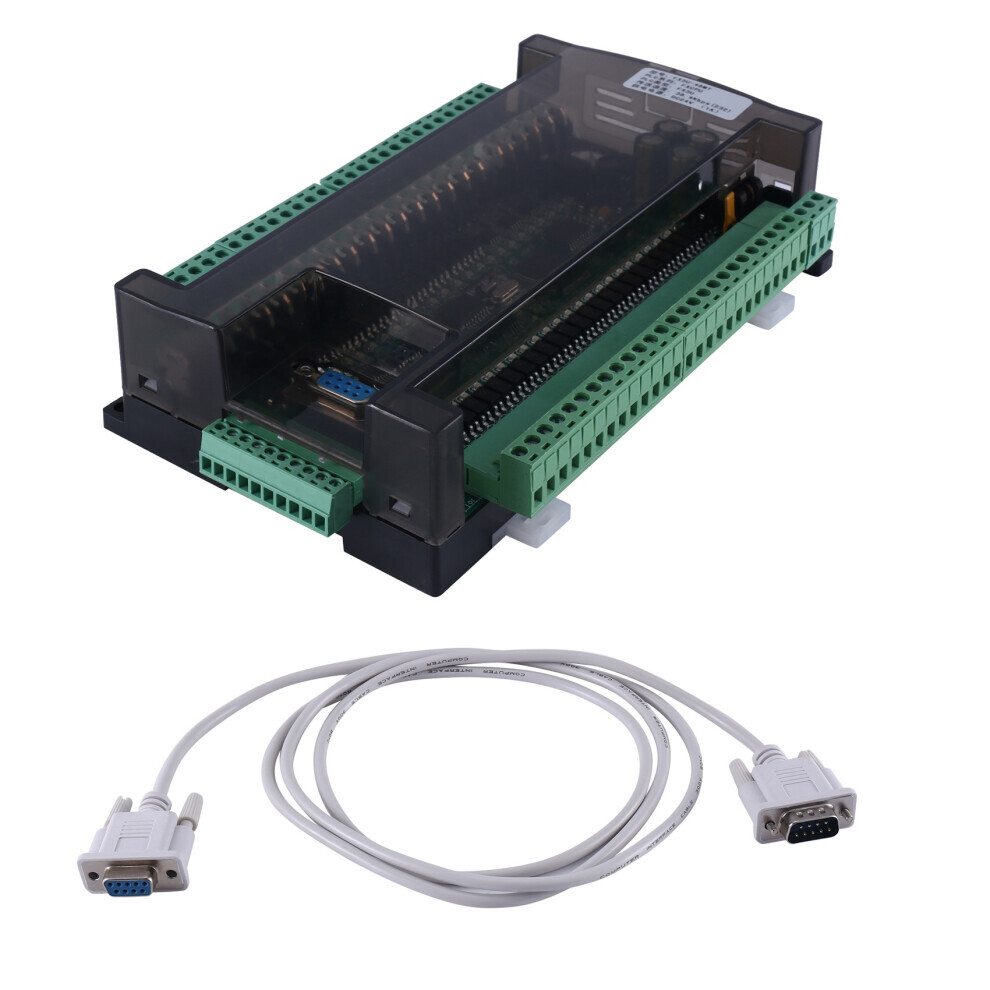

The clock module explains: When setting the clock, the M8015 should be set and the M8015 can be reset. D8018 is for the year, D8017 is the month, D8016 is the day, D8019 is the week, D8015 is the hour, D8014 is the minute, D8013 is the second. The clock data can be read from the clock data TRD to read the clock data into the general register, or the clock can be modified using the clock write command TWR by using this command without position M8015. Material: Plastic. Color: As shown. Package contents: 1 x Controller, 1 x RS232 cable.
