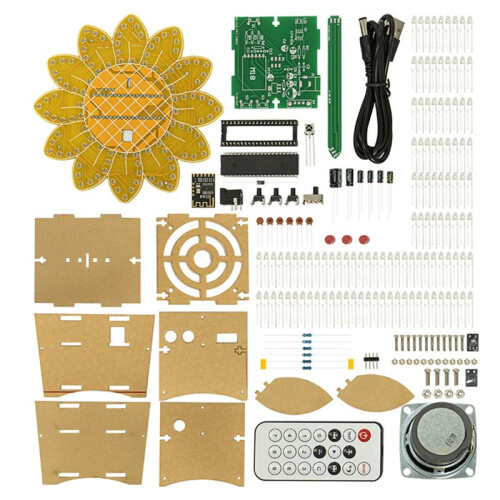

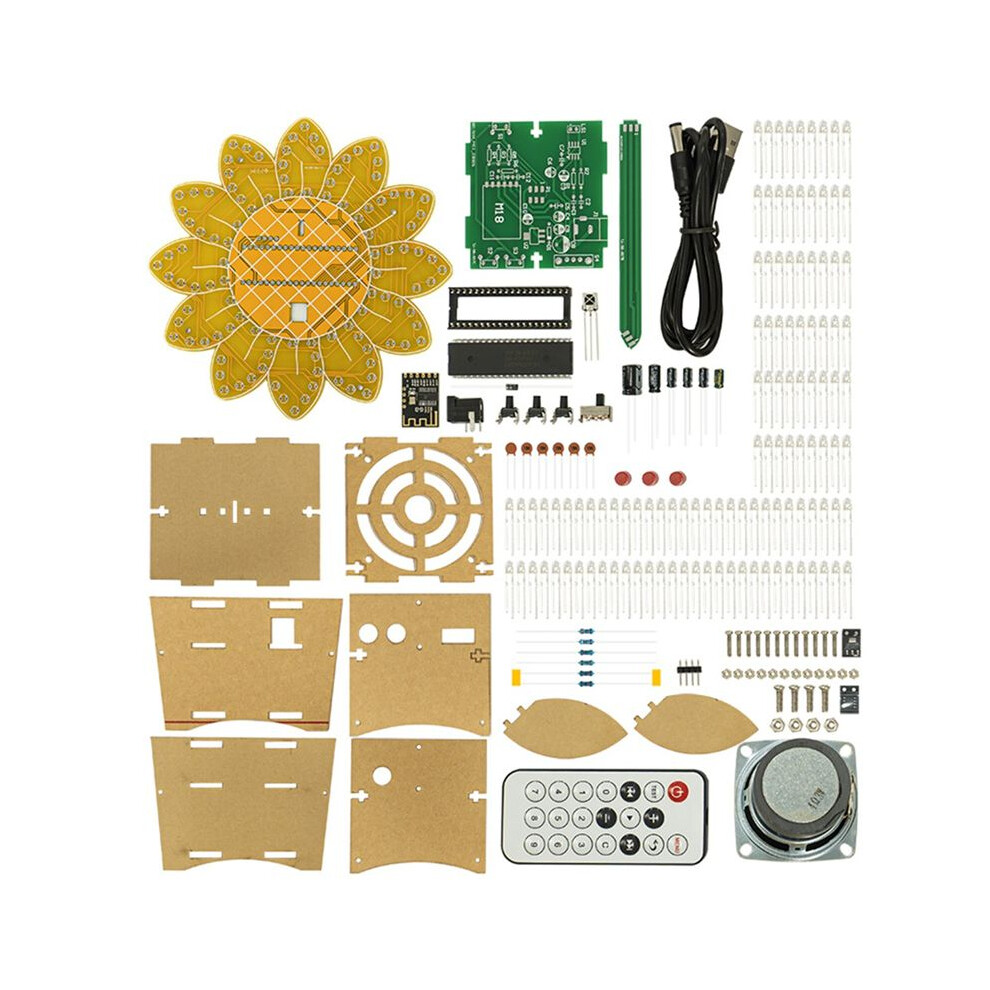

LED Sunflower Speaker Kit with Remote Control Diy Electronic Kit Welding Practice Parts

LED Sunflower Speaker Kit with Remote Control Diy Electronic Kit Welding Practice Parts Description

Product Overview:
The flower part uses STC15F2K60S2 push-pull output to control the light and dark state of each LED to achieve the effect of running lights.
Chassis -tooth part of the use of voltage regulator chip ASM1117-3.3V for the -tooth module to provide a stable voltage, to avoid the operation of running lights affect the -tooth module work. -tooth module receives -tooth audio signals, HT6872 chip constitutes the amplifier circuit will -tooth received audio signals for amplification output.
Three IO of the microcontroller are connected to the -tooth key part, manipulating the high and low levels of the microcontroller IO as well as the level duration, so that the microcontroller can also control the audio, and one IO port is connected to the -tooth output part for ADC acquisition, which is used to realise the rhythmic effect of the running lights.

Features:
The kit is very suitable for training welding skills, at the same very suitable for DIY enthusiasts, can greatly improve their hands- ability
The product is shipped in bulk, customers need to assemble by themselves
The product with infrared remote control function, through the infrared remote control can control the state of the running lights and speakers state
Cool Colorful LED light design, equipped with 110pcs of high brightness Colorful LED lights, used to achieve the effect of flowing lights
Products with -tooth function, through the mobile phone connected to -tooth, -tooth audio music
Parameter:
Product Name:LED Sunflower -tooth Audio Kit
Operating voltage:DC5V (5.5mm connector)
Note:
Please check as much as possible to make sure the item is what you need.
Batch is different. Accessories have random colors, No specification is accept
