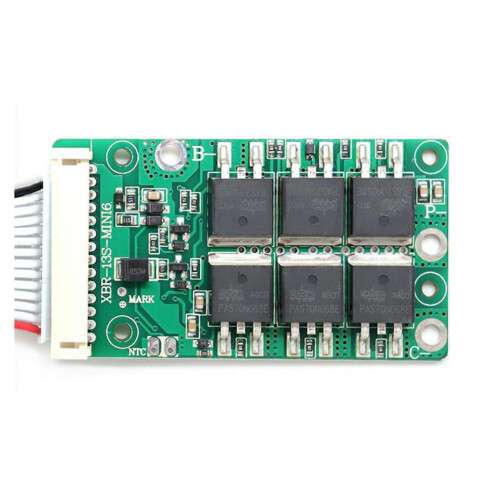

Li-Ion Lithium 18650 Battery Pack Balancer Charging Board (20A)

Li-Ion Lithium 18650 Battery Pack Balancer Charging Board (20A) Description

Li-Ion Lithium 18650 Battery Pack Balancer Charging Board (20A) Description
Type: Lithium/13 strands/48V. Wiring mode: same terminal / split terminal
Discharge: Over-discharge protection voltage: 2.7V 0.05V
Over-discharge recovery voltage: 3.0V 0.05V. Continuous operating current: 4 MOS = 15A, 6 MOS = 20A. Instantaneous protection current: 4 MOS = 65A, 6 MOS = 80A
Overcurrent recovery conditions: Charge recovery / Disconnect load. Conditions for recovery after a short circuit: Charge recovery / Disconnect load
Charging
Overcharge protection voltage: 4.25 V 0.015 V
Overcharge recovery voltage: 4.15 V 0.015 V
Continuous charging current: 4MOS=15 A, 6MOS=20 A
Charging voltage: 56 V (recommended)

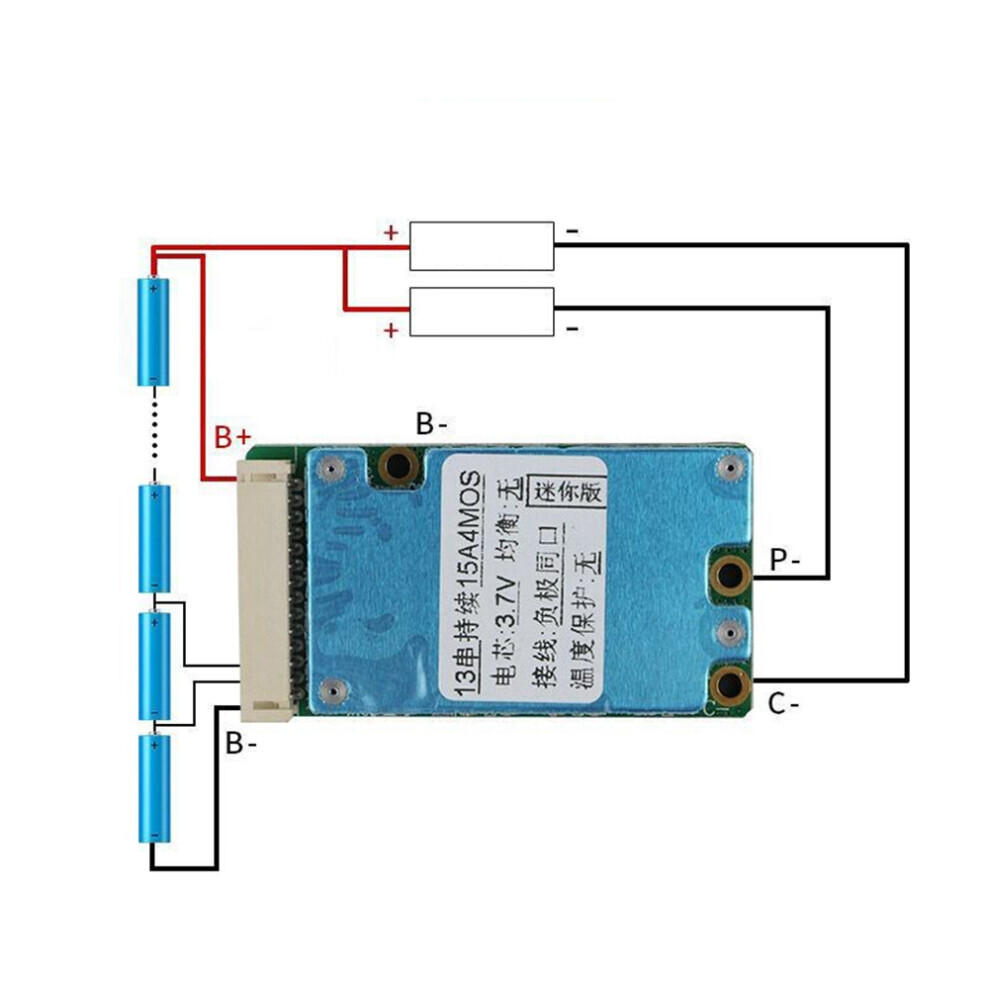

Enabling the same port
Two ways to initially activate PACK:
(1) B and C cables can be short-circuited once
(2) Or charge to activate
Enabling shared ports
Two activation methods for
(-) B and P cables are short-circuited once
(2) Charge to activate
Over-temperature protection

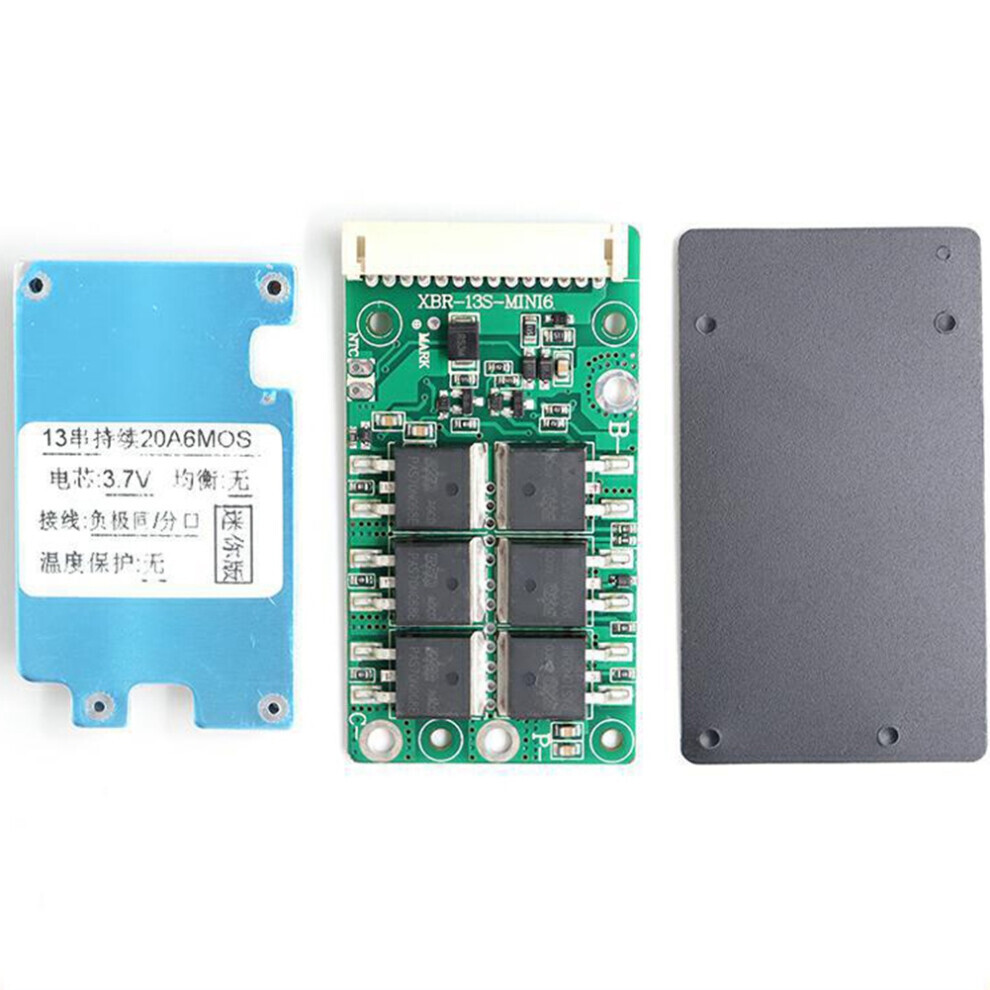

Charging at Over-temperature protection: -5C to 50C (standard shipping without temperature control) Over-temperature discharge: -30C to 70C (standard shipping without temperature control) Operating current consumption: less than 40 µA Main circuit line internal resistance: 15 mΩ Temperature range: -40C to +80C Disconnect protection: Yes Product size: 63 x 34 x 7 mm Color: as shown Material: PC + metal Package contents: 1 x protection board (20 A) Only the above package contents, other products are not included. Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual product. The permissible measurement error is +/- 1-3 cm. [OnBuy.com]
