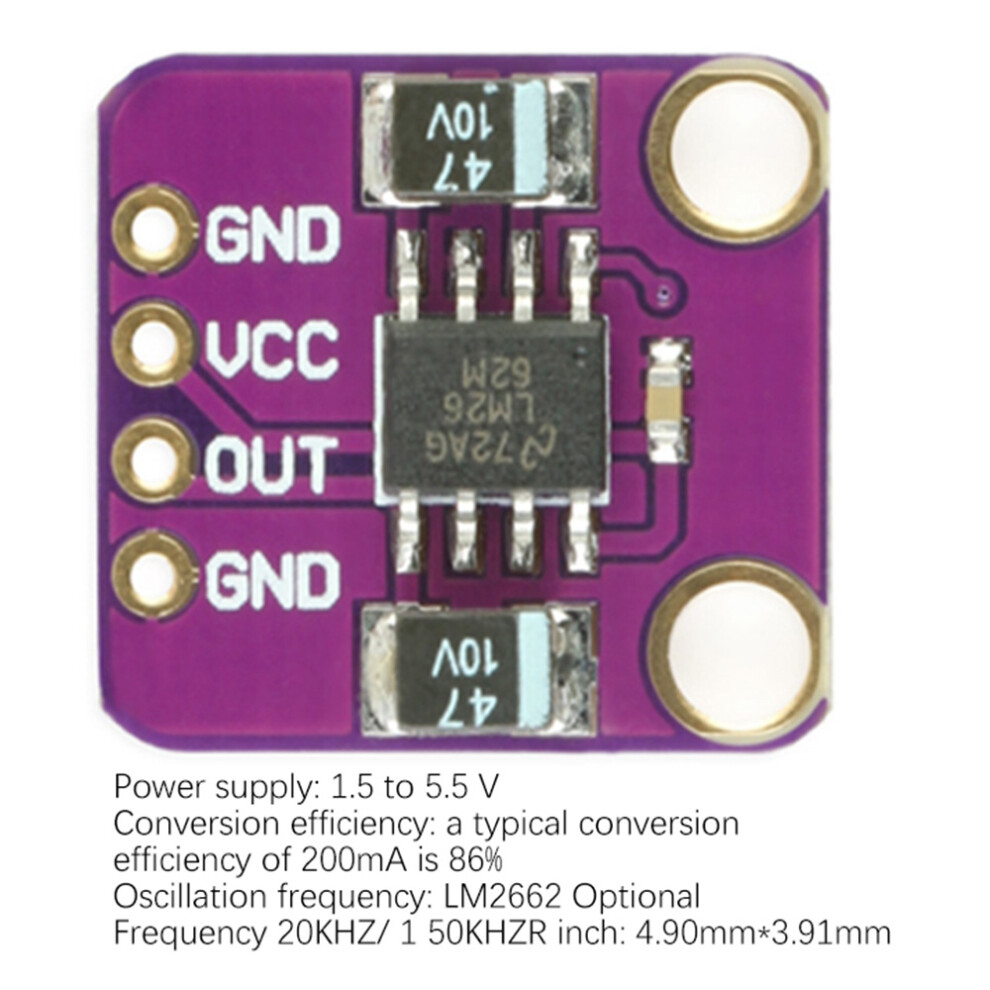

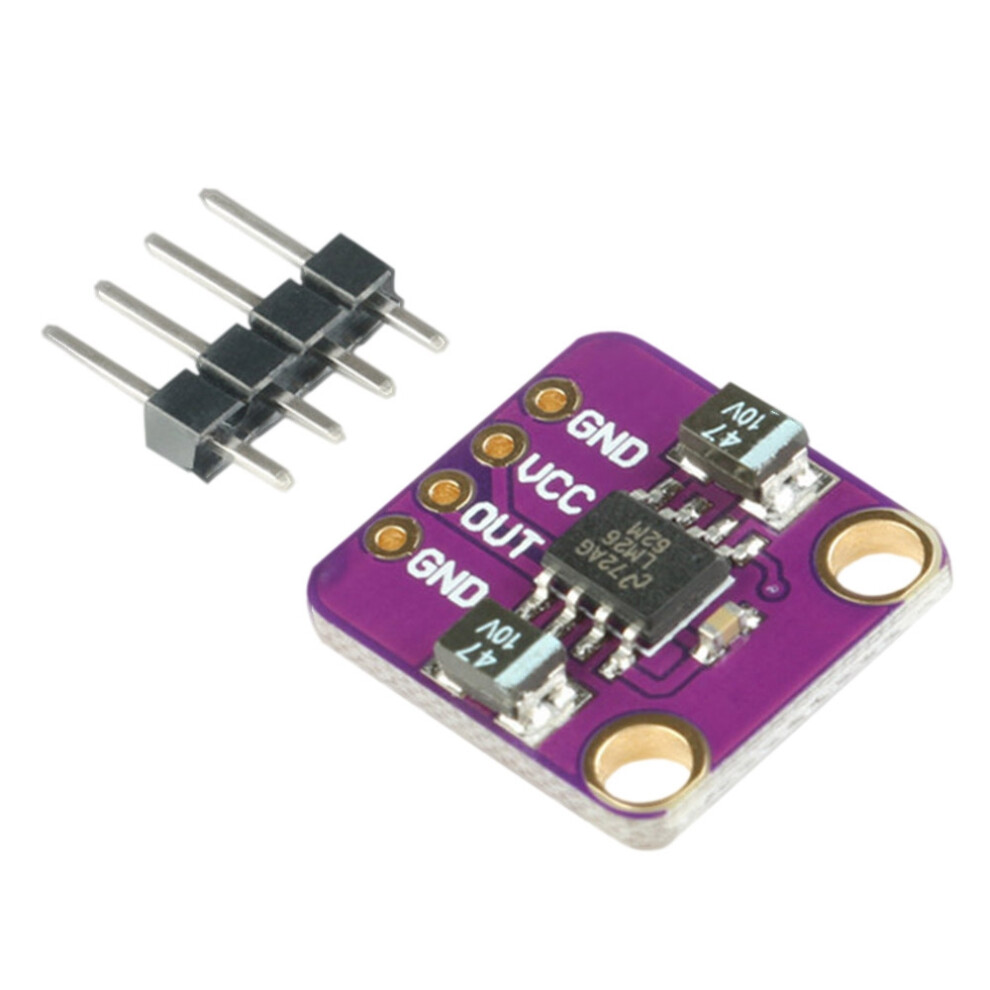

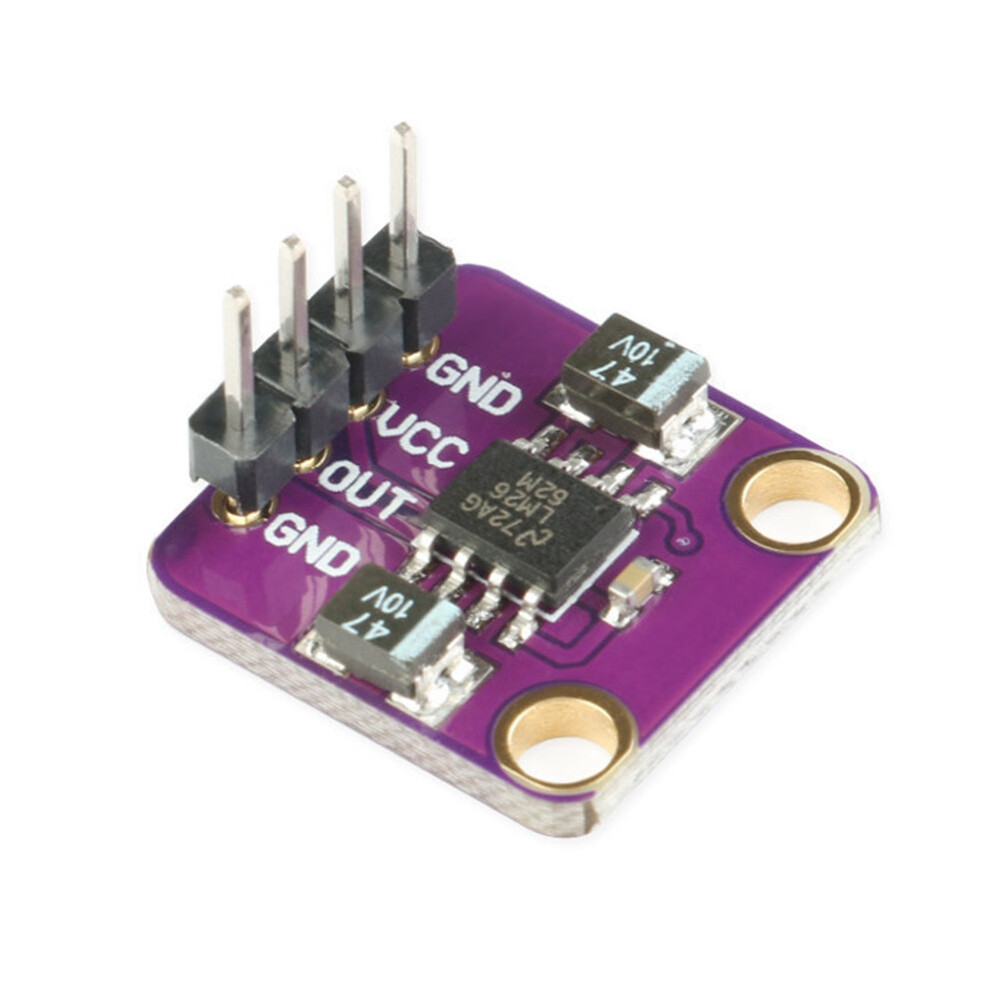

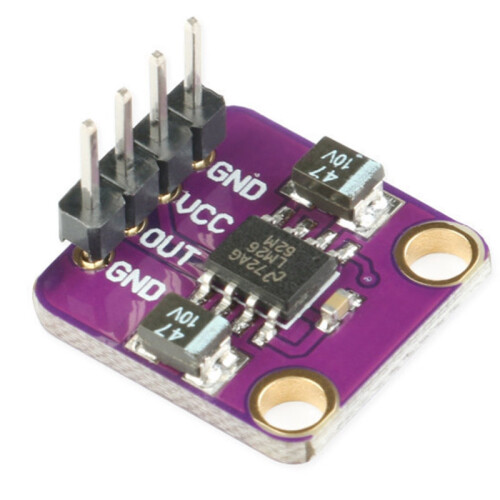

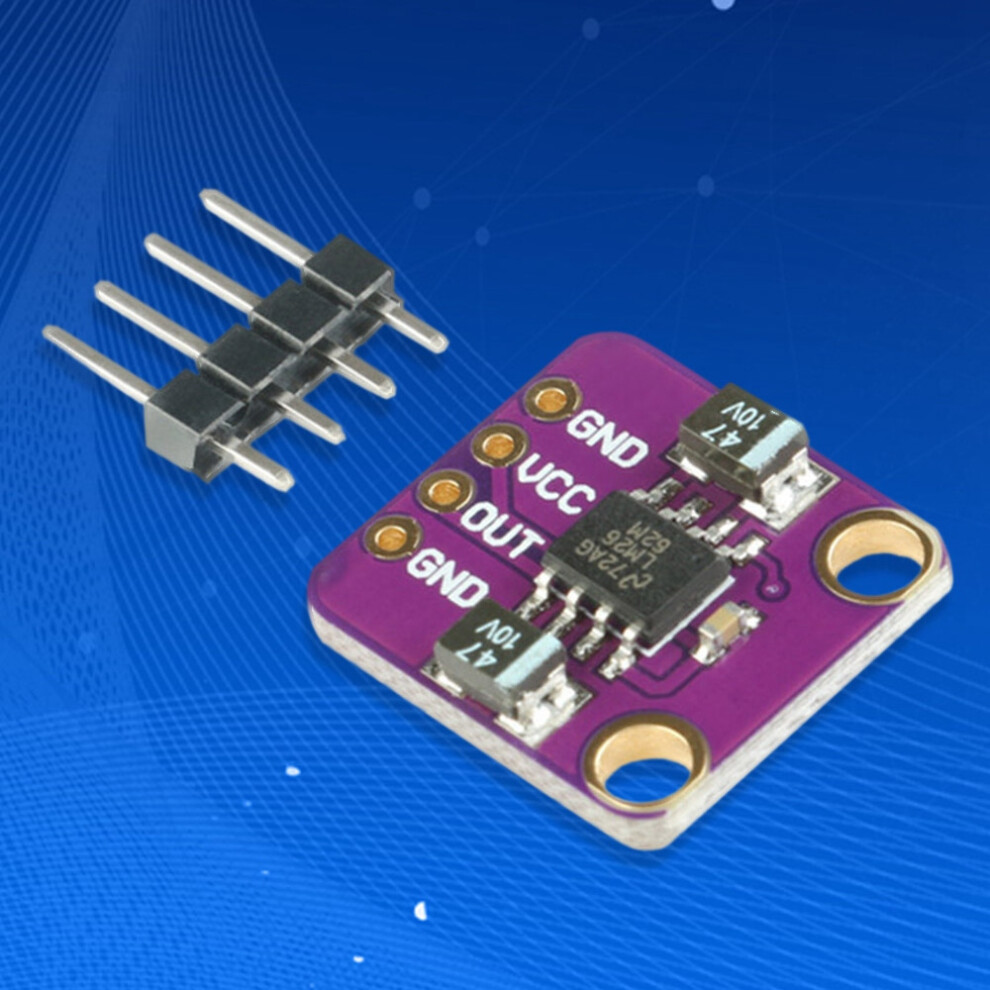

LM2662 Negative Voltage Module Voltage Converter Module Charge Pump Positive to Negative Power Capacitor
Brand Tlily
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 127,000 Trustpilot reviews and an 'Excellent' rating
€8.99
€22.70
60% off!
+€3.00 Delivery
1%
What is instant Cashback?
Learn More
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Priority (€3.00) | Sat 11th - Fri 17th Jul
Sold by: CNNOTEPAD
Returns: 30 days
180-day payment protection
Most Popular in Circuit Board Connectors
Description & Details
Summary
- The CMOS charge pump voltage converter converts the positive voltage in the range of 1.5 to 5.5V into the corresponding negative voltage.
- LM2662 uses two small capacitors to provide an output current of 200mA, eliminating the associated cost of inductor-based converters. LM2662 can also be used as a positive voltage multiplier. By adding an external capacitor to the Os pin, the frequency of the oscillator can be reduced.
- In addition, the external clock of OSC can also be used to drive LM2662. For M2662, the frequency control (FC) pin selects the oscillator frequency of 20KHz or 150KHz.
- Application areas are in notebook computers, mobile phones, operational amplifier power supplies, interface power supplies, etc.
- Charge Pump Positive To Negative
LM2662 Negative Voltage Module Voltage Converter Module Charge Pump Positive to Negative Power Capacitor Description
The CMOS charge pump voltage converter converts the positive voltage in the range of 1.5 to 5.5V into the corresponding negative voltage.
LM2662 uses two small capacitors to provide an output current of 200mA, eliminating the associated cost of inductor-based converters. LM2662 can also be used as a positive voltage multiplier. By adding an external capacitor to the Os pin, the frequency of the oscillator can be reduced.
In addition, the external clock of OSC can also be used to drive LM2662. For M2662, the frequency control (FC) pin selects the oscillator frequency of 20KHz or 150KHz.
Application areas are in notebook computers, mobile phones, operational amplifier power supplies, interface power supplies, etc.
Conversion efficiency: typical conversion efficiency of 200mA 86%.
Oscillation frequency: 20KHz/150KHz
Colour:
Material: PCB
Size: 4.90mmx3.91mm
Package Contents:
1 * Negative Voltage Module
Details
| OPC | PTPXQQG |
|---|---|
| Brand | Tlily |
| Codes | 4713774015465 (EAN) |
Product Data
| Height | 1cm |
|---|---|
| Width | 2cm |
| Length | 2cm |
| Weight | 0.002kg |
| Colour | purple |
| Material | PCB |
