Localization and tracking radar module, on-board PCB antenna

Localization and tracking radar module, on-board PCB antenna Description

Location and Tracking Radar Module On-Board PCB Antenna Description

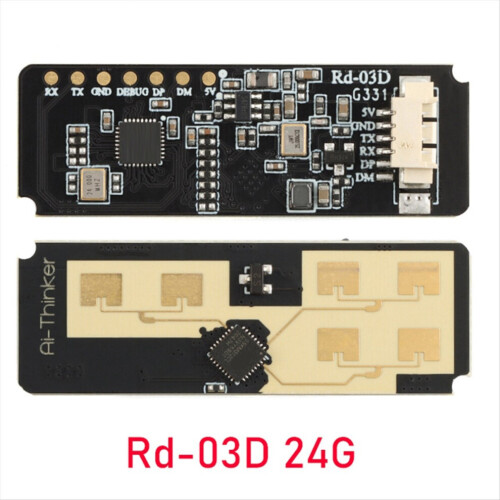

The Rd-03D is a radar module featuring the Silicon Microelectronics S5KM312CL chip. The S5KM312CL is an integrated microcontroller millimeter-wave sensor SoC based on FMCW radar transceiver technology. It operates in the 24 GHz K-band with a maximum sweep bandwidth of 0.25 GHz.
This module utilizes the FMCW waveform and the proprietary, advanced signal processing technology of the S5 series chips, combined with the MCU's proprietary radar signal processing and an integrated intelligent positioning and tracking algorithm to detect multiple targets within a specified area and report the results in real time. Users can quickly develop suitable target tracking products. The Rd-03D module accurately detects the movement status of the human body and the surrounding area. It is equipped with an intelligent algorithm for detecting and tracking movement paths and can measure the speed and distance of targets within the area. Detection speed is higher and power consumption is lower. The module is quick to configure and suitable for advertising displays. It can intelligently distinguish between the human body in motion, micro-movement, and stillness, and control the device's switch. This module is resistant to external interference and is not affected by wireless signals such as Wi-Fi.
Package: Standard 1*4P-1.25mm female connector
Size: 15.0 x 44.0 (0.2)mm

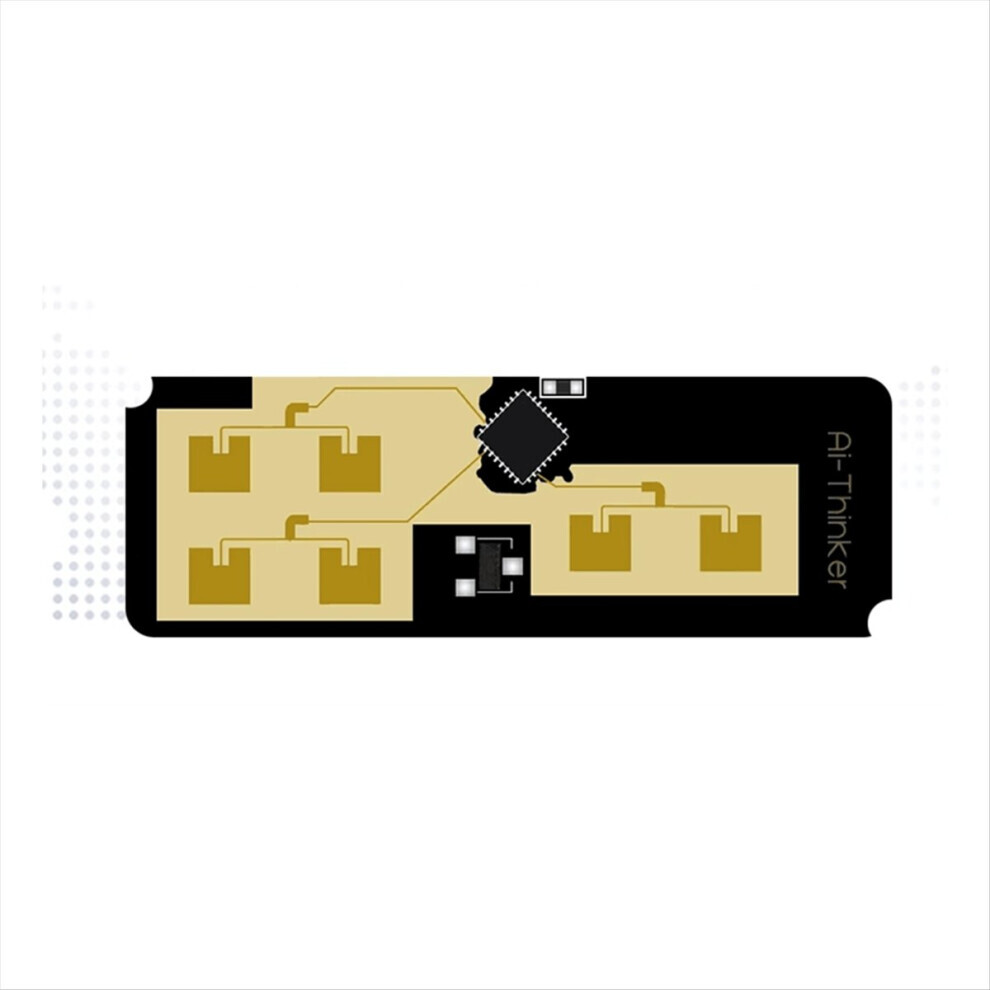

Antenna: On-board PCB antenna
Frequency: 24.25GHz
Operating temperature: -40 ~ 85C
Storage temperature: -40 ~ 125C, less than 90% relative humidity
Power supply: Support voltage 5V, supply current 200mA
UART interface: UART rate standard 256000 bps
Color: Black
Material: PC + Metal
Package contents:
1 x Module
Only the above package contents, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture to be slightly different from the actual item. The allowable measurement error is +/- 1-3 cm.
