LoRa E220 communication unit with antenna, 433 MHz frequency band

LoRa E220 communication unit with antenna, 433 MHz frequency band Description

LoRa E220 Communication Unit with Antenna, 433 MHz Frequency Band Description

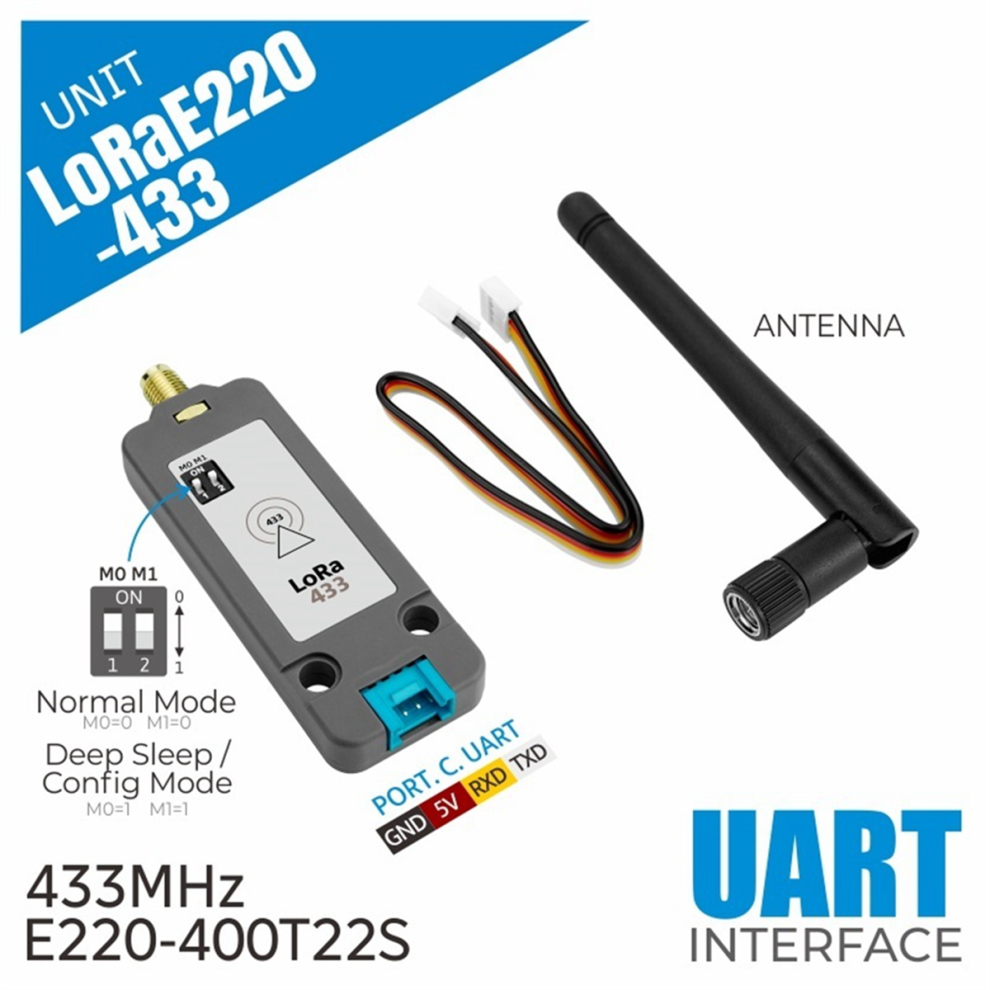

The LoRaE220-433 unit is a 433 MHz LoRa communication module with an LLCC68 chip solution. Compared to the conventional SX1278 solution, the LLCC68 offers advantages such as greater transmission distance, higher speed, and lower power consumption.
This unit supports features such as over-the-air wake-up, carrier sensing, and communication keying. It enables point-to-point and broadcast transmission modes through convenient serial communication. The module features an integrated DIP switch that allows users to switch between four different operating modes, enabling easy data transmission and reception without complex configurations. It is suitable for applications such as home alarms, building automation, smart homes, and the automotive industry. It uses the LLCC68 chip solution, has a maximum transmit power of 22 dBm (software adjustable), supports user-defined communication keys, supports over-the-air wake-up, and supports point-to-point, broadcast, and other communication modes. Channel Monitoring
Communication Frequency: Supports the 433 MHz frequency band (410.125 MHz - 493.125 MHz)

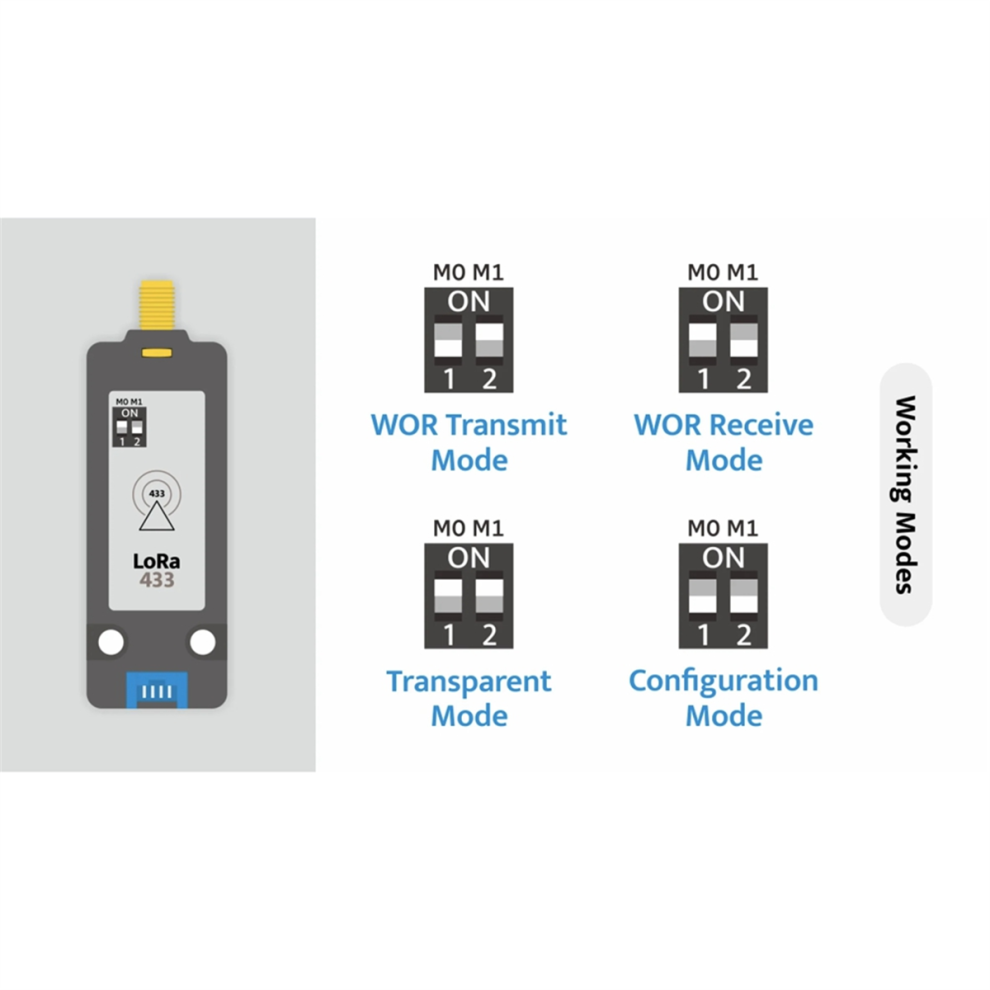

Integrated DIP switch for adjusting communication modes
Serial Communication
Applications:
Home alarm and keyless remote access
Smart home and industrial sensors
Wireless alarm security systems
Building automation solutions
Wireless industrial remote controls
Medical and healthcare products
Advanced measurement infrastructure ()
Automotive applications
The printing/appearance may vary from batch to batch, but does not affect its use; The actual product may have color variations due to different lighting conditions or displays.
Color: Photo color
Material: Plastic

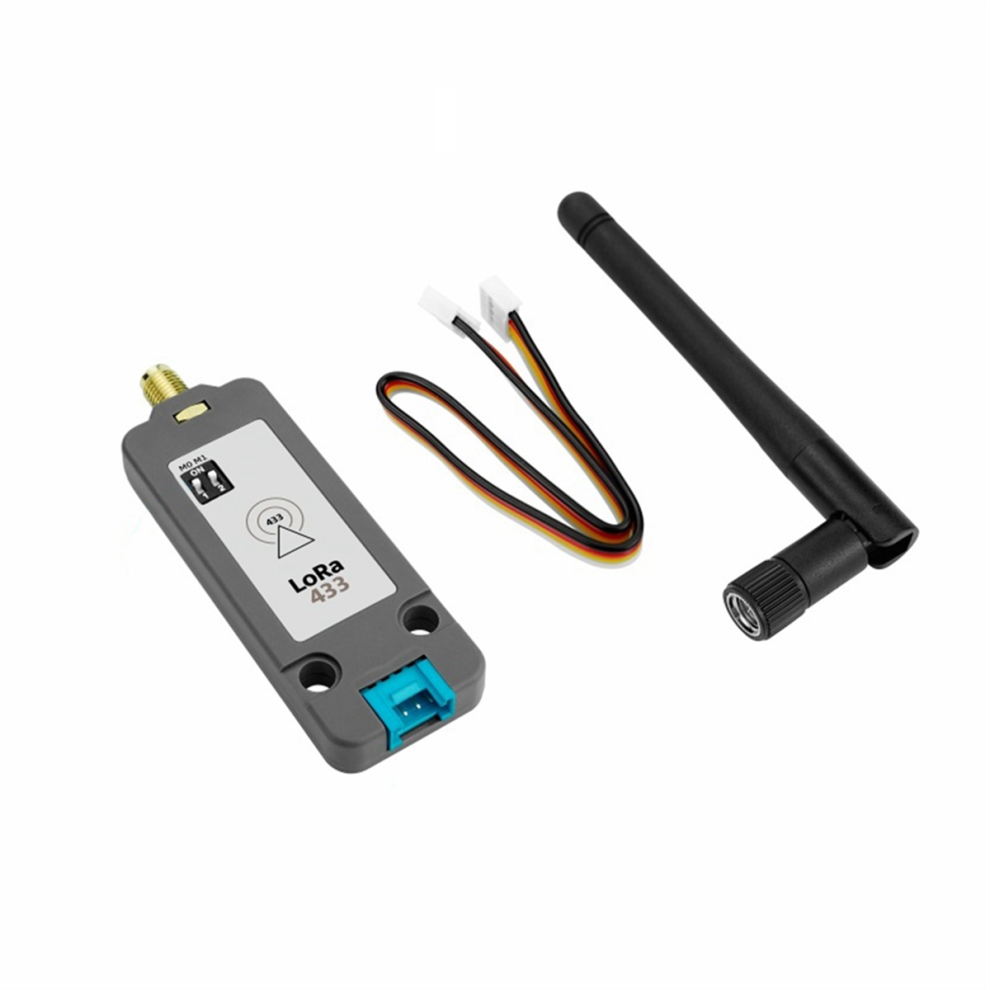

Package Contents:
1 x LoRaE220-433 Unit
1 x Cable (Cable color is random, specified color is not accepted)
1 x Rubber Antenna
Only the above package contents, other products are not included. Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual product. The allowable measurement error is +/- 1-3 cm.
