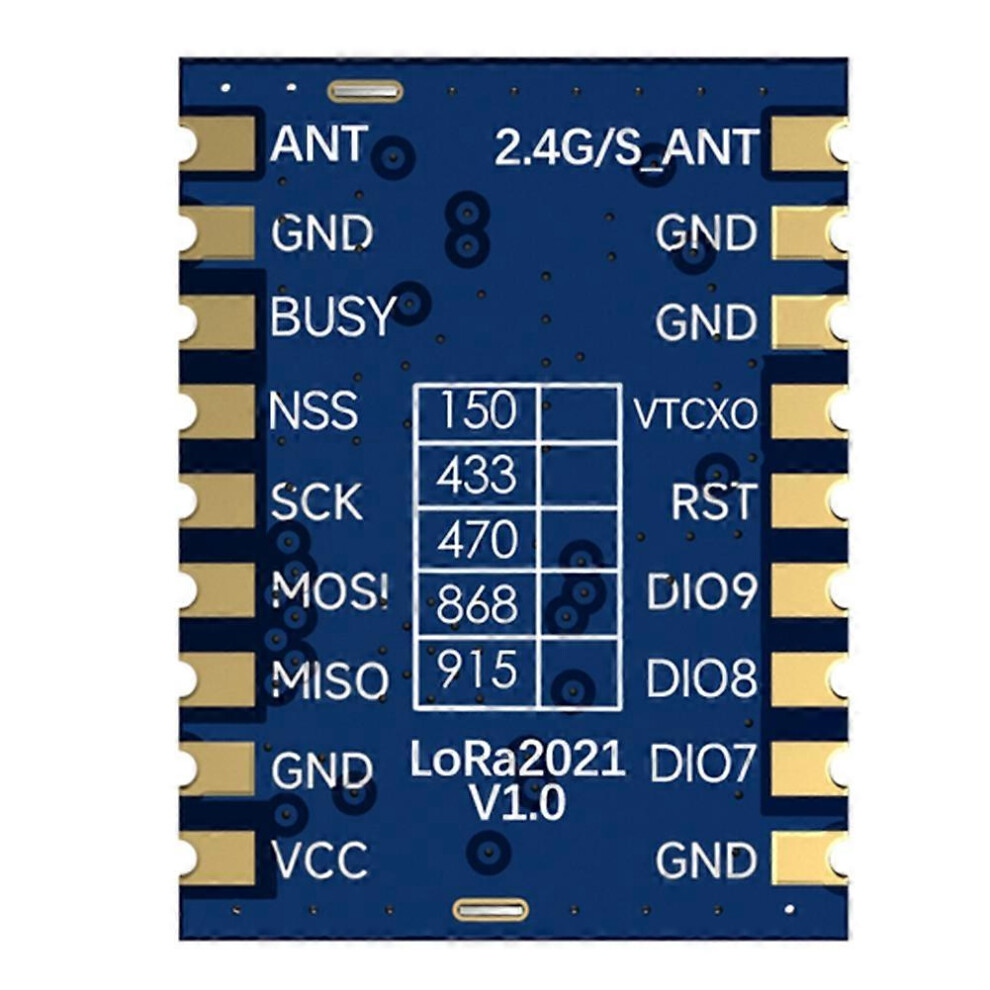

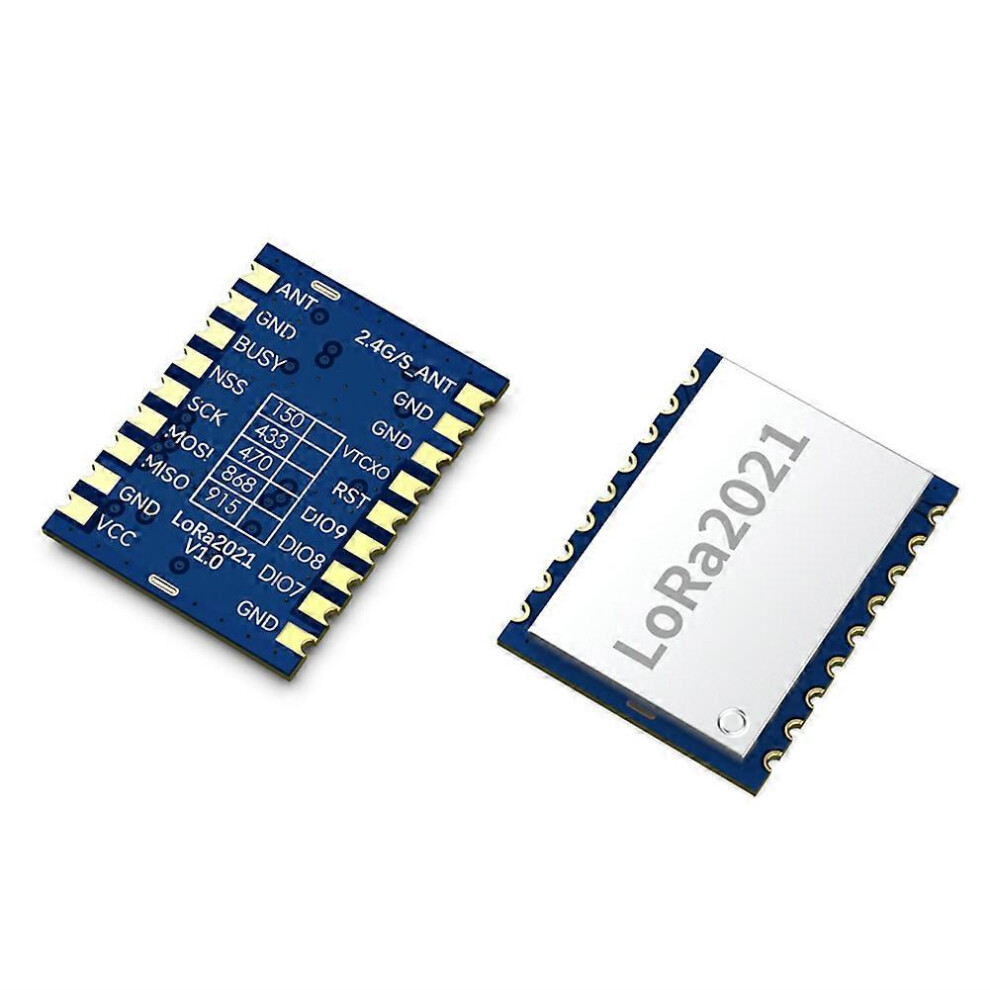

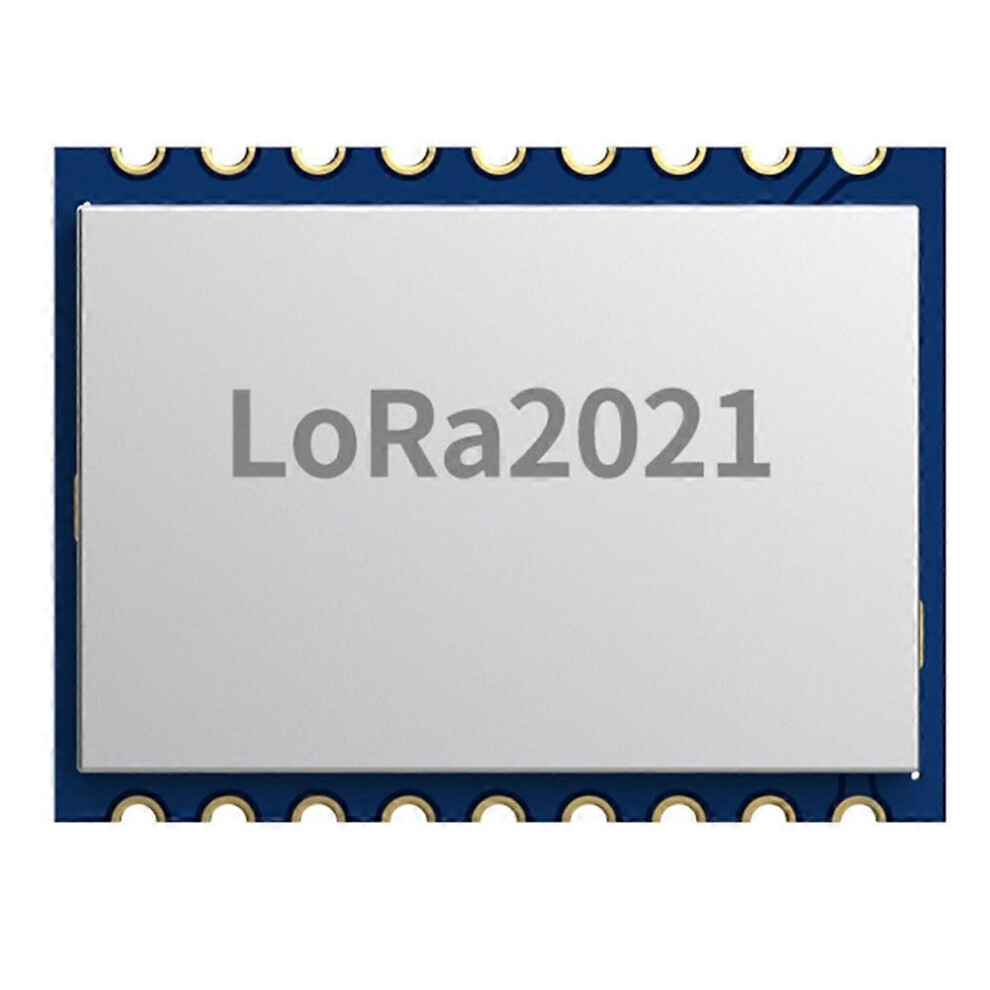

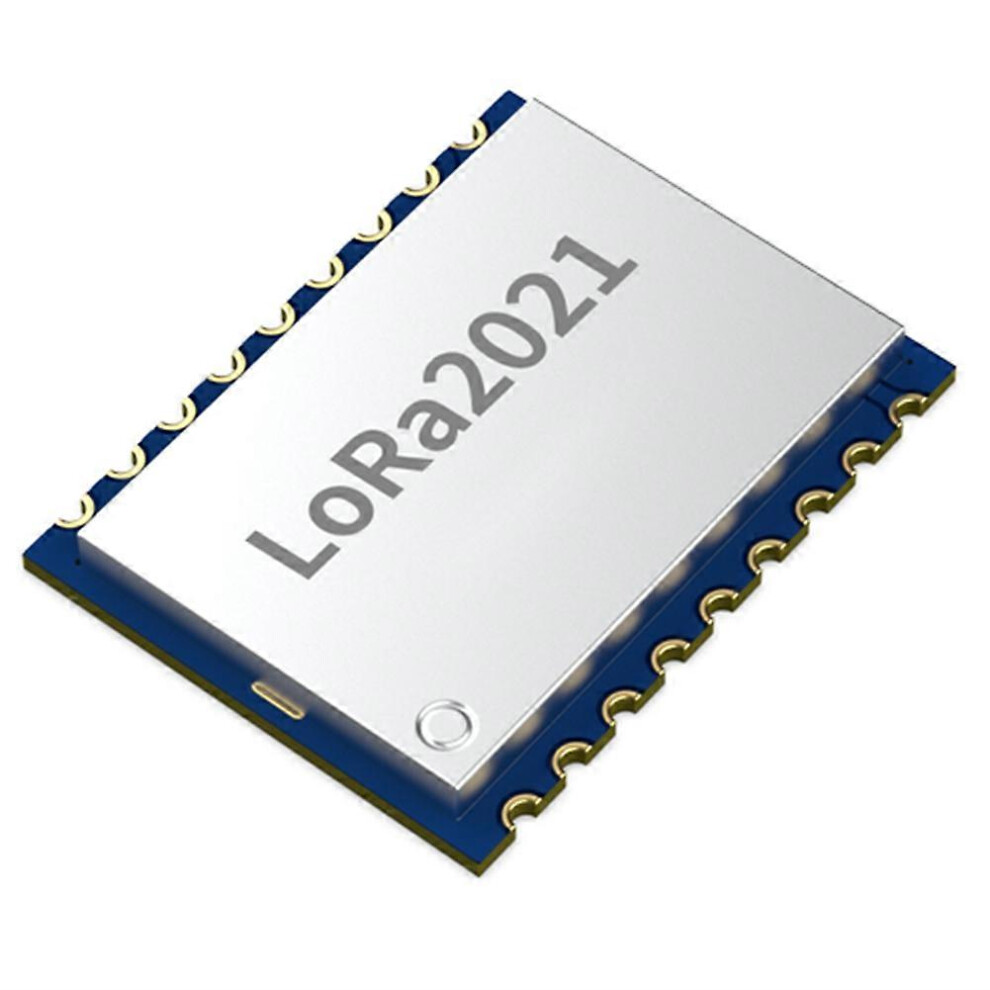

LoRa LR1121 Wireless RF Module Sub-GHz Satellite Band Wireless Lora RF Module 2.6 Mbps Data Rate 433MHz

LoRa LR1121 Wireless RF Module Sub-GHz Satellite Band Wireless Lora RF Module 2.6 Mbps Data Rate 433MHz Description

Versatile ultra-low-power communication module supporting a wide range of frequencies including 433/470MHz, 868/915MHz, and 2.4GHz dual-band.

Capable of long-distance communication, reaching over 5000 meters in open areas.

Supports LoRa and (G)FSK modulation, as well as Sigfox modulation and LR-FHSS.

Compliant with LoRaWAN specifications and highly configurable for various applications.

Sub-GHz Receiver Sensitivity up to -144dBm @BW=62.5KHz,SF=12; Adjustable transmitter power up to 22 dBm; Extremely low sleep current (The LoRa1121 module, featuring SEMTECH's LR1121 chip, is designed for long-distance communication. It is compliant with LoRaWAN specifications and is highly configurable to suit various applications. The product printed words may vary depending on the batch, but this does not affect use.

Color: As Shown

Material: PCB

Specification: 433MHz

Package Contents:

1*Wireless RF Module

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
