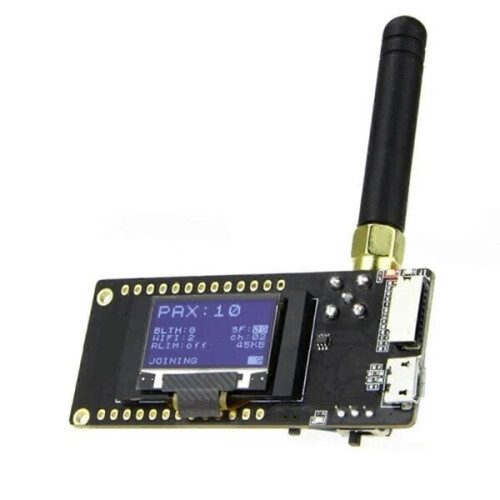

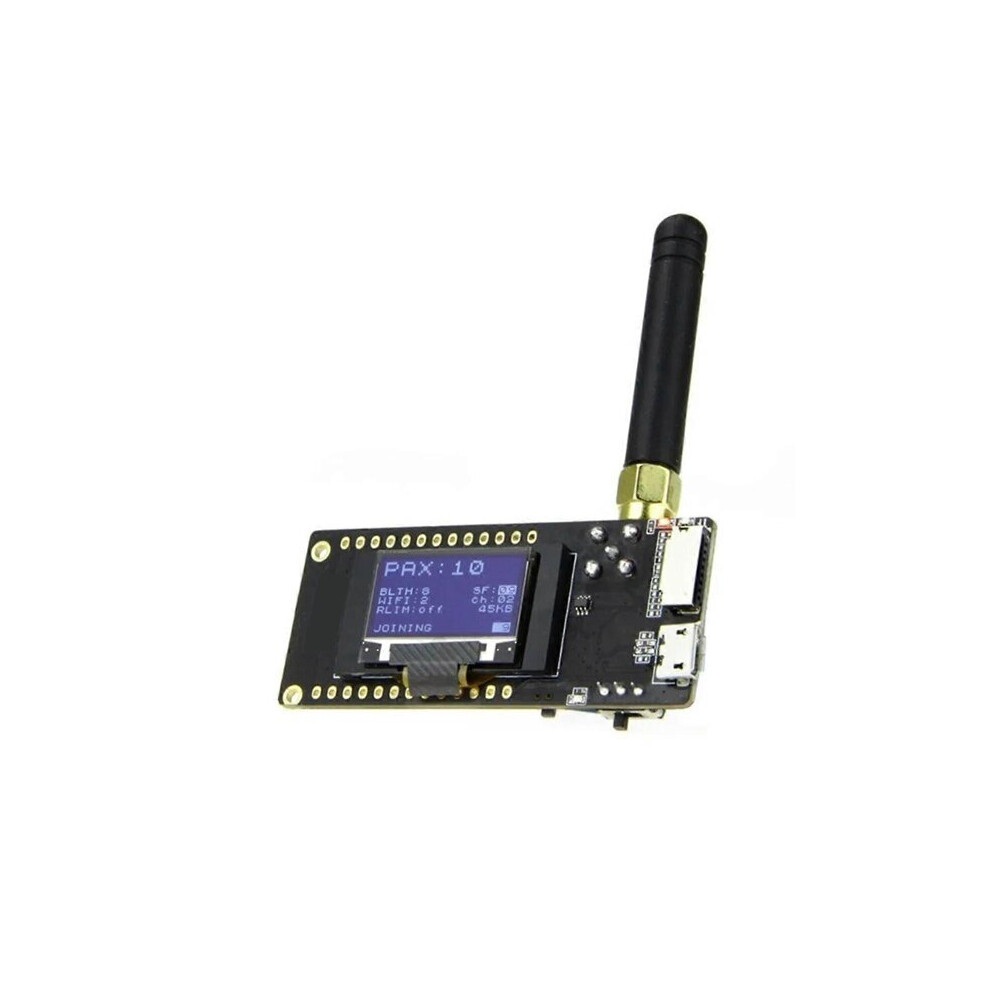

LoRa Module with -139dBm Receiver Sensitivity, Automatic Frequency Correction Gain Control, 868MHz SPI Wireless Chip for Arduino Raspberry Pi

LoRa Module with -139dBm Receiver Sensitivity, Automatic Frequency Correction Gain Control, 868MHz SPI Wireless Chip for Arduino Raspberry Pi Description

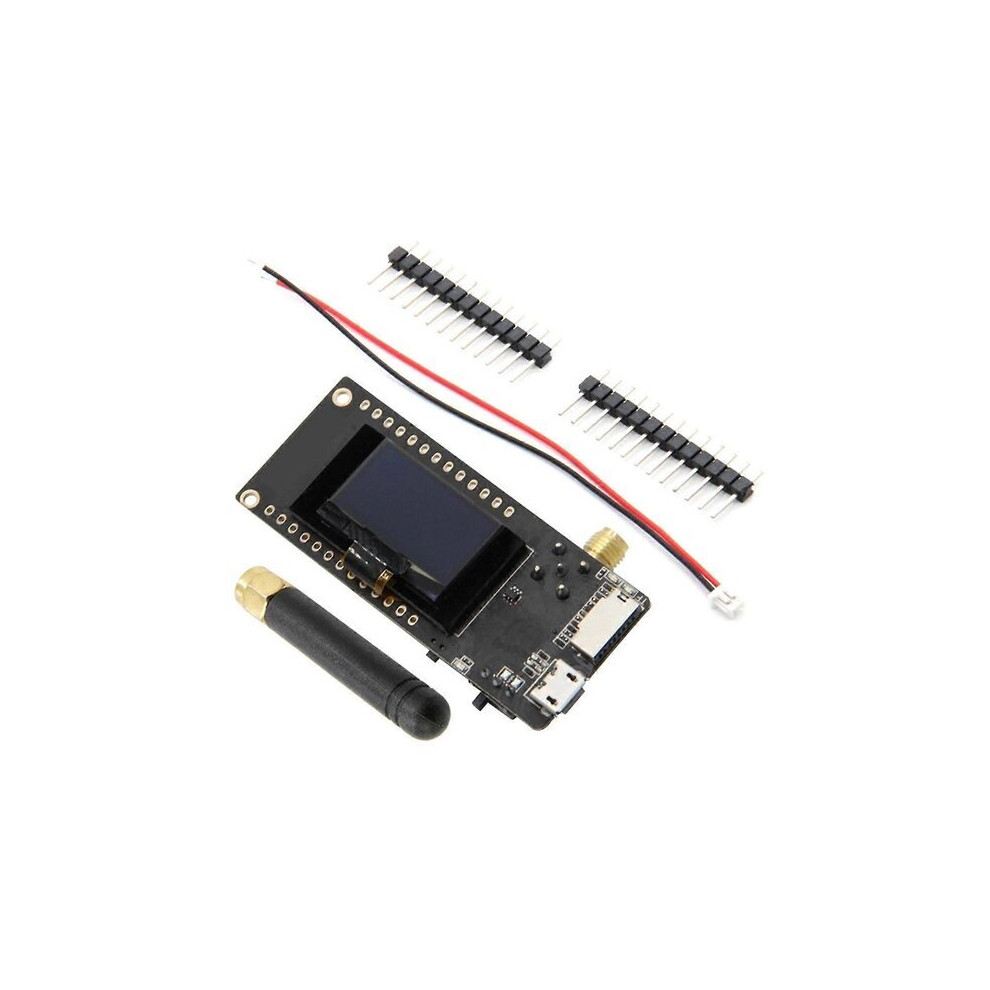

Product Details ①. Automatic frequency correction and gain control for stable signal transmission ②. Highly configurable data packet handler for flexible data management ③. High sensitivity reception down to -139dBm for long-distance communication ④. Multiple modulation modes including GFSK, MSK, GMSK, LORA and OOK for diverse applications Specification ①. Material: PC+plastic ②. Operating voltage: 1.8-3.7V ③. Operating current: 10-14mA ④. Transmit current: 120mA@+20dbm, 90mA@+17dbm, 29mA@+13dbm ⑤. Operating frequency: 433/868/915MHz ⑥. Transmit power: +20dbm ⑦. Receive sensitivity: -139dBm@LoRa &62.5Khz&=12&146bps, -136dBm@LoRa &125Khz&=12&293bps, -118dBm@LoRa &125Khz&=6&9380bps, -123dBm@&5Khz&1.2Kbps ⑧. Frequency error: +/- 15kHz ⑨. Data rate: 1.2K-300 [email protected]@lora ⑩. Interface: SPI ⑪. Operating temperature: -40C to +85C ⑫. Color: as shown Package Contents ①. 1x Lora Module (without memory card) ②. 1x Power Cable (JST 2pin 1.25mm) ③. 1x Antenna Warm Tips ①. Product appearance may vary between batches but does not affect functionality ②. Color may appear slightly different due to light reflection and display variations ③. Measurement error of +/- 1-3cm is allowed
