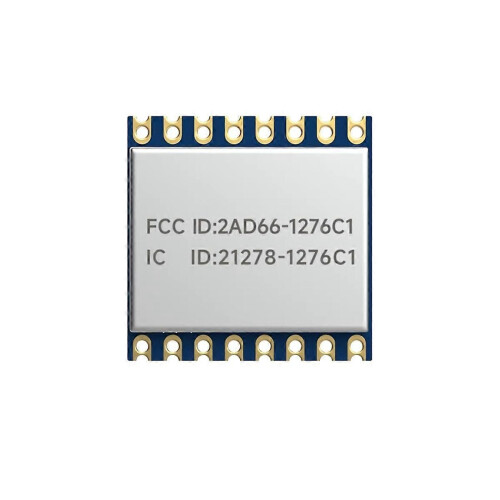

LoRa Wireless Transmission Module SX1276 Module LoRa1276-C1100mW 20dBm 915MHz

LoRa Wireless Transmission Module SX1276 Module LoRa1276-C1100mW 20dBm 915MHz Description

LoRa Wireless Transmission Module SX1276 Module LoRa1276-C1100mW 20dBm 915MHz
1. Frequency Range: 915 MHz
2. Sensitivity: -139 dBm @ LoRa
3. Maximum Output Power: 20 dBm
4. Low Receive Current: 10.8 mA
5. Sleep Current Less than 1.5 μA
Data Rate: 1.2-300 Kbps @FSK, 0.018-37.5 Kbps @ LoRa
LoRa, (G)FSK Modulation Modes
Built-in Antenna ESD Protection
127 dB Dynamic Range RSSI
256-Byte FiFo with Frequency Hopping
Built-in Temperature Sensor
Unobstructed Signal
Operating Temperature Range: -40C to +85C
Applications
1. Remote Meter Reading
2. Industrial Control
3. Home Automation Telemetry
4. Toy Control
5. Sensor Networks
6. Tire Pressure Monitoring
7. Health Monitoring
8. Wireless PC Peripherals
LoRa1276-C1 The LoRa module uses the for SX1276 device, which utilizes LoRa's spread-spectrum frequency-hopping modulation technology. Its communication range and receive sensitivity far exceed those of existing FSK and GFSK modulations. It also allows multiple transmitted signals to occupy the same channel without being affected, and exhibits exceptional interference resistance. The module's antenna switch is integrated within the chip. Its compact size and 100mW output power widely applicable in industries such as wireless meter reading and remote industrial control.
The LoRa1276-C1 series modules are manufactured and tested using a lead-free process and comply with ROHS and Reach standards.
Color: As Shown
Material: plastic
Package Contents:
1 * LoRa Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
