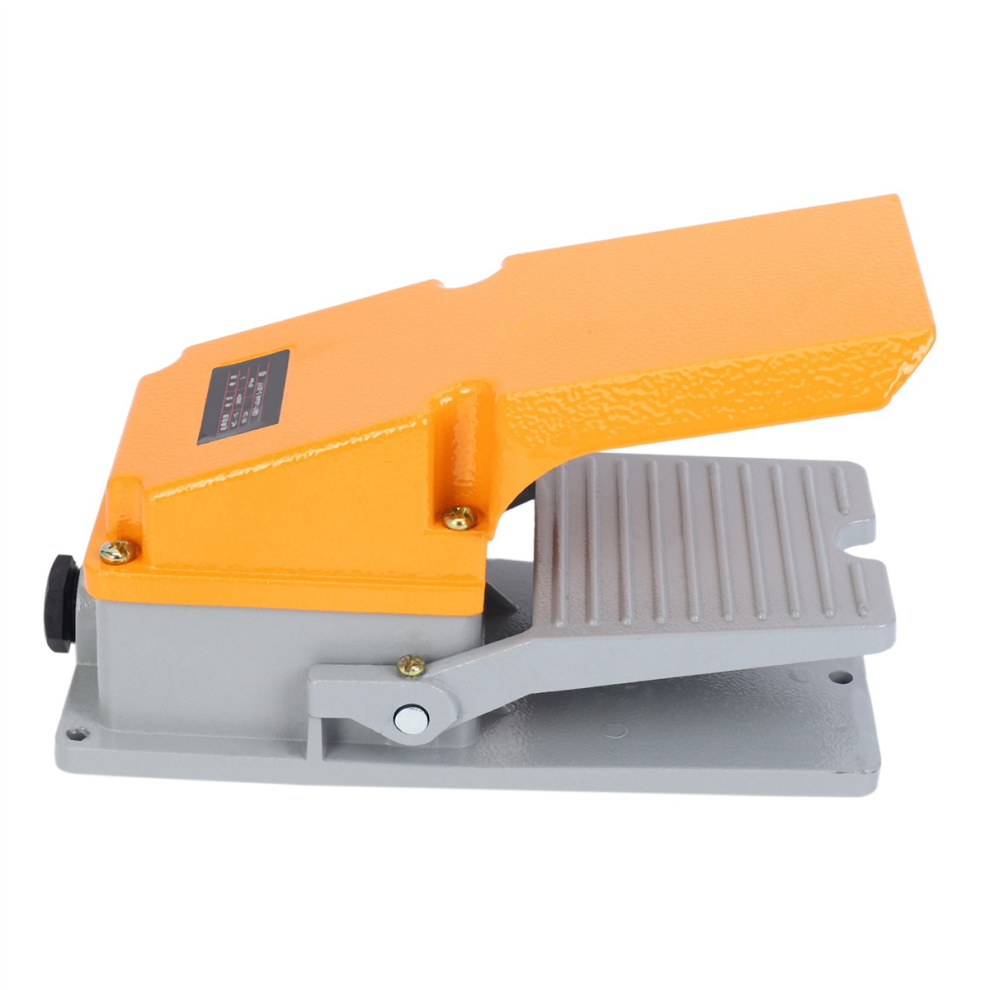

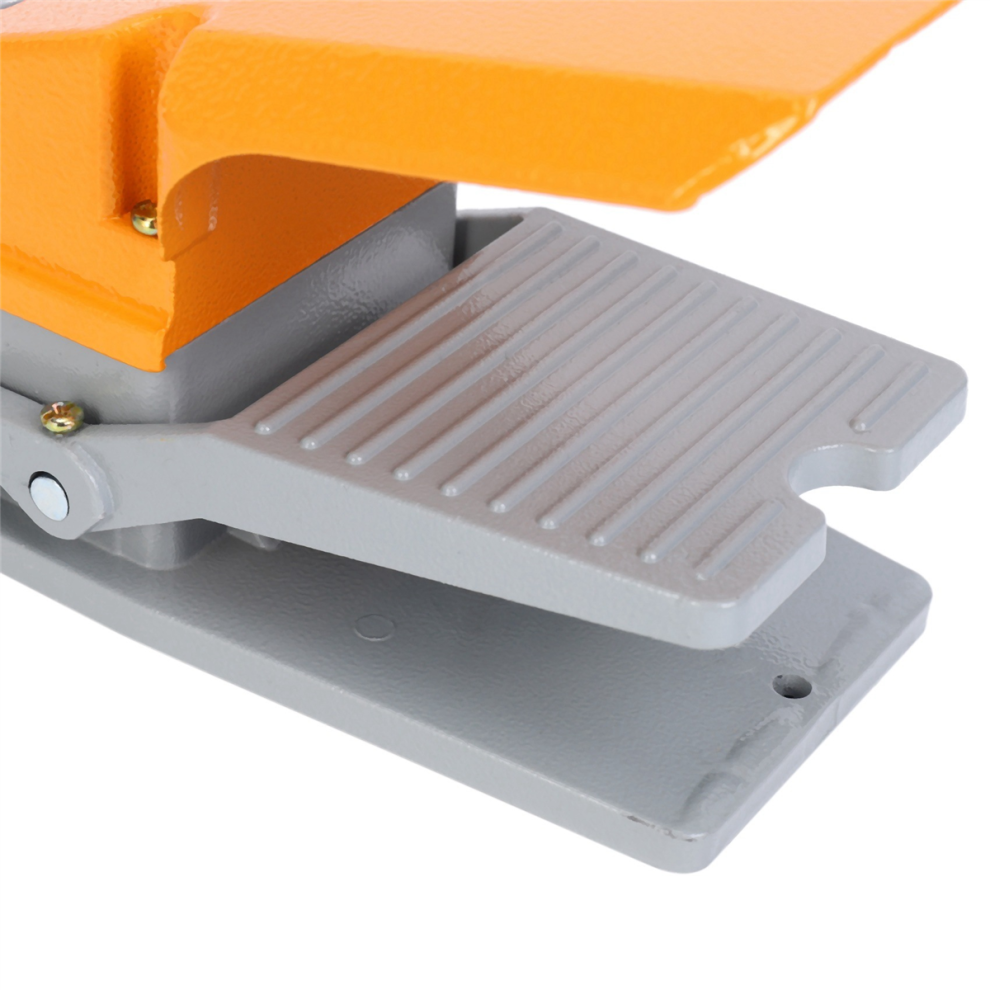

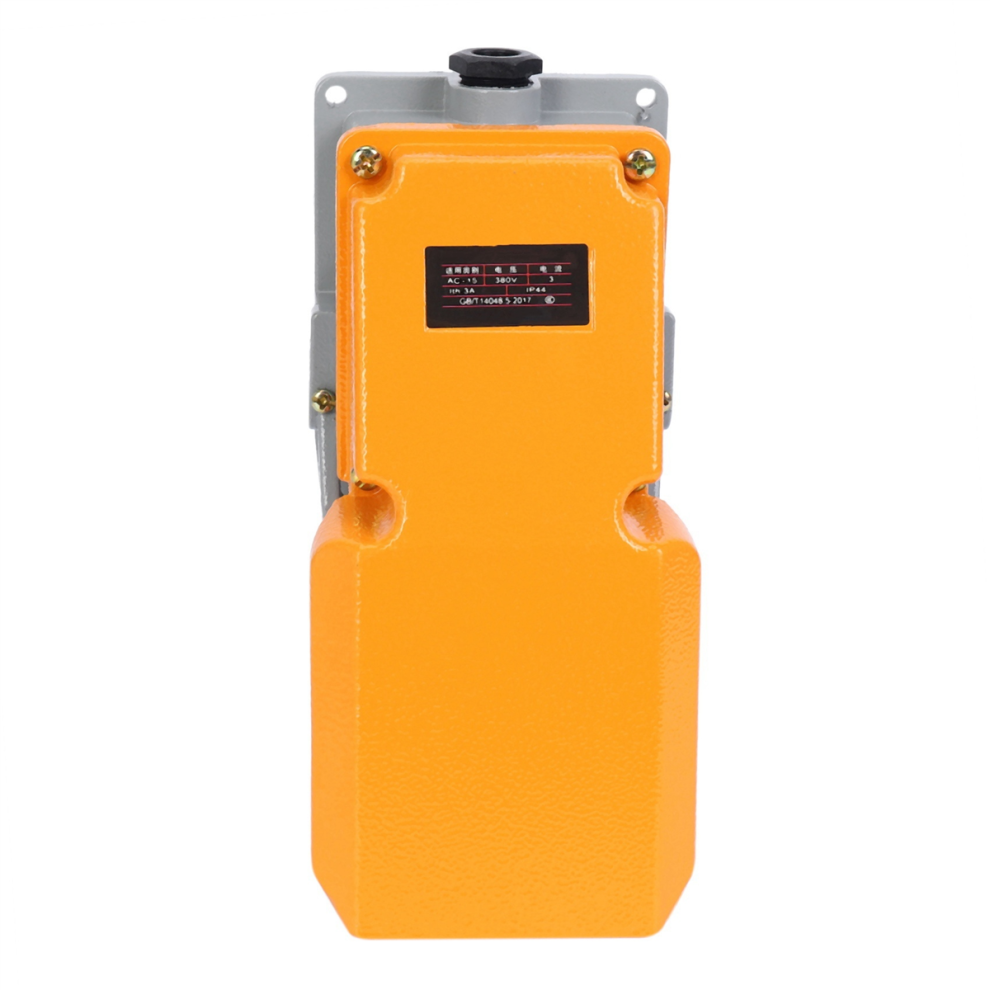

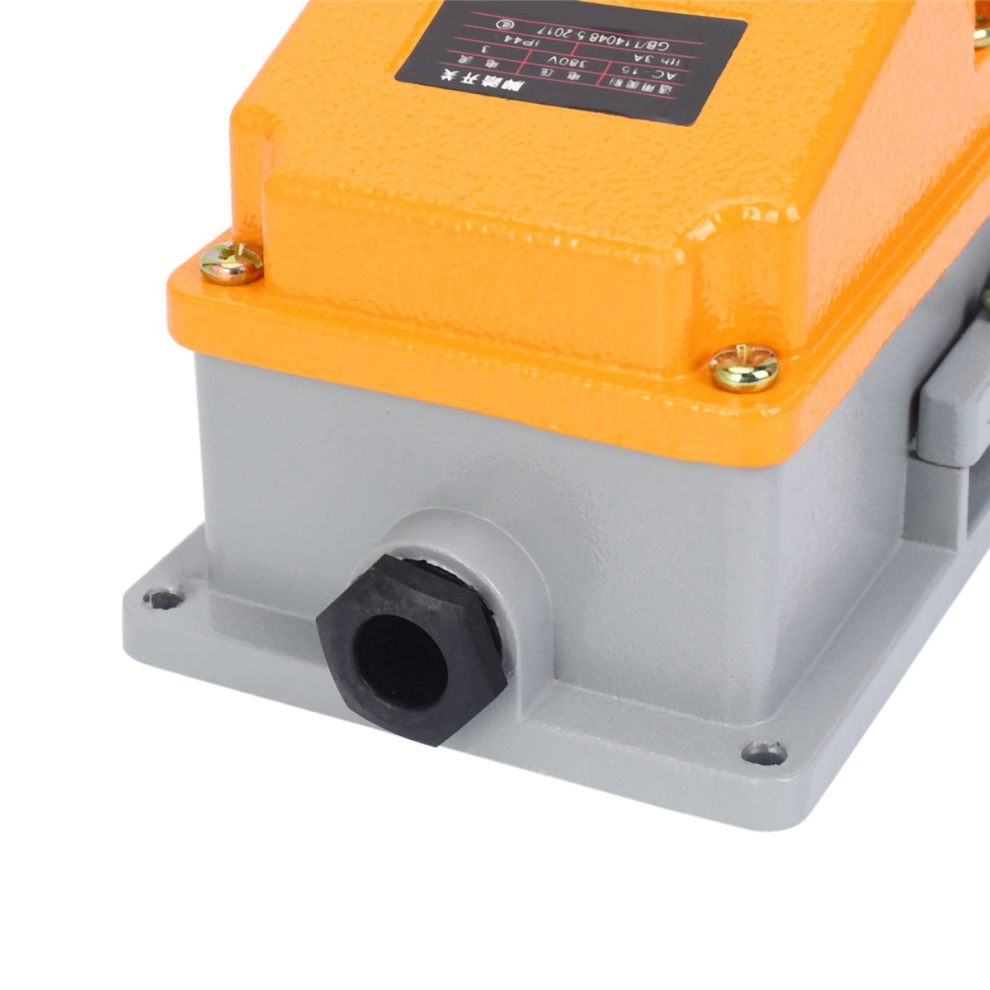

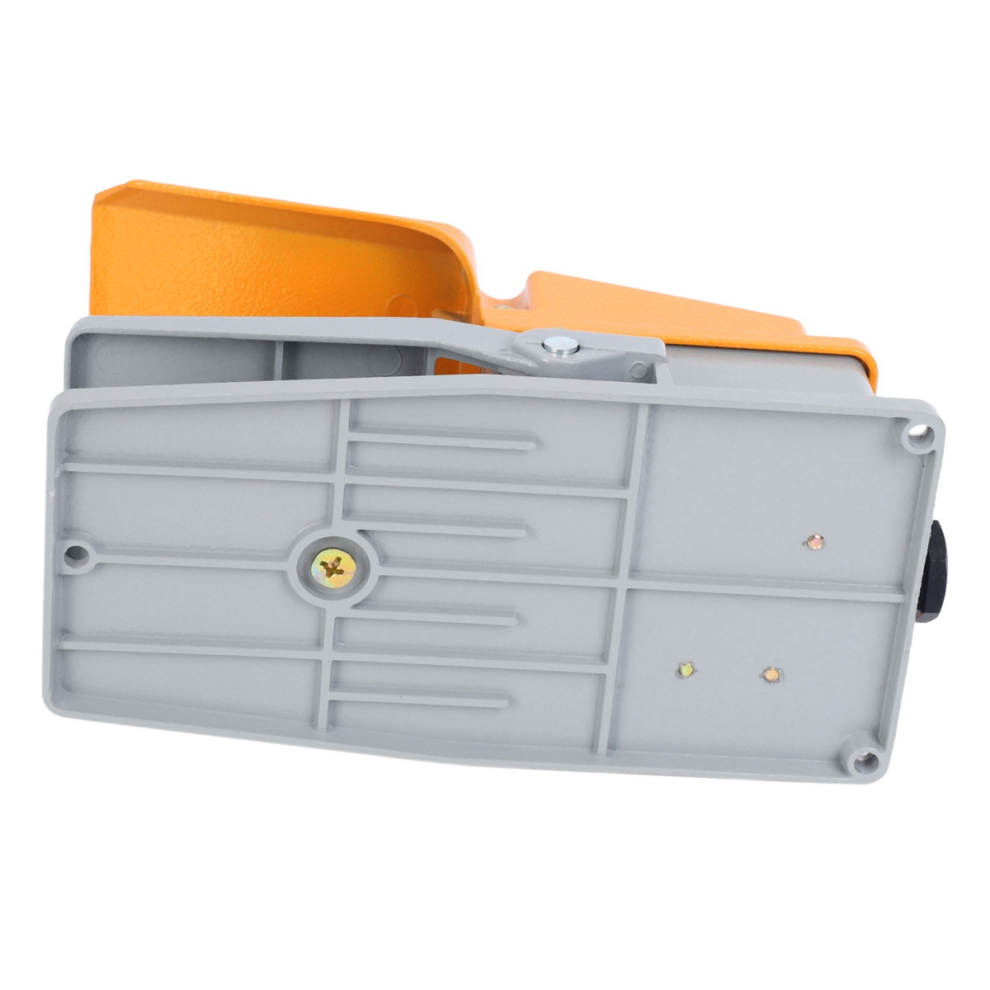

LT4 foot switch aluminium case treadle pedal for machine tool control silver contact

LT4 foot switch aluminium case treadle pedal for machine tool control silver contact Description

Item Type: Switches
Features: 1NO+NC
Certification: CE
Current: 3A
Switch Type: Touch On/Off Switch
Model number and parameters
Model number Related product
LT4 Visiting...
finglaiGeneral
Model number LT4
Contact form 1NO+1NC
Action method Reset, Self-reset
Contact rating Reset: 3A@380VAC; Self-reset: 5A@380VAC
Case material Aluminium
Matched Micro-switch LXW5-11G2
Contact resistance 50mOhm max (First time)
Insulation resistance 100MOhm min at 500Vdc
Dielectric strength 2000Vac, 50Hz for 1min
Machine life 1x106 operations min
Electrical Life 1x105 operations min
IP Rating IP44
Operating temperature -25-70 Celsius
Operating humidity 45 to 85% RH, no condensation
Alias name LT4 pedal switch
colour: Yellow + gray
Material: aluminum
size: 20*9.7*7.3cm

Package Contents:
1*Foot switch
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
