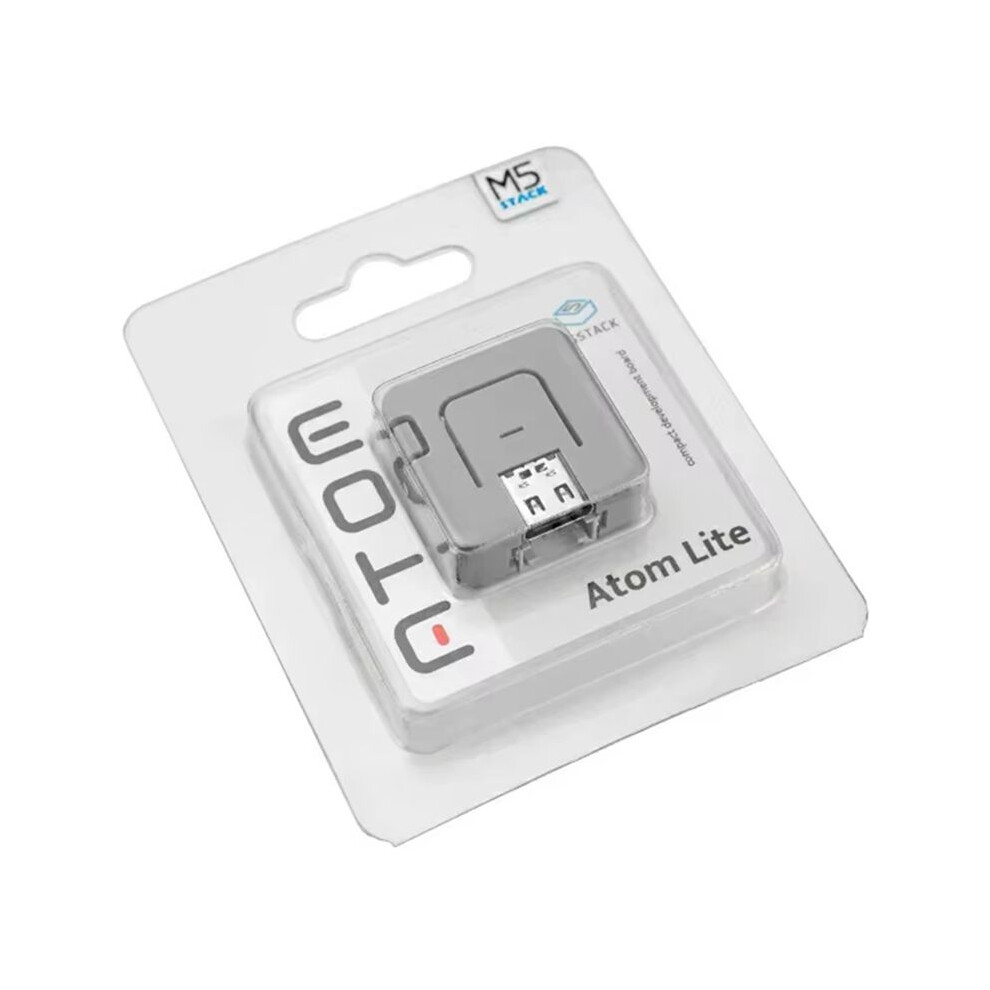

M5Stack ATOM Lite ESP32- Development Board Kit with WiFi Programmable Button IoT Node Module

M5Stack ATOM Lite ESP32- Development Board Kit with WiFi Programmable Button IoT Node Module Description

Is a very compact development board in the M5Stack development kit series. It provides more GPIOs for user customization which is very suitable for embedded home devices and in making toys.

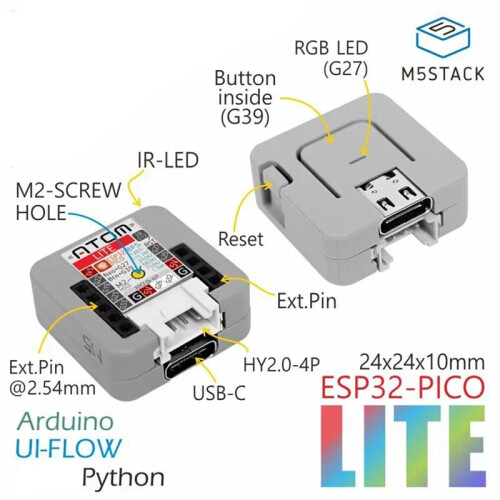

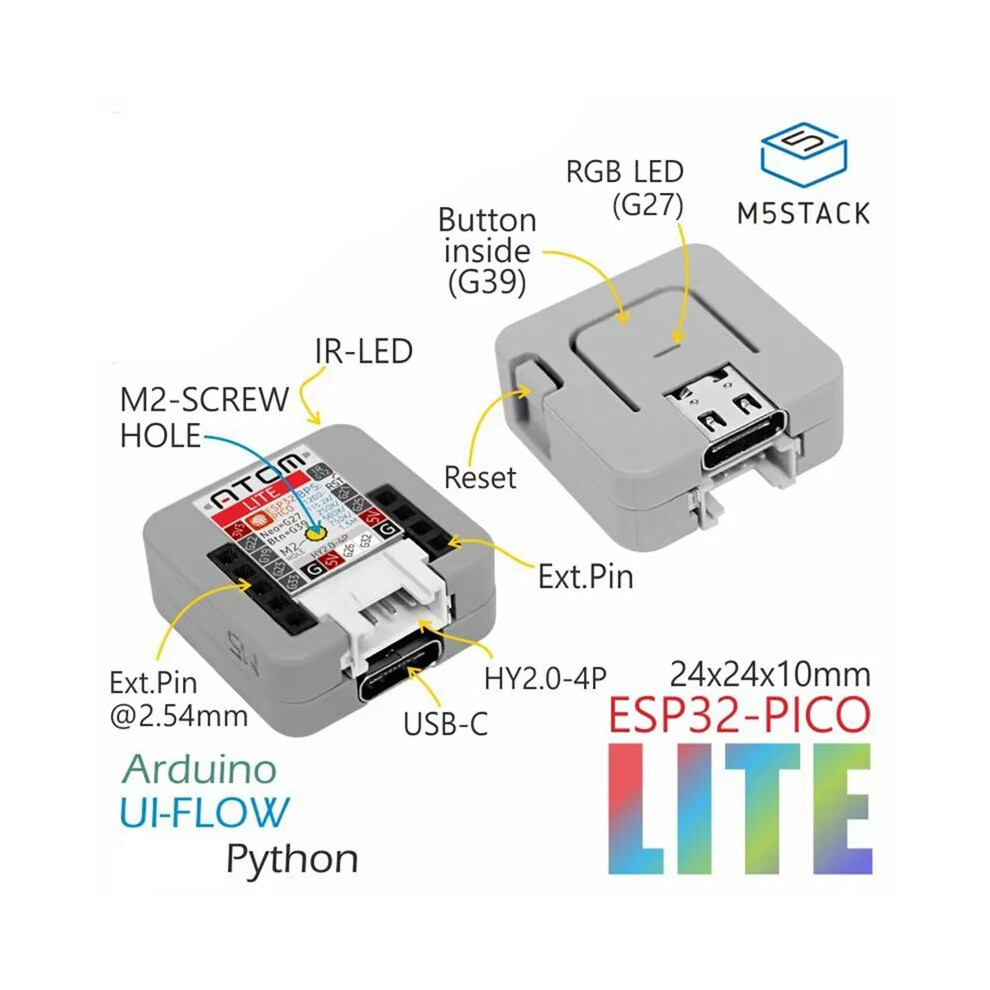

The main control adopts the ESP32- chip which comes integrated with Wi-Fi technologies and has a 4MB of integrated SPI flash memory. Atom Lite board provides an Infra-Red LED, a RGB LED, buttons, and a HY2.0 interface.

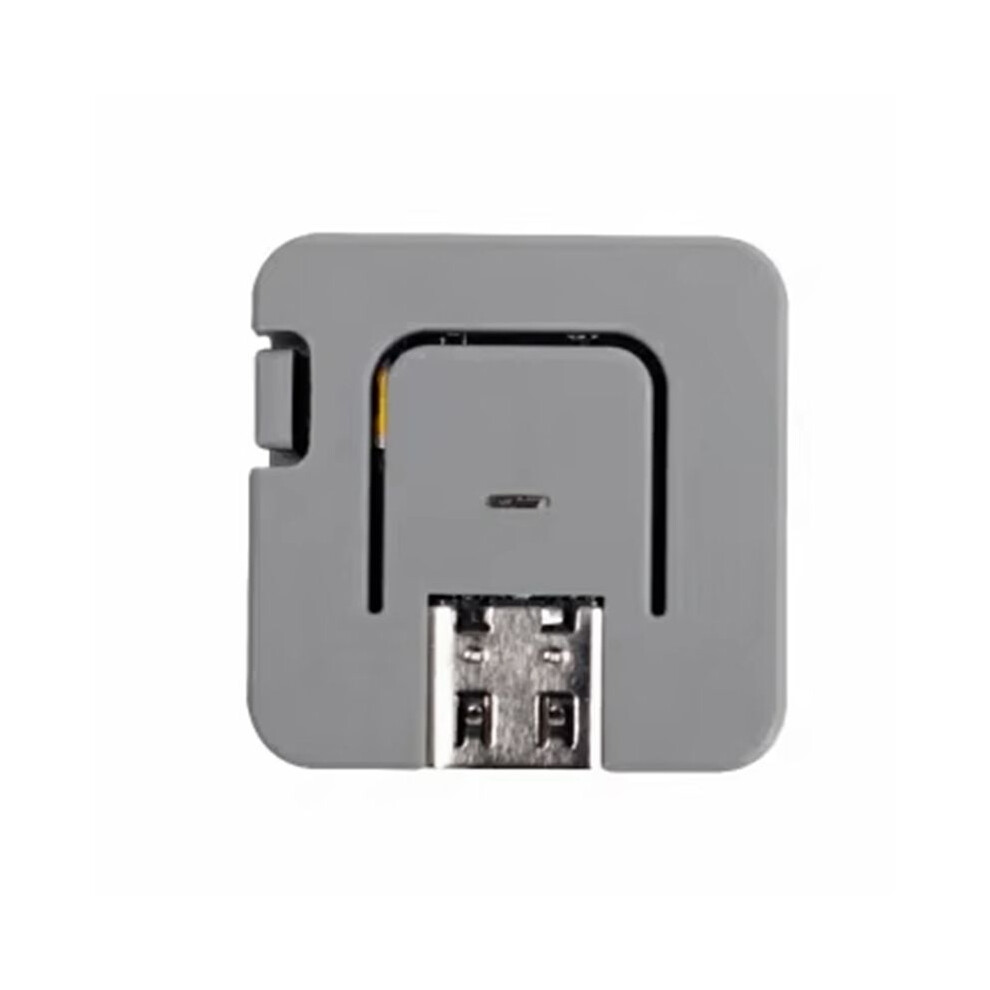

it can connect to external sensors and actuators through 6 GPIOs. The -board Type-C USB interface enables rapid program upload and execution.

Features:ESP32-based

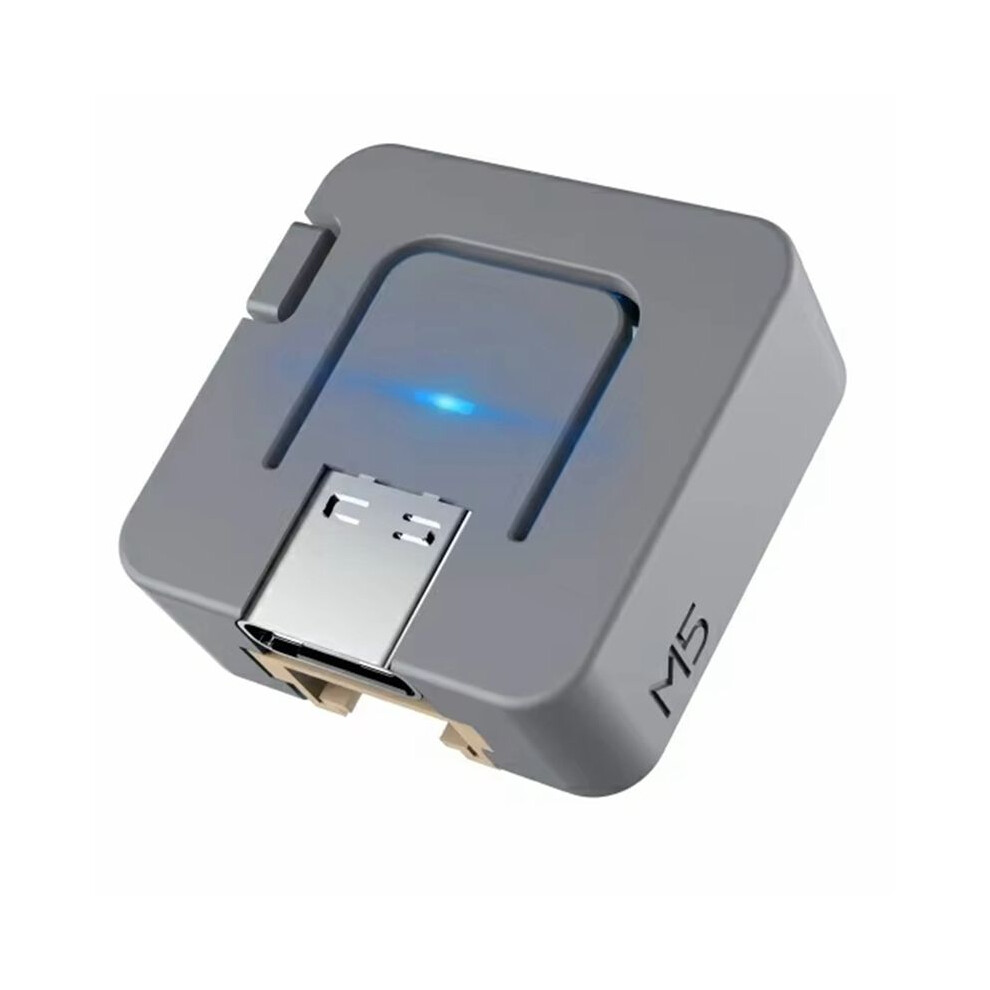

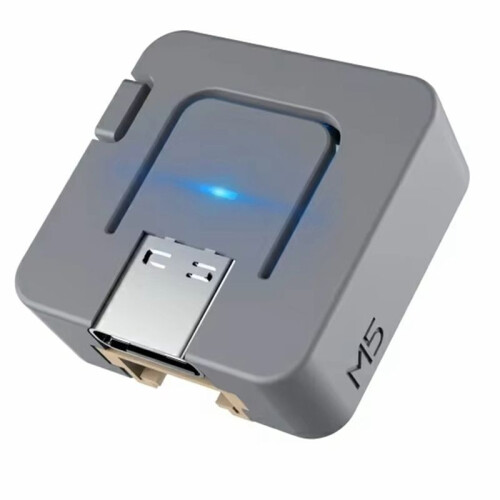

RGB LED(SK6812)
Programmable button
Built-in Infra-red
Extendable Pins & Holes
Program Platform: for , for UIFlow
Applications:Internet of things terminal controller;IoT node;Wearable peripherals;
ESP32: 240MHz dual core, 600 DMIPS, 520KB , Wi-Fi
Flash: 4MB
Power Input: 5V 500mA
Port: Type C x 1, GROVE(I2C+I/0+UART) x 1

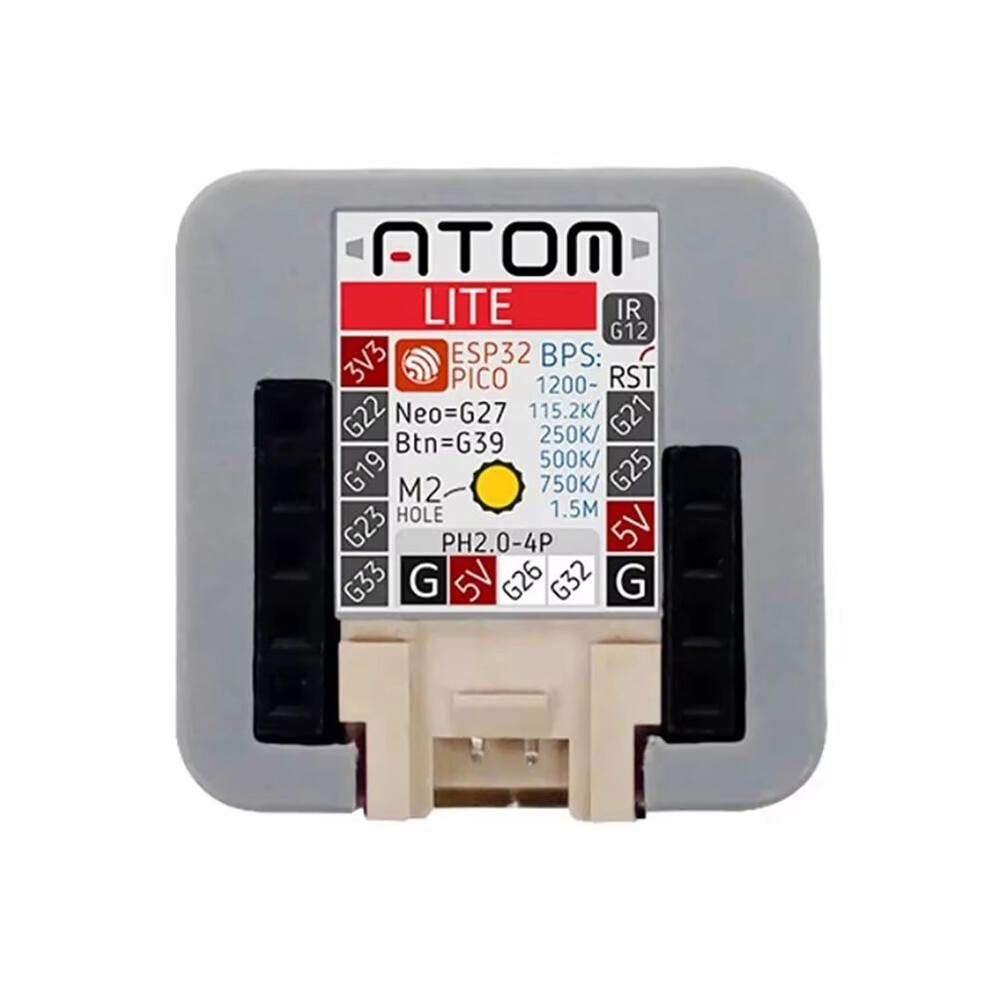

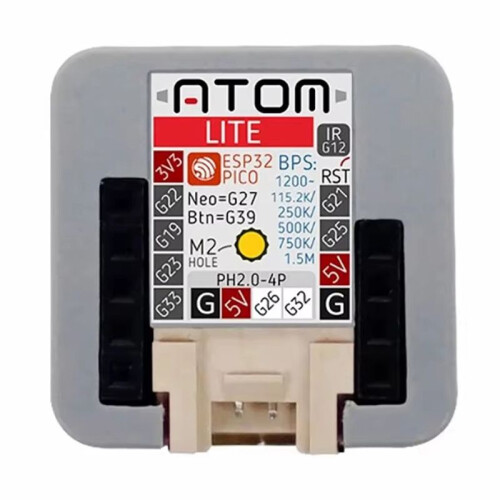

PIN Port: G19, G21,G22,G23,G25, G33
RGB LED: SK6812 3535 x 1
IR: Infrared transmission
Button: Custom button x 1
Antenna: 2.4G 3D Antenna
Operating Temperature: 0C to 40C
Color: Grey
Material: plastic

Package Contents:
1 x Development Board
