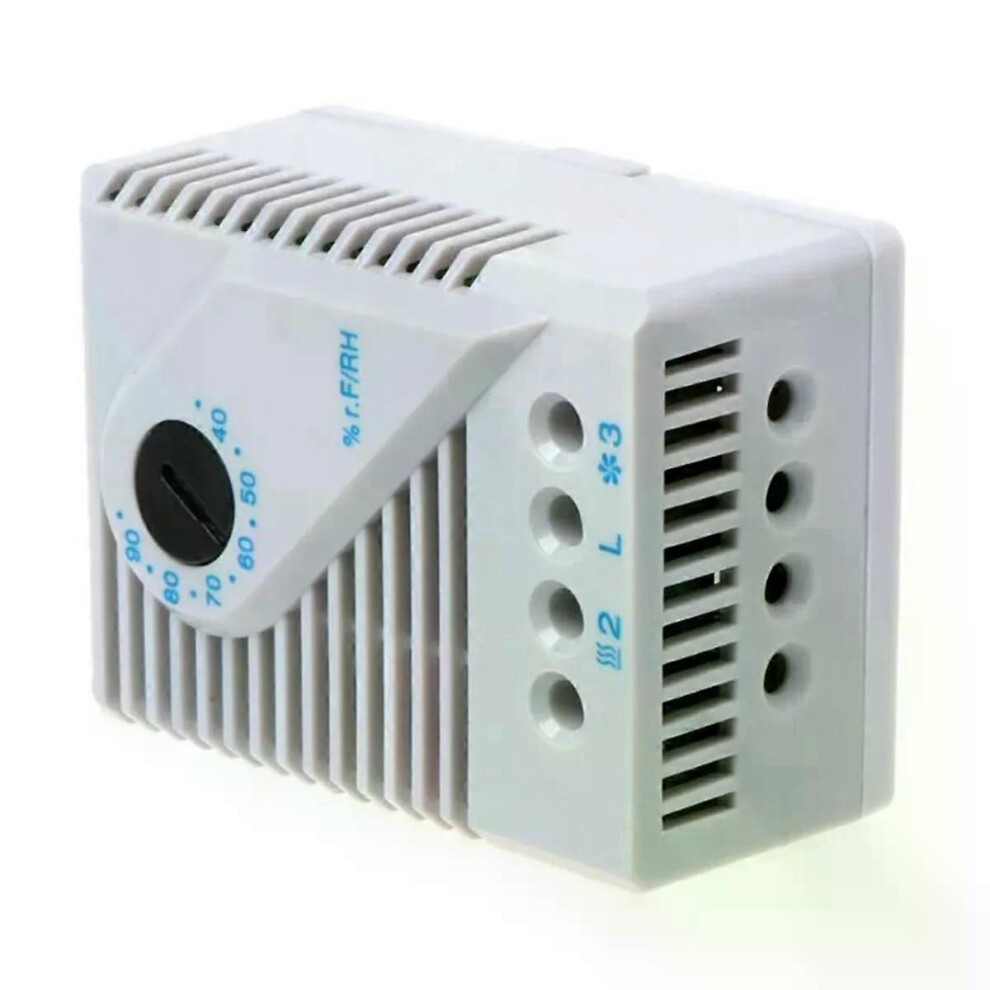

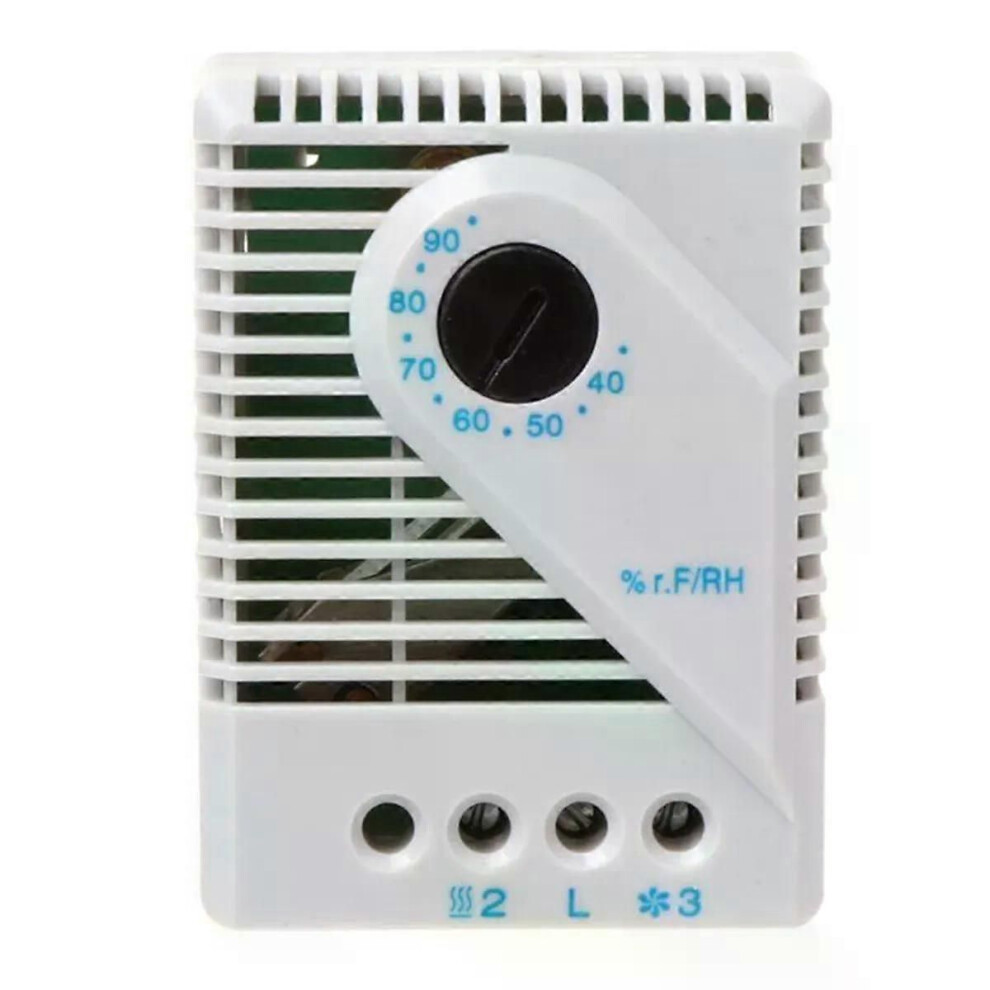

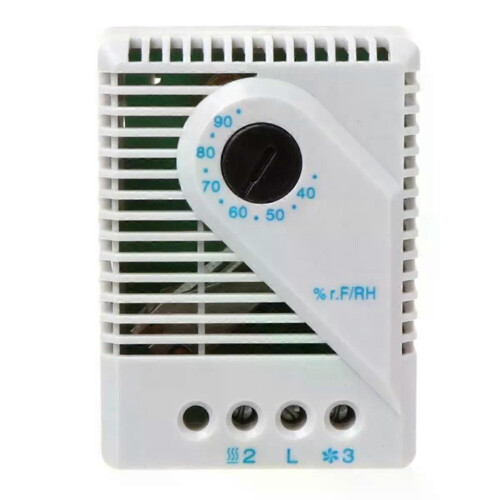

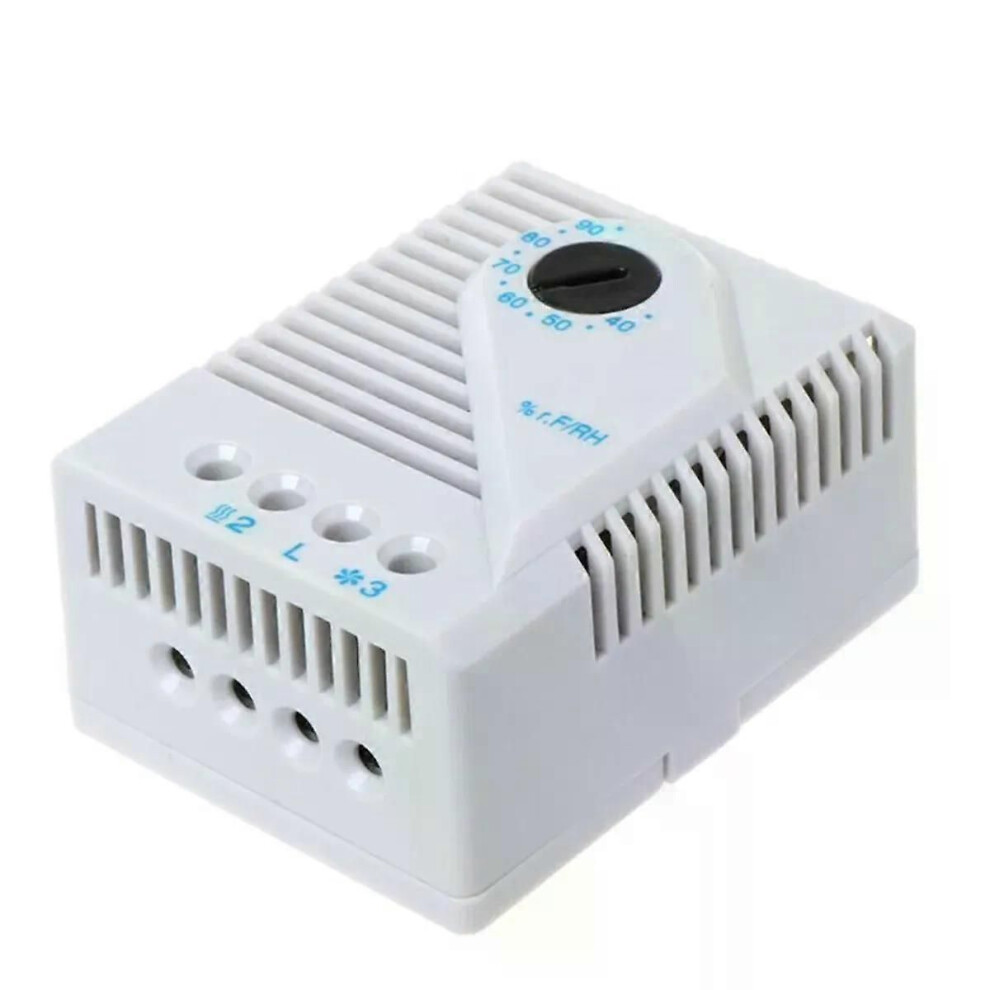

Mechanical Hygrostat Humidity Controller Connect Fan Heater for Cabinet MFR012

Mechanical Hygrostat Humidity Controller Connect Fan Heater for Cabinet MFR012 Description

The electromechanical hygrostat MRF012 is designed to control enclosure heaters, so that the dew point is raised when a critical relative humidity of 65% is exceeded. In this way condensation and is effectively prevented.
Switch difference:4% RH (3% tolerance)
Permissible velocity:15m/sec type:change-over resistance:100 000 cycles Min.switching capacity:20V AC/for DC 100 mA
Max.switching capacity:250 , 5 (1) A for DC 20W
EMC:acc.to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection:3-pole terminal for 2.5mm2;, clamping torque 0.5Nm max.: rigid wire 2.5mm2;,stranded wire (with wire end ferrule) 1.5mm2;
Mounting:clip for 35mm DIN rail, EN50022
Casing:plastic according to UL94 V-0, light grey
Fitting position:variable
Operarting/Storage temperature:0 to +6(+32 to +140)/-20 to +80(-4 to +176)
for Protection type:IP20
Note:Due to different production batches, there may be slight color difference or difference in the actual product, which will not affect the use.
Colour:As Shown
Material:Plastic
Size:67x50x38mm Package Contents:
1 * Humidity Controller Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
